3-78 — FIXING PARTS; AIR PIPING (#144759) — 94 parça

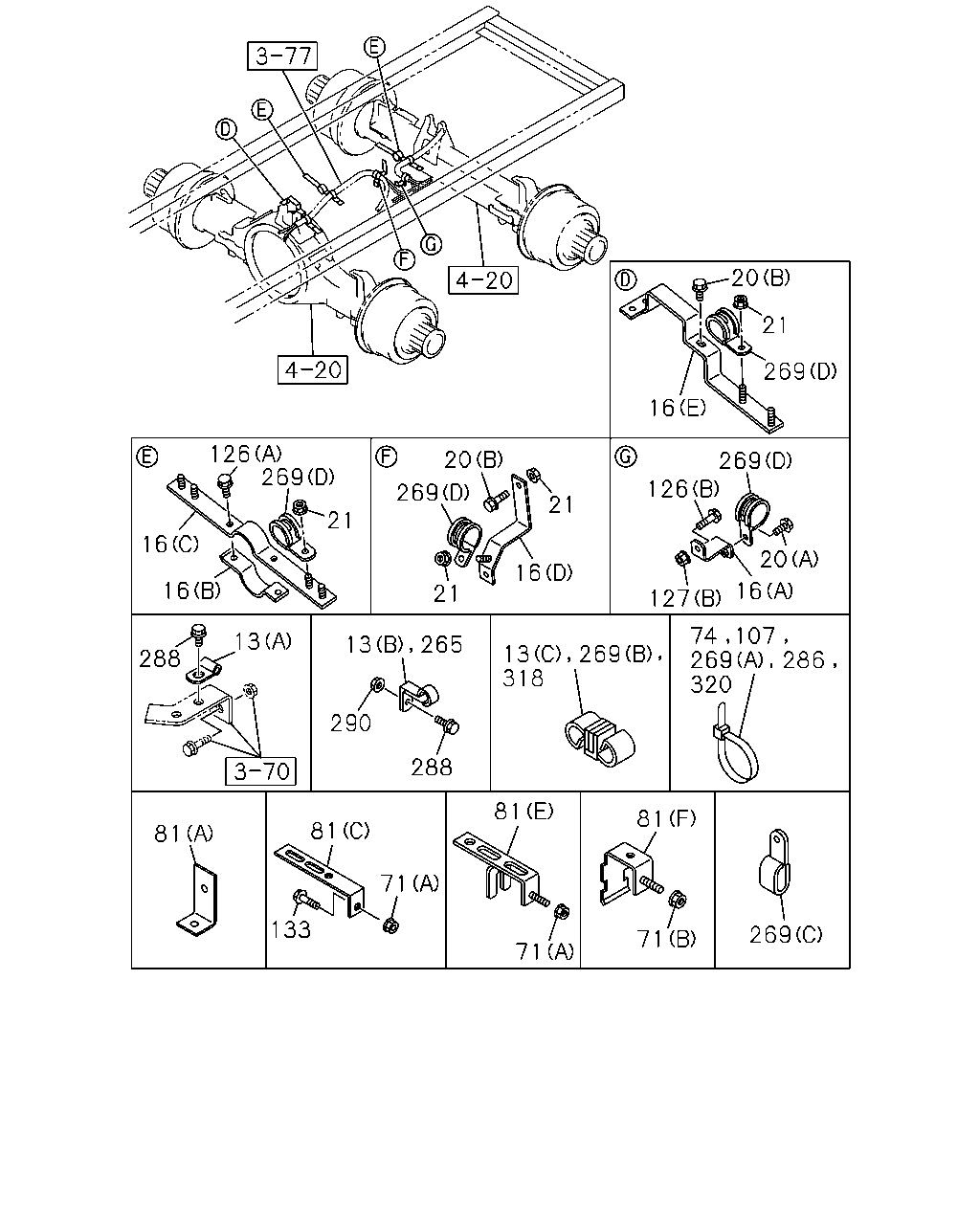

çizim 431778
20 21 269 16 269 126 20 16 127 74 107 286 269 320 269 71 81 81 318 13 269 71 71 81 133 81 288 13 16 16 21 269 126 269 20 21 16 21 265 288 13 290
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 02 1 1407-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 03 1 1407-
13 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 01 1 1407-
13 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1407-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 03 1 1407-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 02 1 1407-
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1407-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1407-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1407-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1407-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1407-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1407-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1407-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1407-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1407-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1407-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1407-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 10 1 1407-
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 07 1 1407-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1407-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1407-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1407-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1407-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1407-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1407-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1407-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1407-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1407-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 50 1 1407-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 51 1 1407-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1407-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1407-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1407-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1407-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1407-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1407-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1407-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1407-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (B) ID=12 & 15 		1-09709-281-1 01 1 1407-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1407-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1407-
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1407-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (B) ID=15 & 15 		1-09709-282-1 01 1 1407-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1407-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1407-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1407-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 1407-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1407-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1407-

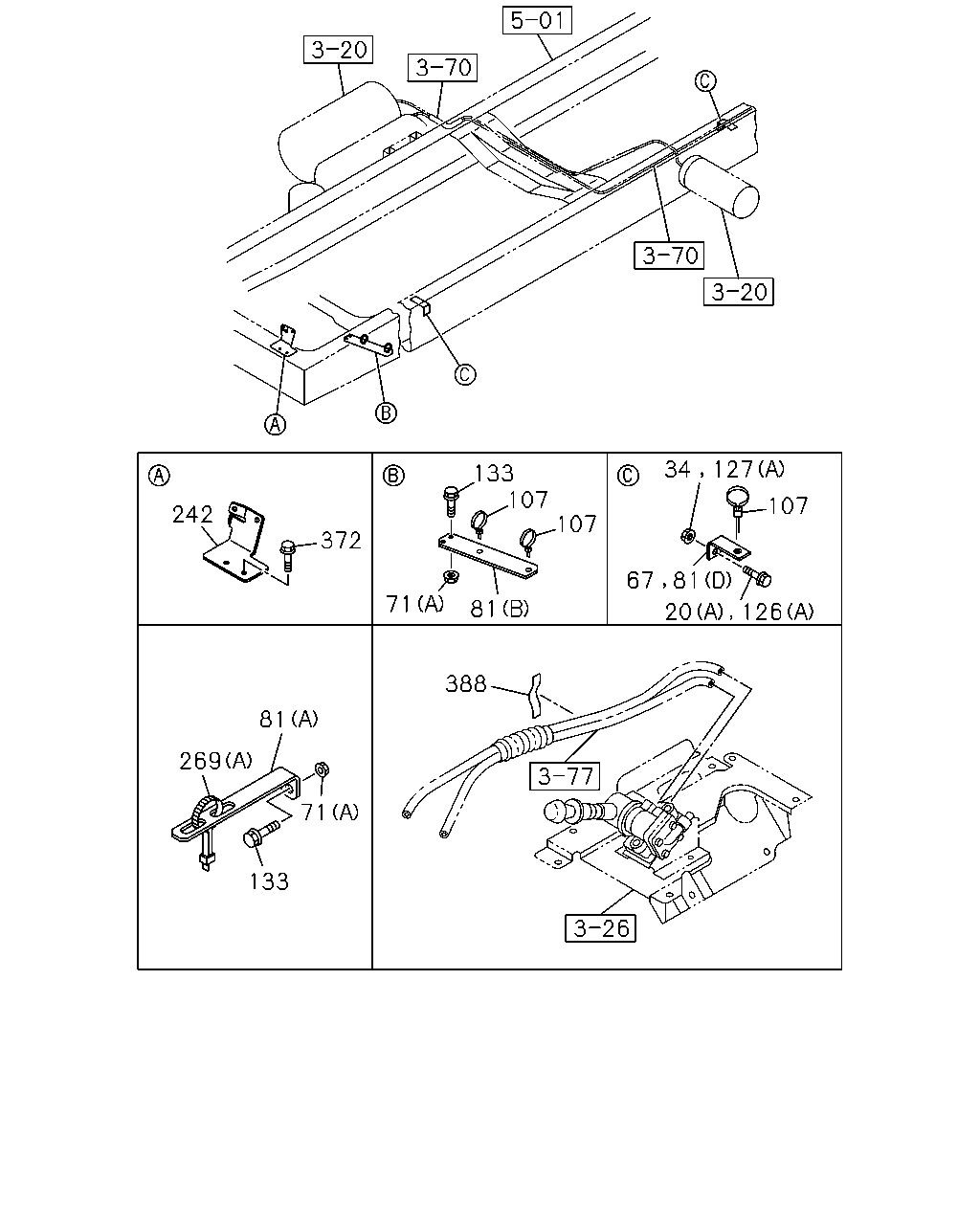

çizim 433141
242 372 133 107 107 81 71 34 127 67 81 20 126 107 388 81 71 133 269
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1407-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1407-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1407-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1407-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1407-
67 BRACKET; CLIP
L=60 H=30 		1-47477-716-1 01 1 1407-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1407-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1407-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1407-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1407-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1407-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1407-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1407-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1407-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 50 1 1407-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 51 1 1407-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1407-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1407-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1407-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1407-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1407-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1407-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1407-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1407-
242 BRACKET; PIPE CLIP 8-98158-602-0 01 1 1407-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (B) ID=12 & 15 		1-09709-281-1 01 1 1407-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1407-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1407-
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1407-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (B) ID=15 & 15 		1-09709-282-1 01 1 1407-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
388 SEAL
100X40 		1-72498-022-1 03 1 1407-
