3-22 — AIR CONTROL PARTS (#144749) — 123 parça

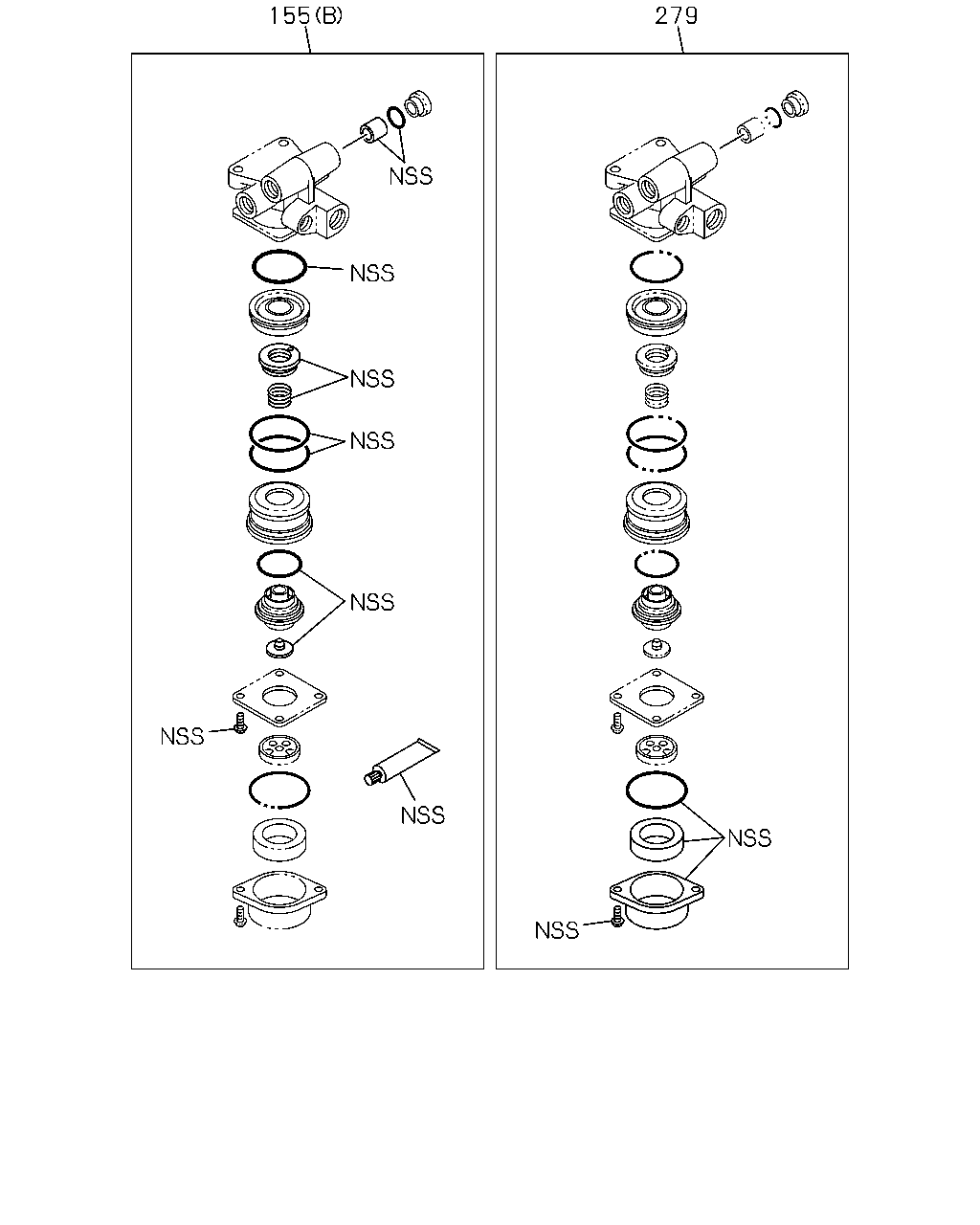

çizim 432290
279 155
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1407-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1407-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1407-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1407-
çizim 432472
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1407-

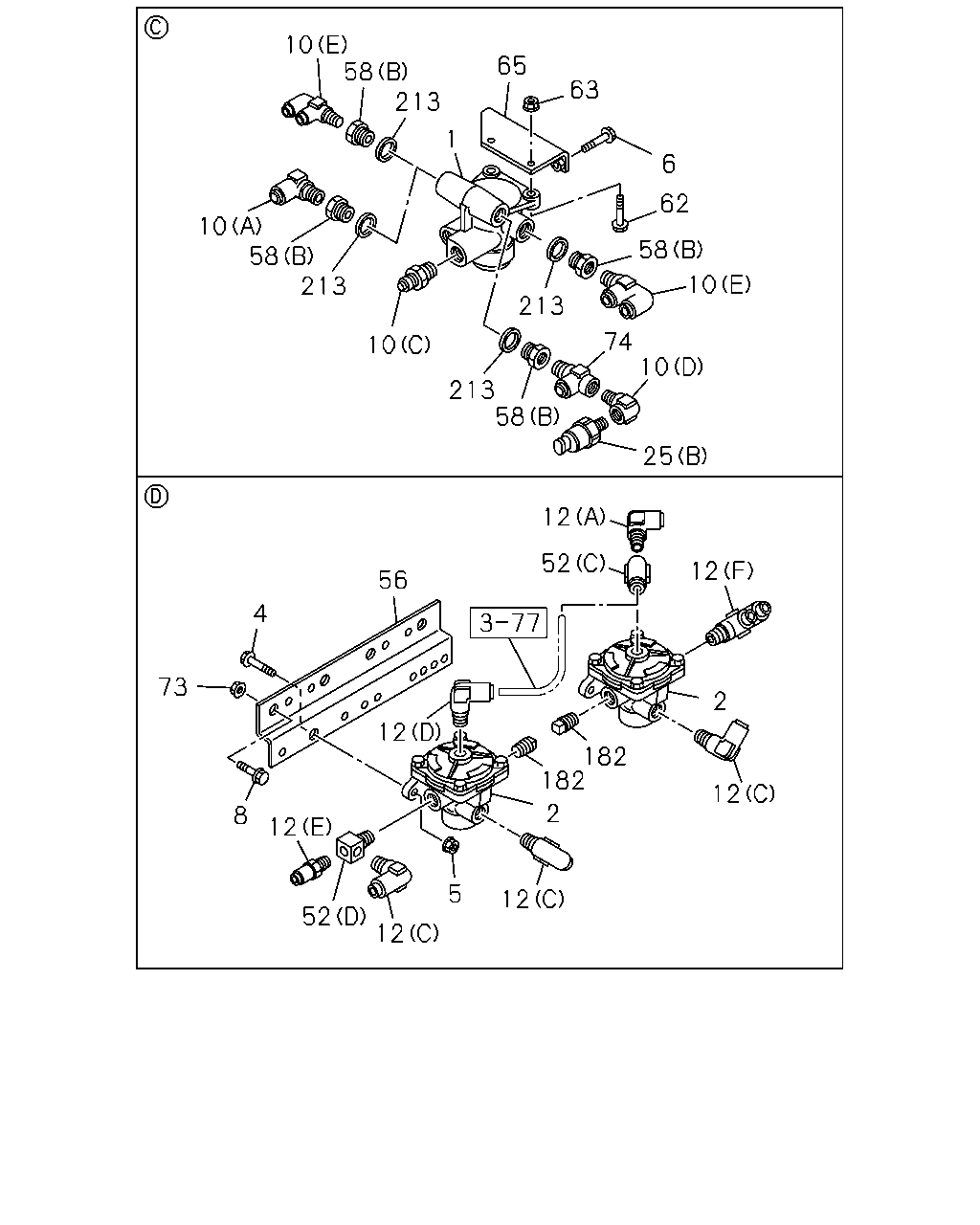

çizim 432673
10 213 58 1 65 6 63 62 58 10 10 25 74 213 213 10 213 58 10 58 12 52 12 2 12 182 182 2 12 5 12 52 12 8 4 56 73 12
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1407-
2 VALVE; RELAY 1-48210-875-0 01 1 1407-
2 VALVE; RELAY 1-48210-875-0 02 1 1407-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1407-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1407-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1407-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1407-
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 1407-
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1407-
10 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1407-
10 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1407-
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1407-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1407-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1407-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1407-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1407-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1407-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1407-
52 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1407-
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 1407-
58 ADAPTER
RIGID SEAT WO/ARM REST<TAZ> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1407-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1407-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1407-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1407-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1407-
58 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98148-475-0 01 1 1407-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1407-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1407-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1407-
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1407-
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1407-
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 1407-
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1407-

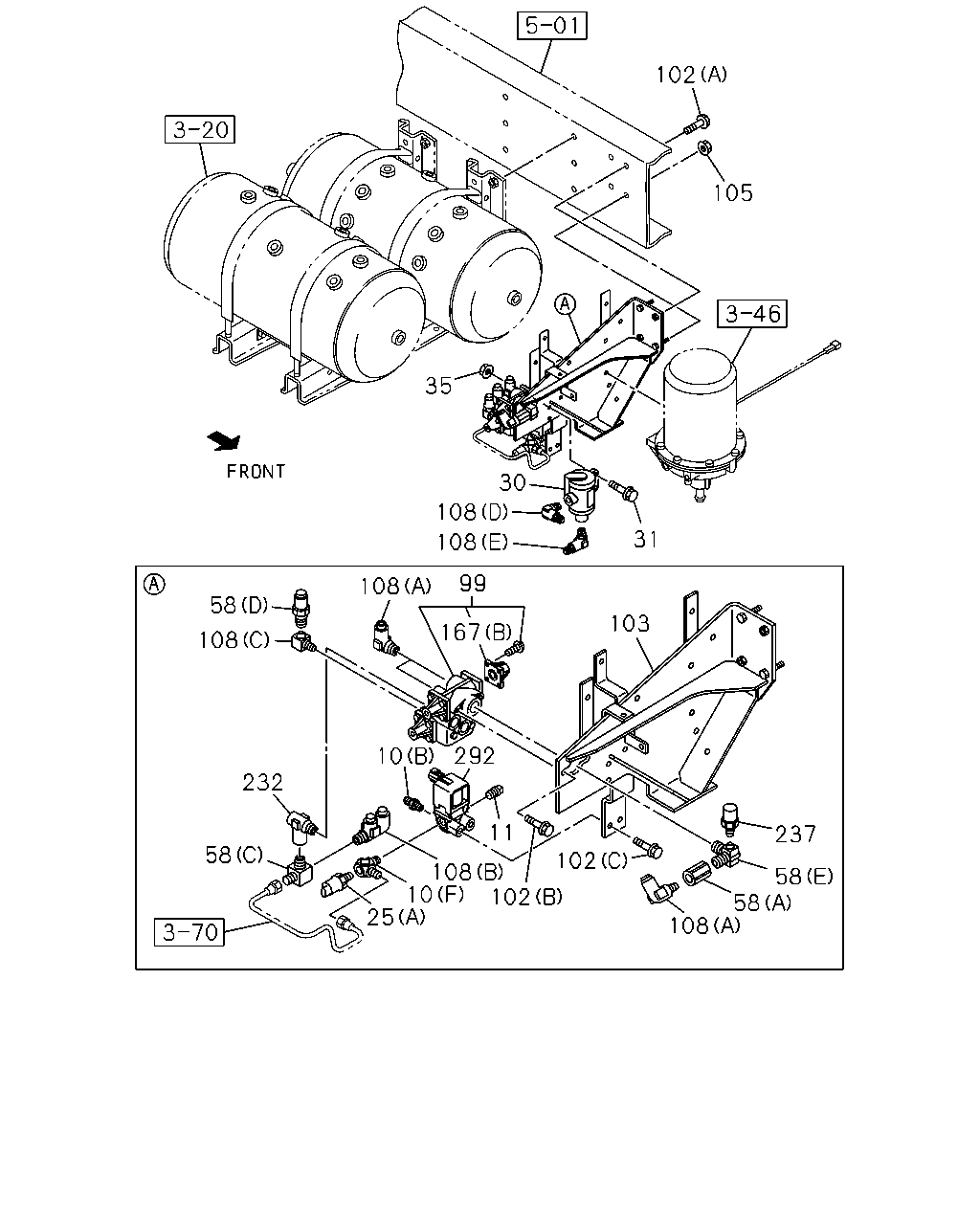

çizim 433126
102 105 35 108 30 31 108 108 99 58 108 167 103 237 58 58 108 102 11 292 10 232 58 25 108 10 102
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1407-
10 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1407-
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1407-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1407-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1407-
11 PLUG
PT1/4 		9-99204-513-0 01 1 1407-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1407-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1407-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1407-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1407-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1407-
58 ADAPTER
RIGID SEAT WO/ARM REST<TAZ> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1407-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1407-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1407-
58 ADAPTER
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1407-
58 ADAPTER
(E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1407-
58 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98148-475-0 01 1 1407-
99 VALVE; PROTECTION 1-48110-288-3 01 1 1407-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1407-
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1407-
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1407-
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 1407-
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1407-
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1407-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1407-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1407-
108 CONNECTOR; ELBOW
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1407-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1407-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1407-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1407-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1407-
237 VALVE; SAFETY 1-48320-012-2 01 1 1407-
292 VALVE ASM; MAGNETIC 1-82563-871-2 01 1 1407-

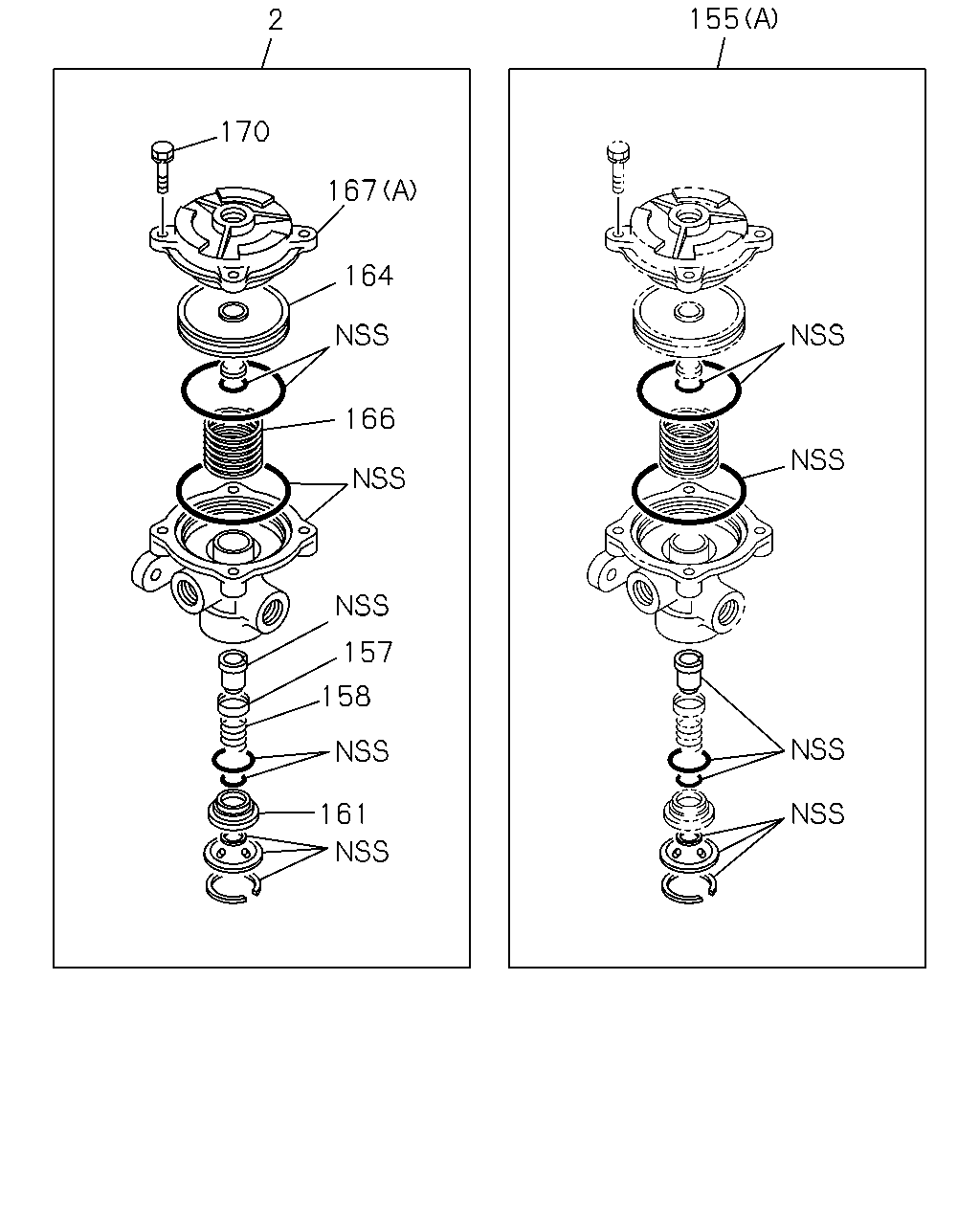

çizim 433127
155 2 170 164 166 157 158 161 167
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1407-
2 VALVE; RELAY 1-48210-875-0 02 1 1407-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1407-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1407-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1407-
157 RETAINER; VALVE 1-48213-002-0 01 1 1407-
157 RETAINER; VALVE 1-48213-002-0 02 1 1407-
158 SPRING; VALVE 1-47819-089-0 01 1 1407-
158 SPRING; VALVE 1-47819-089-0 02 1 1407-
161 GUIDE; VALVE 1-48129-014-0 01 1 1407-
161 GUIDE; VALVE 1-48129-014-0 02 1 1407-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1407-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1407-
166 SPRING; PISTON 1-47819-090-0 01 1 1407-
166 SPRING; PISTON 1-47819-090-0 02 1 1407-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1407-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1407-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1407-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1407-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1407-
çizim 433332
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1407-

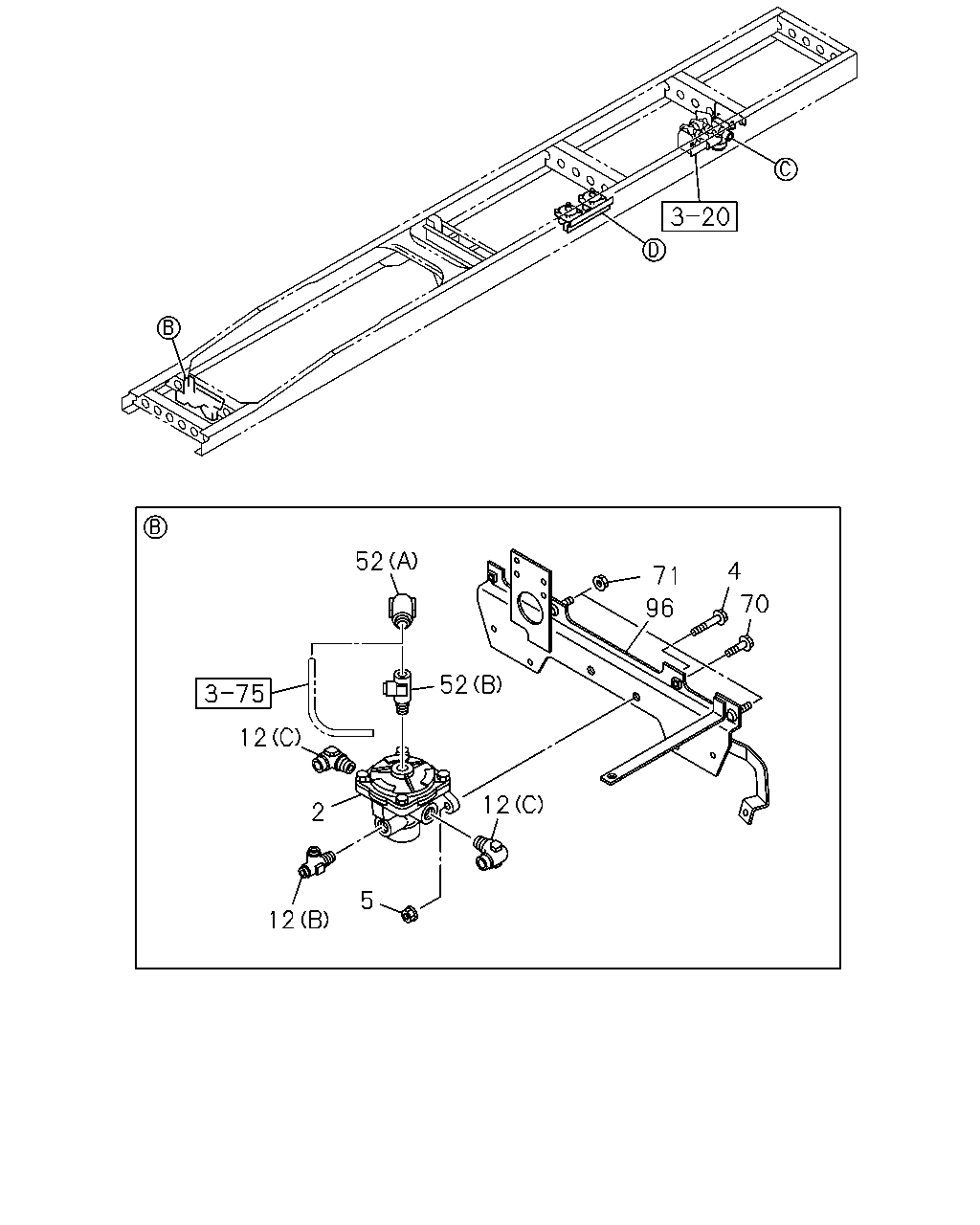

çizim 433395
4 71 70 96 52 12 2 5 12 12 52
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1407-
2 VALVE; RELAY 1-48210-875-0 02 1 1407-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1407-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1407-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1407-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1407-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1407-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1407-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1407-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1407-
52 CONNECTOR; RELAY VLV
(D) DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1407-
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1407-
96 BRACKET 8-98094-851-2 01 1 1407-
