◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11599 - FVM(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#144722) — 67 parça

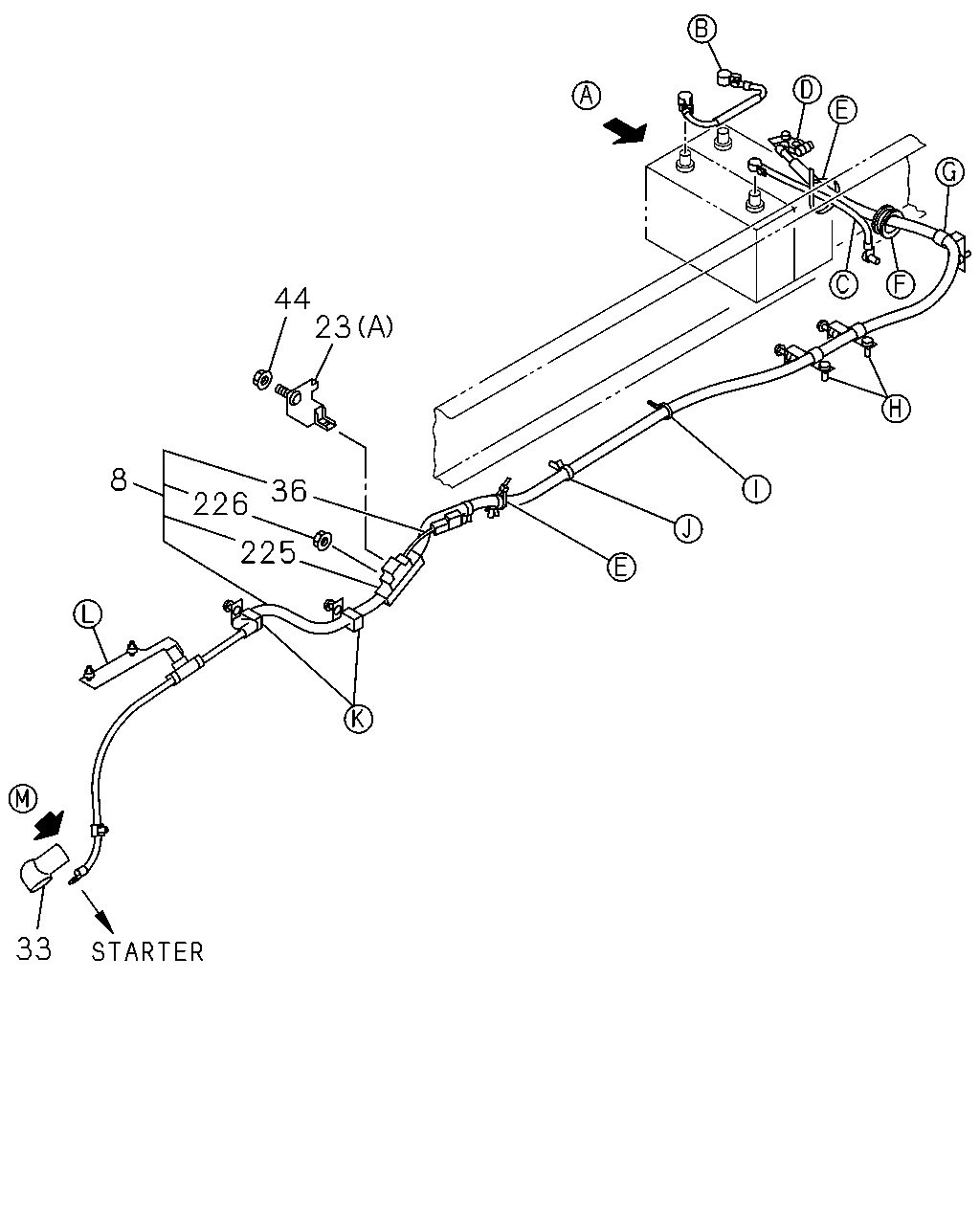

çizim 431659
44 23 8 225 226 36 33
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98260-467-0 01 1 1407-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-664-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98260-468-0 01 1 1407-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-665-0 01 1 1503-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (B) L=65 		1-47479-064-1 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (C) L=95 		1-82699-085-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W) (C) L=95 		1-82699-085-0 02 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-97612-957-1 02 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-025-0 01 1 1407-
33 CAP; INSULATOR 1-82699-431-0 01 1 1407-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1407-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1407-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1407-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1407-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-

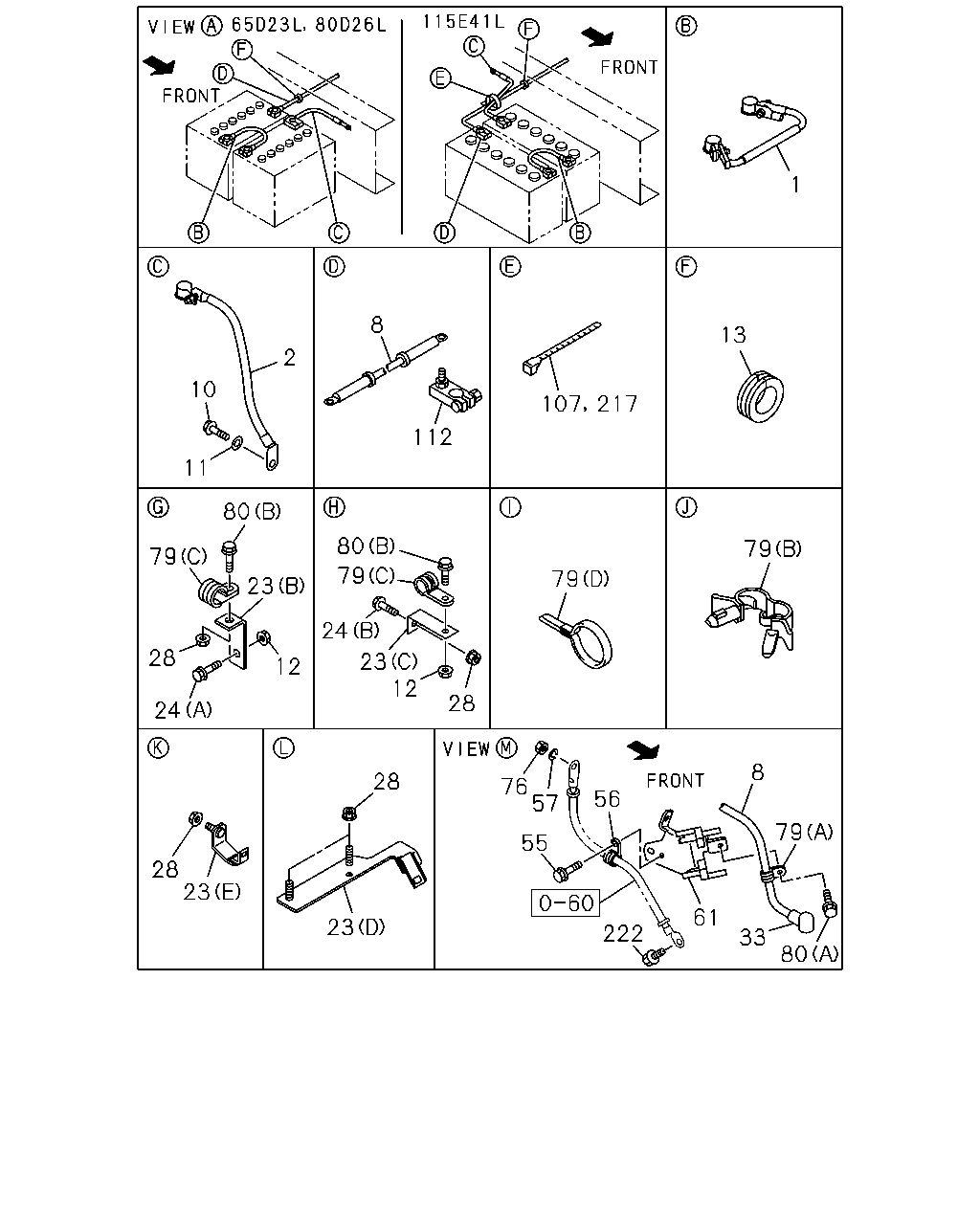

çizim 432664
1 13 217 107 112 8 2 10 11 79 28 24 28 23 28 23 24 12 23 80 80 79 12 28 79 79 56 57 76 55 23 222 33 61 79 8 80
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1407-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1407-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1407-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98260-467-0 01 1 1407-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-664-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98260-468-0 01 1 1407-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-665-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1407-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1407-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1407-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1407-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (B) L=65 		1-47479-064-1 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W) (C) L=95 		1-82699-085-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W) (C) L=95 		1-82699-085-0 02 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-97612-957-1 02 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1407-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-025-0 01 1 1407-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
24 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1407-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1407-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1407-
33 CAP; INSULATOR 1-82699-431-0 01 1 1407-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1407-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1407-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1407-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1407-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1407-
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1407-
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=26 		1-09709-293-0 01 1 1407-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1407-1510
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1511-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1511-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 02 1 1407-1510
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 02 1 1511-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 02 1 1511-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 1407-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1407-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1407-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1407-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1407-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 1407-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1407-
