Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶

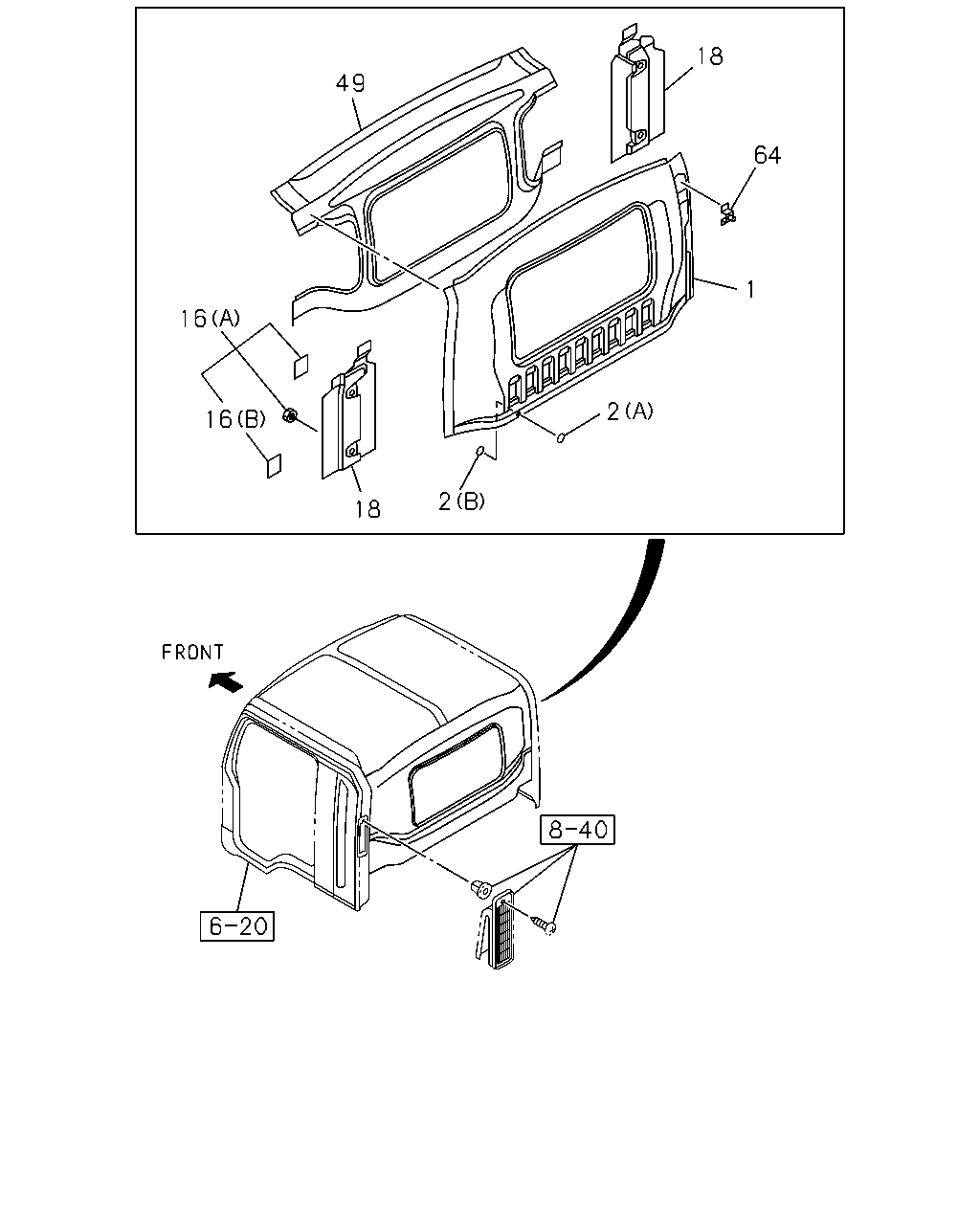

6-80 — BACK PANEL
(#144700) — 11 parça
49
18
64
1
2
2
18
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; BACK OUTER
CHI
8-97584-602-3
01
1
1404-
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK CHI
1-76798-019-0
02
1
1404-
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK CHI
5-76777-035-0
02
1
1404-
16
REINFORCEMENT; BACK OUTER PNL
(A) CHI
8-97430-111-0
01
1
1404-
16
REINFORCEMENT; BACK OUTER PNL
(B) CHI
8-97430-112-0
01
1
1404-
16
REINFORCEMENT; BACK OUTER PNL
(A) CHI
8-97430-113-0
01
1
1404-
16
REINFORCEMENT; BACK OUTER PNL
(B) CHI
8-97430-114-0
01
1
1404-
18
REINFORCEMENT; BACK PANEL
CHI
8-97430-115-0
01
1
1404-
18
REINFORCEMENT; BACK PANEL
CHI
8-97430-116-0
01
1
1404-
49
PANEL; BACK INNER
CHI
8-97584-610-3
01
1
1404-
64
BRACKET; AIR INTAKE DUCT
CHI
8-98081-605-0
01
1
1404-
