Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

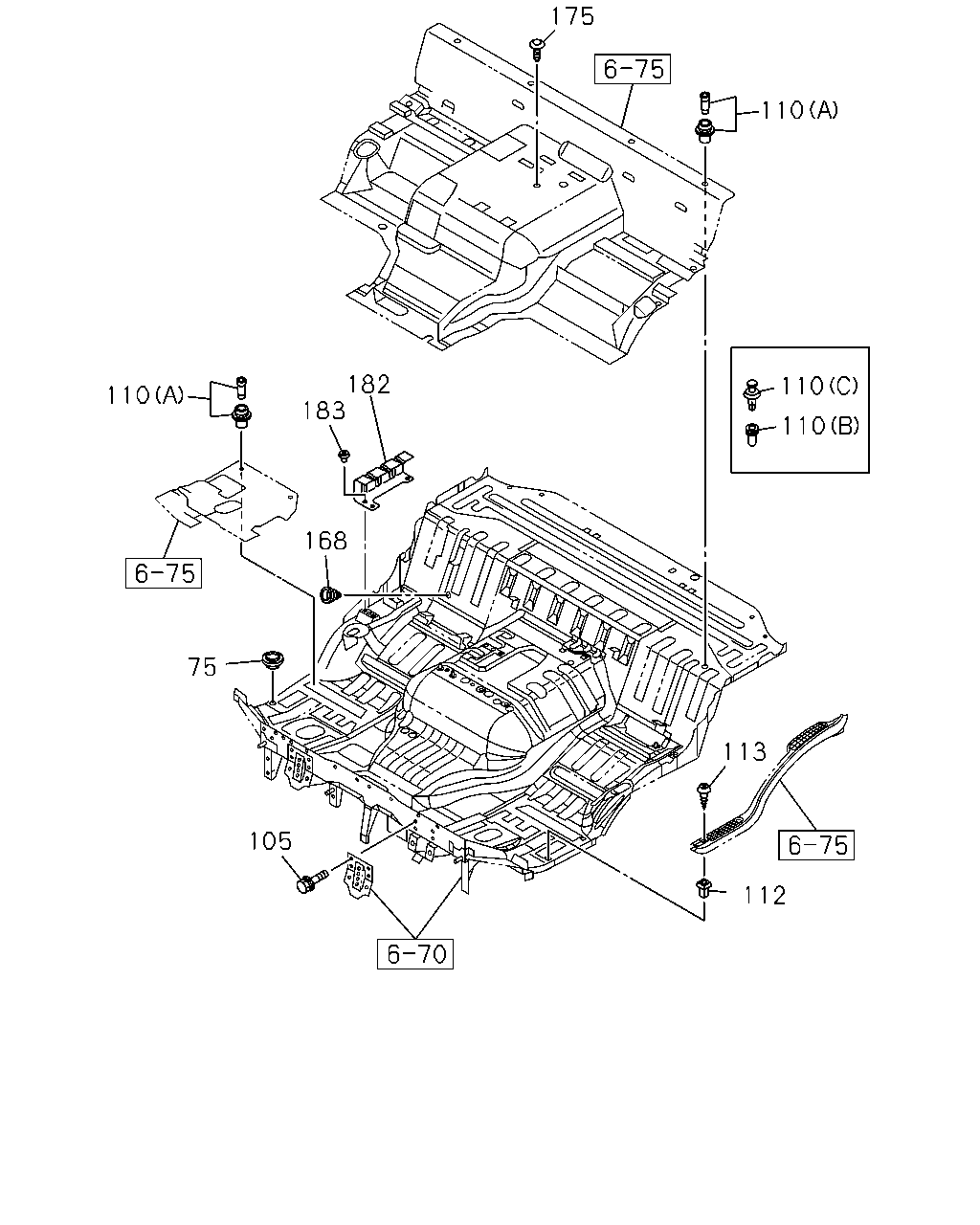

6-78 — FLOOR HOLE PLUG
(#144699) — 12 parça
175
110
110
110
113
112
105
75
168
183
182
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
PLUG; RUBBER,FLOOR
OD=23.5 CHI
1-09983-101-0
04
1
1404-
105
BOLT; FLOOR
M10X30 FLANGE CHI
0-28661-030-0
16
1
1404-
110
FASTENER; FLOOR MAT
(A) BLACK CHI
8-94279-089-0
08
1
1404-
110
FASTENER; FLOOR MAT
(B) CHI
8-97319-495-0
04
1
1404-
110
FASTENER; FLOOR MAT
(C) GRAY CHI
8-97405-247-0
04
1
1404-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL CHI
8-94279-043-0
08
1
1404-
113
SCREW; TRIM COVER
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
08
1
1404-
168
COVER; HOLE,ANNTENA CABLE
CHI
1-79998-891-1
01
1
1404-
175
CLIP; FLOOR
D6X23 BLACK CHI
1-09987-114-0
01
1
1404-
182
REINFORCEMENT; SILL SIDE
CHI
8-98056-072-1
01
1
1404-
182
REINFORCEMENT; SILL SIDE
CHI
8-98056-071-1
01
1
1404-
183
SCREW; SILL SIDE
T40 M8X16.5 HEXALOBULAR CHI
8-98066-813-0
06
1
1404-
