11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

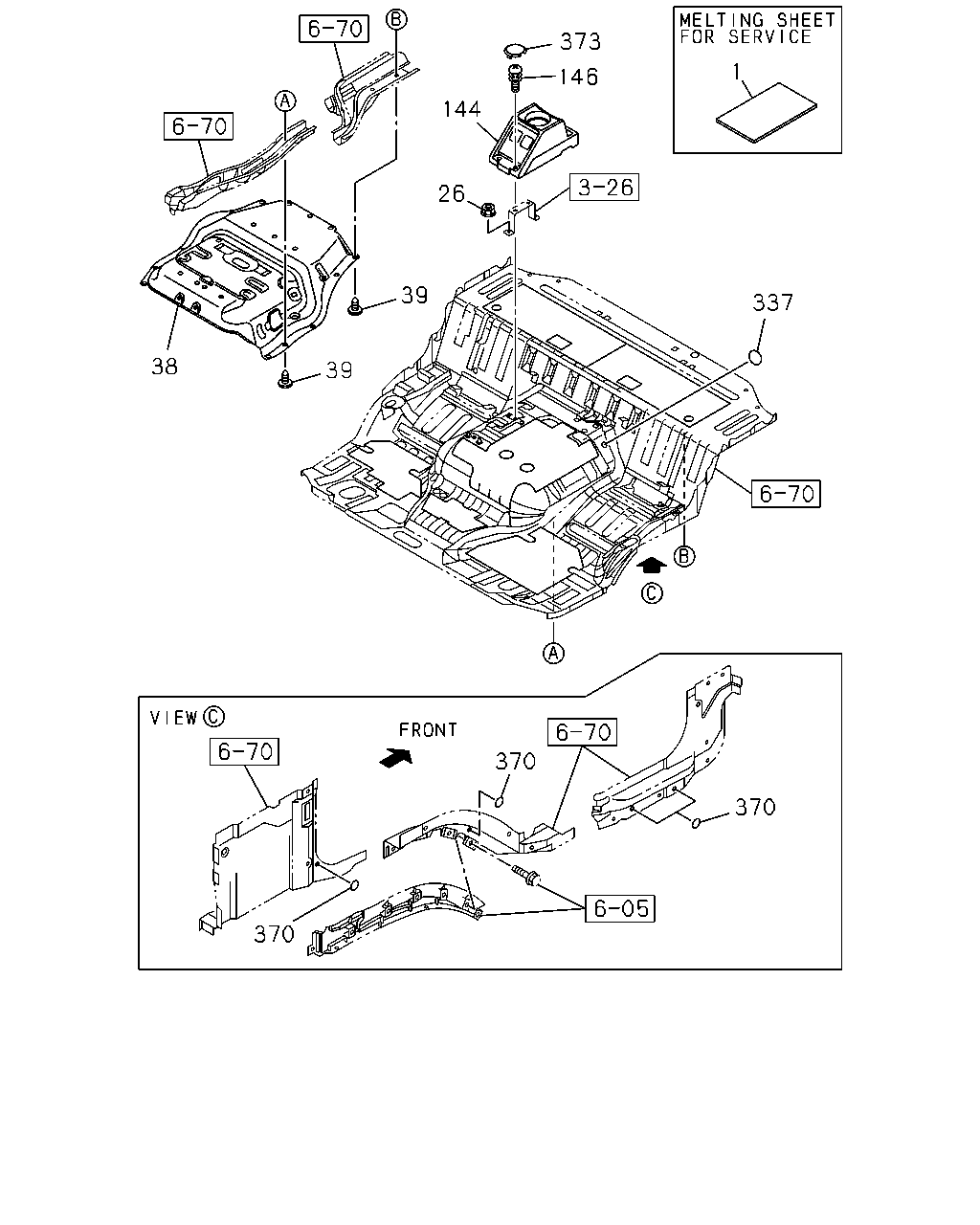

6-76 — FLOOR EQUIPMENT AND SEALING
(#144698) — 11 parça
26
144
146
373
1
39
39
38
337
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY CHI
8-94262-093-0
01
1
1404-
26
NUT; FLANGE
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
38
INSULATOR; ENG COVER
SPECIAL PACKAGE<7BB> CHI
8-97431-252-0
01
1
1404-
38
INSULATOR; ENG COVER
EXC. SPECIAL PACKAGE<7BB> CHI
8-97430-054-0
01
1
1404-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 CHI
8-97808-623-0
26
1
1404-
144
COVER; HAND BRK VLV
CHI
8-97430-967-0
01
1
1404-
146
BOLT; COVER BRKT
M6X16 CHI
0-38050-616-0
03
1
1404-
146
BOLT; COVER BRKT
M6X16 CHI
0-52000-616-0
04
1
1404-
337
SEAL; CLIP HOLE
OD=25 BLACK CHI
1-76798-019-0
08
1
1404-
370
SEAL; LOCATION HOLE
OD=30 T=0.8 CHI
8-98230-420-0
08
1
1404-
373
COVER; HOLE
GRAY CHI
8-97407-951-0
02
1
1404-
