Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

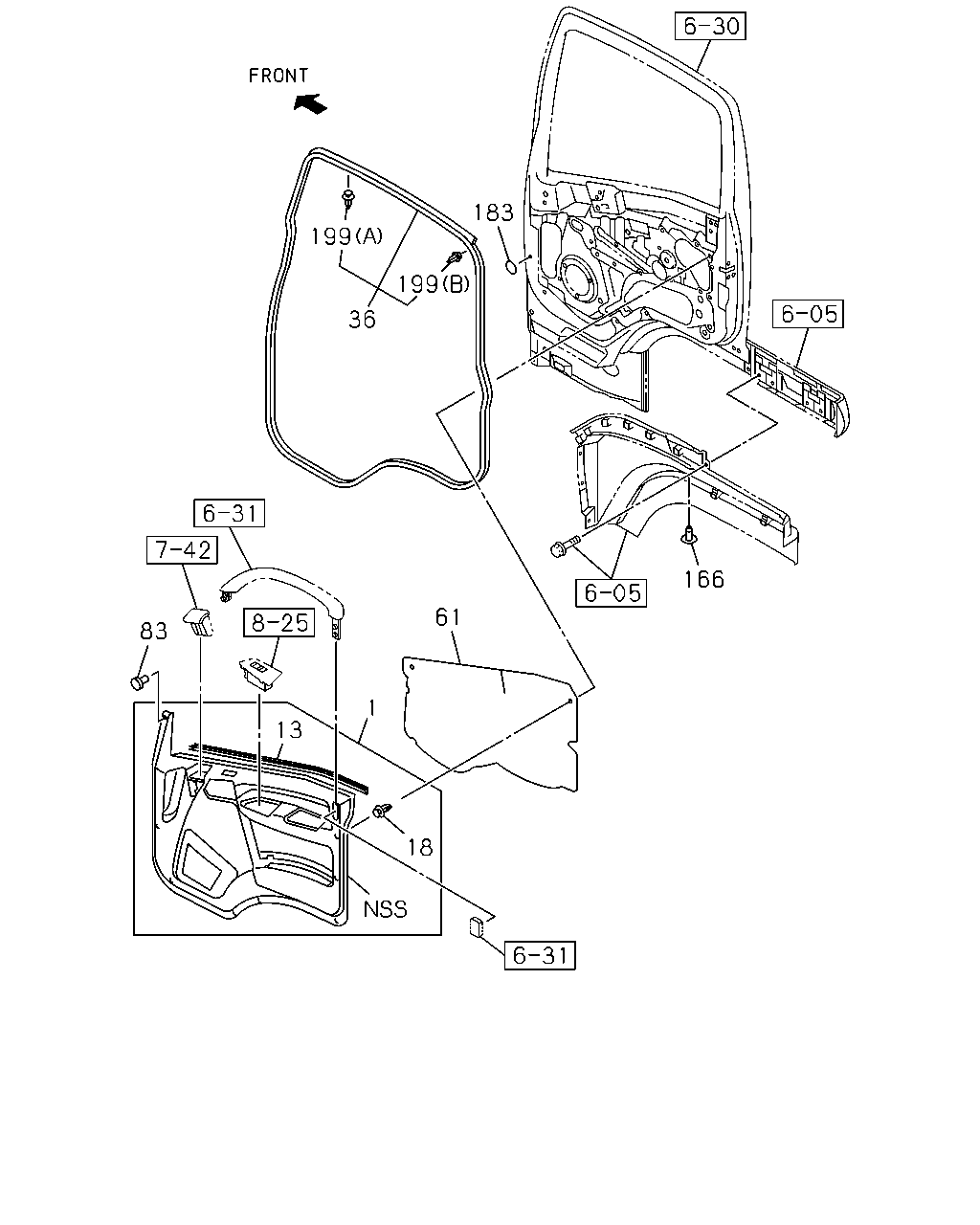

6-35 — FRONT DOOR TRIM
(#144691) — 14 parça
183
199
199
36
83
13
1
18
61
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY CHI
8-97405-306-6
01
1
1404-
1
PAD; TRIM,FRT DOOR
GRAY CHI
8-97405-304-6
01
1
1404-
13
SEAL; DOOR TRIM
CHI
8-98029-202-1
01
1
1404-
13
SEAL; DOOR TRIM
CHI
8-98029-201-1
01
1
1404-
18
CLIP; DOOR PAD
CHI
8-98004-025-0
14
1
1404-
36
SEAL; DOOR,MAIN,CAB SIDE
CHI
8-98029-199-3
01
1
1404-
36
SEAL; DOOR,MAIN,CAB SIDE
CHI
8-98029-198-3
01
1
1404-
61
SEAL; WATER,DOOR PAD
CHI
8-98029-395-2
01
1
1404-
61
SEAL; WATER,DOOR PAD
CHI
8-98029-394-2
01
1
1404-
83
CLIP; DOOR TRIM
GRAY CHI
8-97405-308-0
02
1
1404-
166
PLUG; HOLE
D8X13.5 CHI
1-09987-248-1
01
1
1404-
183
SEAL; LOCATION HOLE
OD=25 BLACK CHI
1-76798-019-0
02
1
1404-
199
CLIP; SEAL
(A) NATURAL CHI
8-98062-270-0
80
1
1404-
199
CLIP; SEAL
(B) RED CHI
8-98062-271-0
02
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
