Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#144690) — 39 parça
◀

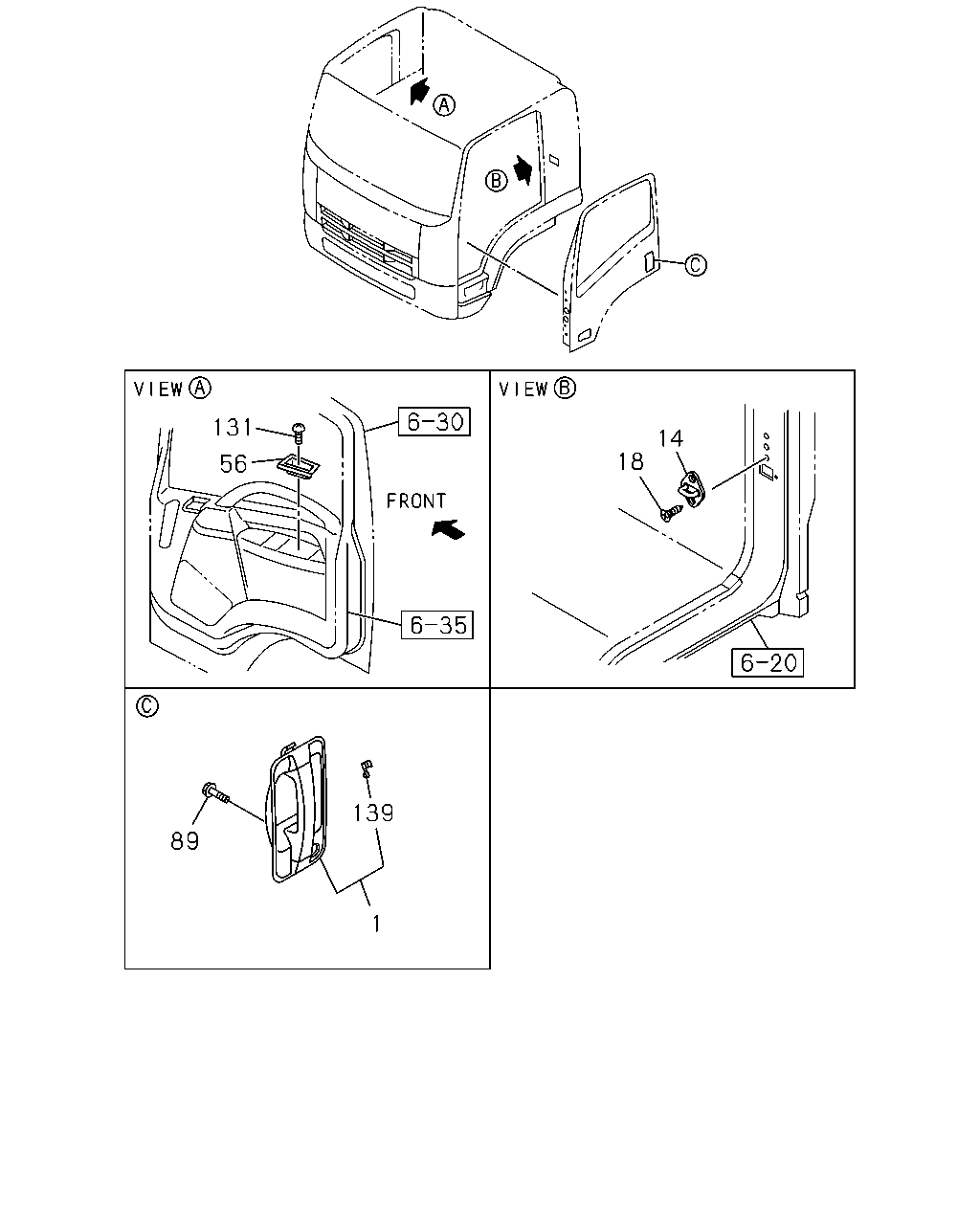

[632A] NO.2 (10 parça)
[632A] NO.1 (29 parça)
▶
131
56
14
18
139
89
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
CHI
8-98037-100-2
01
1
1404-
1
HANDLE; OUTSIDE,FRT DOOR
CHI
8-98037-101-2
01
1
1404-
14
STRIKER; FRT DOOR
CHI
8-98029-173-2
02
1
1404-
18
SCREW; DOOR STRIKER
M8X20 CK-HEAD CHI
8-98004-343-2
04
1
1404-
56
ESCUTCHEON; LOCK KNOB
GRAY CHI
8-97405-314-1
01
1
1404-
56
ESCUTCHEON; LOCK KNOB
GRAY CHI
8-97405-315-1
01
1
1404-
89
BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
131
SCREW; ESCUTCHEON,DOOR PULL
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72380-516-0
02
1
1404-
139
HOLDER; ROD,DOOR HANDLE
WHITE CHI
8-97333-303-0
01
1
1404-
139
HOLDER; ROD,DOOR HANDLE
BLACK CHI
8-98095-813-0
01
1
1404-
28
43
41
133
125
102
33
91
8
8
91
176
51
51
36
36
175
175
12
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LOCK; DOOR,FRT DOOR
CHI
8-98017-422-1
01
1
1404-
8
LOCK; DOOR,FRT DOOR
CHI
8-98017-421-0
01
1
1404-
11
ACTUATOR; DOOR LK,FRT
CHI
8-98089-561-0
01
1
1404-
11
ACTUATOR; DOOR LK,FRT
CHI
8-98089-562-0
01
1
1404-
12
SCREW; DOOR LK
CHI
8-97310-549-0
04
1
1404-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY CHI
8-97405-312-0
01
1
1404-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY CHI
8-97405-311-0
01
1
1404-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY CHI
8-97405-310-1
01
1
1404-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY CHI
8-97405-309-1
01
1
1404-
36
LINK; DOOR LOCK,OUTSIDE
(A) CHI
8-98058-532-0
01
1
1404-
36
LINK; DOOR LOCK,OUTSIDE
(B) CHI
8-98058-536-0
01
1
1404-
36
LINK; DOOR LOCK,OUTSIDE
(A) CHI
8-98058-531-0
01
1
1404-
36
LINK; DOOR LOCK,OUTSIDE
(B) CHI
8-98058-535-0
01
1
1404-
41
SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72380-516-0
02
1
1404-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 CHI
8-94279-078-0
02
1
1404-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE CHI
8-98058-227-0
01
1
1404-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) RED CHI
8-98058-229-0
01
1
1404-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL CHI
8-98058-226-0
01
1
1404-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK CHI
8-98058-228-0
01
1
1404-
91
BOLT; DOOR LOCK
(B) M6X10 FLANGE CHI
0-28050-610-0
02
1
1404-
91
BOLT; DOOR LOCK
(A) M6X14.5 CHI
8-98004-342-0
06
1
1404-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 CHI
8-94279-078-0
06
1
1404-
125
BRACKET; DOOR PULL
CHI
8-97585-927-0
02
1
1404-
133
SCREW; DOOR PULL STAY
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72380-516-0
06
1
1404-
175
CABLE ASM; LOCK CONTROL
(B) CHI
8-98058-539-0
02
1
1404-
175
CABLE ASM; LOCK CONTROL
(A) CHI
8-98058-538-0
01
1
1404-
175
CABLE ASM; LOCK CONTROL
(A) CHI
8-98058-537-0
01
1
1404-
176
COVER; DOOR LOCK
CHI
8-98058-239-0
01
1
1404-
176
COVER; DOOR LOCK
CHI
8-98058-238-0
01
1
1404-
