2-85 — POWER TAKE OFF CONTROL (#14469) — 12 parça

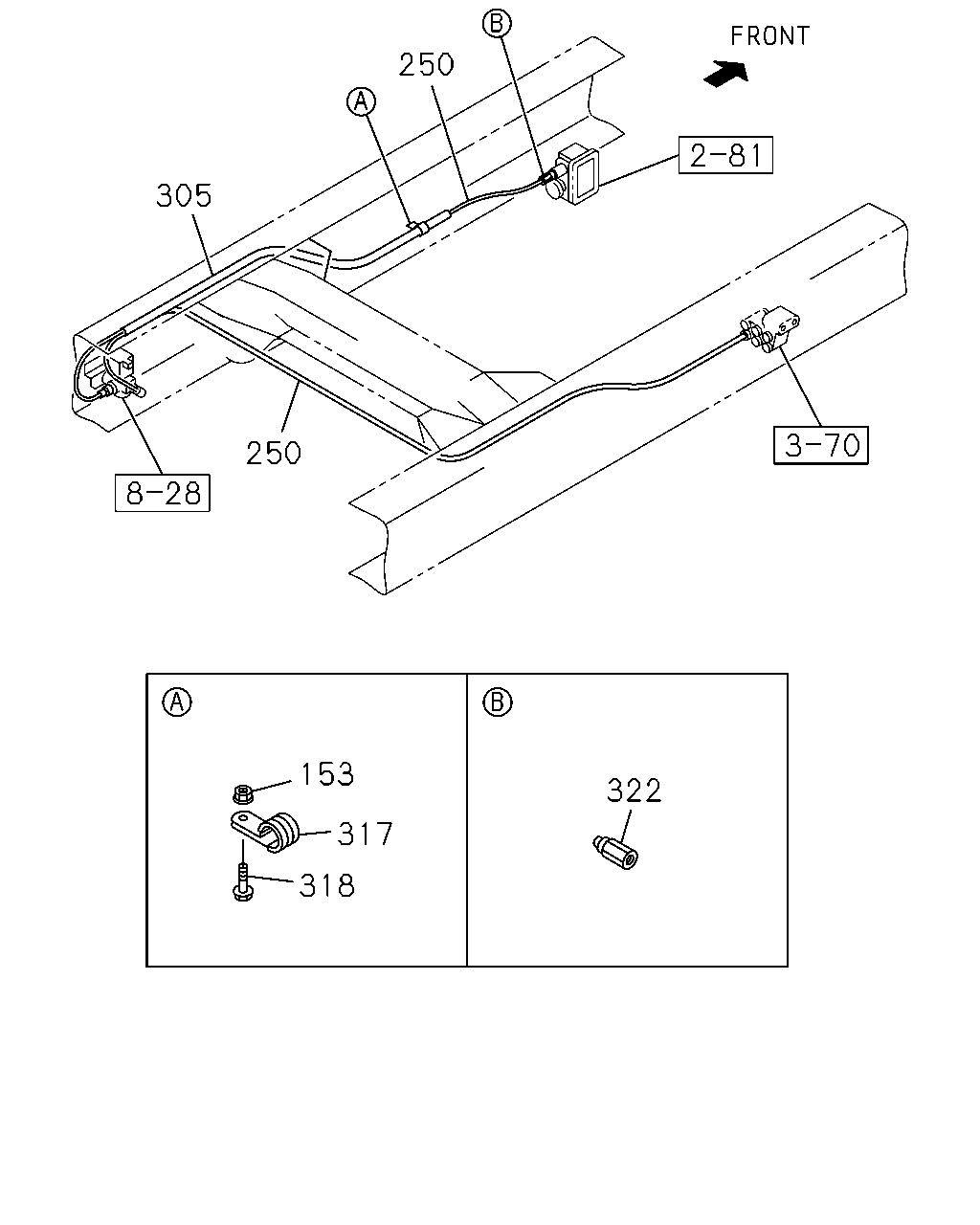

çizim 91924

250 305 250 153 322 317 318

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	153	NUT; CLIP TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	01	1	0611-
	250	TUBE; NYLON TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0611-
	305	TUBE; CORRUGATE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0611-
	317	CLIP; NYLON TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=11 L=16	0-95235-025-0	01	1	0611-
	318	BOLT; CLIP TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE	0-28650-825-0	01	1	0611-
	322	UNION TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0611-

çizim 105876

3 1 246 217 132 55

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	0611-
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0611-
	55	GROMMET; CABLE EXC. DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	0611-
	132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	0611-
	217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	0611-
	246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71240-408-0	02	1	0611-
