Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

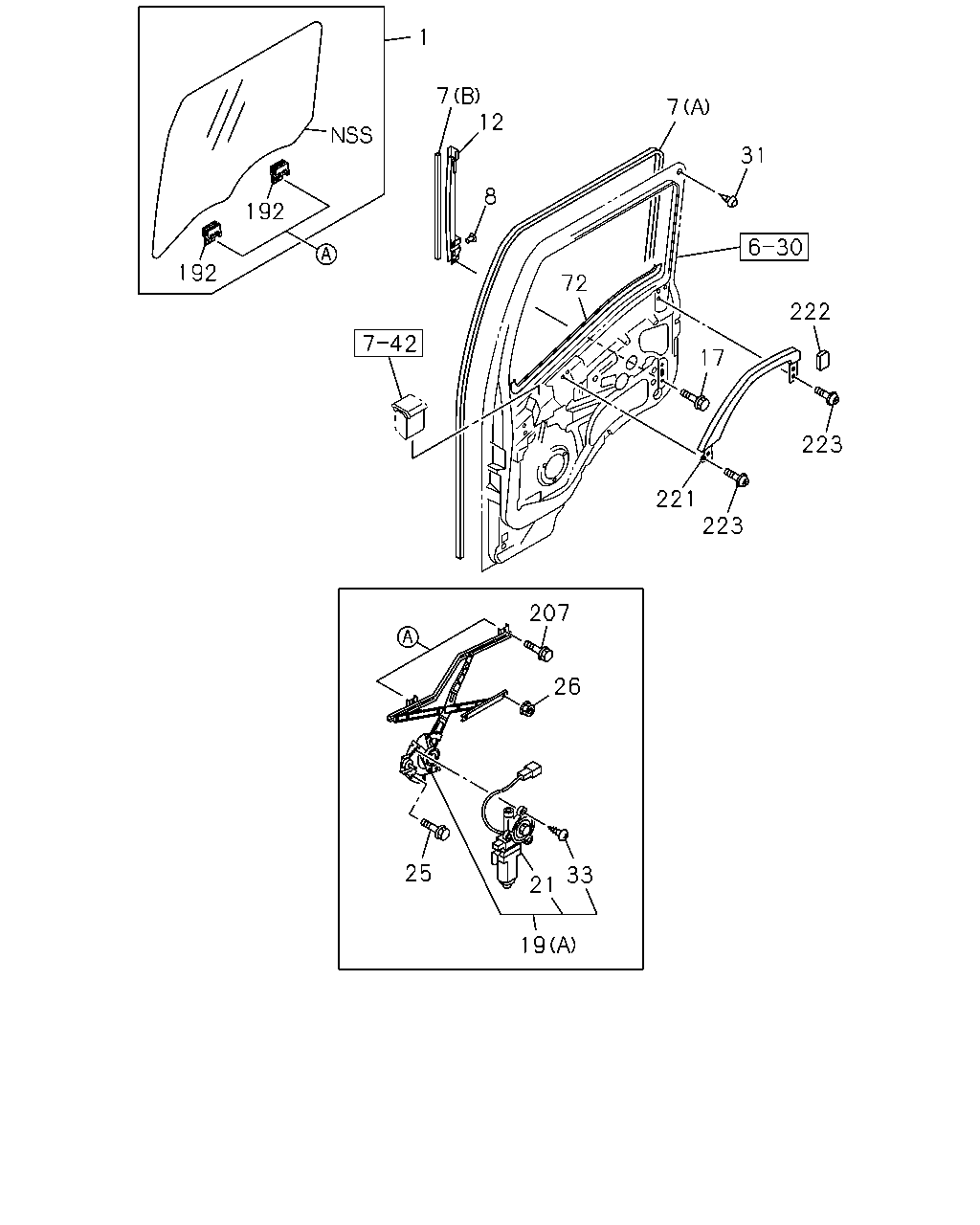

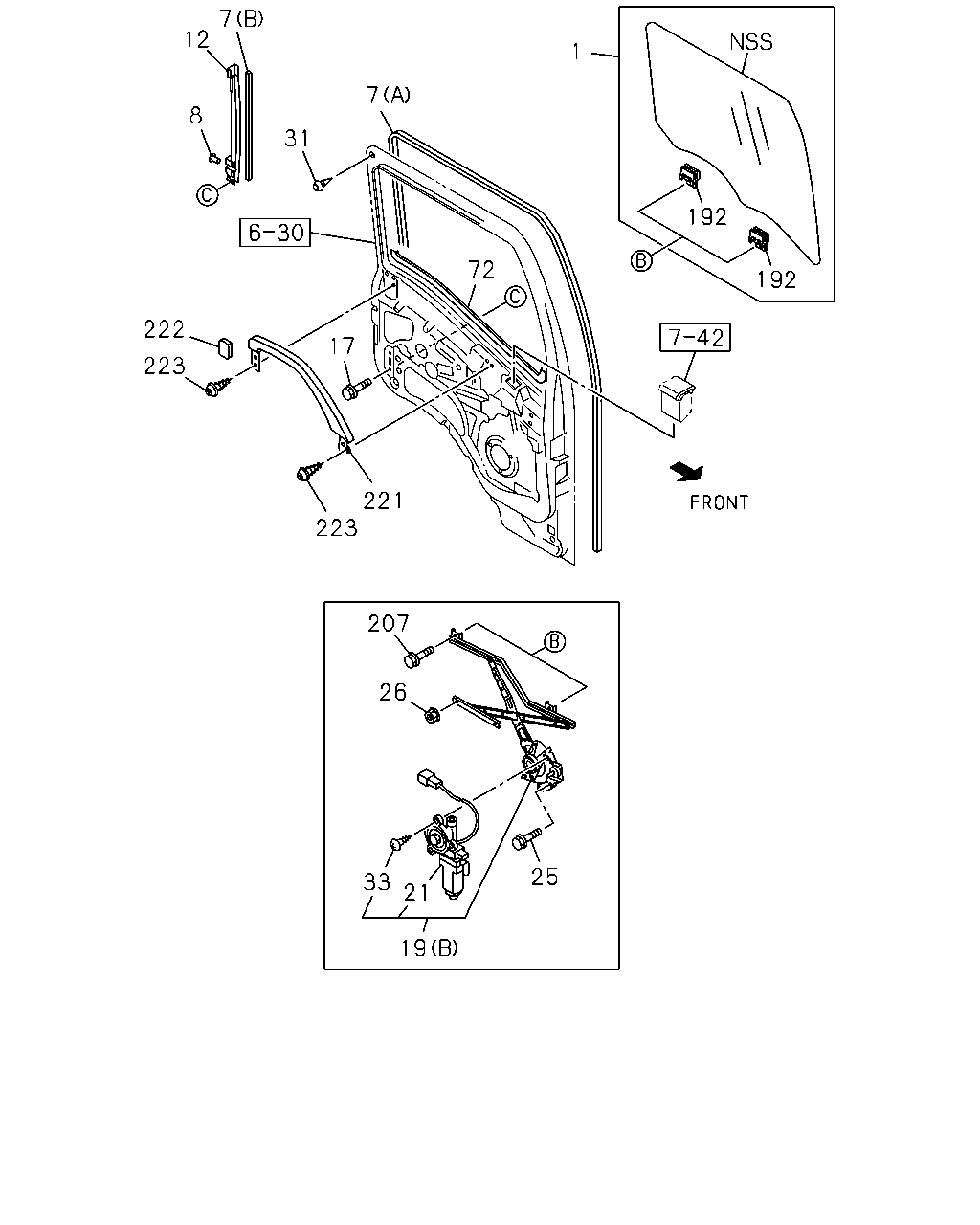

6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#144689) — 52 parça
◀
[631A] RH (26 parça)
[631A] LH (26 parça)
▶
192
192
1
7
12
8
72
7
31
222
17
223
223
221
207
26
33
21
25
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
CHI
8-98211-765-0
01
1
1404-
1
GLASS; FRT DOOR
CHI
8-98211-764-0
01
1
1404-
7
GLASS RUN; FRT DOOR
(B) CHI
8-98031-742-2
02
1
1404-
7
GLASS RUN; FRT DOOR
(A) CHI
8-98029-196-3
01
1
1404-
7
GLASS RUN; FRT DOOR
(A) CHI
8-98029-195-3
01
1
1404-
8
CLIP; GLASS GUIDE
CHI
8-98048-796-0
02
1
1404-
12
CHANNEL; GLASS RUN,FRT
CHI
8-98188-419-0
01
1
1404-
12
CHANNEL; GLASS RUN,FRT
CHI
8-98188-418-0
01
1
1404-
17
SCREW; RR CHANNEL
M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
19
REGULATOR; WINDOW,FRT DOOR
(B) CHI
8-98029-237-3
01
1
1404-
19
REGULATOR; WINDOW,FRT DOOR
(A) CHI
8-98029-236-3
01
1
1404-
21
MOTOR; POWER WINDOW REG,FRT DOOR
CHI
8-98058-430-0
01
1
1404-
21
MOTOR; POWER WINDOW REG,FRT DOOR
CHI
8-98058-429-0
01
1
1404-
25
BOLT; WINDOW REG
M6X10 FLANGE CHI
0-28050-610-0
08
1
1404-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE CHI
0-91180-106-0
04
1
1404-
31
STOPPER; RUBBER,DOOR INNER
CHI
8-94358-581-0
04
1
1404-
33
SCREW; REG MOTOR
CHI
8-98058-431-0
06
1
1404-
72
SEAL; WAIST,FRT DOOR
CHI
8-98029-193-1
01
1
1404-
72
SEAL; WAIST,FRT DOOR
CHI
8-98029-192-1
01
1
1404-
192
HOLDER; DOOR GLASS
CHI
8-98211-762-0
04
1
1404-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY CHI
8-97405-317-2
01
1
1404-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY CHI
8-97405-316-2
01
1
1404-
222
CAP; GUARD BAR
GRAY CHI
8-97405-319-0
01
1
1404-
222
CAP; GUARD BAR
GRAY CHI
8-97405-318-0
01
1
1404-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET CHI
0-38050-625-0
08
1
1404-
222
223
17
221
223
207
26
33
21
19
25
72
7
31
8
12
7
1
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
CHI
8-98211-765-0
01
1
1404-
1
GLASS; FRT DOOR
CHI
8-98211-764-0
01
1
1404-
7
GLASS RUN; FRT DOOR
(B) CHI
8-98031-742-2
02
1
1404-
7
GLASS RUN; FRT DOOR
(A) CHI
8-98029-196-3
01
1
1404-
7
GLASS RUN; FRT DOOR
(A) CHI
8-98029-195-3
01
1
1404-
8
CLIP; GLASS GUIDE
CHI
8-98048-796-0
02
1
1404-
12
CHANNEL; GLASS RUN,FRT
CHI
8-98188-419-0
01
1
1404-
12
CHANNEL; GLASS RUN,FRT
CHI
8-98188-418-0
01
1
1404-
17
SCREW; RR CHANNEL
M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
19
REGULATOR; WINDOW,FRT DOOR
(B) CHI
8-98029-237-3
01
1
1404-
19
REGULATOR; WINDOW,FRT DOOR
(A) CHI
8-98029-236-3
01
1
1404-
21
MOTOR; POWER WINDOW REG,FRT DOOR
CHI
8-98058-430-0
01
1
1404-
21
MOTOR; POWER WINDOW REG,FRT DOOR
CHI
8-98058-429-0
01
1
1404-
25
BOLT; WINDOW REG
M6X10 FLANGE CHI
0-28050-610-0
08
1
1404-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE CHI
0-91180-106-0
04
1
1404-
31
STOPPER; RUBBER,DOOR INNER
CHI
8-94358-581-0
04
1
1404-
33
SCREW; REG MOTOR
CHI
8-98058-431-0
06
1
1404-
72
SEAL; WAIST,FRT DOOR
CHI
8-98029-193-1
01
1
1404-
72
SEAL; WAIST,FRT DOOR
CHI
8-98029-192-1
01
1
1404-
192
HOLDER; DOOR GLASS
CHI
8-98211-762-0
04
1
1404-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY CHI
8-97405-317-2
01
1
1404-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY CHI
8-97405-316-2
01
1
1404-
222
CAP; GUARD BAR
GRAY CHI
8-97405-319-0
01
1
1404-
222
CAP; GUARD BAR
GRAY CHI
8-97405-318-0
01
1
1404-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET CHI
0-38050-625-0
08
1
1404-
