Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

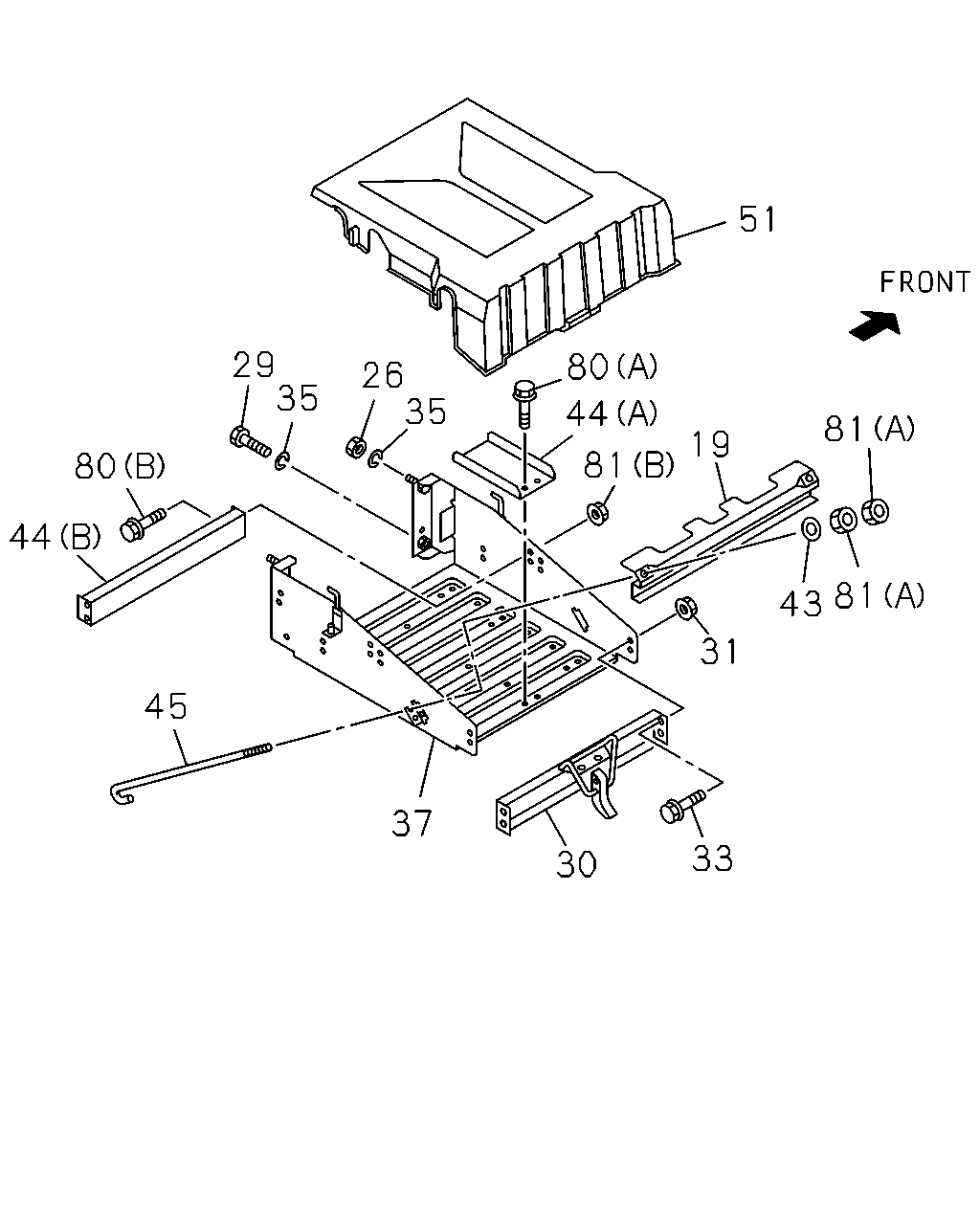

5-20 — BATTERY CARRIER
(#144682) — 17 parça
51
81
81
43
19
81
44
80
31
33
30
37
45
44
80
29
35
26
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
8-97431-298-0
01
1
1404-
26
NUT; BRKT
M14 CHI
1-09440-072-0
02
1
1404-
29
BOLT; BRKT TO FRAME
M14X45 CHI
1-09000-764-0
02
1
1404-
30
PLATE; BATTERY
CHI
1-53619-085-0
01
1
1404-
31
NUT; PLATE
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE CHI
0-28650-820-0
04
1
1404-
35
WASHER; PL,BATTERY CARRIER
ID=14.2 CHI
0-91510-514-0
04
1
1404-
37
BRACKET; BATTERY
8-97431-297-0
01
1
1404-
43
WASHER; PL,CLAMP
ID=8.4 OD=22 CHI
0-91614-708-0
02
1
1404-
44
SPACER; BATTERY
(B) CHI
8-98091-941-0
01
1
1404-
44
SPACER; BATTERY
(A)
8-97431-333-0
01
1
1404-
45
ROD; TENSION,BATTERY
8-97431-412-0
02
1
1404-
51
COVER; BATTERY
CHI
1-53612-068-0
01
1
1404-
80
BOLT; BATTERY
(A) M8X16 FLANGE CHI
0-28050-816-0
02
1
1404-
80
BOLT; BATTERY
(B) M8X20 FLANGE CHI
0-28050-820-0
04
1
1404-
81
NUT; BATTERY
(A) M8 CHI
0-91110-508-0
04
1
1404-
81
NUT; BATTERY
(B) M8 FLANGE CHI
0-91180-108-0
04
1
1404-
