4-65 — REAR LEAF SPRING (#144673) — 23 parça

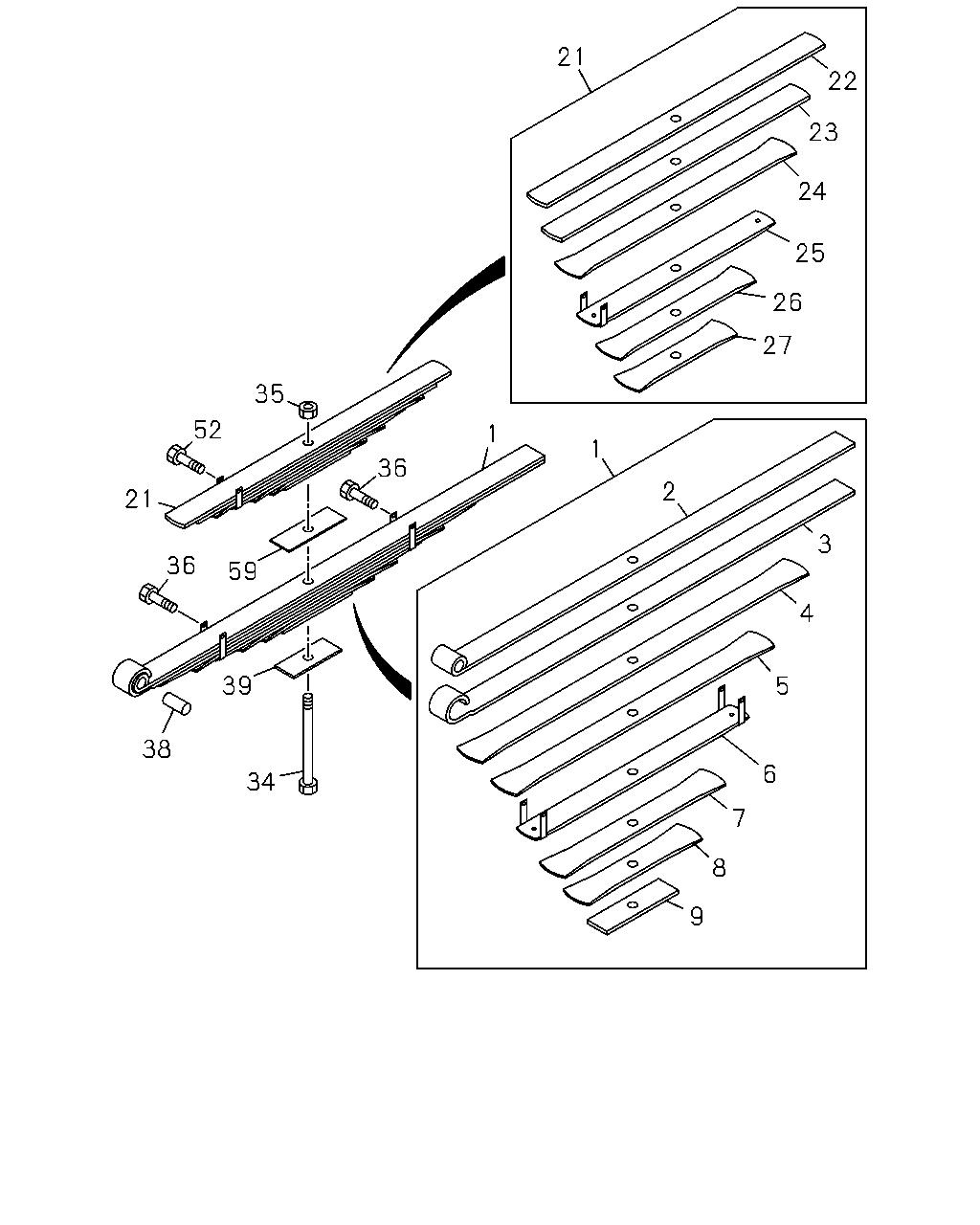

çizim 433327
21 35 52 21 36 59 36 39 38 34 1 9 8 7 6 5 4 3 2 1 27 26 25 24 23 22
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-961-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-962-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-963-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-964-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-965-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-966-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-967-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-968-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
CHI ASM PART: A = 8-98098-667-0 		8-98051-969-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-970-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-971-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-972-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-973-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-974-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-975-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
CHI ASM PART: A = 8-98098-667-0 		8-98051-976-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200, CHI ASM PART: A = 8-98098-667-0 		1-51356-213-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16, CHI ASM PART: A = 8-98098-667-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117, CHI ASM PART: A = 8-98098-667-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
CHI ASM PART: A = 8-98098-667-0 		1-51351-010-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10, CHI ASM PART: A = 8-98098-667-0 		1-51377-118-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117, CHI ASM PART: A = 8-98098-667-0 		1-09000-334-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10, CHI ASM PART: A = 8-98098-667-0 		1-51377-118-0 01 1 -
