4-60 — REAR SUSPENSION
(#144671) — 30 parça
◀

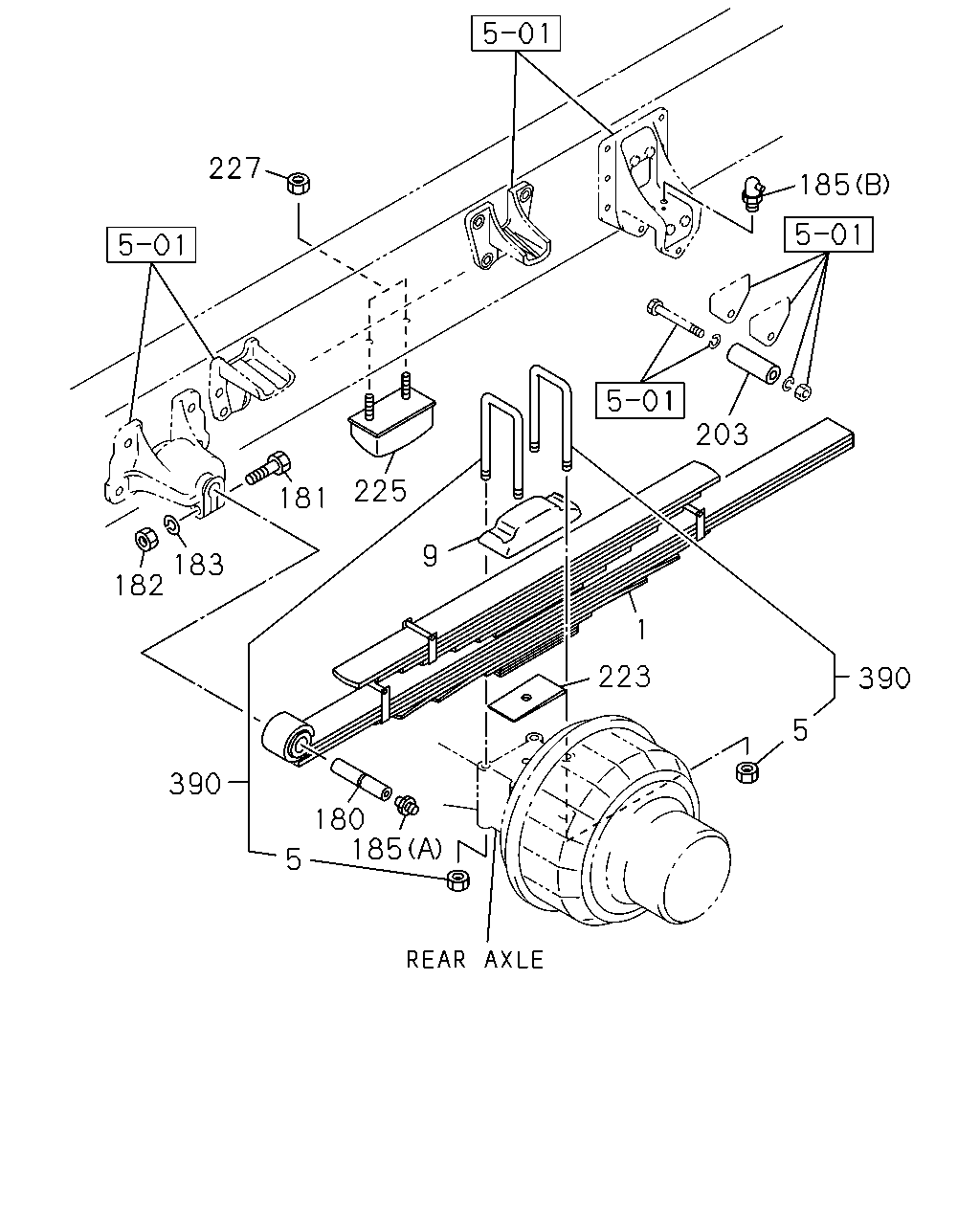

[460A] NO.1 (14 parça)
[460A] NO.2 (16 parça)
▶
227
181
225
183
182
9
390
5
180
185
223
1
5
390
203
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHI
8-98098-667-0
02
1
1404-
5
NUT; U-BOLT,RR SPR
M24 CHI
0-91112-824-0
08
1
1404-
9
PAD; U BOLT,RR SPR
CHI
1-51372-030-0
02
1
1404-
180
PIN; RR SPR
CHI
1-51361-020-0
02
1
1404-
181
BOLT; SPR & SHACKLE
M14X80 CHI
0-10856-480-0
02
1
1404-
182
NUT; PIN,RR SPR
M14 CHI
0-91110-514-0
02
1
1404-
183
WASHER; LK,PIN,RR SPR
ID=14.2 CHI
0-91510-514-0
02
1
1404-
185
NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 STRAIGHT CHI
0-90301-410-0
02
1
1404-
185
NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 ELBOW 67.5 DEGREES CHI
0-90301-510-0
02
1
1404-
203
COLLAR; LEAF SPR STOPPER
CHI
1-53359-004-0
02
1
1404-
223
SPACER; U BOLT,RR SPR
CHI
1-51377-371-1
02
1
1404-
225
RUBBER; CUSHION,RR SPR
CHI
1-53366-081-1
02
1
1404-
227
NUT; CUSHION RUBBER
M12 FLANGE CHI
0-91180-212-0
04
1
1404-
390
U-BOLT SET; RR SPRING
L=470
1-87870-017-4
04
1
1404-
310
309
304
276
55
329
329
282
284
277
25
390
322
304
5
27
309
310
390
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
NUT; U-BOLT,RR SPR
M24 CHI
0-91112-824-0
08
1
1404-
25
BAR ASM; STAB,RR SUSP
CHI
1-51770-030-2
01
1
1404-
27
BOLT; STAB
M10X16 FLANGE CHI
0-28051-016-0
04
1
1404-
55
ROD; STAB
CHI
1-51770-024-1
02
1
1404-
276
BUSHING; STAB ROD
CHI
1-51779-019-0
02
1
1404-
277
BUSHING; STAB,RR UPR
CHI
1-51779-067-0
02
1
1404-
282
RETAINER; STAB BAR
CHI
1-51789-015-2
02
1
1404-
284
BOLT; RET TO RET
M10X25 CHI
8-94463-351-0
08
1
1404-
304
PIN; STAB ROD
CHI
1-51789-020-2
04
1
1404-
309
NUT; STAB ROD
M24 CHI
9-99116-424-0
04
1
1404-
310
PIN; SPLIT,STAB ROD
OD=4.6 L=45 CHI
0-81125-045-0
04
1
1404-
322
BRACKET; STAB BAR TO RR AXLE
CHI
1-51781-127-0
01
1
1404-
322
BRACKET; STAB BAR TO RR AXLE
CHI
1-51781-048-4
01
1
1404-
329
BUSHING; STAB ROD
(A) CHI
1-51789-051-1
02
1
1404-
329
BUSHING; STAB ROD
(B) CHI
1-51789-052-0
02
1
1404-
390
U-BOLT SET; RR SPRING
L=470
1-87870-017-4
04
1
1404-
