Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-57 - FRONT LEVELING VALVE
▶

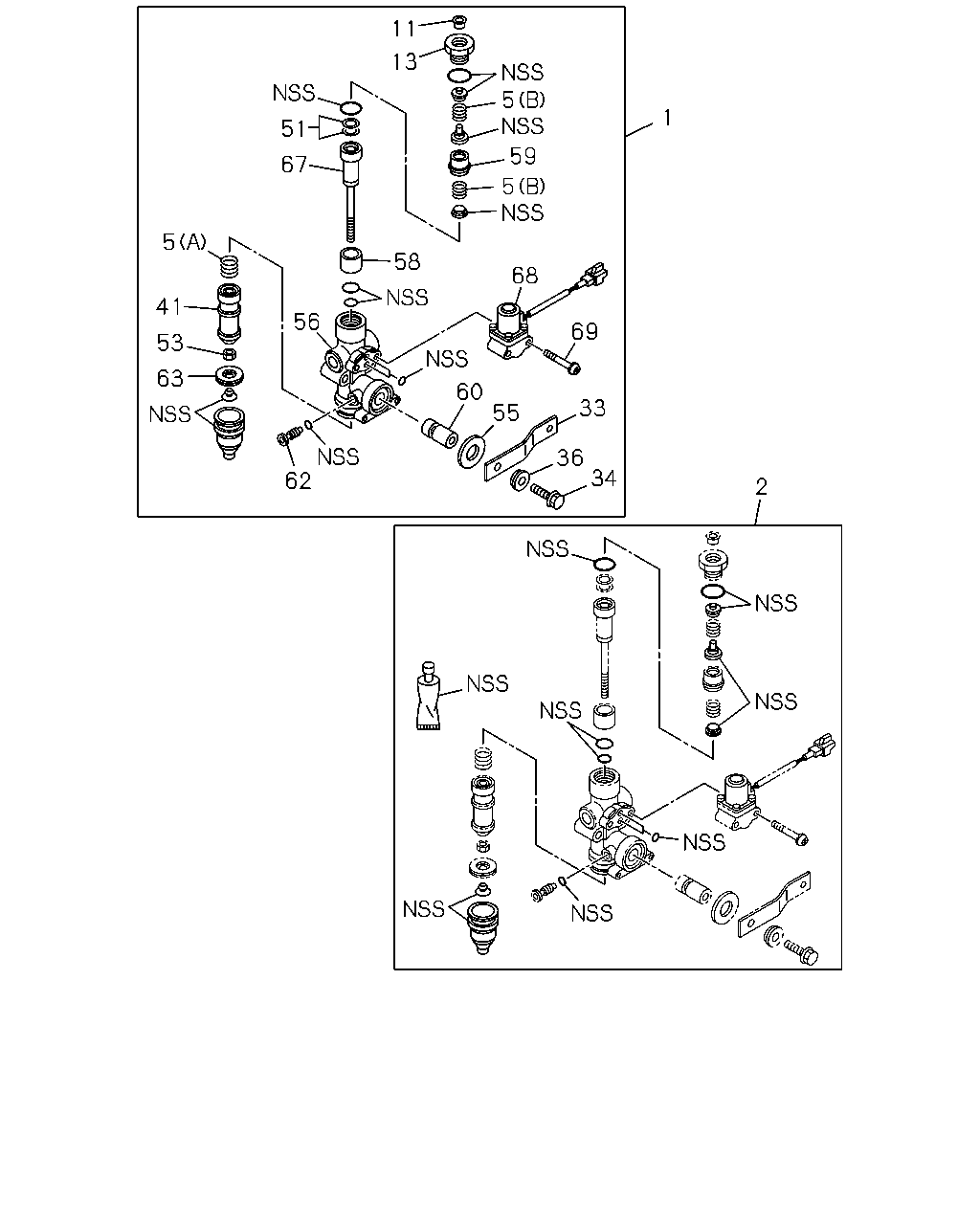

4-57 — FRONT LEVELING VALVE
(#144670) — 23 parça
11
13
51
67
5
41
53
63
62
56
58
5
59
5
1
68
60
55
69
33
36
34
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; LEVELING,FRT SUSP
FULL FLOATING CAB<W16>
8-98208-757-0
01
1
1404-
2
REPAIR KIT; LEVELING VALVE
FULL FLOATING CAB<W16>
8-98281-575-0
01
1
1404-
5
SPRING; VALVE,LEVELING VLV
FULL FLOATING CAB<W16> (A)
1-52139-057-0
01
1
1404-
5
SPRING; VALVE,LEVELING VLV
FULL FLOATING CAB<W16> (B)
8-98281-572-0
02
1
1404-
11
FILTER; LEVELING VLV
FULL FLOATING CAB<W16> CHI
1-53457-081-0
01
1
1404-
13
PLUG; VALVE,LEVELING VLV
FULL FLOATING CAB<W16>
8-98281-573-0
01
1
1404-
33
LEVER; LEVELING VLV
FULL FLOATING CAB<W16>
8-98229-893-0
01
1
1404-
34
BOLT; LEVER FIX,LEVELING VLV
FULL FLOATING CAB<W16>
1-52139-060-0
01
1
1404-
36
WASHER; LK,LEVER,LEVELING VLV
FULL FLOATING CAB<W16>
1-52139-061-0
01
1
1404-
41
PISTON; LEVELING VLV
FULL FLOATING CAB<W16>
1-52135-011-0
01
1
1404-
51
SHIM; LEVELING VLV
FULL FLOATING CAB<W16> T=0.2
1-52139-067-0
AR
1
1404-
51
SHIM; LEVELING VLV
FULL FLOATING CAB<W16> T=0.1
1-52139-068-0
AR
1
1404-
53
NUT; LEVELING VLV
FULL FLOATING CAB<W16>
1-52139-058-0
01
1
1404-
55
WASHER; LEVELING VLV
FULL FLOATING CAB<W16>
1-52139-059-0
01
1
1404-
56
BODY ASM; LEVELING VALVE
FULL FLOATING CAB<W16>
8-98281-696-0
01
1
1404-
58
SPACER; LEVELING VALVE
FULL FLOATING CAB<W16>
1-52139-050-0
01
1
1404-
59
SEAT; VALVE,LEVELING VALVE
FULL FLOATING CAB<W16>
1-52132-003-0
01
1
1404-
60
SHAFT; LEVELING VALVE
FULL FLOATING CAB<W16>
1-52135-009-0
01
1
1404-
62
BOLT; STOPPER,LEVELING VALVE
FULL FLOATING CAB<W16>
1-52139-069-0
01
1
1404-
63
PLATE; LEVELING VALVE
FULL FLOATING CAB<W16>
1-52139-091-0
01
1
1404-
67
SPOOL; LEVELING VALVE
FULL FLOATING CAB<W16>
1-52139-092-0
01
1
1404-
68
VALVE; SOLENOID
FULL FLOATING CAB<W16>
8-98281-576-0
01
1
1404-
69
SCREW; SOLENOID TO BODY
FULL FLOATING CAB<W16>
8-98281-578-0
02
1
1404-
