Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

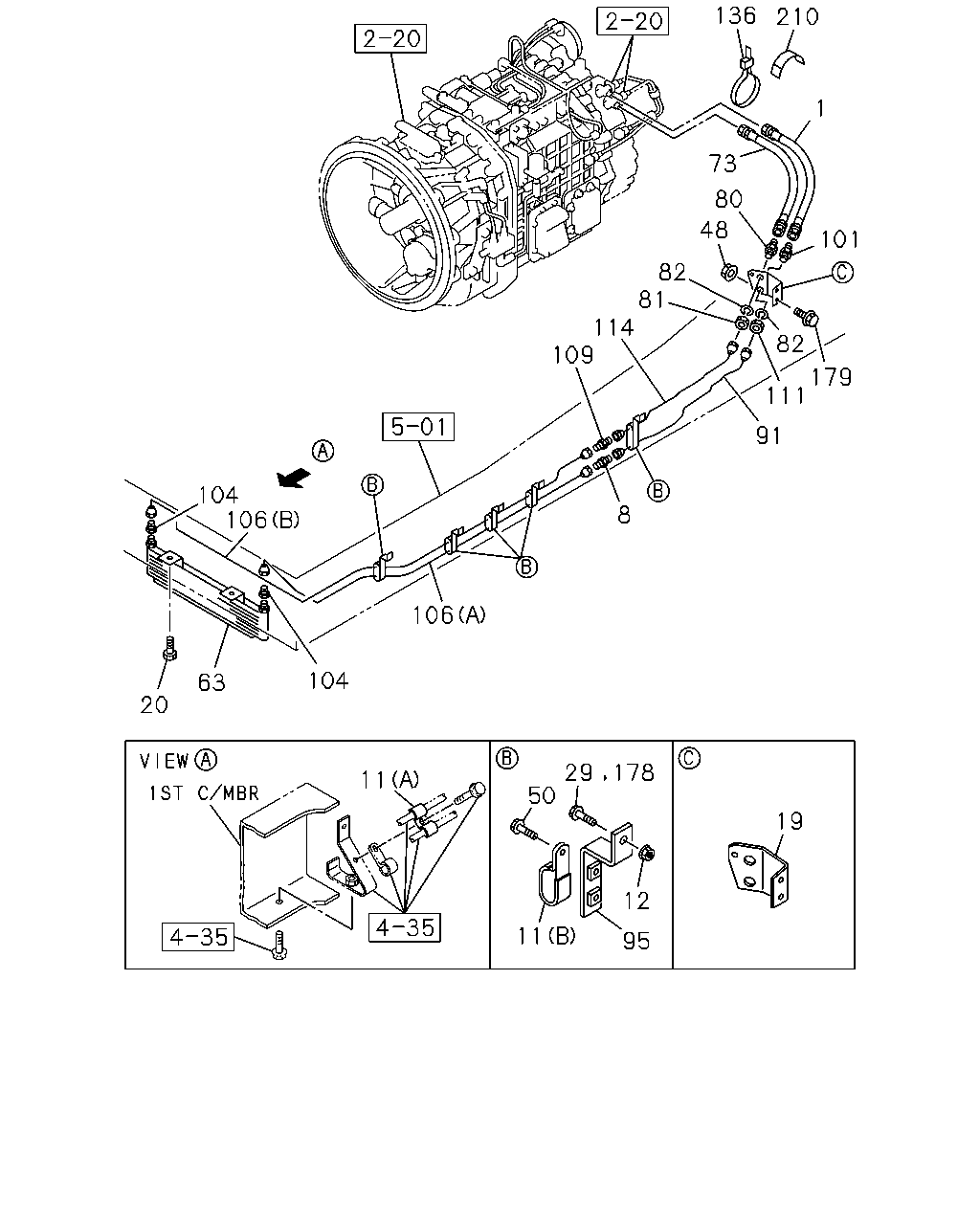

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#14467) — 32 parça
136
210
1
73
80
48
82
81
114
109
101
82
179
111
91
8
106
104
106
104
63
20
11
50
29
178
19
12
95
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=600
1-09365-232-0
01
1
0611-
8
UNION
M22 L=51
0-92123-015-0
01
1
0611-
11
CLIP; PIPE
(B) ID=16X2 L=20
0-95325-535-0
05
1
0611-
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0611-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0611-
19
BRACKET; FLEX HOSE
1-47479-561-1
01
1
0611-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0611-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0611-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
04
1
0611-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0611-
63
COOLER; OIL
1-21700-394-0
01
1
0611-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=530
1-09365-248-0
01
1
0611-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0611-
81
NUT; UNION
M22
0-91111-522-0
01
1
0611-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0611-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
0611-
95
BRACKET; CLIP
1-47479-482-0
05
1
0611-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0611-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0611-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1726
8-98034-829-0
01
1
0611-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2311
8-98034-830-0
01
1
0611-
109
UNION
M22 L=51
0-92123-015-0
01
1
0611-
111
NUT; UNION
M22
0-91111-522-0
01
1
0611-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
0611-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0611-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0611-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0611-
