◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#144666) — 54 parça

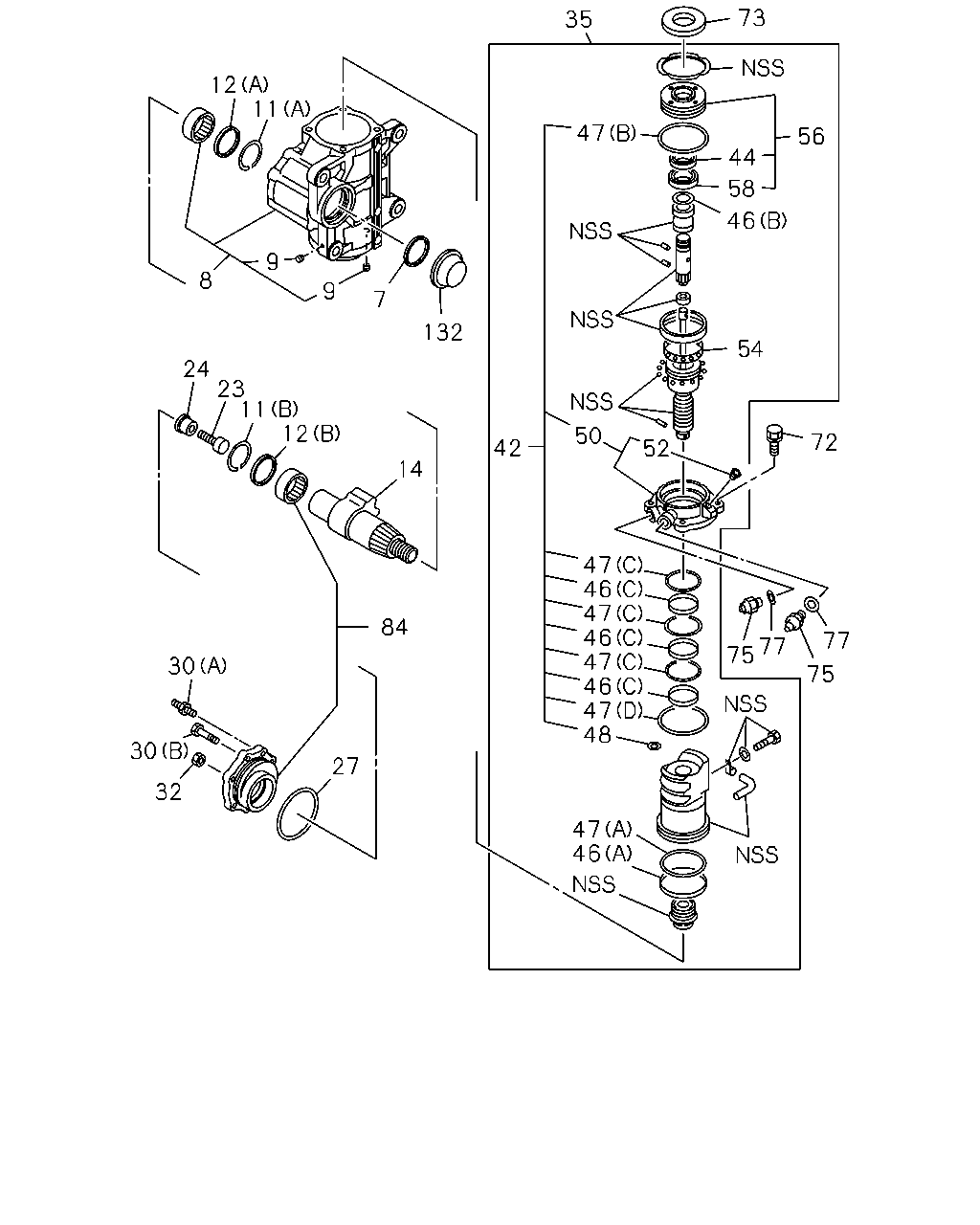

çizim 431728
54 72 56 44 46 58 73 35 12 11 8 9 7 9 132 12 11 23 24 14 42 50 52 47 46 47 46 47 46 47 48 47 46 75 77 75 77 84 27 30 30 32 47
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44240-152-0 01 1 -
9 PLUG; FILLER,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-957-2 		1-44321-035-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-957-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44150-103-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), CHI ASM PART: A = 1-44000-957-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), CHI ASM PART: A = 1-44000-957-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), CHI ASM PART: A = 1-44000-957-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		8-98166-307-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5, CHI ASM PART: A = 1-44000-957-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-227-0 01 1 -

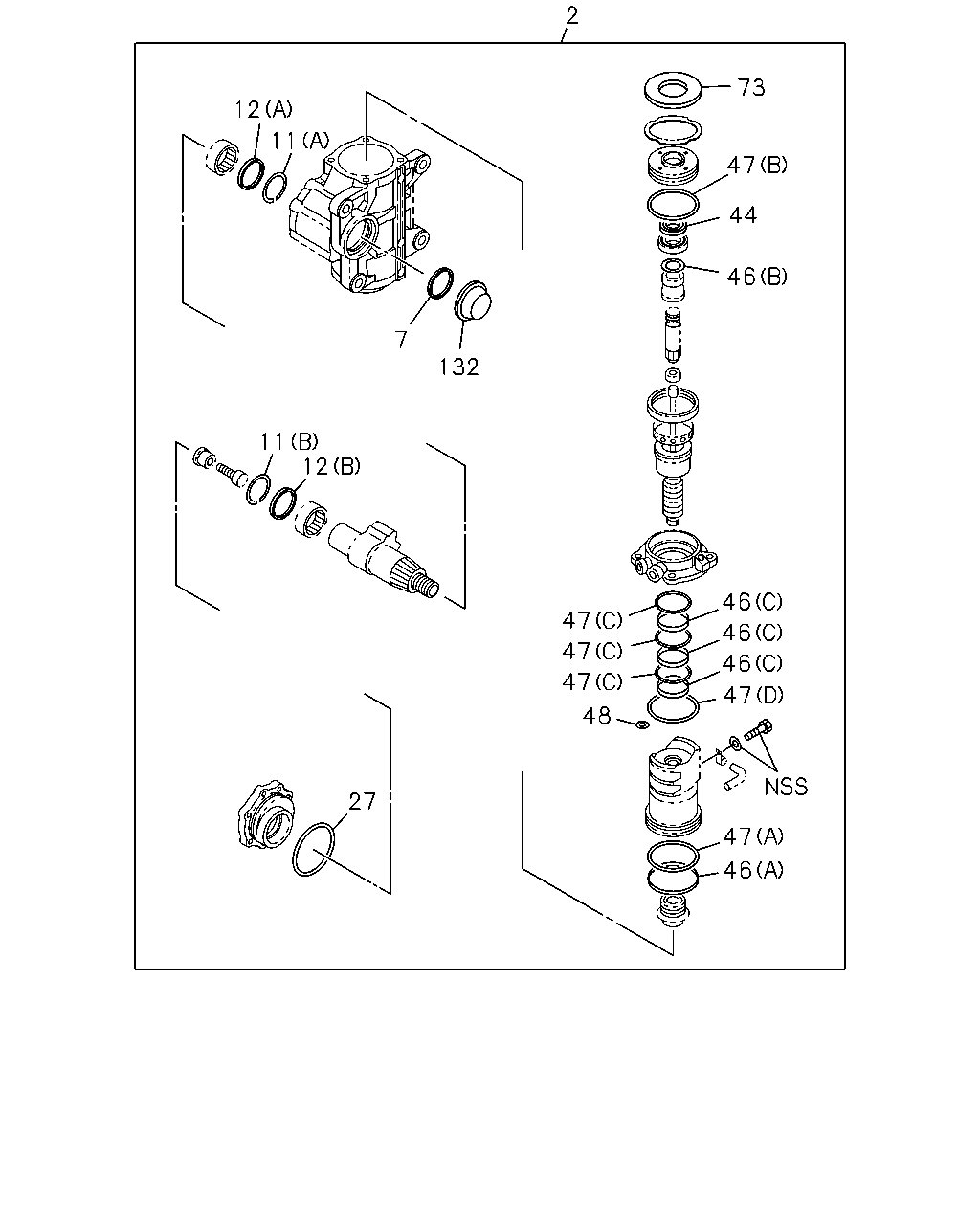

çizim 432977
12 11 7 12 11 132 2 73 47 44 46 47 47 47 48 47 46 46 46 27 47 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR, CHI ASM PART: A = 1-44000-957-2 		8-98166-304-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), CHI ASM PART: A = 1-44000-957-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), CHI ASM PART: A = 1-44000-957-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), CHI ASM PART: A = 1-44000-957-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B), CHI ASM PART: A = 1-44000-957-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), CHI ASM PART: A = 1-44000-957-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		8-98166-307-0 01 1 -
132 COVER; DUST,STRG UNIT
CHI ASM PART: A = 1-44000-957-2 		1-44519-227-0 01 1 -
