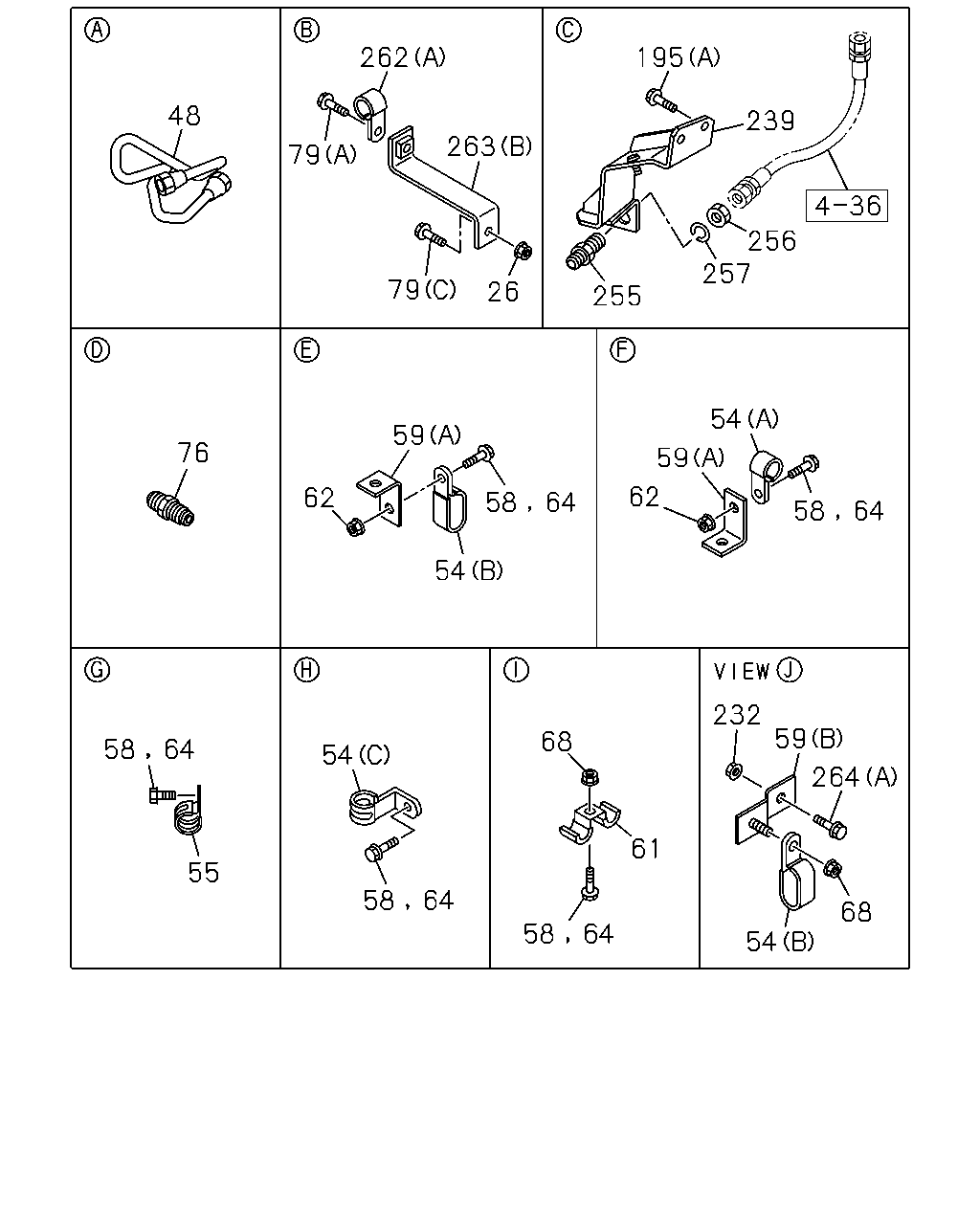

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#144664) — 77 parça

48 262 79 263 26 79 195 239 256 257 255 54 59 62 58 64 58 64 54 59 62 76 58 64 55 54 58 64 68 61 64 58 232 59 264 68 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; OIL TANK TO BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CHI	8-97430-508-0	01	1	1404-
54	CLIP; OIL PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
54	CLIP; OIL PIPE (B) ID=16X2 L=20 CHI	0-95325-535-0	02	1	1404-
54	CLIP; OIL PIPE (C) ID=19 L=24 H=21 CHI	1-09700-109-1	02	1	1404-
55	CLIP; P/S RUBBER HOSE ID=28 L=32 CHI	1-09701-107-1	01	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	06	1	1404-
59	BRACKET; CLIP,OIL PIPE (A) L=40 CHI	1-47478-410-0	03	1	1404-
59	BRACKET; CLIP,OIL PIPE (B) CHI	8-97430-507-0	01	1	1404-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5 CHI	1-09700-674-0	01	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	03	1	1404-
64	BOLT; CLIP BRKT M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
68	NUT; CLIP,OIL PIPE M8 FLANGE CHI	0-91180-108-0	02	1	1404-
76	UNION; OIL PIPE M22 CHI	0-92123-015-0	01	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
195	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1404-
232	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	01	1	1404-
239	BRACKET; FLEX HOSE CHI	8-97608-869-1	01	1	1404-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT CHI	1-09654-204-2	01	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	01	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	01	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	01	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	01	1	1404-
262	CLIP; P/S PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 CHI	1-09700-606-0	02	1	1404-
263	BRACKET; P/S PIPE (A) CHI	1-47471-191-1	01	1	1404-
263	BRACKET; P/S PIPE (B) CHI	8-97430-506-0	01	1	1404-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE CHI	0-28650-840-0	01	1	1404-

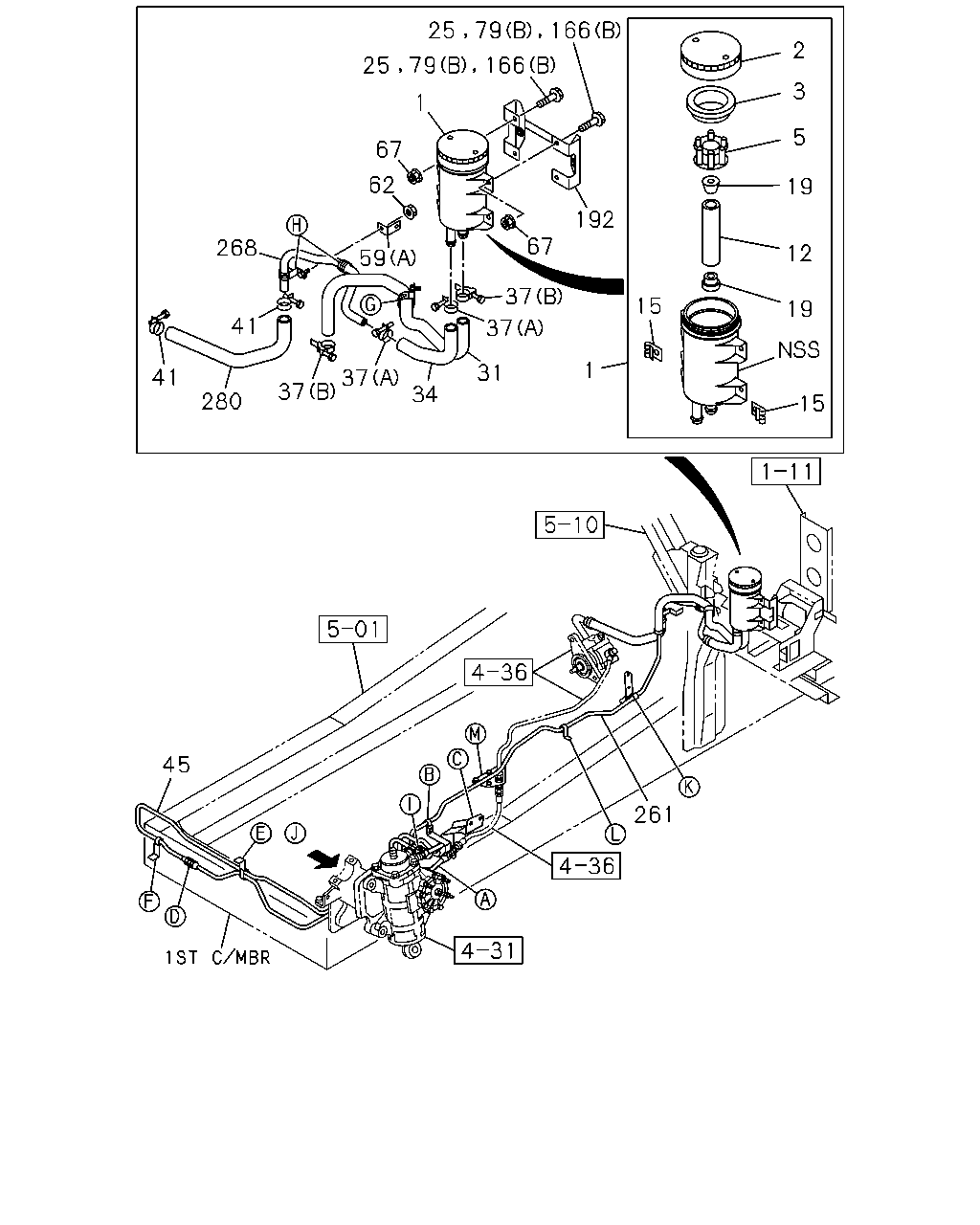

25 79 166 166 79 25 67 1 62 59 268 280 41 41 37 37 34 31 37 37 67 192 15 1 2 5 3 19 12 19 15 261 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S CHI	8-98166-958-0	01	1	1404-
2	CAP; OIL TANK,P/S CHI	8-98166-876-0	01	1	1404-
3	GASKET; OIL TANK,P/S CHI	1-21249-003-1	01	1	1404-
5	STRAINER; OIL TANK,P/S CHI	1-21235-007-1	01	1	1404-
12	FILTER; MICROBON,OIL TANK,P/S CHI	1-21235-004-1	01	1	1404-
15	PLATE; FILTER,OIL TANK CHI	1-21249-016-0	04	1	1404-
19	SEAT; OIL TANK CHI	1-21249-004-0	02	1	1404-
25	BOLT; OIL TANK BRKT M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
31	HOSE; P/S OIL TANK,INL CHI	8-97430-525-0	01	1	1404-
34	HOSE; P/S OIL TANK,OUTLET CHI	8-97430-527-0	01	1	1404-
37	CLIP; HOSE,P/S (A) ID=32 CHI	1-09704-085-0	02	1	1404-
37	CLIP; HOSE,P/S (B) ID=28 CHI	9-09915-672-1	02	1	1404-
41	CLIP; HOSE,P/S ID=32 CHI	1-09704-085-0	02	1	1404-
45	PIPE; OIL,P/S UNIT TO UNION CHI	8-97430-509-0	01	1	1404-
59	BRACKET; CLIP,OIL PIPE (A) L=40 CHI	1-47478-410-0	03	1	1404-
59	BRACKET; CLIP,OIL PIPE (B) CHI	8-97430-507-0	01	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	03	1	1404-
67	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
166	BOLT; CLIP (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
166	BOLT; CLIP (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
192	BRACKET; P/S OIL TANK CHI	8-97430-212-0	01	1	1404-
261	PIPE; OIL,UNION TO HOSE CHI	8-97431-158-0	01	1	1404-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CHI	8-97430-511-0	01	1	1404-
280	HOSE; P/S OIL PUMP,INL CHI	8-97430-524-0	01	1	1404-

264 234 263 262 166 262 166 234 157 266 111 257 256 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1404-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1404-
166	BOLT; CLIP (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
166	BOLT; CLIP (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
195	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1404-
234	NUT; PIPE CLIP,P/S M8 FLANGE CHI	0-91180-108-0	02	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	01	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	01	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	01	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	01	1	1404-
262	CLIP; P/S PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 CHI	1-09700-606-0	02	1	1404-
263	BRACKET; P/S PIPE (A) CHI	1-47471-191-1	01	1	1404-
263	BRACKET; P/S PIPE (B) CHI	8-97430-506-0	01	1	1404-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE CHI	0-28650-840-0	01	1	1404-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1404-
