Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

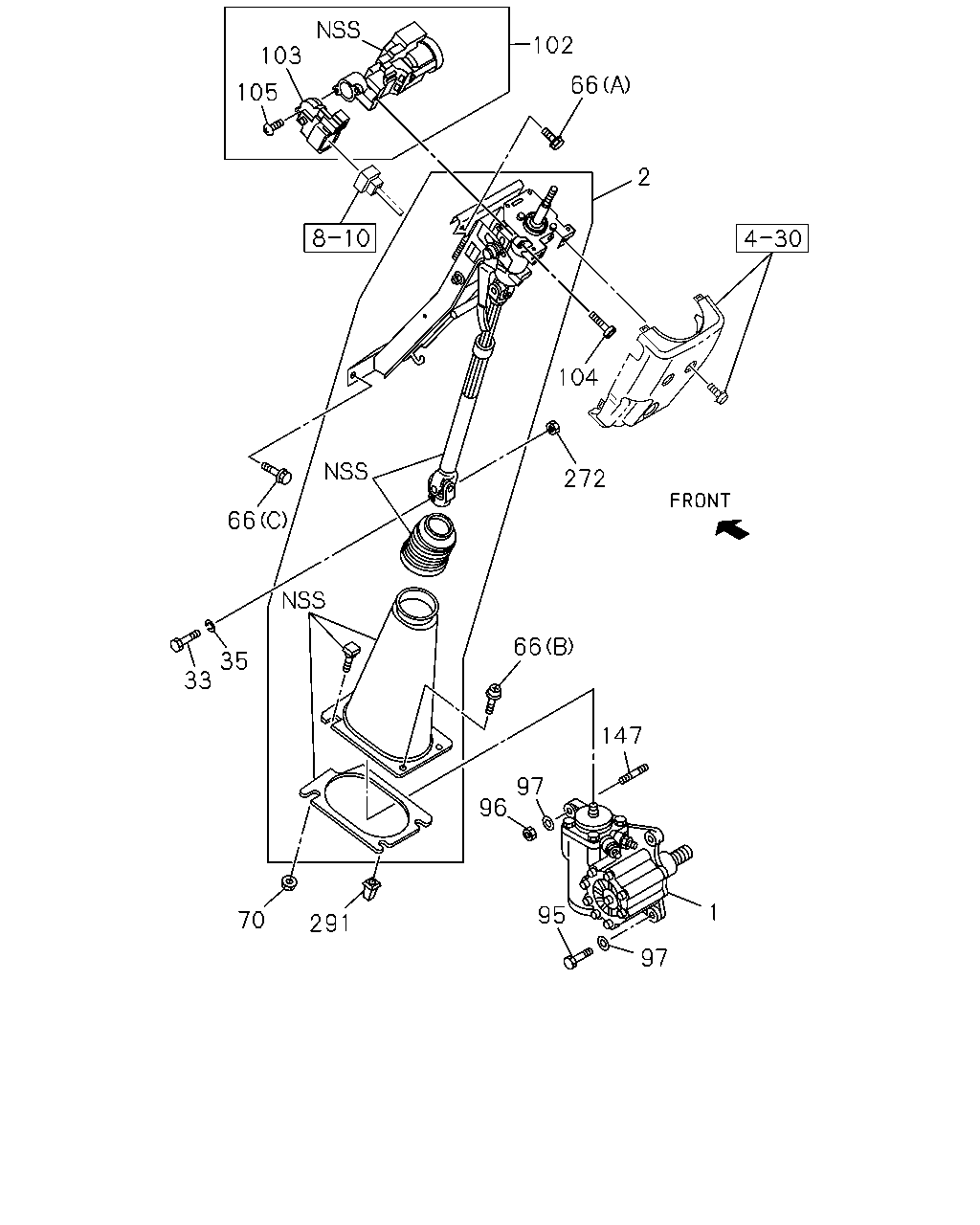

4-31 — STEERING COLUMN AND SHAFT
(#144662) — 18 parça
103
105
102
66
2
104
272
66
35
33
70
291
96
66
147
97
95
97
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-957-2
01
1
1404-
2
SHAFT ASM; STRG
CHI
8-97426-561-0
01
1
1404-
33
BOLT; STRG SHAFT TO UNIT
M10X50 CHI
1-09000-786-0
01
1
1404-
35
WASHER; LK,STRG SHAFT
ID=10.2 CHI
0-91510-810-0
01
1
1404-
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING CHI
0-72180-518-0
02
1
1404-
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER CHI
8-98018-439-0
02
1
1404-
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER CHI
1-09984-180-0
02
1
1404-
95
BOLT; STRG UNIT
M18X60 CHI
8-98036-497-0
03
1
1404-
96
NUT; STRG UNIT
M18 CHI
0-91110-518-0
01
1
1404-
97
WASHER; PL,STRG UNIT
ID=18 CHI
9-09851-862-0
04
1
1404-
102
LOCK ASM; STRG
CHI
8-98006-150-0
01
1
1404-
103
SWITCH; IGNITION
CHI
8-98045-349-0
01
1
1404-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT CHI
8-97321-385-0
02
1
1404-
105
SCREW; IGN SW
CHI
8-98045-346-0
02
1
1404-
147
STUD; STRG UNIT
M18X49 L=76 CHI
1-09300-107-0
01
1
1404-
272
NUT; SHAFT TO YOKE
M10 CHI
0-91110-510-0
01
1
1404-
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL CHI
8-94279-043-0
02
1
1404-
