1 |

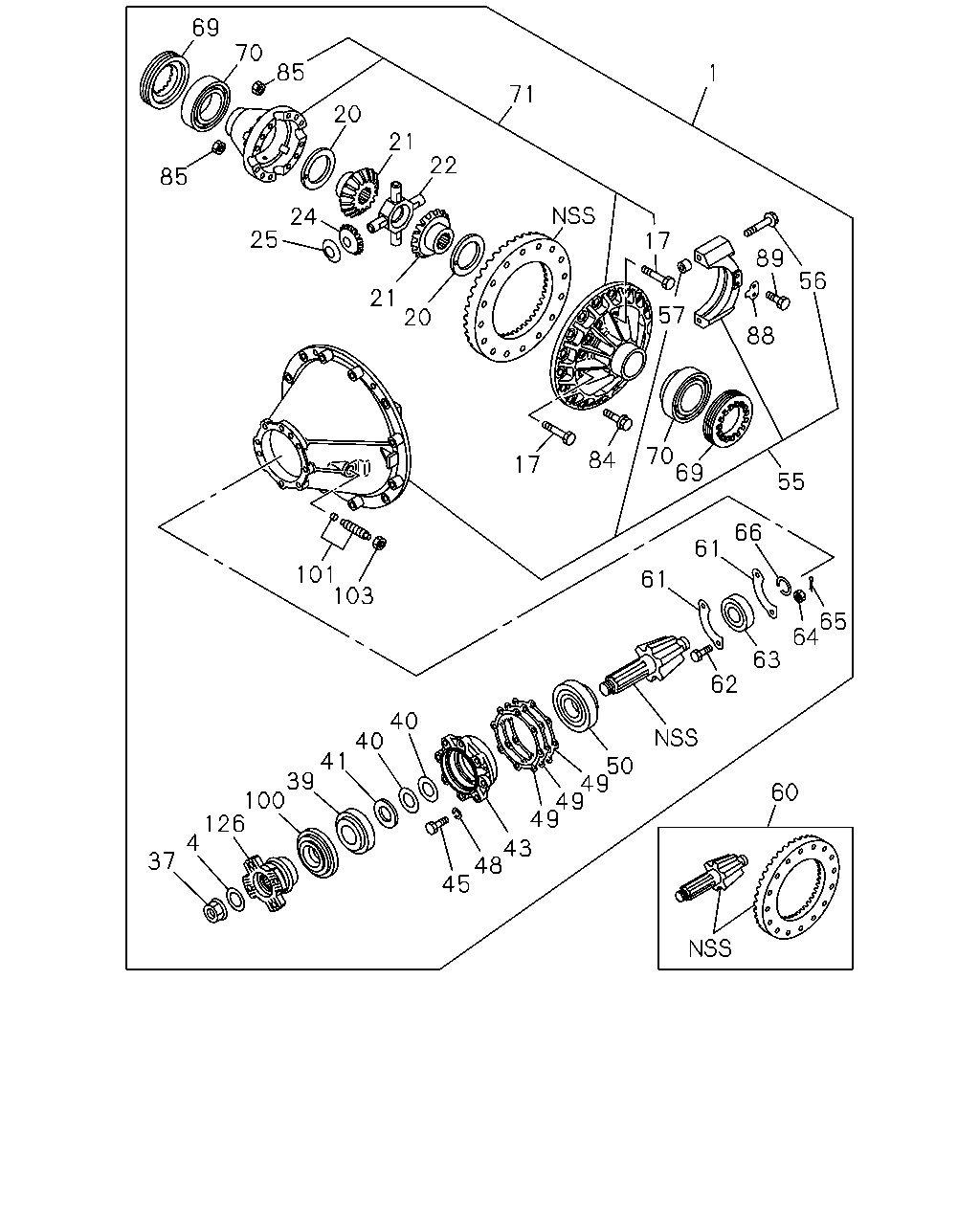

DRIVE ASM; FINAL,RR
38/7
|
1-41003-571-0 |
01 |
1 |
1404- |
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=57
|
1-09623-386-0 |
01 |
1 |
1404- |
| |
17 |
BOLT; DIFF CAGE SETTING
M16X141 FLANGE
|
1-09070-013-0 |
08 |
1 |
1404- |
| |
17 |
BOLT; DIFF CAGE SETTING
M16X105 FLANGE
|
1-09070-014-0 |
04 |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.8
|
1-41562-270-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.9
|
1-41562-271-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.0
|
1-41562-272-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.1
|
1-41562-273-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.2
|
1-41562-274-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.3
|
1-41562-275-1 |
AR |
1 |
1404- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.4
|
1-41562-276-1 |
AR |
1 |
1404- |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-167-0 |
02 |
1 |
1404- |
| |
22 |
SPIDER; DIFF PINION
OD=35
|
1-41521-052-0 |
01 |
1 |
1404- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-054-0 |
04 |
1 |
1404- |
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-003-0 |
04 |
1 |
1404- |
| |
37 |
NUT; DRIVING PINION
M46 FLANGE
|
1-09449-071-0 |
01 |
1 |
1404- |
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-075-0 |
01 |
1 |
1404- |
| |
39 |
BEARING; FINAL PINION
JTEKT
|
1-09812-076-1 |
01 |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.25
|
1-41229-245-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.26
|
1-41229-246-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.27
|
1-41229-247-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.28
|
1-41229-248-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.29
|
1-41229-249-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.30
|
1-41229-250-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.31
|
1-41229-251-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.32
|
1-41229-252-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.33
|
1-41229-253-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.34
|
1-41229-254-0 |
AR |
1 |
1404- |
| |
40 |
SHIM; FINAL PINION
T=3.35
|
1-41229-255-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.60
|
1-41229-237-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.80
|
1-41229-238-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.00
|
1-41229-239-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.20
|
1-41229-240-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.40
|
1-41229-241-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.60
|
1-41229-242-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.80
|
1-41229-243-0 |
AR |
1 |
1404- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=9.00
|
1-41229-244-0 |
AR |
1 |
1404- |
| |
43 |
CAGE; FINAL PINION
T=82
|
1-41151-057-0 |
01 |
1 |
1404- |
| |
45 |
BOLT; FINAL PINION CAGE
M16X55
|
0-16806-655-0 |
08 |
1 |
1404- |
| |
48 |
WASHER; LK,FINAL PINION
ID=16.2
CHI
|
0-91510-516-0 |
08 |
1 |
1404- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.50
|
1-41154-077-0 |
AR |
1 |
1404- |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-078-0 |
AR |
1 |
1404- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.30
|
1-41154-079-0 |
AR |
1 |
1404- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.40
|
1-41154-080-0 |
AR |
1 |
1404- |
| |
50 |
BEARING; FINAL PINION
NSK
|
1-09812-073-1 |
01 |
1 |
1404- |
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-074-3 |
01 |
1 |
1404- |
| |
55 |
CARRIER; DIFF
|
1-41110-102-0 |
01 |
1 |
1404- |
| |
56 |
BOLT; BRG CAP
M20X125 FLANGE
|
1-09070-015-0 |
04 |
1 |
1404- |
| |
57 |
DOWEL; BRG CAP
|
9-41119-033-1 |
04 |
1 |
1404- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
38/7
|
1-41210-616-0 |
01 |
1 |
1404- |
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-008-0 |
02 |
1 |
1404- |
| |
62 |
BOLT; RET
M8X42 W/PIN HOLE
|
1-09042-037-0 |
02 |
1 |
1404- |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-152-0 |
01 |
1 |
1404- |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-153-0 |
01 |
1 |
1404- |
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
1404- |
| |
65 |
PIN; SPLIT,RET
|
0-81122-012-0 |
02 |
1 |
1404- |
| |
66 |
RING; SNAP,PILOT BRG
OD=45.9
|
1-09588-061-0 |
01 |
1 |
1404- |
| |
69 |
NUT; ADJ,DIFF CAGE
|
1-41121-003-2 |
01 |
1 |
1404- |
| |
69 |
NUT; ADJ,DIFF CAGE
|
1-41121-004-0 |
01 |
1 |
1404- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=101 OD=168 T=41.3
|
9-00093-119-0 |
01 |
1 |
1404- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=100 OD=157 T=36.5
|
9-00093-120-0 |
01 |
1 |
1404- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-277-0 |
01 |
1 |
1404- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M18X38 FLANGE
|
1-09009-049-1 |
18 |
1 |
1404- |
| |
85 |
NUT; DIFF CAGE SETTING
M16
CHI
|
0-91110-516-0 |
12 |
1 |
1404- |
| |
88 |
PLATE; LK,ADJ NUT
|
9-41124-013-0 |
02 |
1 |
1404- |
| |
89 |
BOLT; LK PLATE
M10X20 FLANGE
|
0-28751-020-0 |
04 |
1 |
1404- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-322-0 |
01 |
1 |
1404- |
| |
101 |
BOLT; ADJ,DRIVEN GEAR THRUST
M24X104
|
9-41127-006-0 |
01 |
1 |
1404- |
| |
103 |
NUT; ADJ BOLT
M28
|
9-09842-003-0 |
01 |
1 |
1404- |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-343-0 |
01 |
1 |
1404- |
