Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

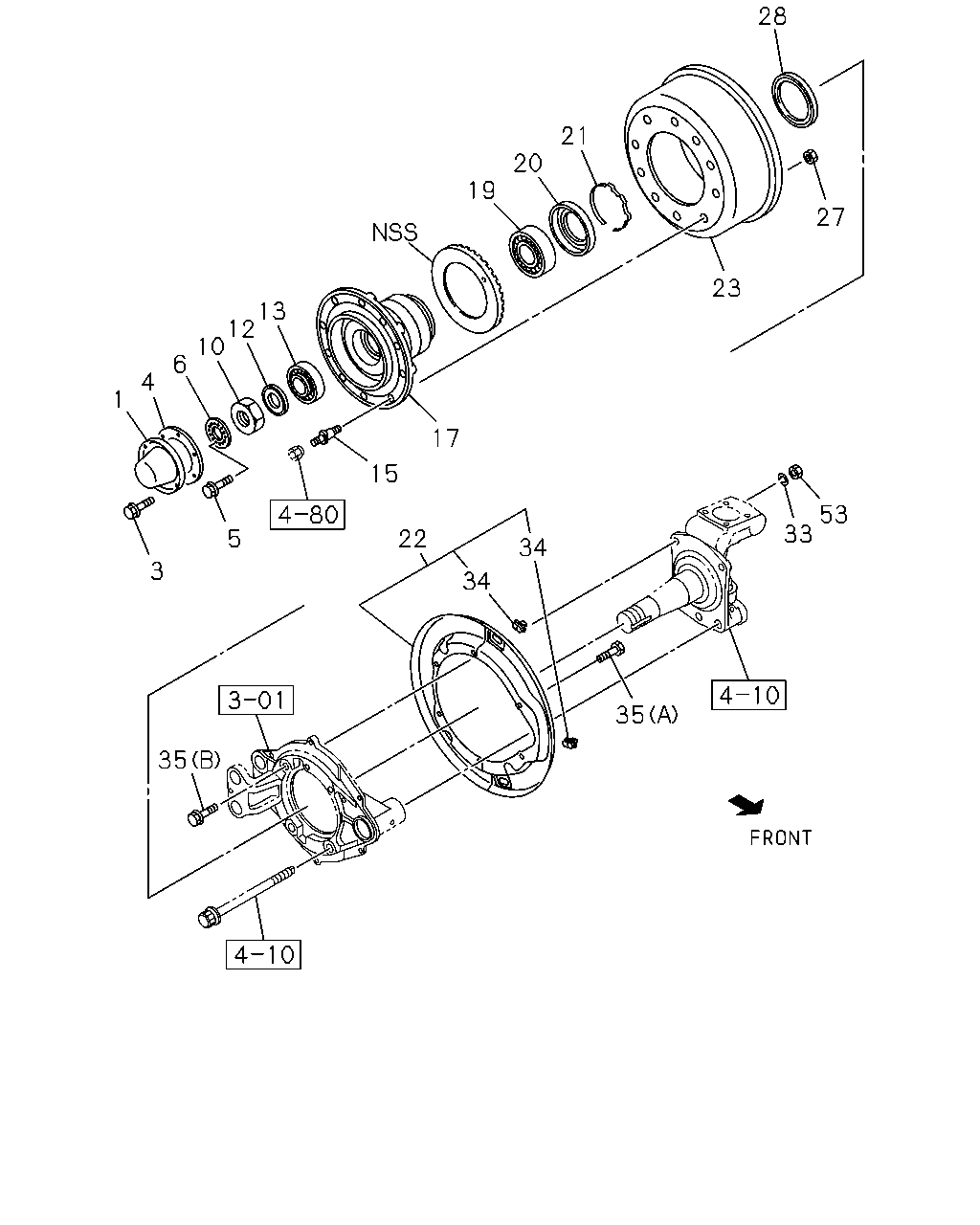

4-11 — FRONT HUB AND DRUM OR ROTOR
(#144658) — 26 parça
28
21
20
19
13
12
10
6
4
1
3
5
15
17
23
27
53
33
35
34
34
22
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1404-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE CHI
0-28050-812-0
12
1
1404-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1404-
5
BOLT; LK WASHER
M6X16 FLANGE CHI
8-98200-943-0
04
1
1404-
6
WASHER; LK,FRT HUB
ID=48 CHI
8-98084-561-0
02
1
1404-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1404-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1404-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1404-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
20
1
1404-
17
HUB; FRT AXLE
1-42312-100-1
02
1
1404-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1404-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1404-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1404-
22
COVER SET; FRT BRK DRUM
FRT BRAKE-AIR,D410-S CAM 140<B7A>
1-47151-459-1
02
1
1404-
22
COVER SET; FRT BRK DRUM
FRT BRAKE-AIR,D410-S CAM 160<B7N>
1-47151-775-0
02
1
1404-
23
DRUM; BRK,FRT
FRT BRAKE-AIR,D410-S CAM 140<B7A>
1-42315-380-0
02
1
1404-
23
DRUM; BRK,FRT
FRT BRAKE-AIR,D410-S CAM 160<B7N>
1-42315-365-0
02
1
1404-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
20
1
1404-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1404-
33
WASHER; LK,DRUM COVER
ID=16.2 CHI
0-91510-816-0
04
1
1404-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1404-
35
BOLT; DRUM COVER
(B) M16X59 FLANGE
1-09044-002-2
04
1
1404-
35
BOLT; DRUM COVER
FRT BRAKE-AIR,D410-S CAM 140<B7A> BRAKE ADJUSTER MANUAL<BJR> (A) M10X16 W/LK WASHER
0-50541-016-0
12
1
1404-
35
BOLT; DRUM COVER
FRT BRAKE-AIR,D410-S CAM 160<B7N> BRAKE ADJUSTER MANUAL<BJR> (A) M10X12
1-47159-187-0
12
1
1404-
35
BOLT; DRUM COVER
AUTO ADJUSTER BRAKE<BCU> (A) M10X12
1-47159-187-0
12
1
1404-
53
NUT; DRUM COVER
M16 CHI
0-91110-516-0
04
1
1404-
