◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#144653) — 138 parça
çizim 432351
321 376 34 279 133 106 106 279 133 106 133 279 321 376 34
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
106 BRACKET; TUBE CLIP
(C) L=150 CHI 		1-47471-217-0 02 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47477-571-3 01 1 1404-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		1-47479-693-0 01 1 1404-
106 BRACKET; TUBE CLIP
(F) CHI 		8-97430-375-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 09 1 1404-
321 BRACKET; CLIP
(A) CHI 		8-97430-373-0 01 1 1404-
321 BRACKET; CLIP
(B) CHI 		8-97430-374-0 01 1 1404-
321 BRACKET; CLIP
(C) L=65 B=25 CHI 		8-98135-584-0 02 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
376 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
376 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-

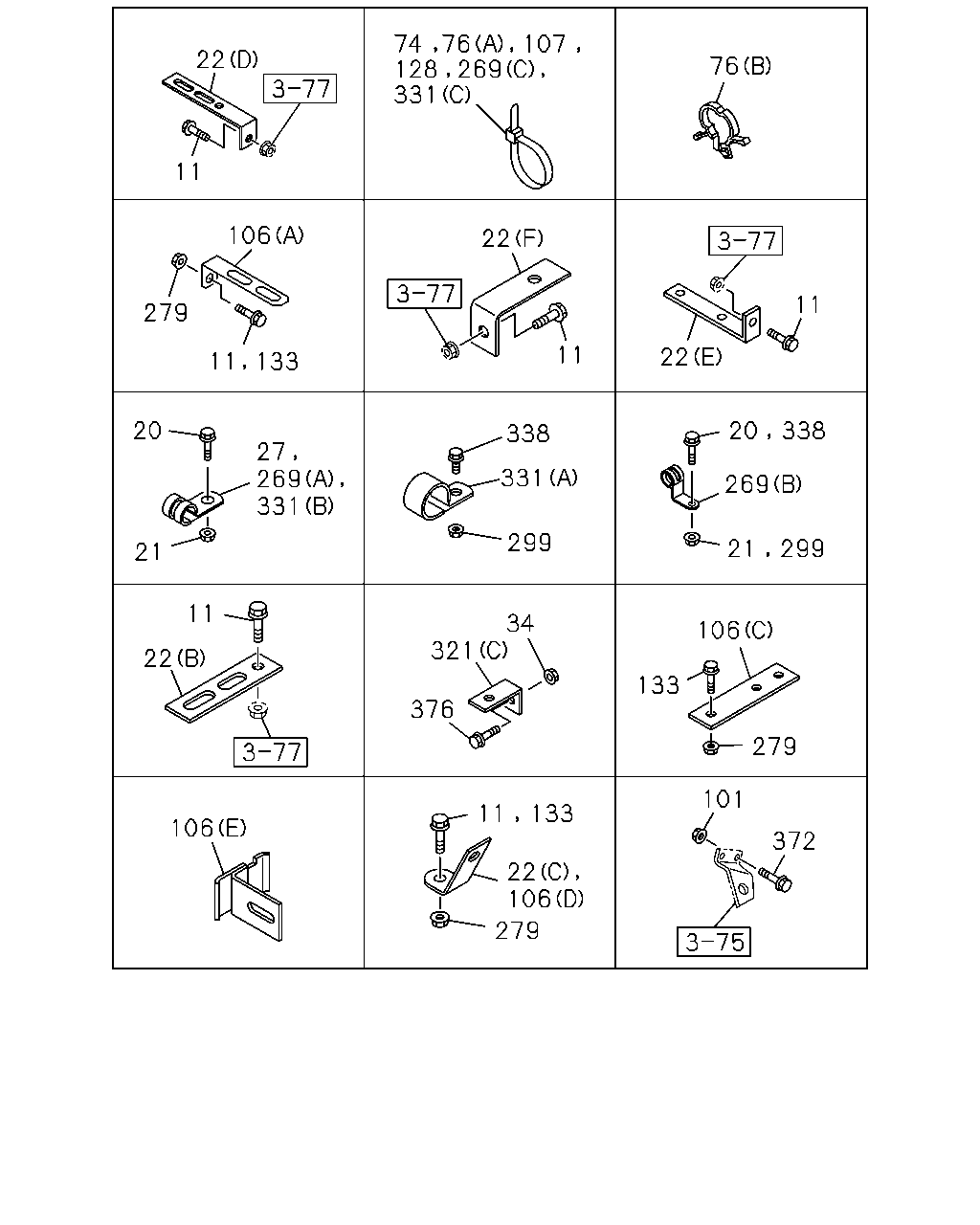

çizim 432790
22 11 74 76 107 128 269 331 76 11 22 11 22 106 279 133 11 20 338 269 299 21 106 133 279 101 372 22 133 11 106 279 106 22 21 11 321 376 34 299 331 338 20 27 331 269
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
FULL FLOATING CAB<W16> M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
20 BOLT; CLIP
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
21 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
22 BRACKET; CLIP
(C) CHI 		1-47477-571-3 01 1 1404-
22 BRACKET; CLIP
(D) L=225 CHI 		1-47477-646-3 01 1 1404-
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 01 1 1404-
22 BRACKET; CLIP
(E) L=90 CHI 		1-47477-755-1 01 1 1404-
22 BRACKET; CLIP
(F) L=55 B=25 CHI 		1-47478-439-0 01 1 1404-
22 BRACKET; CLIP
(G) L=95 CHI 		1-82699-085-0 01 1 1404-
22 BRACKET; CLIP
FULL FLOATING CAB<W16> (B) CHI 		1-47477-514-3 01 1 1404-
27 CLIP; FLEX HOSE
ID=24 L=27 CHI 		1-09700-809-0 01 1 1404-
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
74 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 01 1 1404-
76 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 05 1 1404-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 CHI 		1-09709-297-0 01 1 1404-
76 CLIP; NYLON TUBE
(C) ID=39 L=33 CHI 		8-98009-359-0 01 1 1404-
101 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404-
106 BRACKET; TUBE CLIP
(C) L=150 CHI 		1-47471-217-0 02 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47477-571-3 01 1 1404-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		1-47479-693-0 01 1 1404-
106 BRACKET; TUBE CLIP
(F) CHI 		8-97430-375-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404-
107 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 11 1 1404-
128 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 06 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404-
269 CLIP; BAND,NYLON TUBE
(A) ID=24 L=27 CHI 		1-09700-809-0 01 1 1404-
269 CLIP; BAND,NYLON TUBE
(B) ID=25 H=30 L=35 CHI 		1-09700-875-0 02 1 1404-
269 CLIP; BAND,NYLON TUBE
(C) L=350 CHI 		1-09707-183-0 01 1 1404-
269 CLIP; BAND,NYLON TUBE
FULL FLOATING CAB<W16> (C) L=350 CHI 		1-09707-183-0 01 1 1404-
269 CLIP; BAND,NYLON TUBE
(C) L=350 CHI 		1-09707-183-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 09 1 1404-
299 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
321 BRACKET; CLIP
(A) CHI 		8-97430-373-0 01 1 1404-
321 BRACKET; CLIP
(B) CHI 		8-97430-374-0 01 1 1404-
321 BRACKET; CLIP
(C) L=65 B=25 CHI 		8-98135-584-0 02 1 1404-
331 CLIP; NYLON TUBE
(A) ID=16 L=20 CHI 		0-95235-535-0 01 1 1404-
331 CLIP; NYLON TUBE
(B) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404-
331 CLIP; NYLON TUBE
(C) L=350 CHI 		1-09707-183-0 05 1 1404-
338 BOLT; PIPE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
338 BOLT; PIPE CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404-
372 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 04 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
376 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
376 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-

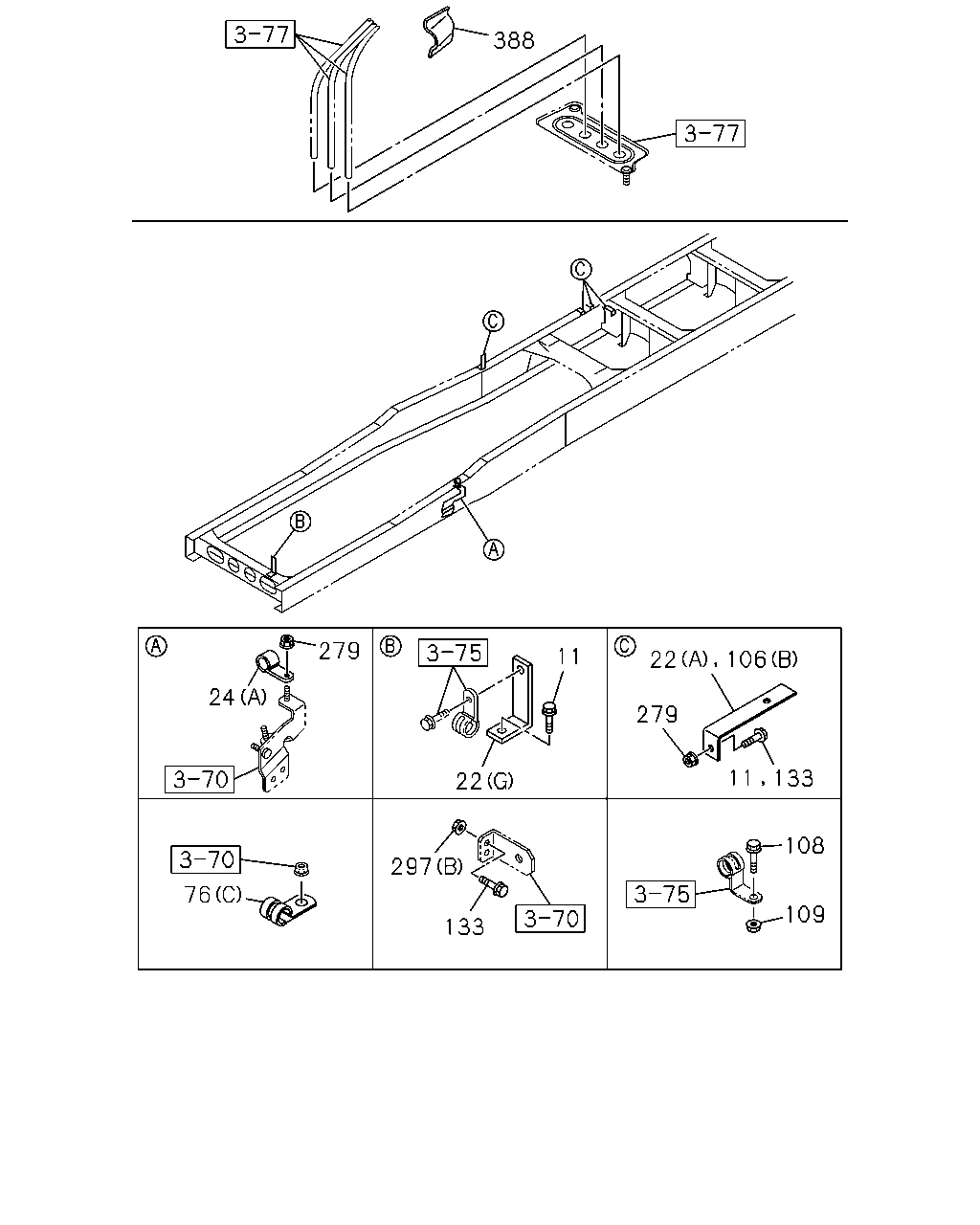

çizim 433171
388 24 279 22 11 279 22 106 11 133 108 109 133 297 76
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
FULL FLOATING CAB<W16> M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
22 BRACKET; CLIP
(C) CHI 		1-47477-571-3 01 1 1404-
22 BRACKET; CLIP
(D) L=225 CHI 		1-47477-646-3 01 1 1404-
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 01 1 1404-
22 BRACKET; CLIP
(E) L=90 CHI 		1-47477-755-1 01 1 1404-
22 BRACKET; CLIP
(F) L=55 B=25 CHI 		1-47478-439-0 01 1 1404-
22 BRACKET; CLIP
(G) L=95 CHI 		1-82699-085-0 01 1 1404-
22 BRACKET; CLIP
FULL FLOATING CAB<W16> (B) CHI 		1-47477-514-3 01 1 1404-
24 CLIP; PIPE
(B) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404-
24 CLIP; PIPE
(A) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404-
76 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 05 1 1404-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 CHI 		1-09709-297-0 01 1 1404-
76 CLIP; NYLON TUBE
(C) ID=39 L=33 CHI 		8-98009-359-0 01 1 1404-
106 BRACKET; TUBE CLIP
(C) L=150 CHI 		1-47471-217-0 02 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47477-571-3 01 1 1404-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 CHI 		1-47477-645-2 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		1-47479-693-0 01 1 1404-
106 BRACKET; TUBE CLIP
(F) CHI 		8-97430-375-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 03 1 1404-
108 BOLT; TUBE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
109 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 09 1 1404-
297 NUT; BRKT
(A) M20 CHI 		0-91111-520-0 02 1 1404-
297 NUT; BRKT
(B) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
388 SEAL
100X40 CHI 		1-72498-022-1 04 1 1404-

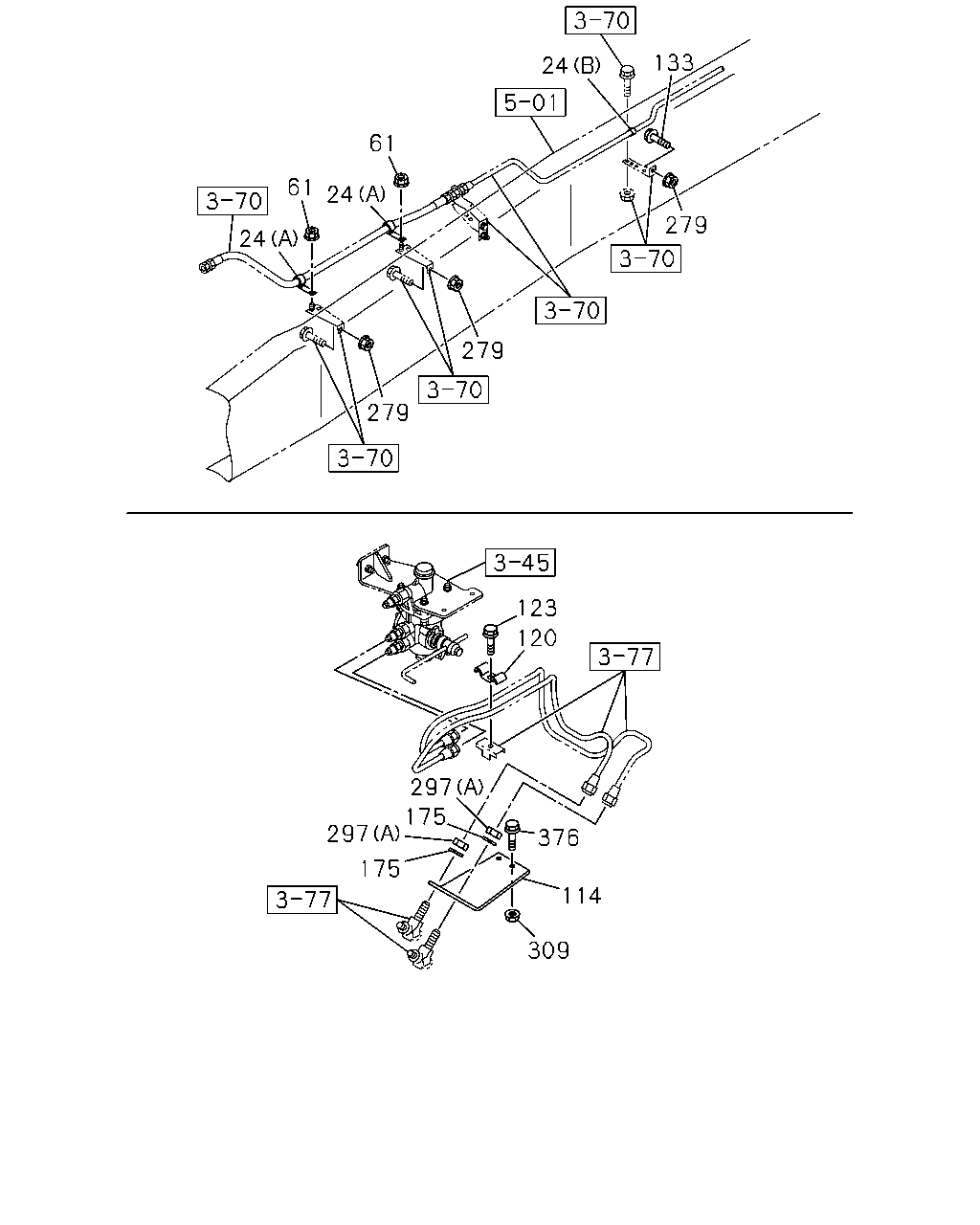

çizim 433234
133 24 61 61 24 24 279 279 279 123 120 297 175 175 297 376 114 309
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(B) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404-
24 CLIP; PIPE
(A) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404-
61 NUT; CLIP FIX
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
114 BRACKET; PIPE CLIP
CHI 		8-97430-421-0 01 1 1404-
120 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 CHI 		1-09700-833-0 01 1 1404-
123 BOLT; PIPE CLIP
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 06 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 04 1 1404-
175 WASHER; LK,BRKT
ID=20.2 CHI 		0-91510-520-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 09 1 1404-
297 NUT; BRKT
(A) M20 CHI 		0-91111-520-0 02 1 1404-
297 NUT; BRKT
(B) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
309 NUT; BRKT FIX
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404-
376 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
376 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
376 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
