3-77 — BRAKE PIPING; AIR,REAR (#144652) — 95 parça
çizim 432144
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) CHI 		1-09650-222-1 01 1 1404-
37 UNION; AIR PIPE
(B) DIN12 & R3/8 ELBOW 		8-97431-399-0 01 1 1404-

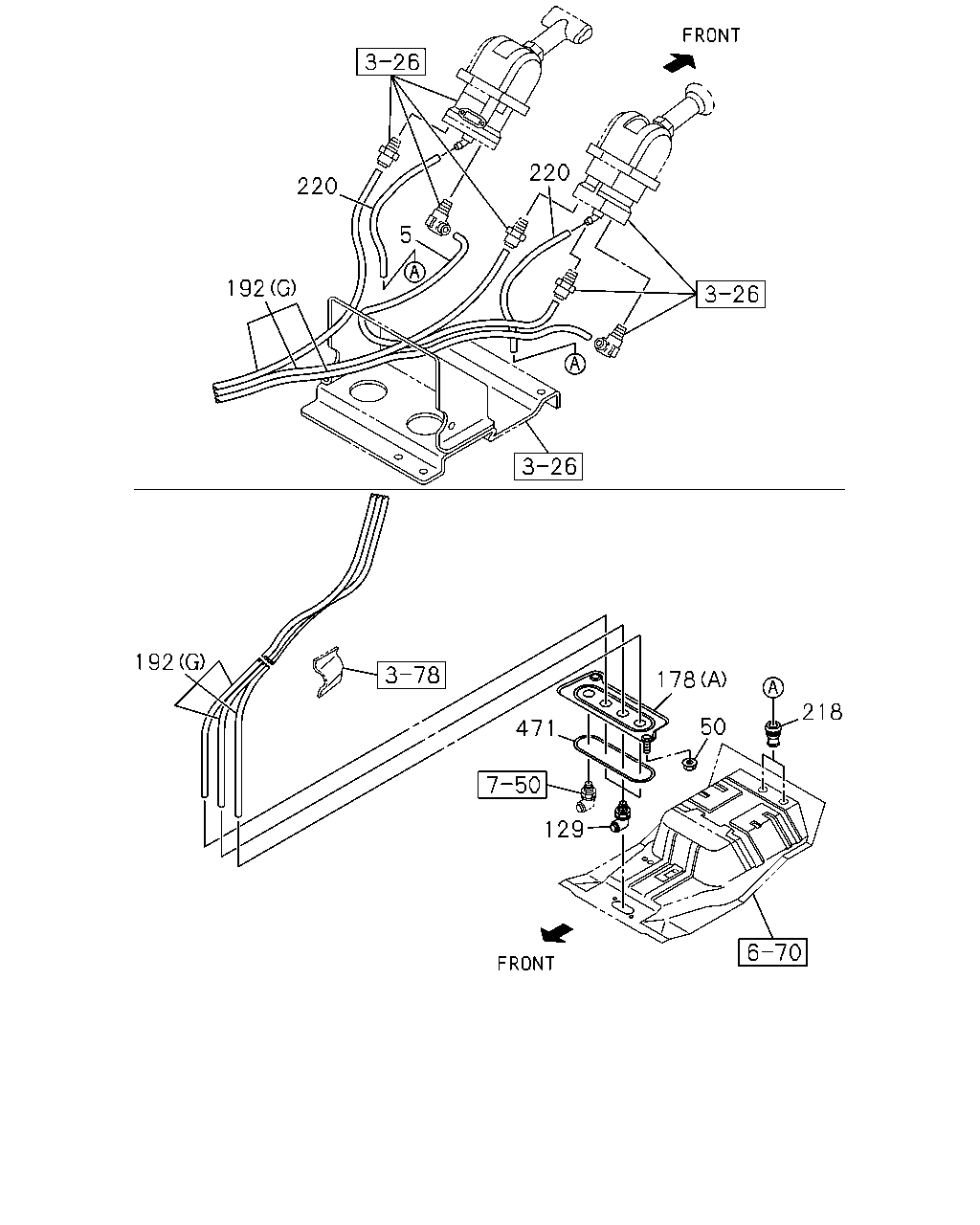

çizim 433026
220 192 5 220 192 471 178 50 218 129
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV 1-09391-018-0 01 1 1404-
50 NUT; UNION BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
129 CONNECTOR; NYLON TUBE 8-97431-402-0 01 1 1404-
129 CONNECTOR; NYLON TUBE 8-97431-402-0 02 1 1404-
178 BRACKET; UNION
(A) CHI 		8-97430-078-0 01 1 1404-
178 BRACKET; UNION
(C) CHI 		8-98031-033-1 01 1 1404-
178 BRACKET; UNION
(D) CHI 		8-98031-034-1 01 1 1404-
178 BRACKET; UNION
(B) CHI 		8-98114-771-0 01 1 1404-
192 TUBE; NYLON
(A) CHI 		8-97430-410-0 01 1 1404-
192 TUBE; NYLON
(F) CHI 		8-97430-411-0 01 1 1404-
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(D) CHI 		8-97431-629-0 01 1 1404-
192 TUBE; NYLON
(C) CHI 		8-97431-642-0 01 1 1404-
218 GROMMET; VINYL HOSE 8-94107-642-1 02 1 1404-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 CHI 		9-09914-701-0 02 1 1404-
471 SEAL; BRKT
CHI 		1-79738-832-0 01 1 1404-

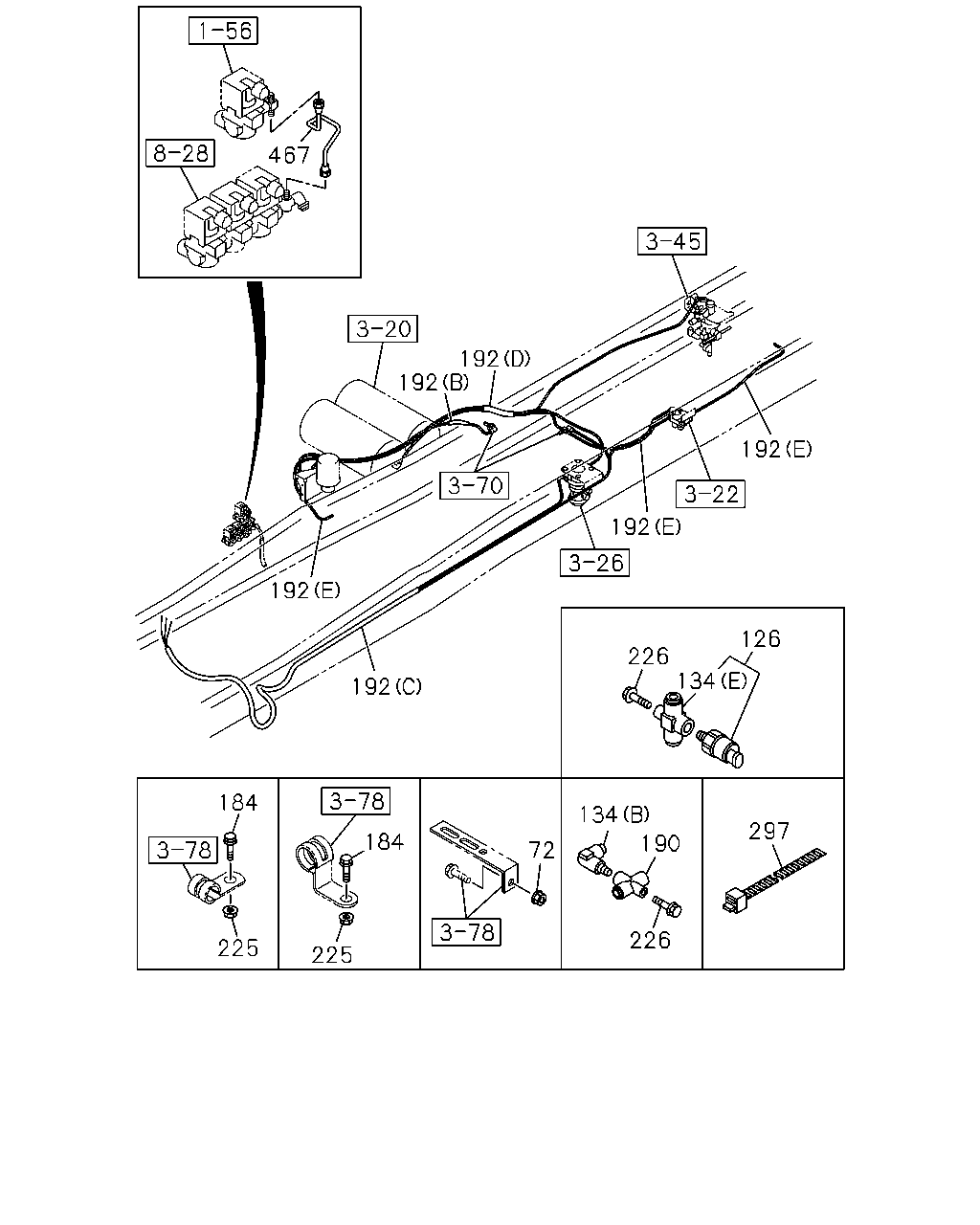

çizim 433139
192 192 192 192 192 192 184 184 225 225 226 126 134 297 134 190 226 72 467
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
72 NUT; BRKT
FULL FLOATING CAB<W16> M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
72 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
126 UNION; NYLON TUBE 8-97431-684-0 01 1 1404-
134 CONNECTOR
(B) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404-
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT CHI 		1-09660-876-0 02 1 1404-
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT CHI 		1-09660-882-0 01 1 1404-
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		8-97431-656-0 01 1 1404-
134 CONNECTOR
(E) 		8-97431-670-0 01 1 1404-
184 BOLT; TUBE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404-
190 UNION; 3 WAY
DIN8 RC1/4 & M8 CHI 		1-09660-735-1 01 1 1404-
192 TUBE; NYLON
(A) CHI 		8-97430-410-0 01 1 1404-
192 TUBE; NYLON
(F) CHI 		8-97430-411-0 01 1 1404-
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(D) CHI 		8-97431-629-0 01 1 1404-
192 TUBE; NYLON
(C) CHI 		8-97431-642-0 01 1 1404-
225 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
226 BOLT; UNION
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
297 CLIP; BAND
L=350 CHI 		1-09707-183-0 03 1 1404-
467 PIPE; AIR,MAG VLV TO MAG VLV
L=236 CHI 		8-97431-235-0 01 1 1404-

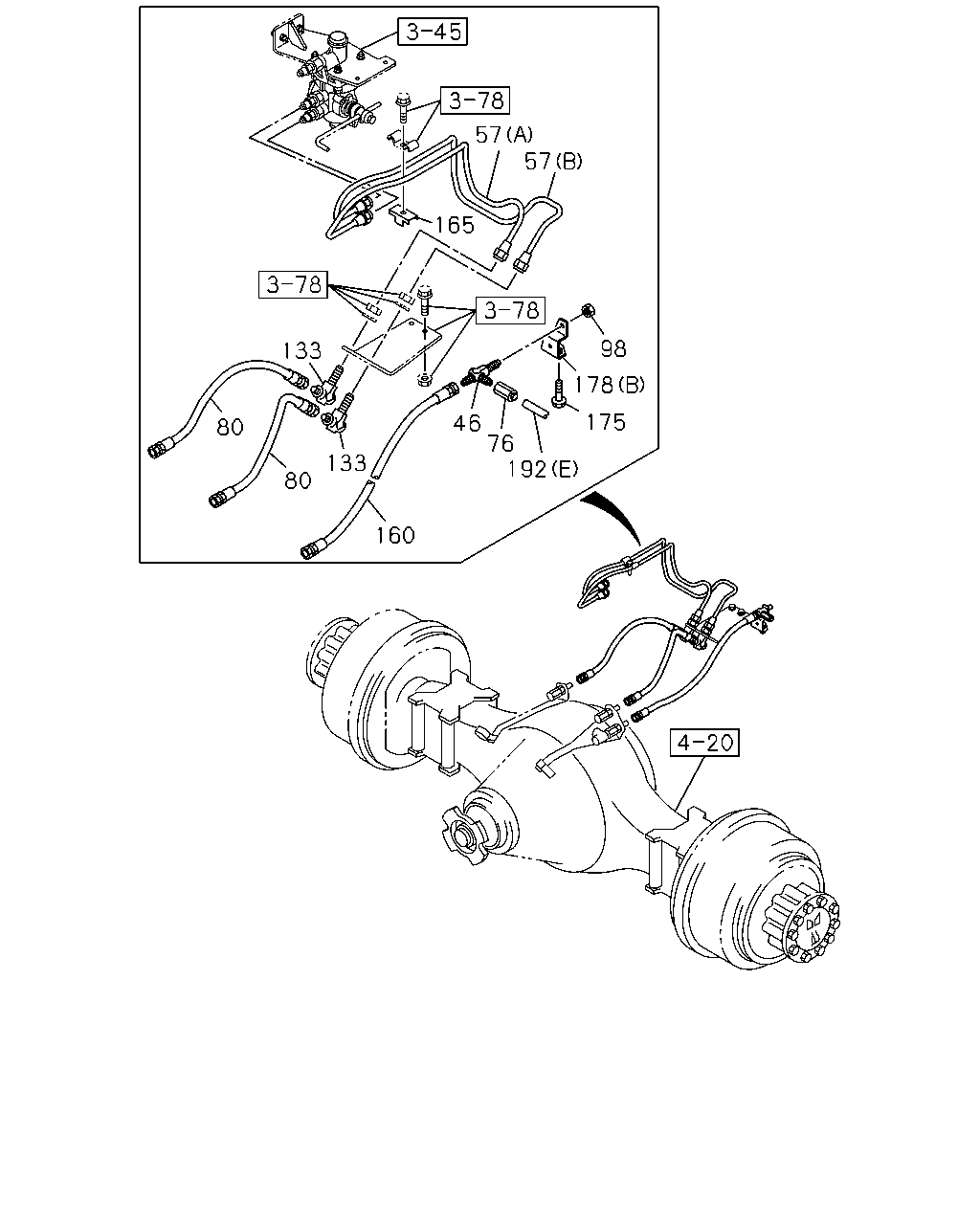

çizim 433232
57 57 165 98 178 175 192 76 46 160 133 133 80 80
BalonParca AdiParca NoAdetTipApplied Date
46 NIPPLE; AIR PIPE
M16 2WAY CHI 		1-09650-182-1 01 1 1404-
57 PIPE; AIR,RELAY VLV TO FLEX HOSE
(A) 		8-97431-767-0 01 1 1404-
57 PIPE; AIR,RELAY VLV TO FLEX HOSE
(B) 		8-97431-768-0 01 1 1404-
76 ADAPTER; NYLON TUBE 8-97431-643-0 01 1 1404-
80 HOSE; FLEX,POWER CHAMBER 8-97431-650-0 01 1 1404-
80 HOSE; FLEX,POWER CHAMBER 8-97431-650-0 01 1 1404-
98 NUT; PIPE UNION
M12 CHI 		0-91110-512-0 01 1 1404-
133 UNION; NIPPLE
CHI 		1-09654-189-1 02 1 1404-
160 HOSE; FLEX,SPR CHAMBER
L=660 CHI 		1-09363-814-0 01 1 1404-
165 BRACKET; AIR PIPE
CHI 		1-47475-427-1 01 1 1404-
175 BOLT; HOSE BRKT
M10X25 FLANGE CHI 		0-28651-025-0 02 1 1404-
178 BRACKET; UNION
(A) CHI 		8-97430-078-0 01 1 1404-
178 BRACKET; UNION
(C) CHI 		8-98031-033-1 01 1 1404-
178 BRACKET; UNION
(D) CHI 		8-98031-034-1 01 1 1404-
178 BRACKET; UNION
(B) CHI 		8-98114-771-0 01 1 1404-
192 TUBE; NYLON
(A) CHI 		8-97430-410-0 01 1 1404-
192 TUBE; NYLON
(F) CHI 		8-97430-411-0 01 1 1404-
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(D) CHI 		8-97431-629-0 01 1 1404-
192 TUBE; NYLON
(C) CHI 		8-97431-642-0 01 1 1404-

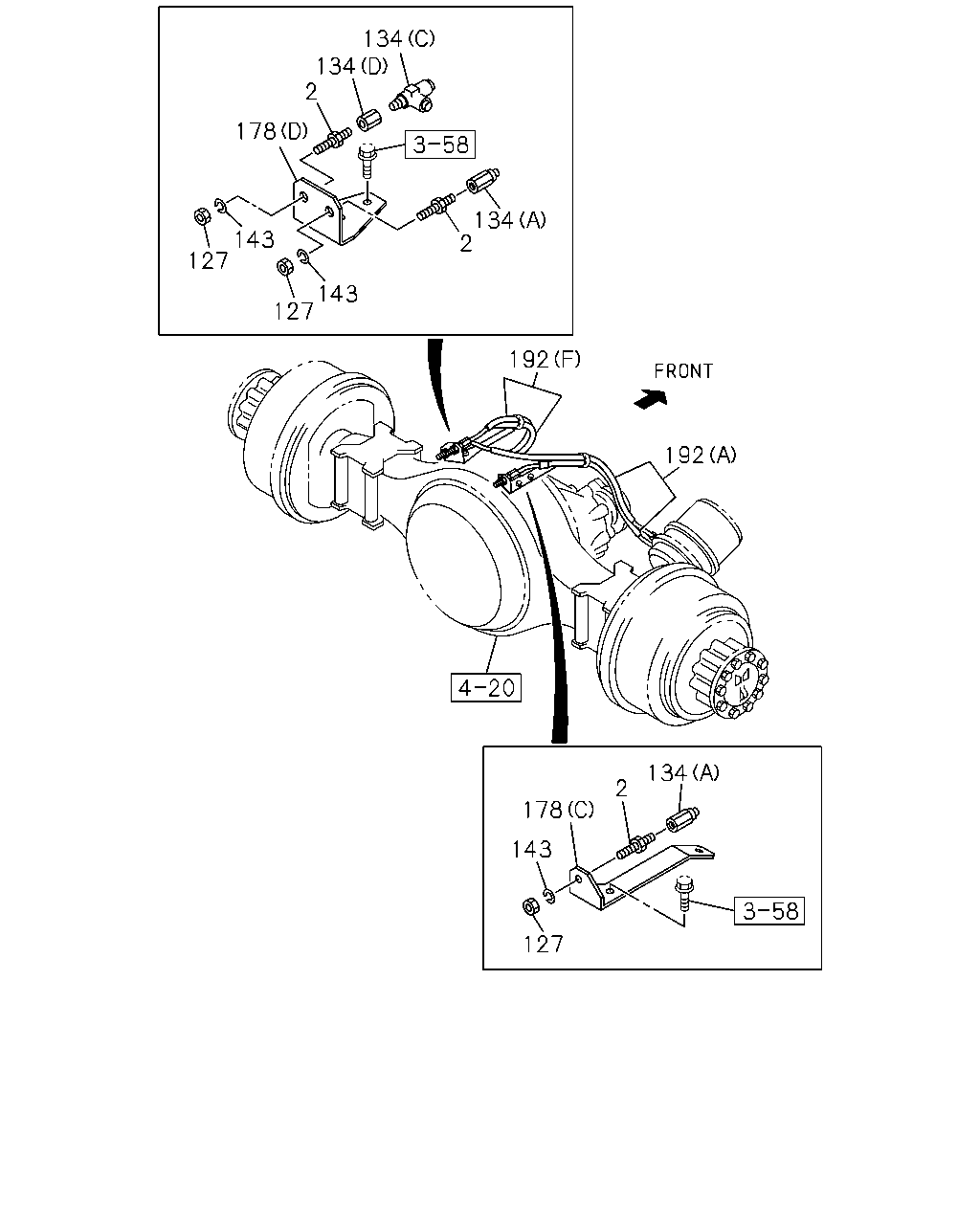

çizim 433313
134 134 178 143 127 127 143 134 2 192 192 134 2 178 143 127 2
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M16 L=74 CHI 		0-92123-310-0 03 1 1404-
127 NUT; UNION
M16 CHI 		0-91111-516-0 03 1 1404-
134 CONNECTOR
(B) DIN8 & R1/4 ELBOW CHI 		1-09660-649-1 01 1 1404-
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT CHI 		1-09660-876-0 02 1 1404-
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT CHI 		1-09660-882-0 01 1 1404-
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		8-97431-656-0 01 1 1404-
134 CONNECTOR
(E) 		8-97431-670-0 01 1 1404-
143 WASHER; LK,UNION
ID=16.2 CHI 		0-91510-816-0 03 1 1404-
178 BRACKET; UNION
(A) CHI 		8-97430-078-0 01 1 1404-
178 BRACKET; UNION
(C) CHI 		8-98031-033-1 01 1 1404-
178 BRACKET; UNION
(D) CHI 		8-98031-034-1 01 1 1404-
178 BRACKET; UNION
(B) CHI 		8-98114-771-0 01 1 1404-
192 TUBE; NYLON
(A) CHI 		8-97430-410-0 01 1 1404-
192 TUBE; NYLON
(F) CHI 		8-97430-411-0 01 1 1404-
192 TUBE; NYLON
(G) CHI 		8-97430-076-1 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=8 CHI 		1-87411-006-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(B) CHI 		8-97431-709-0 01 1 1404-
192 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
192 TUBE; NYLON
(D) CHI 		8-97431-629-0 01 1 1404-
192 TUBE; NYLON
(C) CHI 		8-97431-642-0 01 1 1404-
