3-75 — BRAKE PIPING; AIR,FRONT (#144651) — 66 parça

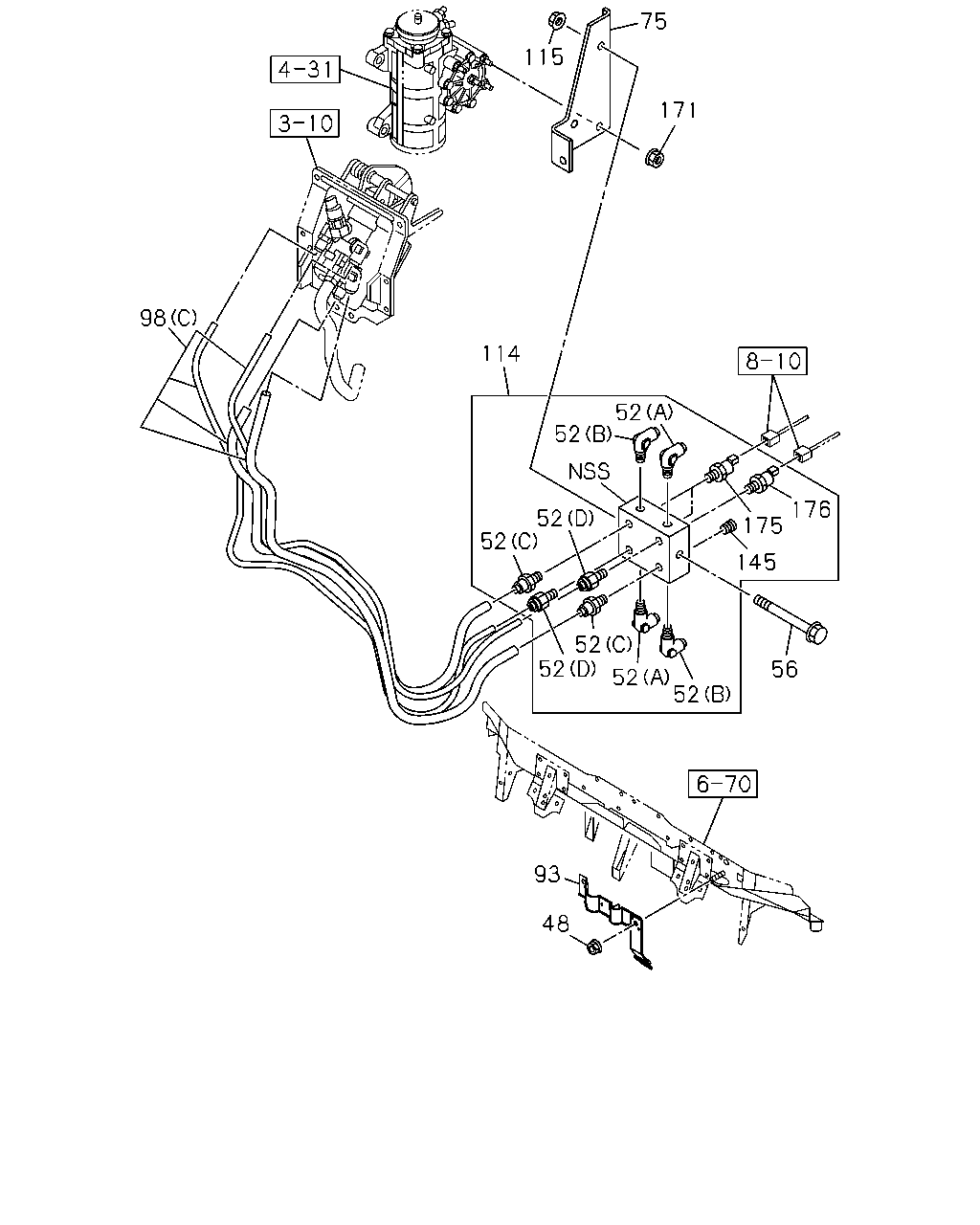

çizim 432965
115 75 171 98 114 52 52 52 52 52 52 52 52 176 175 145 56 93 48
BalonParca AdiParca NoAdetTipApplied Date
48 NUT; UNION BRKT
M6 FLANGE CHI 		0-91180-106-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404-
56 BOLT; UNION BRKT
M8X100 FLANGE CHI 		0-28050-800-0 01 1 1404-
75 BRACKET; UNION
CHI 		8-97430-371-0 01 1 1404-
93 BRACKET; UNION,TUBE
CHI 		8-98112-515-1 01 1 1404-
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404-
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
114 UNION; NYLON TUBE 8-97431-471-0 01 1 1404-
115 NUT; TUBE UNION
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
145 PLUG
PT1/4 		9-99204-513-0 01 1 1404-
171 NUT; BRACKET
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
175 SENSOR; AIR PRESS
THREAD R1/4 CHI 		1-80220-023-1 02 1 1404-
176 SWITCH; AIR PRESS
STAMP 0.3 CHI 		8-98010-857-0 01 1 1404-

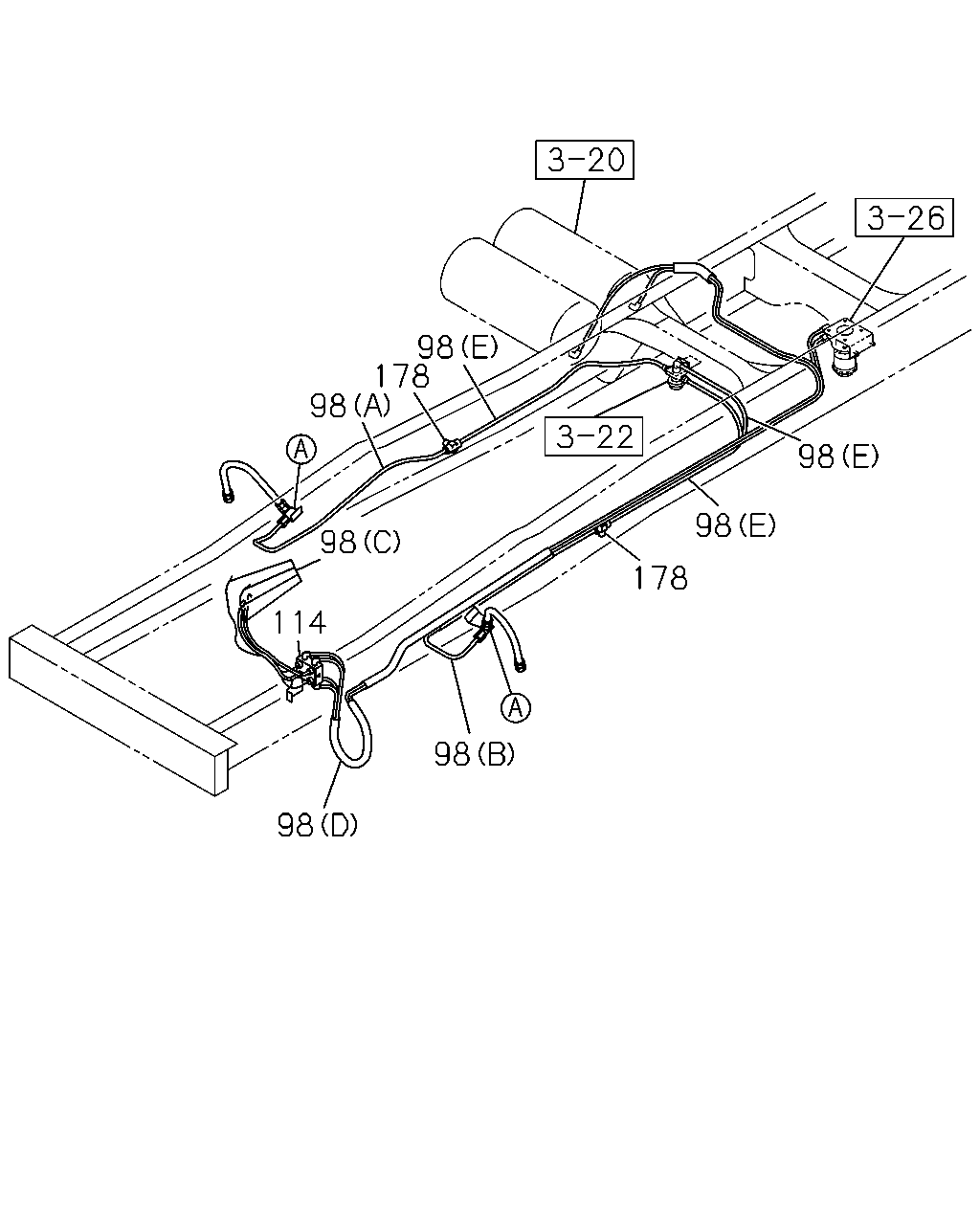

çizim 433052
98 178 98 98 114 98 98 178 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404-
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
114 UNION; NYLON TUBE 8-97431-471-0 01 1 1404-
178 UNION 8-97431-456-0 01 1 1404-
178 UNION 8-97431-456-0 01 1 1404-

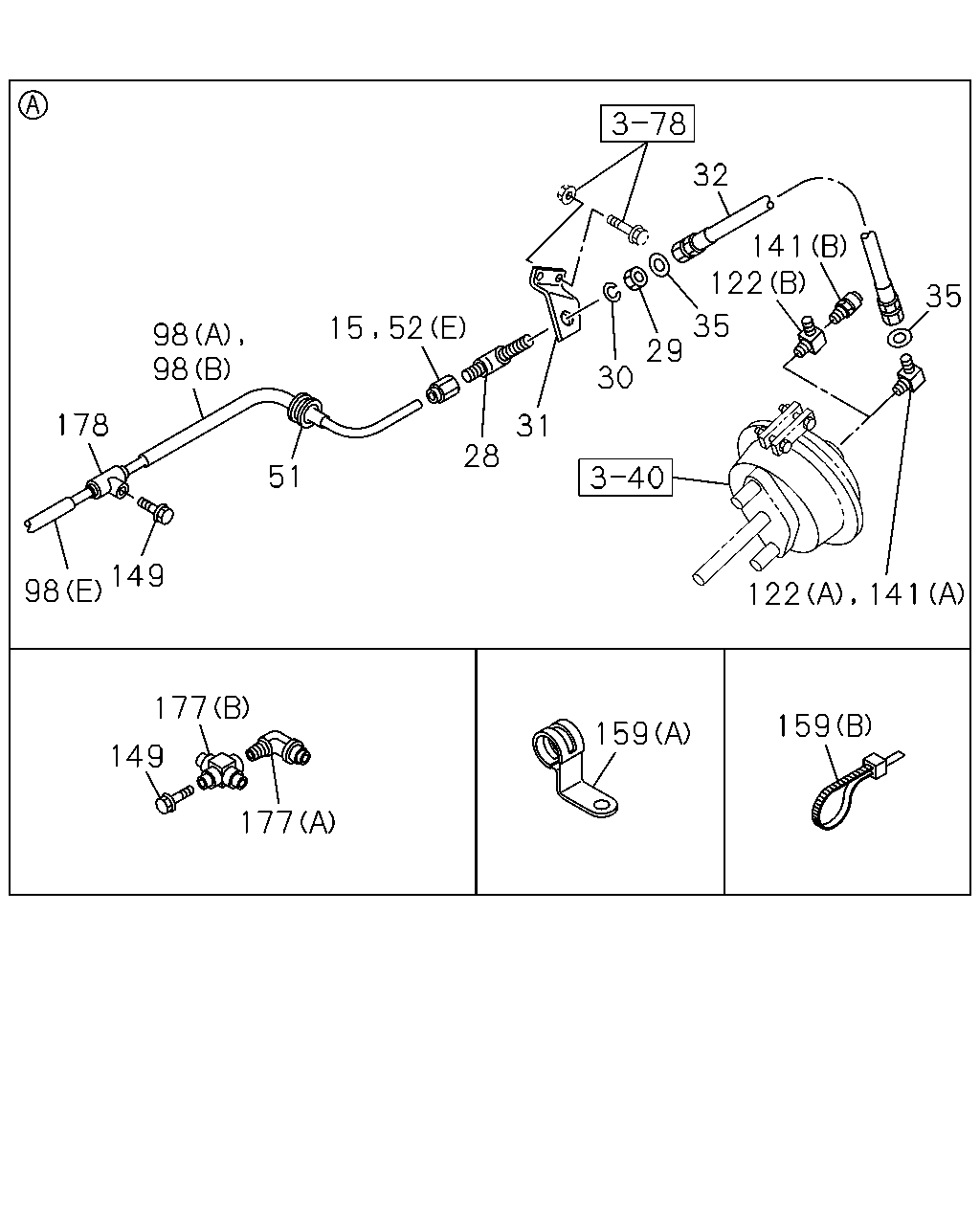

çizim 433082
98 98 178 51 149 98 15 52 32 141 35 122 35 29 30 31 28 122 141 159 159 177 177 149
BalonParca AdiParca NoAdetTipApplied Date
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404-
28 NIPPLE; AIR PIPE
CHI 		1-09654-128-1 02 1 1404-
29 NUT; NIPPLE
M20 CHI 		0-91111-520-0 02 1 1404-
30 WASHER; LK,NIPPLE
ID=20.2 CHI 		0-91510-520-0 02 1 1404-
31 BRACKET; NIPPLE
CHI 		8-97430-381-0 02 1 1404-
32 HOSE; FLEX,FRT
L=470 CHI 		0-57847-470-1 02 1 1404-
35 GASKET; FLEX HOSE
ID=11 OD=18 CHI 		9-09572-510-0 04 1 1404-
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 CHI 		1-09332-112-0 01 1 1404-
51 GROMMET; NYLON TUBE
ID=32 OD=40 T=23 CHI 		1-09332-112-0 01 1 1404-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW 		8-97431-446-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		8-97431-400-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		8-97431-401-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(D) DIN12 R1/4 STRAIGHT 		8-97431-451-0 02 1 1404-
52 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		8-97431-455-0 01 1 1404-
98 TUBE; NYLON
(B) CHI 		8-97431-609-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(D) CHI 		8-97431-622-0 01 1 1404-
98 TUBE; NYLON
(C) CHI 		8-97431-605-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
98 TUBE; NYLON
(A) CHI 		8-97431-608-0 01 1 1404-
98 TUBE; NYLON
(E) SERVICED BY L=2000 OD=12 CHI 		1-87411-011-0 01 1 1404-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404-
122 CONNECTOR; FLEX HOSE
(B) 		1-09661-592-0 01 1 1404-
141 CONNECTOR; TEST
(B) 		1-47459-013-1 01 1 1404-
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404-
141 CONNECTOR; TEST
(A) M20 & PT3/8 ELBOW CHI 		1-09660-684-0 01 1 1404-
149 BOLT; UNION
M8X16 FLANGE CHI 		0-28050-816-0 01 1 1404-
149 BOLT; UNION
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 CHI 		1-09700-994-0 02 1 1404-
159 CLIP; NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 21 1 1404-
177 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		8-97431-400-0 01 1 1404-
177 CONNECTOR
(B) 		8-97431-670-0 01 1 1404-
178 UNION 8-97431-456-0 01 1 1404-
178 UNION 8-97431-456-0 01 1 1404-
