3-41 — REAR BRAKE POWER CHAMBER (#144646) — 63 parça

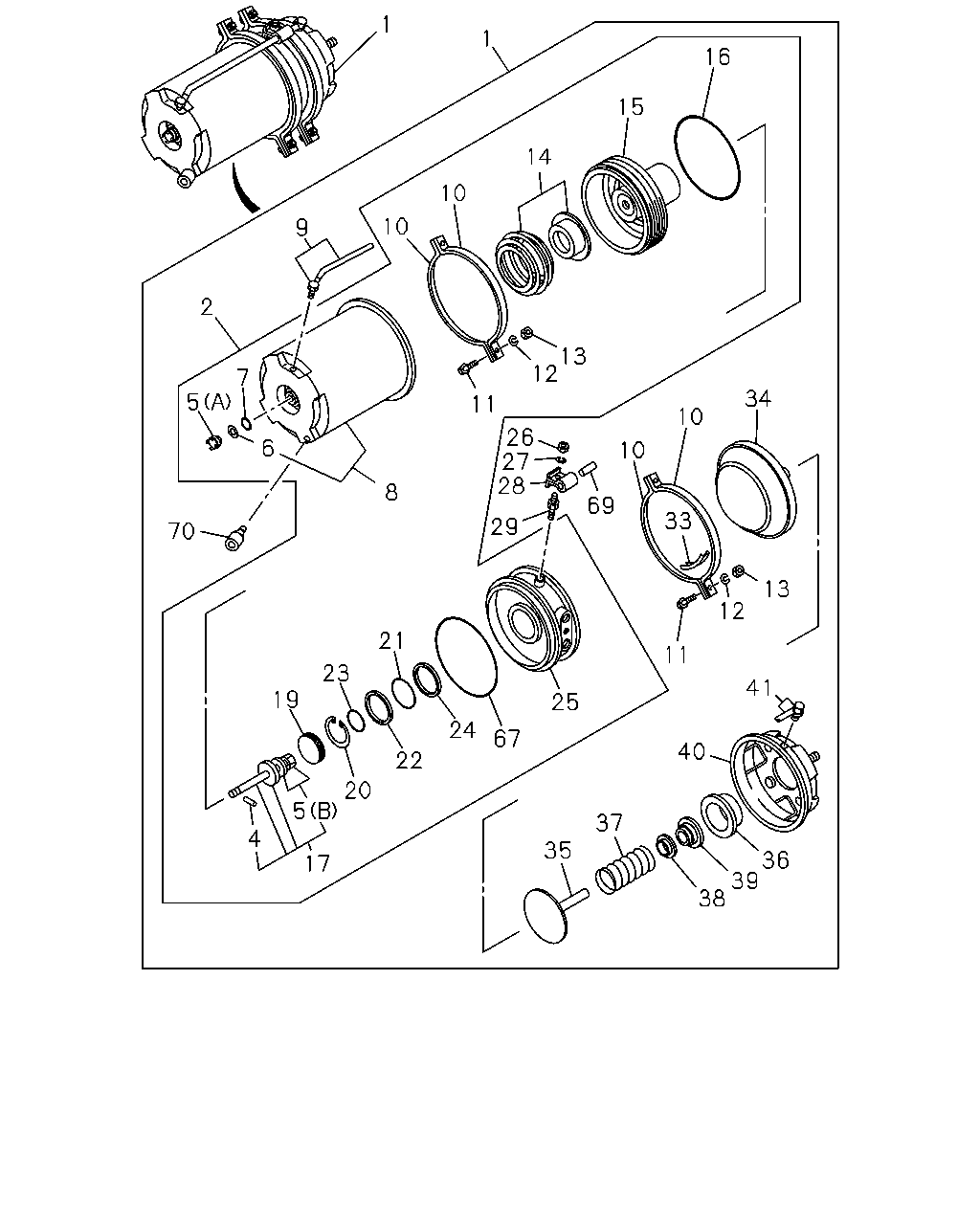

çizim 431737
1 1 16 15 14 10 10 9 2 7 5 8 11 12 13 70 19 21 23 4 17 20 5 22 25 67 24 35 38 37 40 41 11 69 10 10 34 13 33 12 36 39 26 28 27 29 6
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
AUTO ADJUSTER BRAKE<BCU> 		1-48250-640-1 01 1 1404-
1 CHAMBER ASM; SPRING
AUTO ADJUSTER BRAKE<BCU> 		1-48250-641-1 01 1 1404-
1 CHAMBER ASM; SPRING
BRAKE ADJUSTER MANUAL<BJR> 		1-48250-180-2 01 1 1404-
1 CHAMBER ASM; SPRING
BRAKE ADJUSTER MANUAL<BJR> 		1-48250-181-2 01 1 1404-
2 CHAMBER; EMERGENCY
AUTO ADJUSTER BRAKE<BCU> 		1-48252-014-0 01 1 1404-
2 CHAMBER; EMERGENCY
AUTO ADJUSTER BRAKE<BCU> 		1-48252-015-0 01 1 1404-
2 CHAMBER; EMERGENCY
BRAKE ADJUSTER MANUAL<BJR> 		1-48252-018-0 01 1 1404-
2 CHAMBER; EMERGENCY
BRAKE ADJUSTER MANUAL<BJR> 		1-48252-019-0 01 1 1404-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 1404-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 1404-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 1404-
6 GASKET; SHELL
AUTO ADJUSTER BRAKE<BCU> CHI 		9-09920-268-0 02 1 1404-
7 GASKET 1-48259-055-0 02 1 1404-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 1404-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 1404-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 1404-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 1404-
11 BOLT; CLAMP RING
AUTO ADJUSTER BRAKE<BCU> 		1-48259-092-0 08 1 1404-
11 BOLT; CLAMP RING
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-035-0 08 1 1404-
12 WASHER; LK,CLAMP RING
AUTO ADJUSTER BRAKE<BCU> ID=10.2 		9-09150-510-0 08 1 1404-
12 WASHER; LK,CLAMP RING
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-046-0 08 1 1404-
13 NUT; CLAMP RING
AUTO ADJUSTER BRAKE<BCU> 		9-83315-080-0 08 1 1404-
13 NUT; CLAMP RING
BRAKE ADJUSTER MANUAL<BJR> M10 		9-09110-510-0 08 1 1404-
14 SPRING & SEAT SET 1-48259-037-1 02 1 1404-
15 PISTON 1-48262-005-0 02 1 1404-
16 GASKET 1-48259-048-0 02 1 1404-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 1404-
19 COVER; PISTON 1-48269-011-0 02 1 1404-
20 RING; RET
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-060-0 02 1 1404-
20 RING; RET
AUTO ADJUSTER BRAKE<BCU> 		1-48259-060-0 02 1 1404-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 1404-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 1404-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 1404-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 1404-
25 PLATE; PRESSURE,SPR CHAMBER
AUTO ADJUSTER BRAKE<BCU> 		1-48259-077-0 01 1 1404-
25 PLATE; PRESSURE,SPR CHAMBER
AUTO ADJUSTER BRAKE<BCU> 		1-48259-078-0 01 1 1404-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-085-0 01 1 1404-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-086-0 01 1 1404-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 1404-
27 WASHER; PRESSURE PLATE
AUTO ADJUSTER BRAKE<BCU> ID=8.2 		9-09150-508-0 02 1 1404-
27 WASHER; PRESSURE PLATE
BRAKE ADJUSTER MANUAL<BJR> 		1-48259-057-0 02 1 1404-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 1404-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 1404-
33 RETAINER; DIAPH 1-48259-044-0 04 1 1404-
34 DIAPHRAGM
AUTO ADJUSTER BRAKE<BCU> 		1-48252-056-0 02 1 1404-
34 DIAPHRAGM
BRAKE ADJUSTER MANUAL<BJR> 		1-48252-010-0 02 1 1404-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 1404-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 1404-
37 SPRING; LWR,SPR CHAMBER
AUTO ADJUSTER BRAKE<BCU> 		1-48255-016-0 02 1 1404-
37 SPRING; LWR,SPR CHAMBER
BRAKE ADJUSTER MANUAL<BJR> 		1-48255-003-0 02 1 1404-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 1404-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 1404-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 1404-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 1404-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 1404-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 1404-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 1404-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 1404-

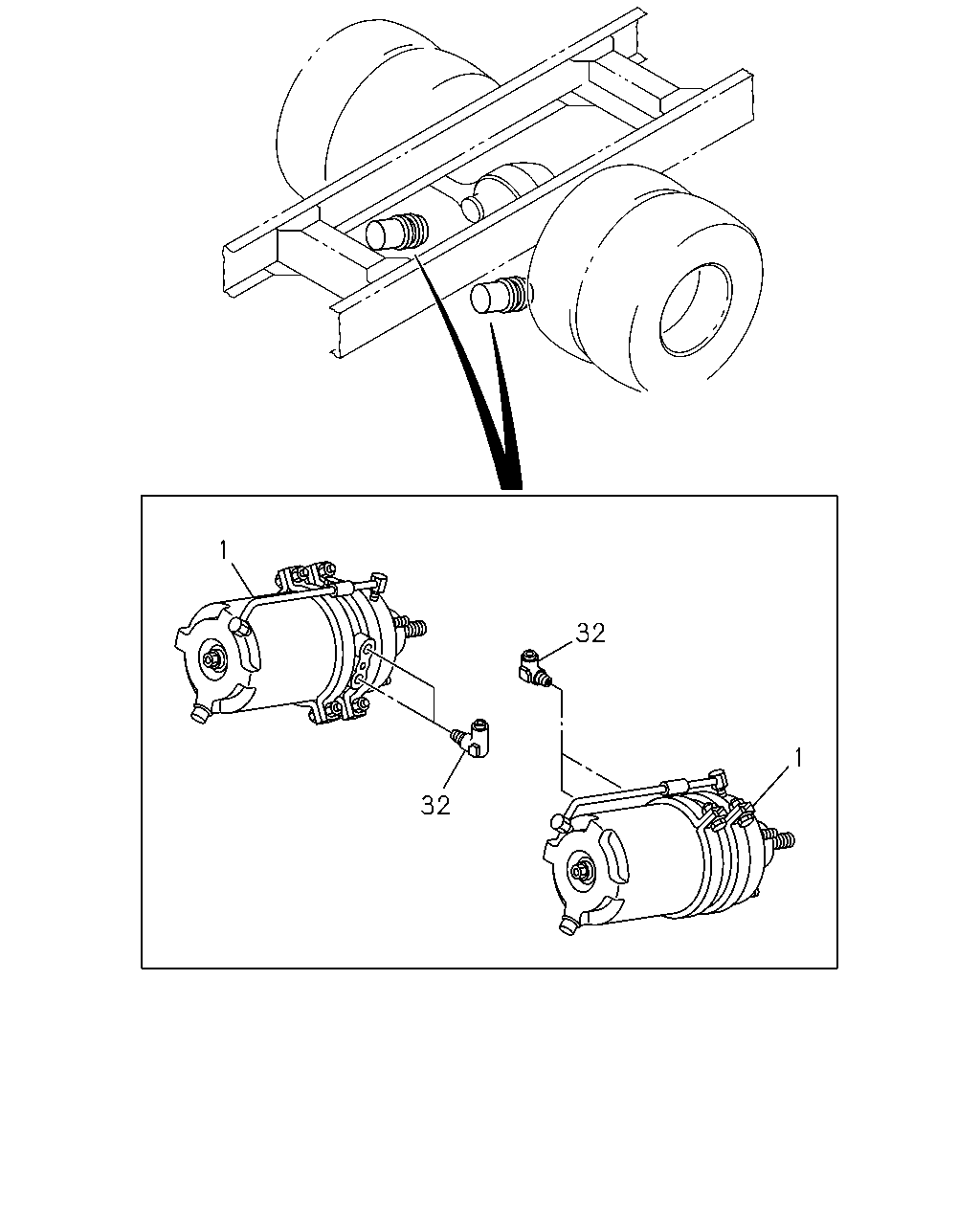

çizim 433403
1 32 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
AUTO ADJUSTER BRAKE<BCU> 		1-48250-640-1 01 1 1404-
1 CHAMBER ASM; SPRING
AUTO ADJUSTER BRAKE<BCU> 		1-48250-641-1 01 1 1404-
1 CHAMBER ASM; SPRING
BRAKE ADJUSTER MANUAL<BJR> 		1-48250-180-2 01 1 1404-
1 CHAMBER ASM; SPRING
BRAKE ADJUSTER MANUAL<BJR> 		1-48250-181-2 01 1 1404-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		8-97431-399-0 04 1 1404-
