◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#144645) — 15 parça

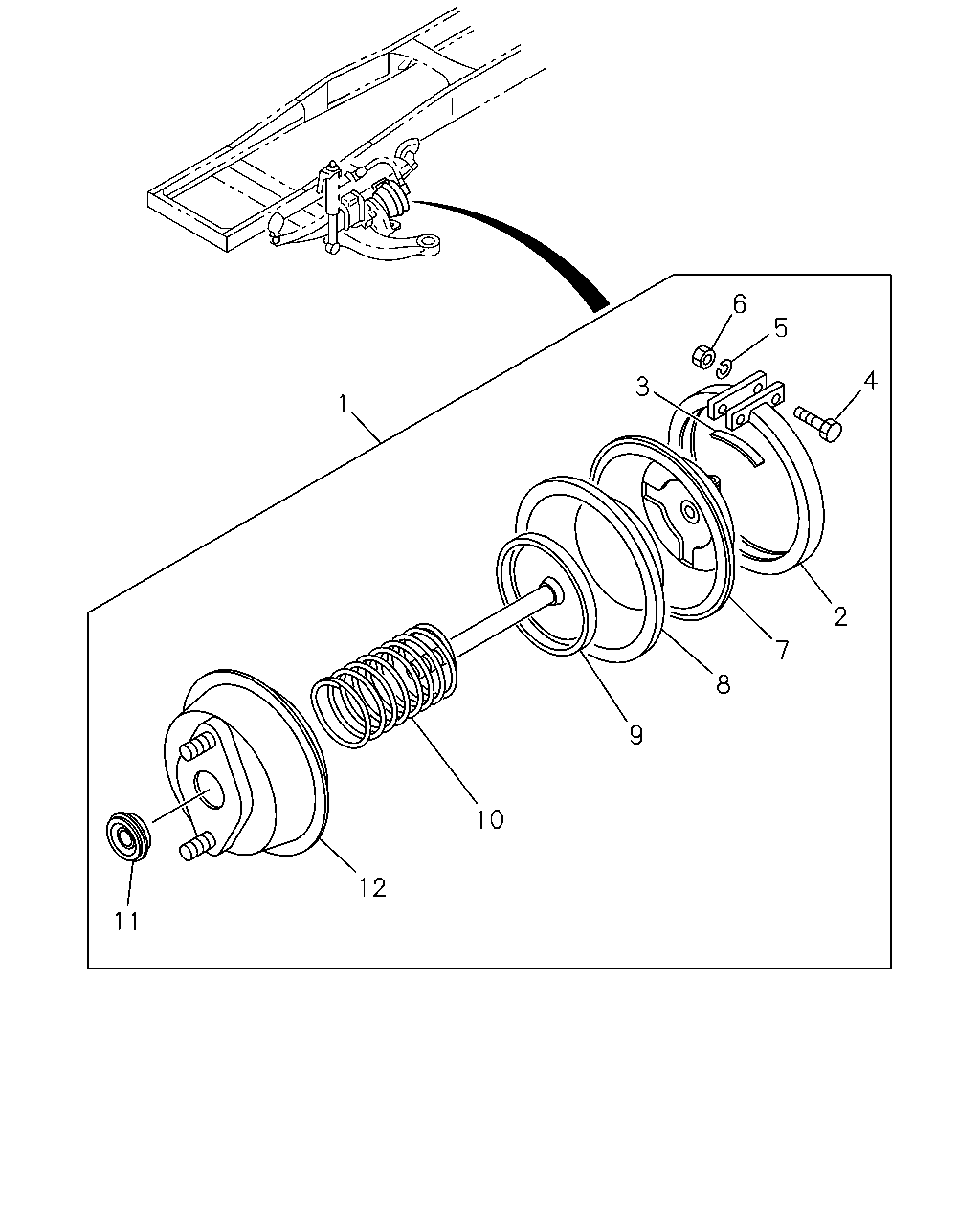

çizim 433334
6 4 5 3 1 2 7 8 9 10 11 12
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
AUTO ADJUSTER BRAKE<BCU> 		1-48250-744-0 02 1 1404-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-48250-524-0 02 1 1404-
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 1404-
3 RETAINER; DIAPH 9-48259-016-0 02 1 1404-
4 BOLT; CLAMP RING 1-48259-002-0 04 1 1404-
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 1404-
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 1404-
7 COVER ASM; UPR,SPR CHAMBER 1-48251-007-0 02 1 1404-
8 DIAPHRAGM; SPR CHAMBER
AUTO ADJUSTER BRAKE<BCU> 		1-48252-054-0 02 1 1404-
8 DIAPHRAGM; SPR CHAMBER
BRAKE ADJUSTER MANUAL<BJR> 		1-48252-006-0 02 1 1404-
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 1404-
10 SPRING; PISTON,SPR CHAMBER
AUTO ADJUSTER BRAKE<BCU> 		1-48255-015-0 02 1 1404-
10 SPRING; PISTON,SPR CHAMBER
BRAKE ADJUSTER MANUAL<BJR> 		1-48255-001-0 02 1 1404-
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 1404-
12 COVER ASM; LWR,SPR CHAMBER 1-48251-018-0 02 1 1404-
