Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#144643) — 91 parça

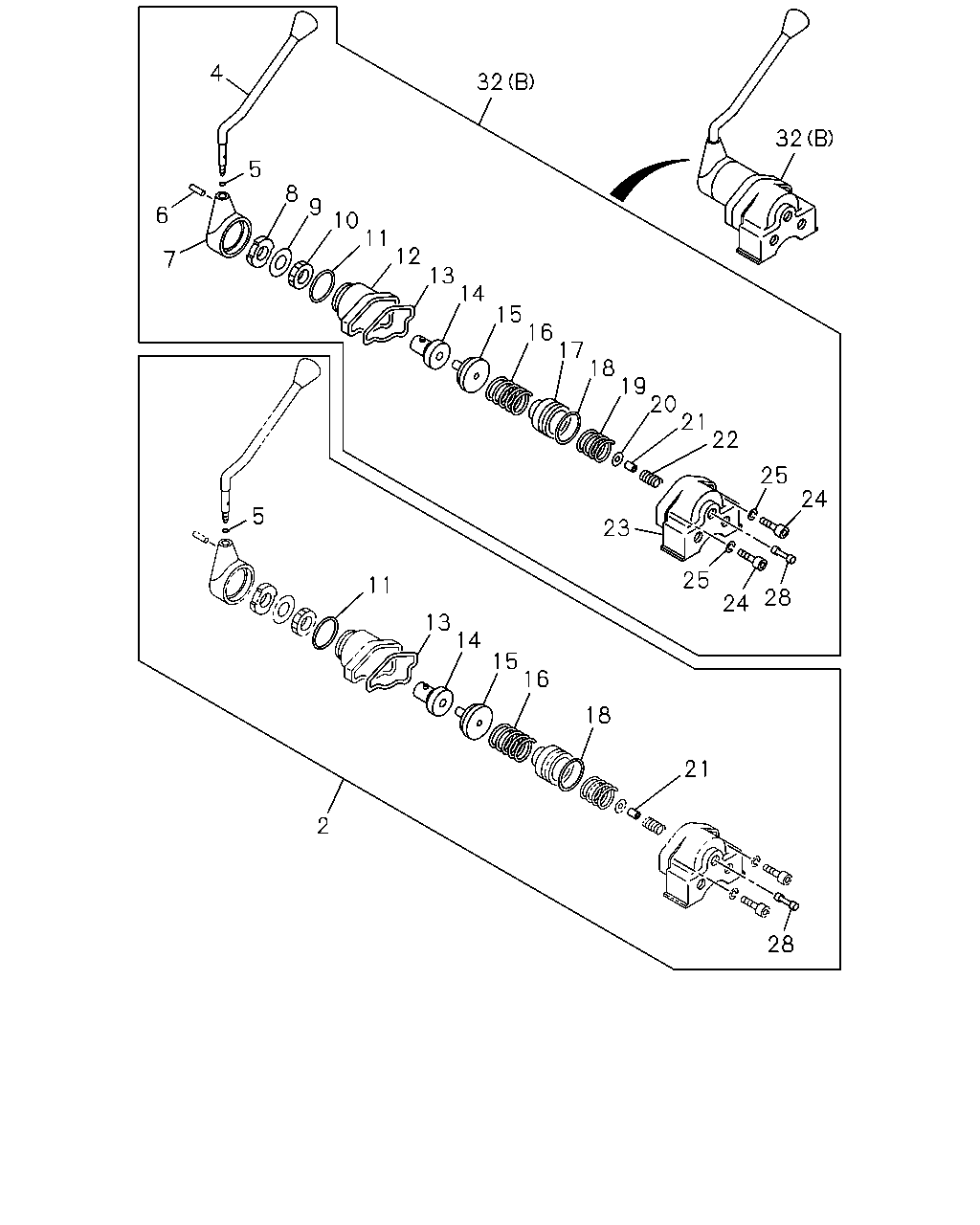

32 32 4 5 6 7 8 9 10 11 24 25 23 22 21 20 19 18 17 16 15 14 13 12 28 24 25 21 28 18 16 15 14 13 11 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; HAND BRK VLV CHI	1-85576-180-0	01	1	1404-
4	HANDLE ASM; BRK VLV CHI	1-48119-517-0	01	1	1404-
5	GASKET; HANDLE CHI	1-48119-128-0	01	1	1404-
6	PIN; SPR CHI	1-48119-143-0	01	1	1404-
7	HEAD; BRK VLV CHI	1-48119-131-1	01	1	1404-
8	STOPPER; BRK VLV CHI	1-48119-136-0	01	1	1404-
9	WASHER; LK,ADJ CHI	1-48119-123-0	01	1	1404-
10	RING; ADJ CHI	1-48119-122-0	01	1	1404-
11	GASKET; HD TO COVER CHI	1-48119-130-0	01	1	1404-
12	COVER; BRK VLV CHI	1-48129-097-1	01	1	1404-
13	GASKET; BODY TO COVER CHI	1-48119-120-0	01	1	1404-
14	FOLLOWER; CAM CHI	1-48129-109-0	01	1	1404-
15	CAM; FOLLOWER CHI	1-48129-110-0	01	1	1404-
16	SPRING; GRUDUATING CHI	1-48129-101-0	01	1	1404-
17	PISTON; SPR CHI	1-48129-095-0	01	1	1404-
18	GASKET; BODY CHI	1-48129-096-0	01	1	1404-
19	SPRING; PISTON CHI	1-48129-094-0	01	1	1404-
20	GUIDE; VLV CHI	1-48129-090-0	01	1	1404-
21	VALVE; IN & EXH CHI	1-48121-017-0	01	1	1404-
22	SPRING; VLV CHI	1-48123-024-0	01	1	1404-
23	BODY; BRK VLV CHI	1-48111-060-1	01	1	1404-
24	BOLT; EXH VLV CHI	1-48129-092-0	01	1	1404-
25	WASHER; LK,EXH VLV CHI	1-48129-093-0	02	1	1404-
28	STEM ASM; BRK VLV CHI	1-48129-089-0	01	1	1404-
32	VALVE; BRK,HAND CONT (B)	8-97431-188-0	01	1	1404-
32	VALVE; BRK,HAND CONT (A)	8-97431-187-0	01	1	1404-

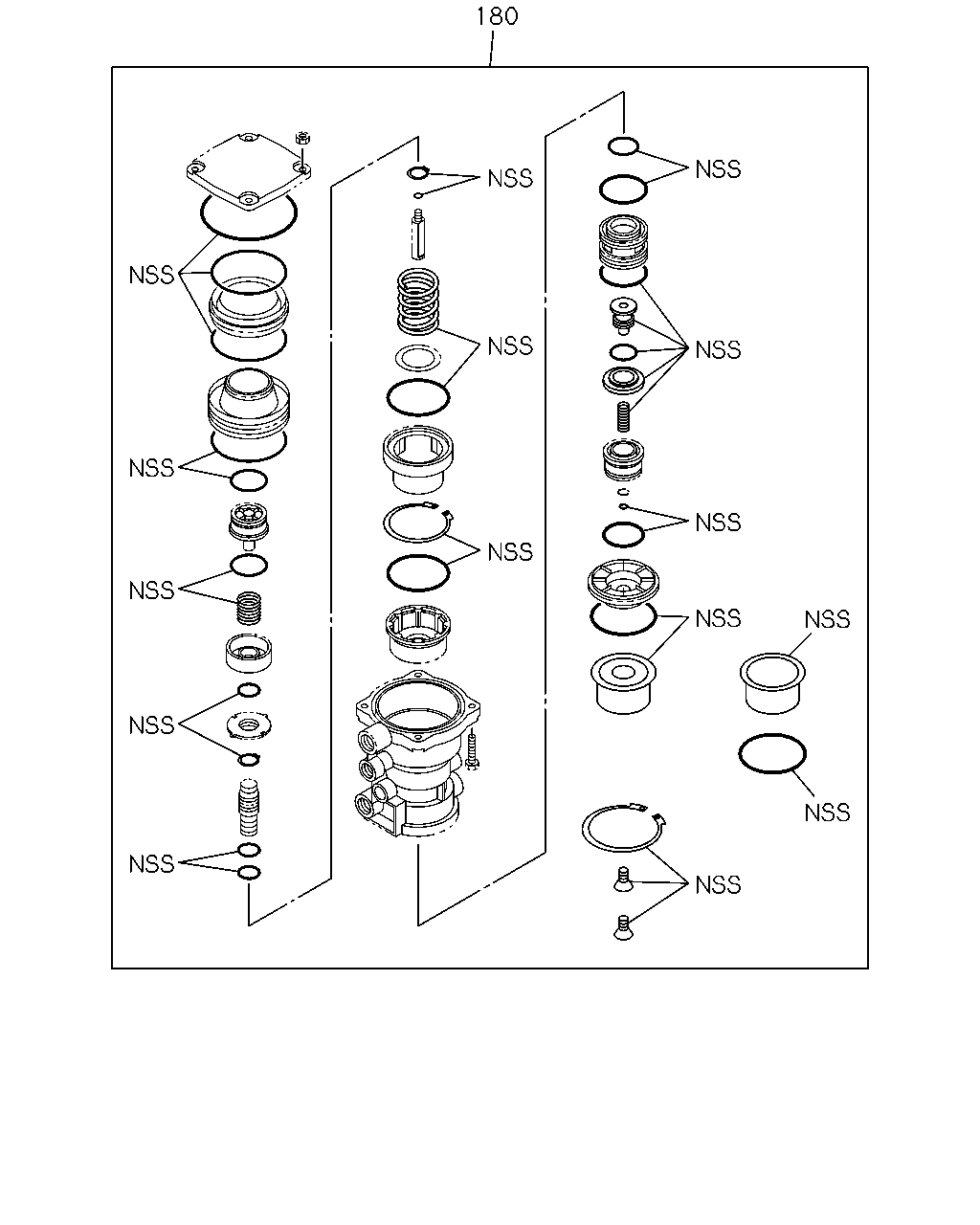

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV CHI	1-85576-449-0	01	1	1404-

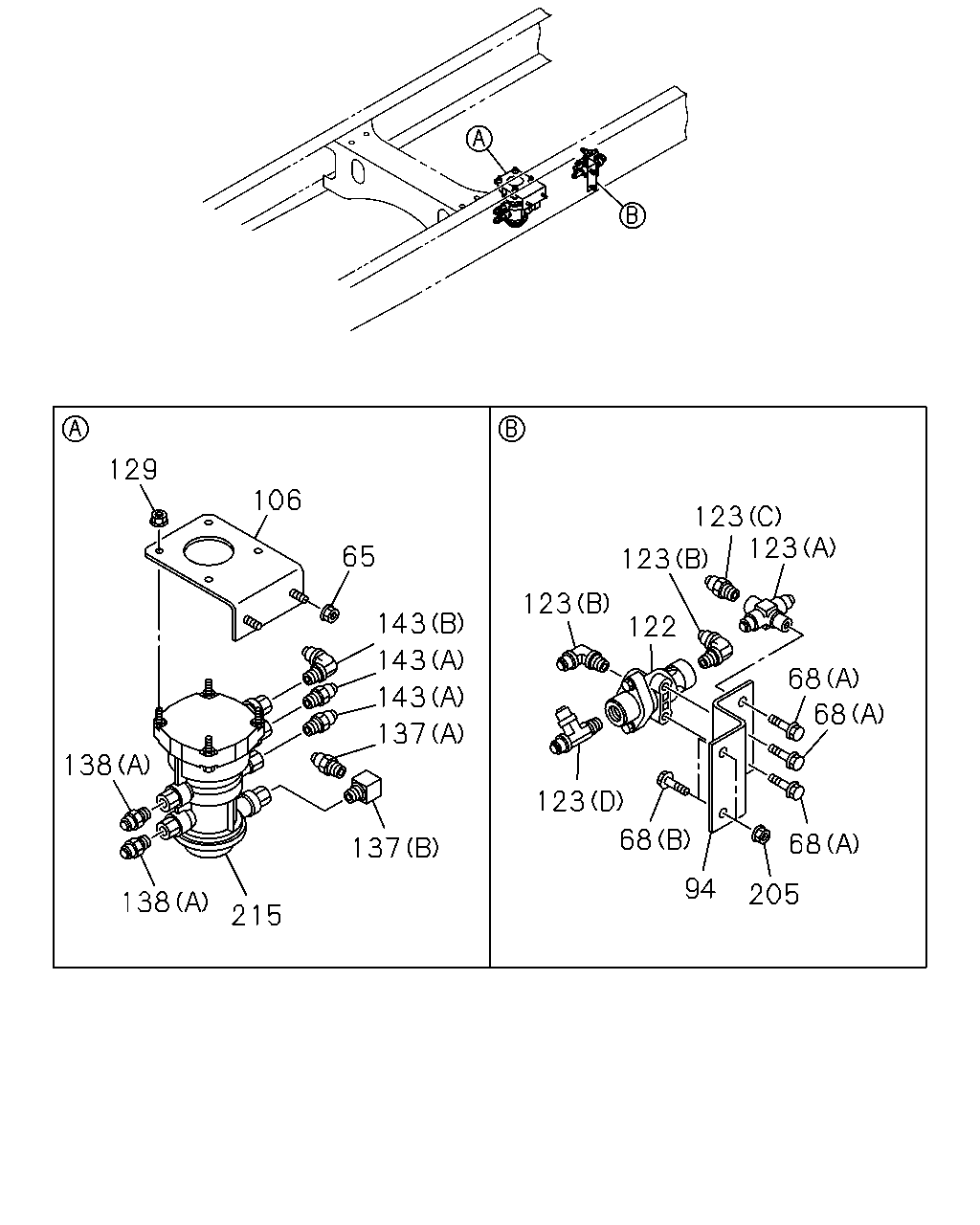

123 123 123 122 123 68 68 68 205 94 68 123 137 143 143 143 65 106 129 138 138 215 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT; RELAY VLV M8 FLANGE CHI	0-91180-108-0	02	1	1404-
68	BOLT; DOUBLE CHECK VLV (A) M8X16 FLANGE CHI	0-28050-816-0	03	1	1404-
68	BOLT; DOUBLE CHECK VLV (B) M8X30 FLANGE CHI	0-28650-830-0	02	1	1404-
94	BRACKET; CHECK VLV CHI	8-97430-485-0	01	1	1404-
106	BRACKET; VLV CHI	8-97618-638-0	01	1	1404-
122	VALVE ASM; DOUBLE CHECK CHI	1-48410-531-1	01	1	1404-
123	CONNECTOR; DBL CHECK VLV (C) DIN8 R1/4 STRAIGHT CHI	1-09660-647-1	01	1	1404-
123	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 ELBOW CHI	1-09660-652-1	02	1	1404-
123	CONNECTOR; DBL CHECK VLV (D) DIN8X2 & R3/8 3WAY CHI	1-09660-658-1	01	1	1404-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 RC1/4 & M8 CHI	1-09660-735-1	01	1	1404-
129	NUT; VLV M8 FLANGE CHI	0-91180-108-0	04	1	1404-
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT CHI	1-09660-669-1	01	1	1404-
137	CONNECTOR; SUPPLY (B) CHI	1-09661-303-0	01	1	1404-
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT CHI	1-09660-669-1	02	1	1404-
138	CONNECTOR; DELIVERY (B) DIN8 R1/4 STRAIGHT	8-97431-401-0	02	1	1404-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	8-97431-400-0	01	1	1404-
143	CONNECTOR; CONT (A) DIN8,R3/8 STRAIGHT CHI	1-09660-651-1	02	1	1404-
143	CONNECTOR; CONT (B) DIN8 & R3/8 ELBOW CHI	1-09660-652-1	01	1	1404-
205	NUT; DOUBLE CHECK VLV M8 FLANGE CHI	0-91180-108-0	02	1	1404-
215	VALVE; TRAILER CONT CHI	8-98091-694-0	01	1	1404-

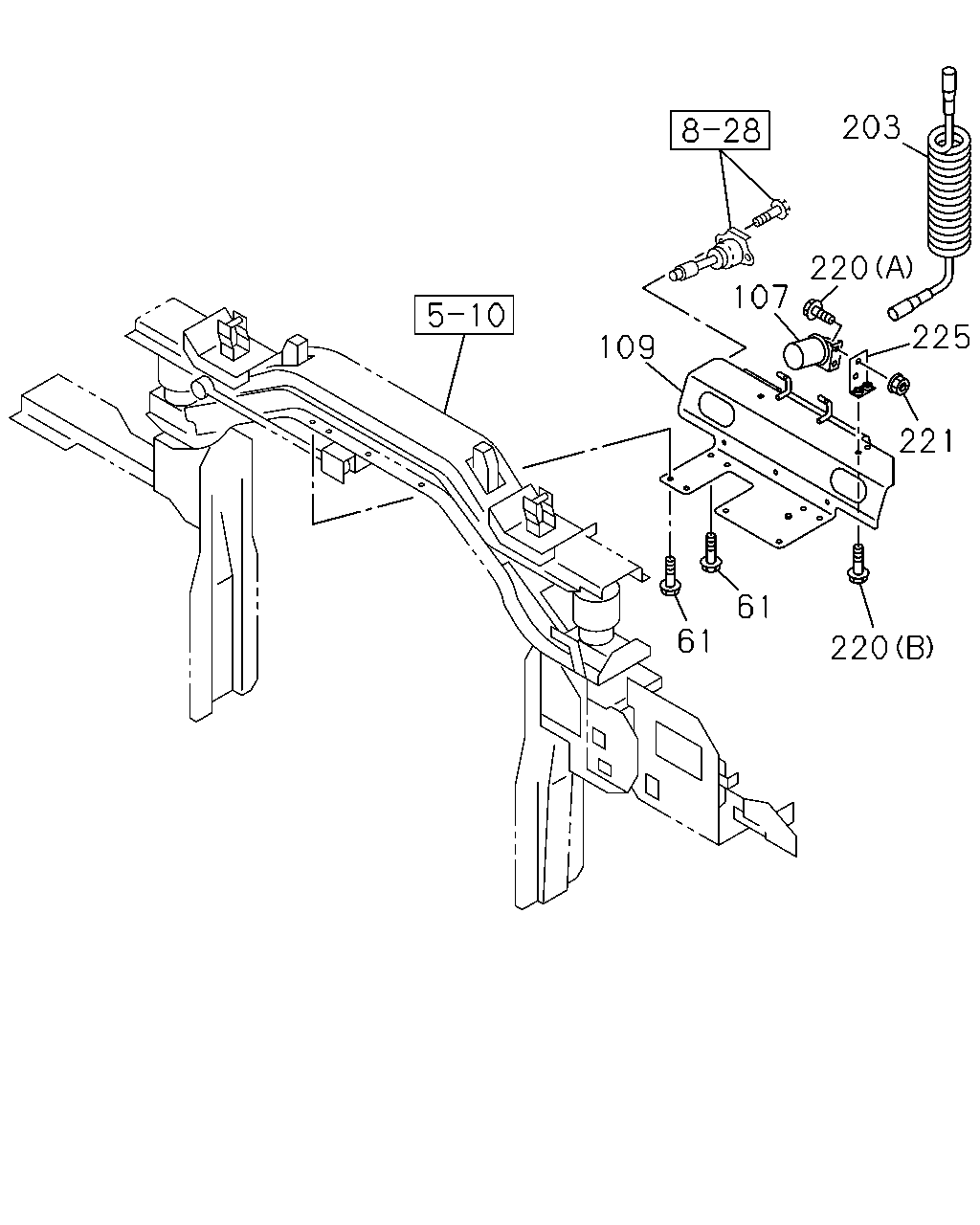

220 107 109 203 225 221 220 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE CHI	0-28051-025-0	08	1	1404-
107	HANGER; JUMPER HOSE CHI	1-57550-022-1	01	1	1404-
109	BRACKET; HOSE HANGER CHI	8-97430-519-0	01	1	1404-
203	CABLE; JUMPER L=4000 CHI	8-98107-177-0	01	1	1404-
220	BOLT; HANGER (A) M6X16 FLANGE CHI	0-28650-616-0	02	1	1404-
220	BOLT; HANGER (B) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
221	NUT; HANGER M6 FLANGE CHI	0-91180-106-0	02	1	1404-
225	BRACKET; HANGER CHI	1-82698-002-0	01	1	1404-

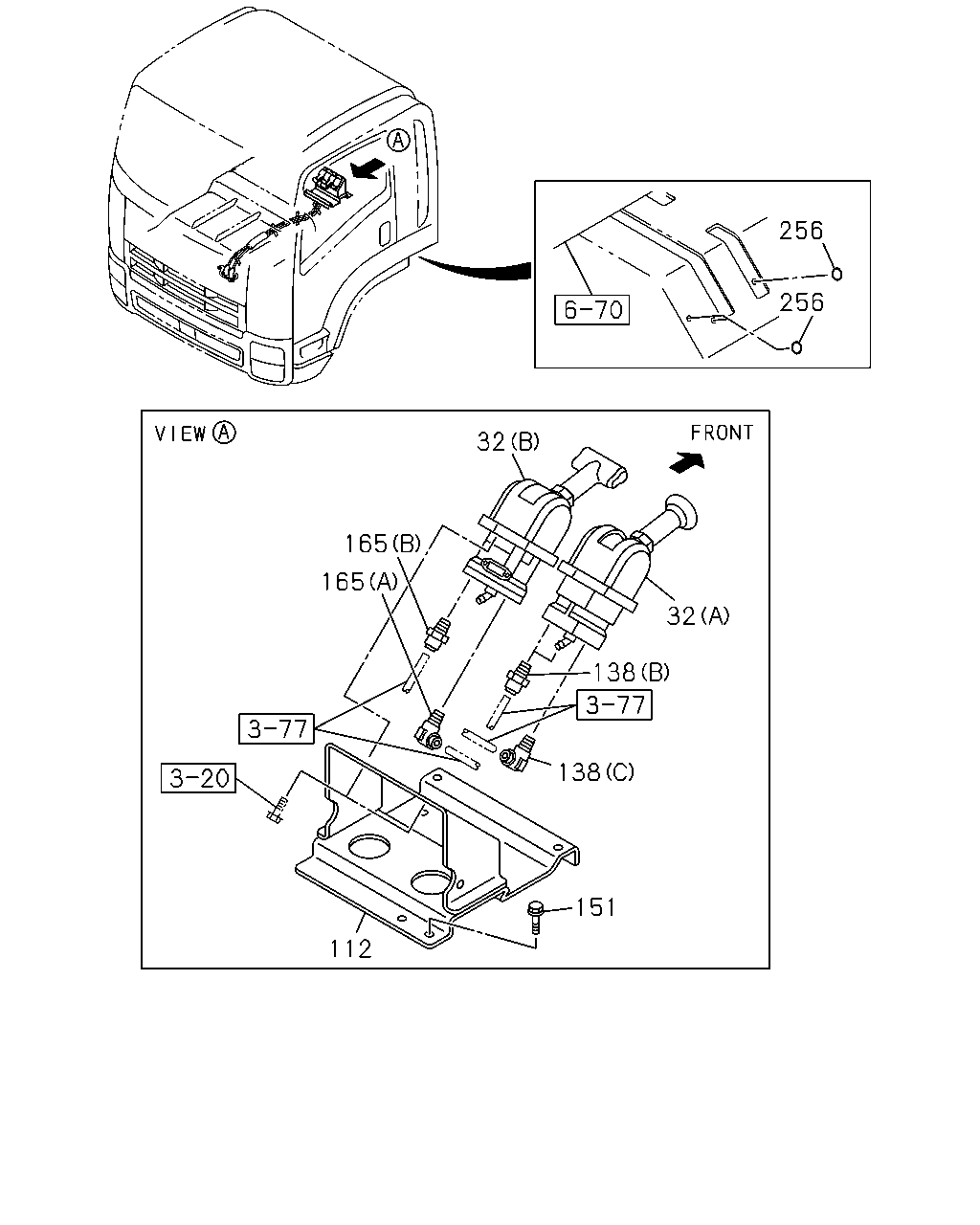

256 256 32 32 138 165 165 138 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT (B)	8-97431-188-0	01	1	1404-
32	VALVE; BRK,HAND CONT (A)	8-97431-187-0	01	1	1404-
112	BRACKET; CONT VLV CHI	8-97430-080-0	01	1	1404-
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT CHI	1-09660-669-1	02	1	1404-
138	CONNECTOR; DELIVERY (B) DIN8 R1/4 STRAIGHT	8-97431-401-0	02	1	1404-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	8-97431-400-0	01	1	1404-
151	BOLT; VLV BRKT M6X16 CHI	0-52000-616-0	04	1	1404-
165	CONNECTOR; HAND BRK VLV (B) DIN8 R1/4 STRAIGHT	8-97431-401-0	01	1	1404-
165	CONNECTOR; HAND BRK VLV (A) DIN8 & R1/4 ELBOW	8-97431-400-0	01	1	1404-
256	SEAL OD=25 BLACK CHI	1-76798-019-0	03	1	1404-

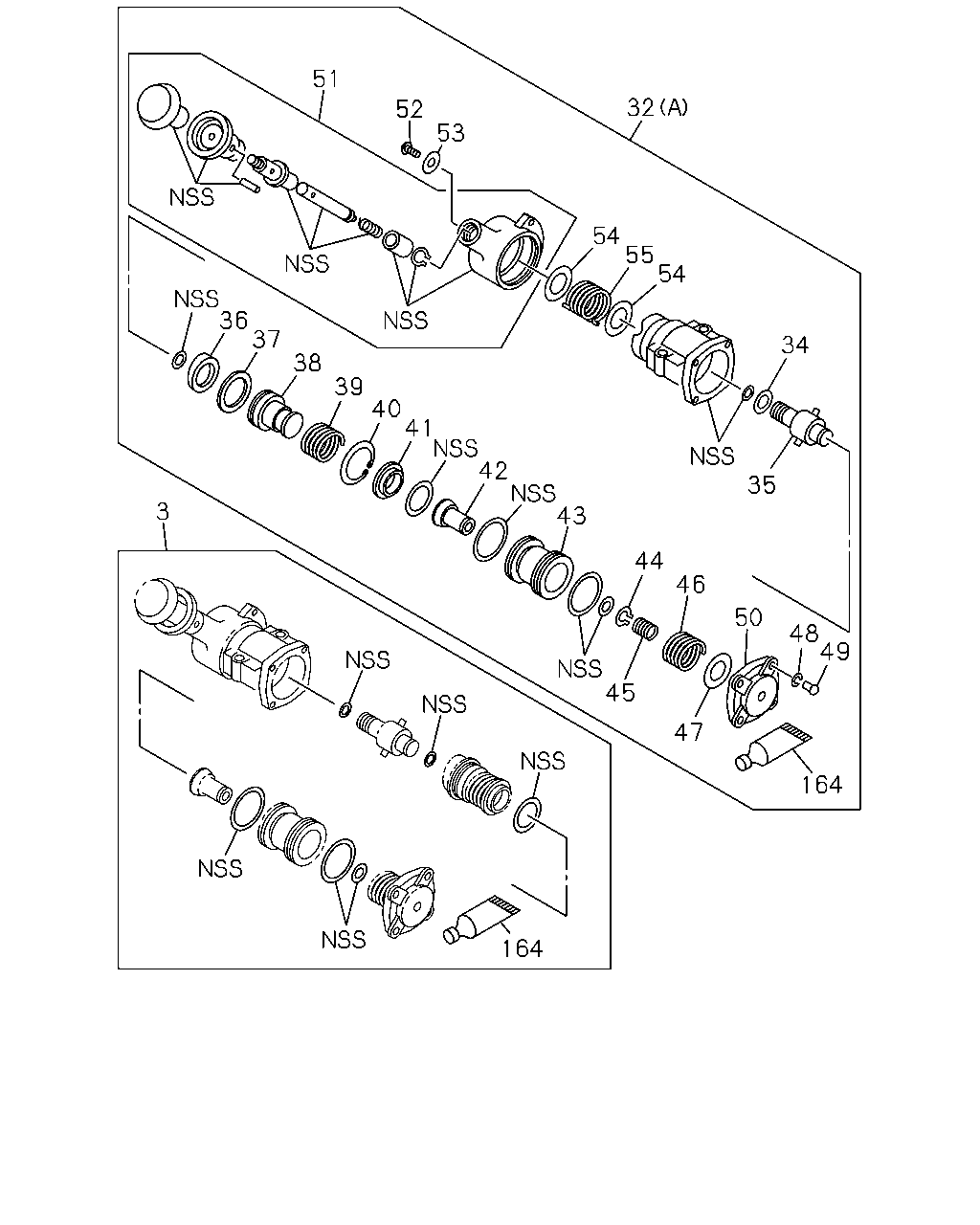

32 34 35 54 55 54 53 52 51 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 164 164 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV CHI	1-48469-096-0	01	1	1404-
32	VALVE; BRK,HAND CONT (B)	8-97431-188-0	01	1	1404-
32	VALVE; BRK,HAND CONT (A)	8-97431-187-0	01	1	1404-
34	SHIM; CAM HOLDER CHI	1-48469-055-0	AR	1	1404-
35	HOLDER; CAM CHI	1-48469-054-0	01	1	1404-
36	RING; CAM CHI	1-48469-056-0	01	1	1404-
37	GUIDE; CAM RING CHI	1-48469-058-0	01	1	1404-
38	SEAT; EXH VLV CHI	1-48469-057-0	01	1	1404-
39	SPRING; RETURN,CAM RING CHI	1-48469-063-0	01	1	1404-
40	RING; SNAP CHI	1-48469-067-0	01	1	1404-
41	SEAT; FEED VLV CHI	1-48469-066-0	01	1	1404-
42	VALVE; FEED CHI	1-48469-065-0	01	1	1404-
43	PISTON; HAND BRK VLV CHI	1-48469-064-0	01	1	1404-
44	RING; SNAP,FEED VLV CHI	1-48469-068-0	02	1	1404-
45	SPRING; FEED VLV CHI	1-48469-070-0	01	1	1404-
46	SPRING; MAIN,PISTON CHI	1-48469-089-0	01	1	1404-
47	SHIM; MAIN SPRING CHI	1-48469-072-0	AR	1	1404-
48	WASHER; COVER CHI	1-48469-091-0	04	1	1404-
49	SCREW; COVER CHI	1-48469-092-0	04	1	1404-
50	COVER; HAND BRK VLV CHI	1-48469-090-0	01	1	1404-
51	HANDLE ASM; HAND BRK VLV CHI	1-48469-122-0	02	1	1404-
52	SCREW; HANDLE CHI	1-48469-062-0	01	1	1404-
53	WASHER; HANDLE CHI	1-48469-061-0	01	1	1404-
54	SEAT; SPRING CHI	1-48469-082-0	02	1	1404-
55	SPRING; RETURN,HANDLE CHI	1-48469-059-0	01	1	1404-
164	GREASE; HAND BRK VLV CHI	1-48469-084-0	01	1	1404-
