3-20 — AIR TANK (#144641) — 103 parça

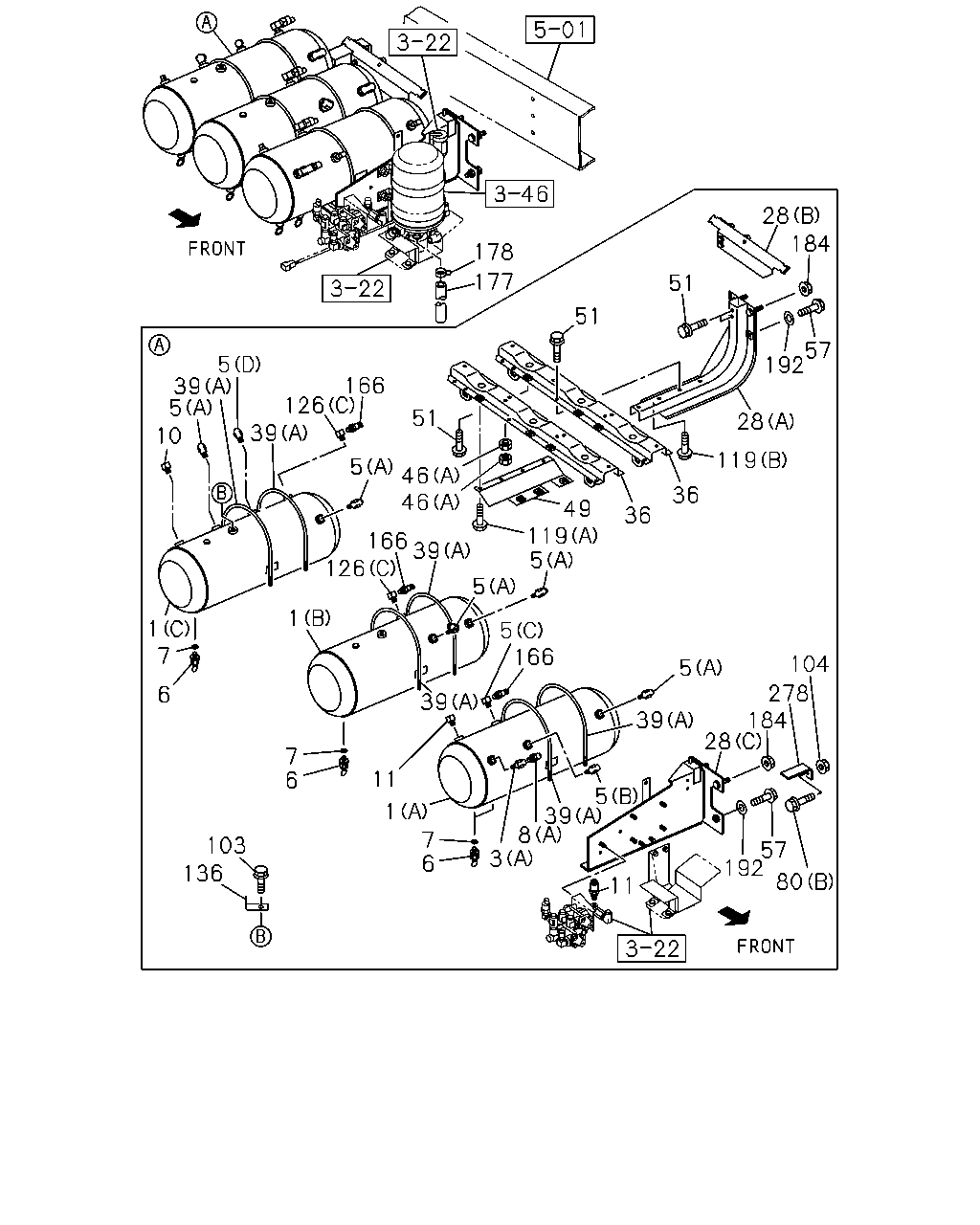

çizim 432100
177 178 5 39 5 10 39 126 166 5 166 126 1 7 6 103 136 11 1 7 6 8 3 5 39 39 5 166 5 39 46 51 46 119 5 49 36 5 39 28 278 184 104 57 192 80 36 119 28 192 57 28 51 51 184 11 1 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) CHI 		8-98223-389-0 01 1 1404-
1 TANK ASM; AIR
(C) CHI 		8-98223-502-0 01 1 1404-
1 TANK ASM; AIR
(B) CHI 		8-98223-503-0 01 1 1404-
3 VALVE; CHECK,AIR TANK
(A) CHI 		1-48320-031-1 01 1 1404-
3 VALVE; CHECK,AIR TANK
(B) CHI 		8-98032-527-0 01 1 1404-
5 UNION; AIR TANK
(D) DIN8 & R3/8 ELBOW CHI 		1-09660-652-1 01 1 1404-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW CHI 		1-09660-653-1 01 1 1404-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW CHI 		1-09660-653-1 02 1 1404-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW CHI 		1-09660-653-1 02 1 1404-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW CHI 		1-09660-707-1 01 1 1404-
5 UNION; AIR TANK
(C) PT1/4 & PT3/8 2WAY CHI 		1-09660-809-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 02 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 02 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT CHI 		1-09660-669-1 01 1 1404-
8 CONNECTOR; AIR TANK
(C) CHI 		8-97430-346-0 01 1 1404-
8 CONNECTOR; AIR TANK
(B) CHI 		8-97430-662-0 01 1 1404-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1404-
11 VALVE; SAFETY,AIR TANK
CHI 		1-48320-012-2 01 1 1404-
28 BRACKET; AIR TANK
(A) CHI 		8-97618-088-1 01 1 1404-
28 BRACKET; AIR TANK
(C) CHI 		8-98093-562-1 01 1 1404-
28 BRACKET; AIR TANK
(B) CHI 		8-98112-257-0 01 1 1404-
28 BRACKET; AIR TANK
(D) 		8-97431-492-0 01 1 1404-
28 BRACKET; AIR TANK
(E) 		8-97431-493-0 01 1 1404-
36 STAY; MAIN TANK
CHI 		8-97618-091-1 02 1 1404-
39 U-BOLT; AIR TANK
(A) L=253 CHI 		1-48317-248-1 02 1 1404-
39 U-BOLT; AIR TANK
(A) L=253 CHI 		1-48317-248-1 04 1 1404-
39 U-BOLT; AIR TANK
(B) CHI 		1-48317-289-0 02 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 16 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 08 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 08 1 1404-
46 NUT; U-BOLT
(B) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
49 BRACKET; AIR TANK
CHI 		8-98110-683-0 01 1 1404-
51 BOLT; STAY TO BRKT
M8X20 FLANGE CHI 		0-28650-820-0 10 1 1404-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 CHI 		1-09000-764-0 04 1 1404-
80 BOLT; BRKT
(A) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
80 BOLT; BRKT
(B) M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
103 BOLT; BRKT
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
104 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
119 BOLT; STAY
(A) M8X20 FLANGE CHI 		0-28650-820-0 04 1 1404-
119 BOLT; STAY
(B) M8X25 FLANGE CHI 		0-28650-825-0 03 1 1404-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW CHI 		1-09660-653-1 01 1 1404-
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY CHI 		1-09660-693-0 01 1 1404-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY CHI 		1-09660-809-0 01 1 1404-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY CHI 		1-09660-809-0 01 1 1404-
136 BRACKET; CLIP
L=55 B=25 CHI 		1-47478-439-0 01 1 1404-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 CHI 		8-97609-249-0 01 1 1404-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 CHI 		8-97609-249-0 01 1 1404-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 CHI 		8-97609-249-0 01 1 1404-
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 CHI 		0-03566-300-0 01 1 1404-
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1404-
184 NUT; BRKT
M14 CHI 		1-09440-072-0 04 1 1404-
192 WASHER; LK,BRKT
ID=14.2 CHI 		0-91510-514-0 08 1 1404-
278 BRACKET; CONNECTOR
L=75 CHI 		1-47478-323-0 01 1 1404-

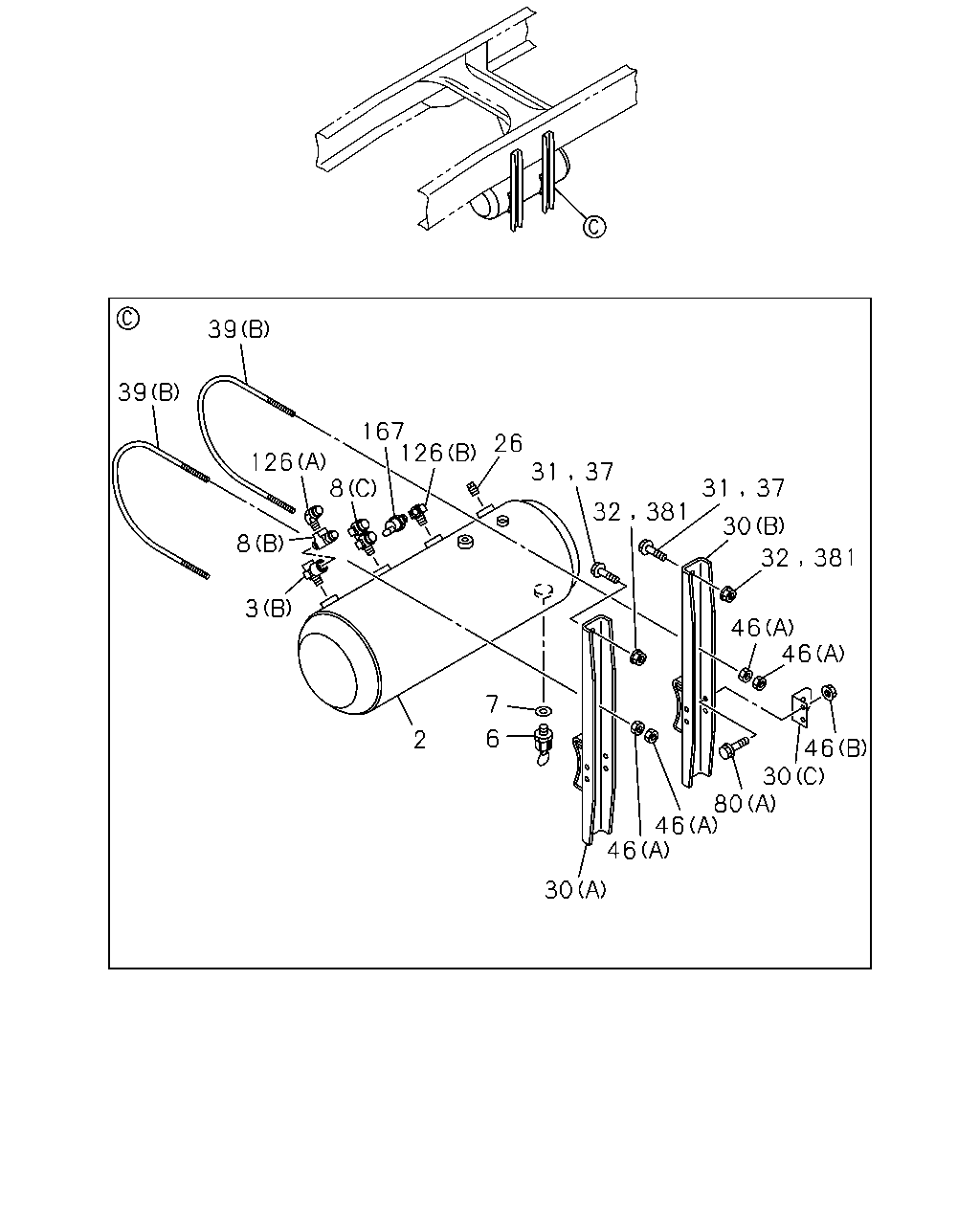

çizim 433123
39 39 126 8 3 8 167 26 126 31 37 31 37 381 32 30 32 381 46 46 46 30 80 46 46 30 6 7 2
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
CHI 		8-98223-504-0 01 1 1404-
3 VALVE; CHECK,AIR TANK
(A) CHI 		1-48320-031-1 01 1 1404-
3 VALVE; CHECK,AIR TANK
(B) CHI 		8-98032-527-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 02 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
6 COCK; DRAIN,AIR TANK
CHI 		1-48312-015-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 02 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
7 GASKET; DRAIN COCK
ID=14 CHI 		1-09630-145-0 01 1 1404-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT CHI 		1-09660-669-1 01 1 1404-
8 CONNECTOR; AIR TANK
(C) CHI 		8-97430-346-0 01 1 1404-
8 CONNECTOR; AIR TANK
(B) CHI 		8-97430-662-0 01 1 1404-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 01 1 1404-
30 BRACKET; AIR TANK,SUB
(A) CHI 		8-98099-710-0 01 1 1404-
30 BRACKET; AIR TANK,SUB
(B) CHI 		8-98099-711-0 01 1 1404-
30 BRACKET; AIR TANK,SUB
(C) CHI 		8-98099-781-0 01 1 1404-
31 BOLT; BRKT TO FRAME
M12X40 FLANGE CHI 		0-28651-240-0 04 1 1404-
32 NUT; BRKT TO FRAME
M12 FLANGE CHI 		0-91180-212-0 04 1 1404-
37 BOLT; AIR TANK
M12X40 FLANGE CHI 		0-28651-240-0 04 1 1404-
39 U-BOLT; AIR TANK
(A) L=253 CHI 		1-48317-248-1 02 1 1404-
39 U-BOLT; AIR TANK
(A) L=253 CHI 		1-48317-248-1 04 1 1404-
39 U-BOLT; AIR TANK
(B) CHI 		1-48317-289-0 02 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 16 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 08 1 1404-
46 NUT; U-BOLT
(A) M8 CHI 		0-91110-508-0 08 1 1404-
46 NUT; U-BOLT
(B) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
80 BOLT; BRKT
(A) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
80 BOLT; BRKT
(B) M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW CHI 		1-09660-653-1 01 1 1404-
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY CHI 		1-09660-693-0 01 1 1404-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY CHI 		1-09660-809-0 01 1 1404-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY CHI 		1-09660-809-0 01 1 1404-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 CHI 		8-97609-249-0 01 1 1404-
381 NUT; SUB TANK
M12 FLANGE CHI 		0-91180-212-0 04 1 1404-
çizim 433189
358 28 28 357 358 357
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) CHI 		8-97618-088-1 01 1 1404-
28 BRACKET; AIR TANK
(C) CHI 		8-98093-562-1 01 1 1404-
28 BRACKET; AIR TANK
(B) CHI 		8-98112-257-0 01 1 1404-
28 BRACKET; AIR TANK
(D) 		8-97431-492-0 01 1 1404-
28 BRACKET; AIR TANK
(E) 		8-97431-493-0 01 1 1404-
357 BOLT; BRKT
M10X25 FLANGE CHI 		0-28651-025-0 06 1 1404-
358 NUT; BRKT
M10 FLANGE CHI 		0-91180-210-0 06 1 1404-

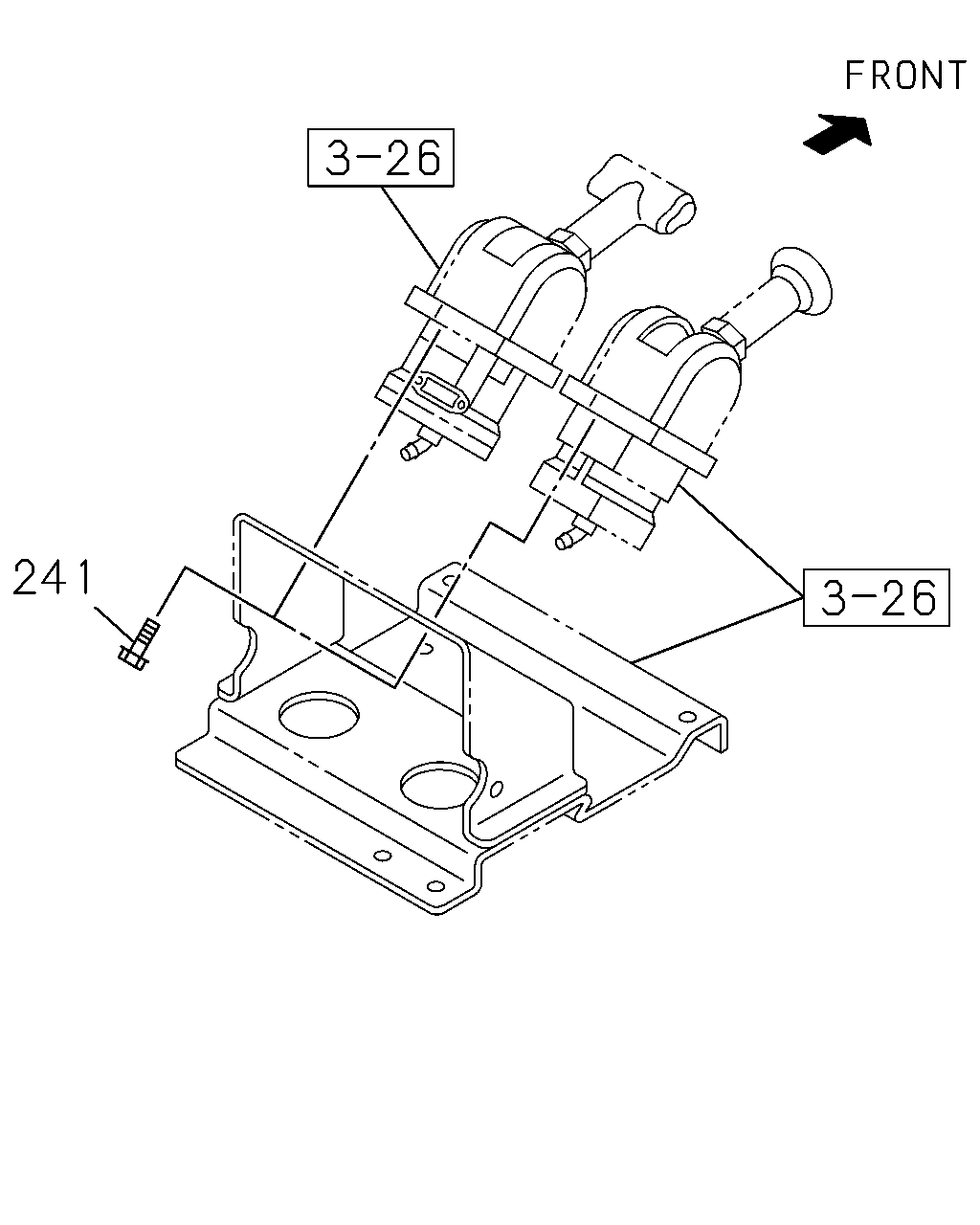

çizim 433190
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M6X16 CHI 		0-52000-616-0 04 1 1404-
