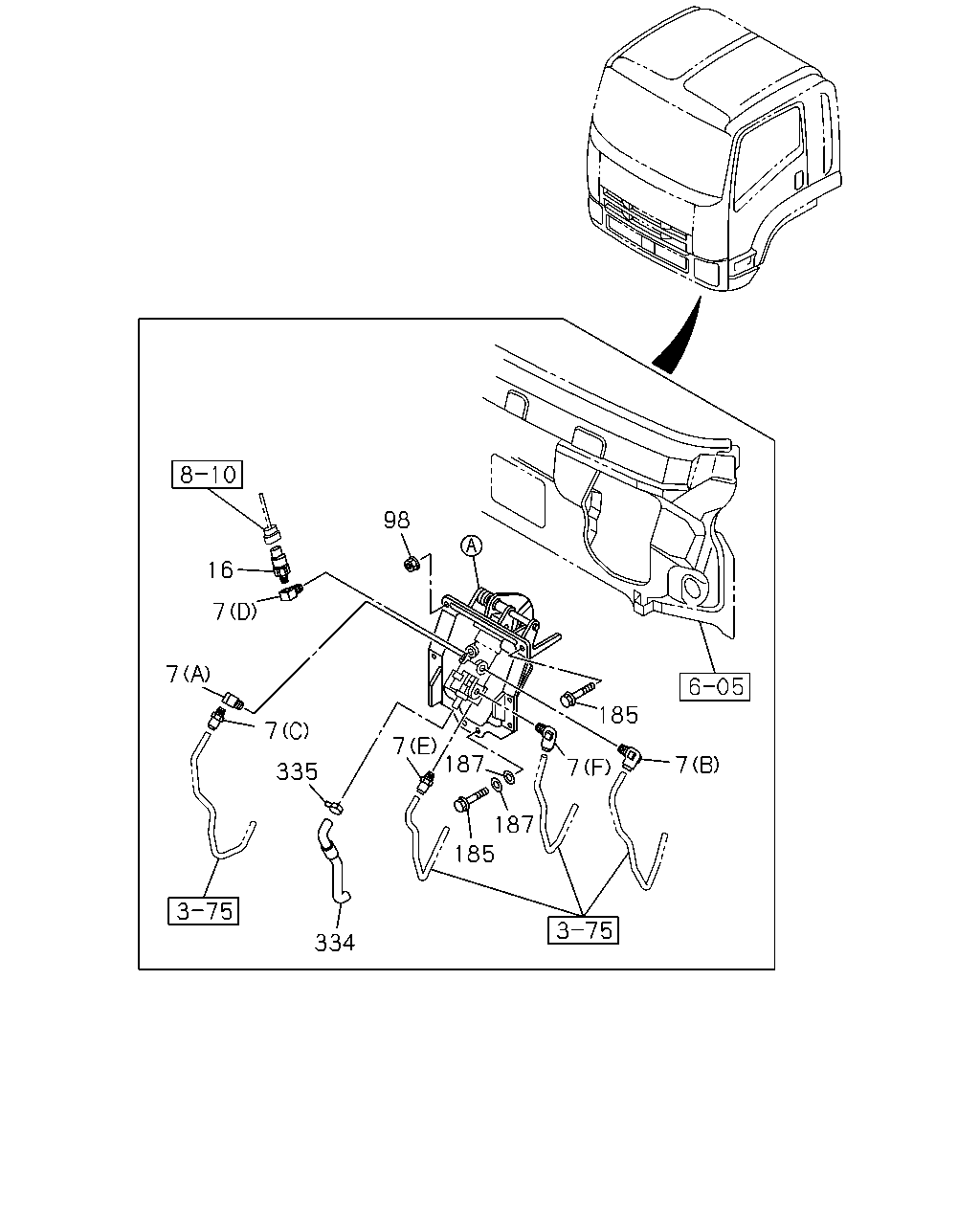

3-10 — BRAKE PEDAL AND CONTROL (#144640) — 26 parça

185 334 335 7 7 7 16 98 185 7 7 187 187 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	CONNECTOR; BRK VALVE (D) PT1/4 2WAY CHI	1-09660-693-0	01	1	1404-
7	CONNECTOR; BRK VALVE (A) PT3/8 ELBOW CHI	1-09660-696-0	01	1	1404-
7	CONNECTOR; BRK VALVE (C) DIN8 & R3/8 STRAIGHT	8-97431-396-0	01	1	1404-
7	CONNECTOR; BRK VALVE (E) DIN12 & R3/8 STRAIGHT	8-97431-397-0	01	1	1404-
7	CONNECTOR; BRK VALVE (B) DIN8 & R3/8 ELBOW	8-97431-398-0	01	1	1404-
7	CONNECTOR; BRK VALVE (F) DIN12 & R3/8 ELBOW	8-97431-399-0	01	1	1404-
16	SWITCH; STOP LAMP STAMP 0.3 CHI	8-98010-857-0	01	1	1404-
98	NUT; BRKT M8 FLANGE CHI	0-91180-208-0	01	1	1404-
185	BOLT; BRKT M8X25 FLANGE CHI	8-98057-109-0	07	1	1404-
187	WASHER; PL,BRKT ID=8.4 OD=26 CHI	0-91614-808-0	04	1	1404-
334	HOSE; AIR,BRK CHI	8-97611-147-2	01	1	1404-
335	CLAMP; HOSE ID=24 CHI	8-98025-921-0	01	1	1404-

1 332 159 76 273 80 207 93 332 183 4 10 2 4 6 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET ASM; PEDAL CHI	8-98071-972-1	01	1	1404-
2	PEDAL; BRK CHI	8-97430-881-0	01	1	1404-
4	BUSHING; BRK PEDAL CHI	8-94238-596-0	02	1	1404-
6	COVER; BRK PEDAL CHI	8-98056-865-0	01	1	1404-
10	SPRING; RETURN,BRK PEDAL CHI	8-98057-232-1	01	1	1404-
27	SHAFT; BRK PEDAL CHI	8-98057-231-0	01	1	1404-
76	NUT; PUSH ROD M8 FLANGE CHI	0-91180-108-0	01	1	1404-
80	PIN; SNAP,BRK PEDAL CHI	8-98007-161-0	01	1	1404-
93	SEAL; BRK PEDAL CHI	1-48199-534-0	01	1	1404-
159	ROD ASM; PUSH,BRK CHI	8-98057-234-0	01	1	1404-
183	BOLT; BRK VLV M8X30 FLANGE CHI	0-28660-830-0	04	1	1404-
207	PIN; JOINT,BRK PEDAL LINK CHI	8-98147-657-0	01	1	1404-
273	ROD; PULL CHI	8-98057-233-0	01	1	1404-
332	RING; SNAP ID=12 CHI	0-91805-512-0	02	1	1404-
