◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#144639) — 91 parça

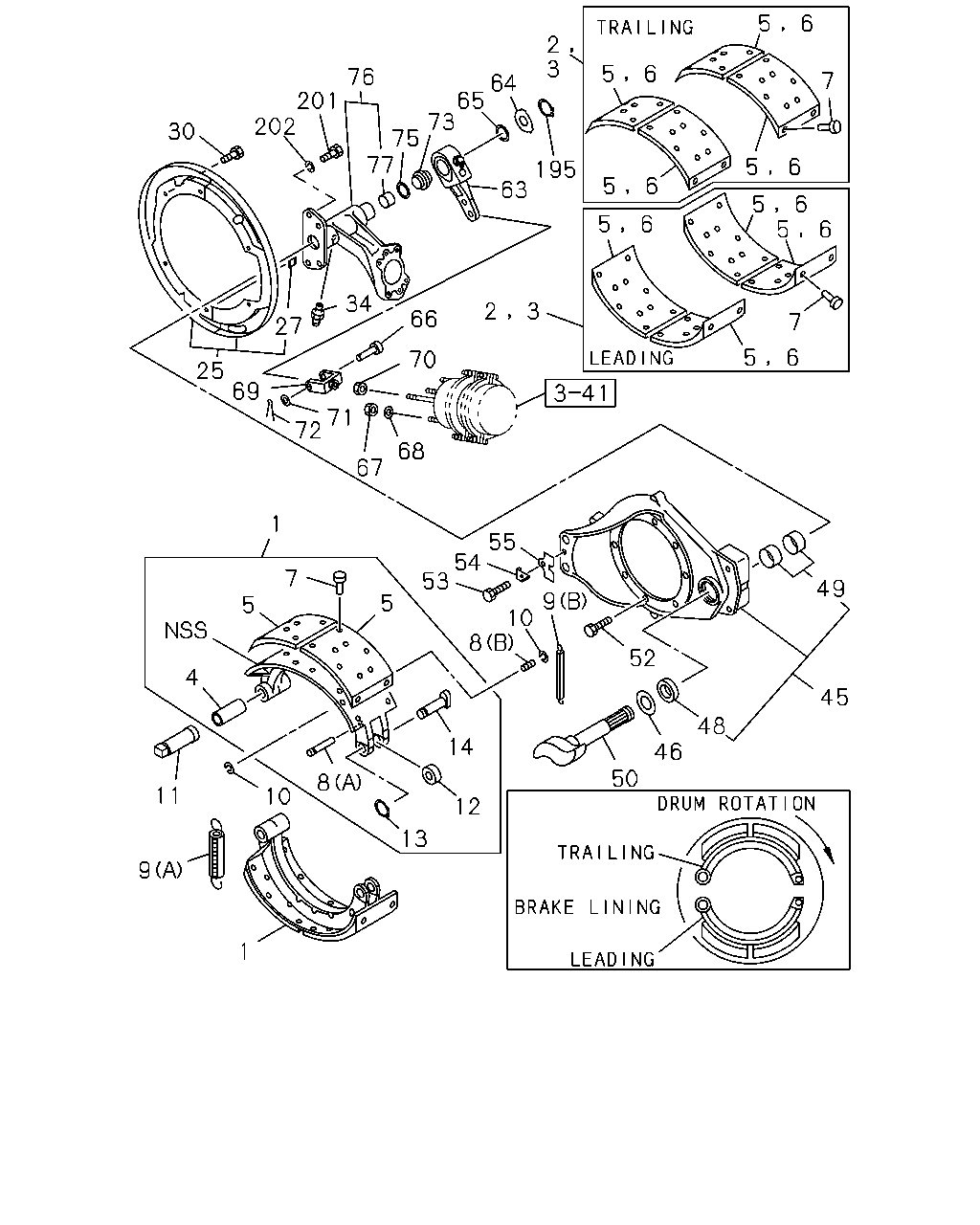

çizim 432830
6 5 6 5 7 6 5 5 6 5 6 7 6 5 6 5 6 5 195 2 3 64 65 73 75 63 77 76 201 202 30 66 2 3 34 27 69 25 70 71 72 68 67 1 7 5 5 4 11 10 9 1 13 8 14 12 8 53 10 55 54 9 52 48 46 50 45 49
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-47120-713-0 01 1 1405-
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-47120-714-0 01 1 1405-
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-47120-715-0 01 1 1405-
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-47120-716-0 01 1 1405-
1 SHOE; BRK,RR
LEADING 		1-47120-336-0 01 1 1404-1404
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-47120-341-0 01 1 1405-
1 SHOE; BRK,RR
TRAILING 		1-47120-337-0 01 1 1404-1404
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-47120-343-0 01 1 1405-
1 SHOE; BRK,RR
LEADING 		1-47120-338-0 01 1 1404-1404
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-47170-398-0 01 1 1405-
1 SHOE; BRK,RR
TRAILING 		1-47120-339-0 01 1 1404-1404
1 SHOE; BRK,RR
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-47170-399-0 01 1 1405-
2 LINING SET; RR BRK,STANDARD
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-88310-521-0 01 1 1404-
2 LINING SET; RR BRK,STANDARD
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-88310-523-0 01 1 1404-
2 LINING SET; RR BRK,STANDARD
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-88310-319-0 01 1 1404-
2 LINING SET; RR BRK,STANDARD
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-88311-435-0 01 1 1404-
3 LINING SET; RR BRK,OVER SIZE
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-88310-522-0 01 1 1404-
3 LINING SET; RR BRK,OVER SIZE
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-88310-524-0 01 1 1404-
3 LINING SET; RR BRK,OVER SIZE
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-88310-320-0 01 1 1404-
3 LINING SET; RR BRK,OVER SIZE
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-88311-436-0 01 1 1404-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 1404-
5 LINING; RR BRK SHOE,STANDARD
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-47125-799-0 04 1 1404-
5 LINING; RR BRK SHOE,STANDARD
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-47125-440-0 04 1 1404-
5 LINING; RR BRK SHOE,STANDARD
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-47126-712-0 04 1 1404-
5 LINING; RR BRK SHOE,STANDARD
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-47125-797-0 04 1 1404-
6 LINING; RR BRK SHOE,OVER SIZE
RR BRK AIR D410-S CAM-180-ML8<B9E> TRAILING 		1-47125-800-0 04 1 1404-
6 LINING; RR BRK SHOE,OVER SIZE
RR BRK AIR D410-S CAM-220-ML8<B9B> TRAILING 		1-47125-442-0 04 1 1404-
6 LINING; RR BRK SHOE,OVER SIZE
RR BRK AIR D410-S CAM-220-ML8<B9B> LEADING 		1-47126-713-0 04 1 1404-
6 LINING; RR BRK SHOE,OVER SIZE
RR BRK AIR D410-S CAM-180-ML8<B9E> LEADING 		1-47125-798-0 04 1 1404-
7 RIVET; LINING,RR BRK
RR BRK AIR D410-S CAM-220-ML8<B9B> L=19.5 		1-09732-035-0 AR 1 1404-
7 RIVET; LINING,RR BRK
RR BRK AIR D410-S CAM-180-ML8<B9E> L=18.5 		1-09732-034-0 AR 1 1404-
8 PIN; RETURN SPRING,RR BRK SHOE
RR BRK AIR D410-S CAM-220-ML8<B9B> (B) 		1-09744-074-0 04 1 1405-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 1404-1404
8 PIN; RETURN SPRING,RR BRK SHOE
RR BRK AIR D410-S CAM-180-ML8<B9E> (B) 		1-47119-021-0 04 1 1405-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 1404-
9 SPRING; RETURN,BRK SHOE
RR BRK AIR D410-S CAM-220-ML8<B9B> (B) 		1-09583-210-0 02 1 1405-
9 SPRING; RETURN,BRK SHOE
RR BRK AIR D410-S CAM-220-ML8<B9B> (A) 		1-09583-277-2 02 1 1405-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 1404-1404
9 SPRING; RETURN,BRK SHOE
RR BRK AIR D410-S CAM-180-ML8<B9E> (A) 		1-09583-175-0 02 1 1405-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-196-0 02 1 1404-1404
9 SPRING; RETURN,BRK SHOE
RR BRK AIR D410-S CAM-180-ML8<B9E> (B) 		1-09583-196-0 02 1 1405-
10 RING; SNAP,SPR PIN
ID=10 CHI 		0-91805-510-0 08 1 1404-1404
10 RING; SNAP,SPR PIN
RR BRK AIR D410-S CAM-180-ML8<B9E> ID=10 CHI 		0-91805-510-0 08 1 1405-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 1404-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 1404-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 1404-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 1404-
25 COVER SET; RR BRK DRUM
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-47151-462-1 02 1 1404-
25 COVER SET; RR BRK DRUM
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-47151-487-1 02 1 1404-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 01 1 1404-
30 BOLT; DRUM COVER
RR BRK AIR D410-S CAM-220-ML8<B9B> M10X16 W/LK WASHER 		0-50541-016-0 12 1 1405-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1404-1404
30 BOLT; DRUM COVER
RR BRK AIR D410-S CAM-180-ML8<B9E> M10X12 		1-47159-187-0 12 1 1405-
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT CHI 		0-90301-410-0 02 1 1404-
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 1404-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 1404-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 1404-
49 BUSHING; CM/SHF,RR BRK
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-47146-003-1 04 1 1405-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 04 1 1404-1404
49 BUSHING; CM/SHF,RR BRK
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-47146-003-1 04 1 1405-
50 CAMSHAFT; BRK,RR BRK 1-47141-067-0 01 1 1404-
50 CAMSHAFT; BRK,RR BRK 1-47141-068-0 01 1 1404-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1404-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1404-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1404-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 1404-
63 ADJUSTER ASM; SLACK,RR BRK
AUTO ADJUSTER BRAKE<BCU> 		1-48270-075-0 01 1 1404-
63 ADJUSTER ASM; SLACK,RR BRK
AUTO ADJUSTER BRAKE<BCU> 		1-48270-076-0 01 1 1404-
63 ADJUSTER ASM; SLACK,RR BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-48270-045-0 01 1 1404-
63 ADJUSTER ASM; SLACK,RR BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-48270-046-0 01 1 1404-
64 PLATE; STOPPER,CM/SHF
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-47149-022-0 02 1 1405-
64 PLATE; STOPPER,CM/SHF 1-47149-054-0 02 1 1404-1404
64 PLATE; STOPPER,CM/SHF
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-47149-054-0 02 1 1405-
65 SPACER; SLACK ADJ,BRK 1-47143-011-0 02 1 1404-
66 PIN; JAW JOINT
BRAKE ADJUSTER MANUAL<BJR> 		1-09744-088-0 02 1 1404-
67 NUT; POWER CHAMBER FIX
M16 CHI 		0-91110-516-0 08 1 1404-
68 WASHER; LK,CHAMBER
ID=16.2 CHI 		0-91510-816-0 08 1 1404-
69 JOINT; JAW
BRAKE ADJUSTER MANUAL<BJR> 		1-09768-060-1 02 1 1404-
70 NUT; LK,JAW JOINT
M16 CHI 		0-91111-516-0 02 1 1404-
71 WASHER; PL,JAW JOINT
BRAKE ADJUSTER MANUAL<BJR> 		0-91610-616-0 02 1 1404-
72 PIN; SPLIT
BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI 		0-81124-028-0 02 1 1404-
73 COLLAR; FELT RING,CM/SHF
RR BRK AIR D410-S CAM-220-ML8<B9B> 		1-47143-016-0 02 1 1405-
73 COLLAR; FELT RING,CM/SHF 1-47143-010-0 02 1 1404-1404
73 COLLAR; FELT RING,CM/SHF
RR BRK AIR D410-S CAM-180-ML8<B9E> 		1-47143-010-0 02 1 1405-
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 1404-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-250-0 01 1 1404-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-251-0 01 1 1404-
77 BUSHING 1-47146-003-1 02 1 1404-
195 RING; SNAP,CM/SHF 9-09180-038-0 02 1 1404-
201 BOLT; BRKT,POWER CHAMBER
M14X35 CHI 		0-20851-435-0 08 1 1404-
202 WASHER; LK,BRKT
ID=14.2 CHI 		0-91510-514-0 08 1 1404-
