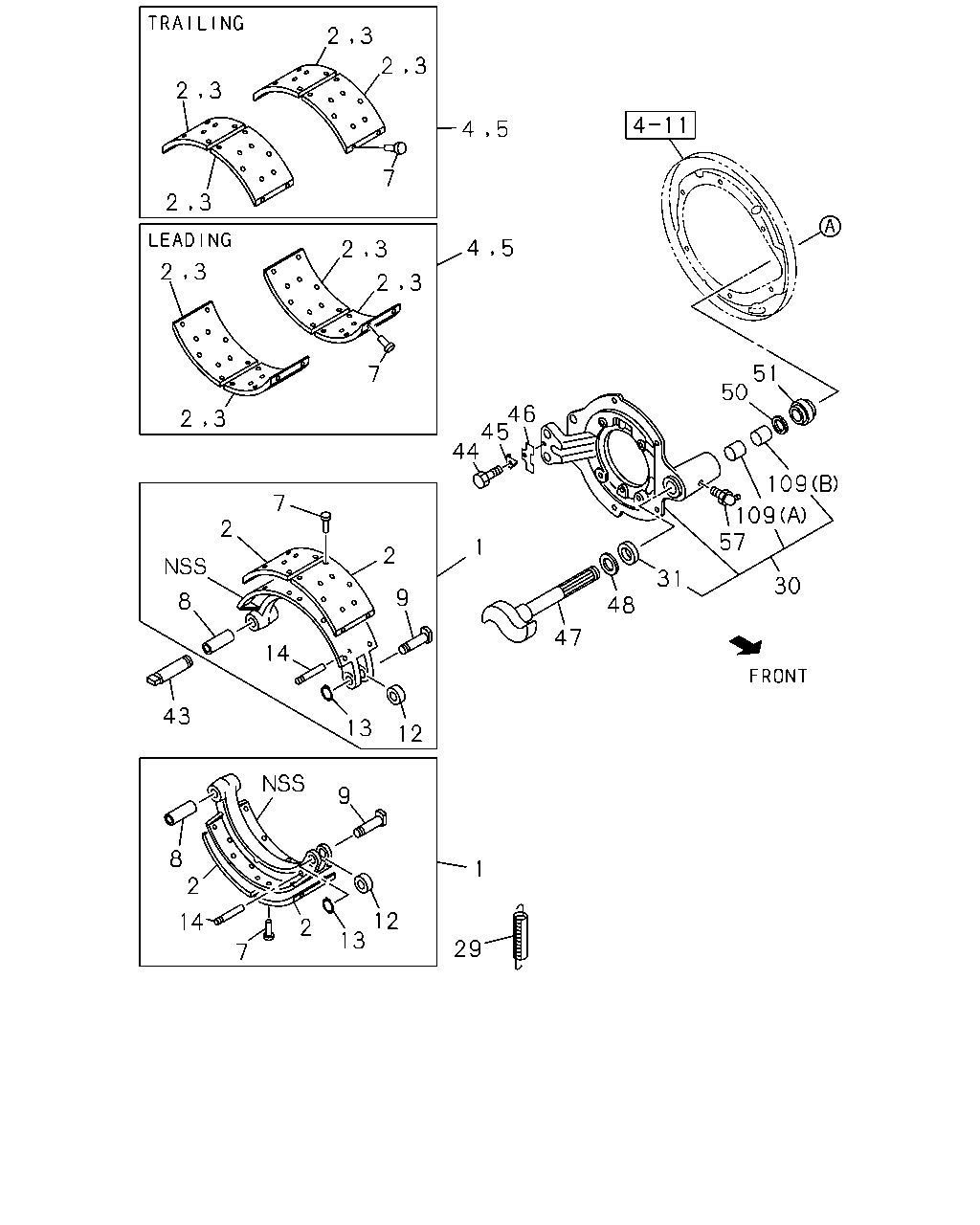

3-01 — FRONT WHEEL BRAKE (#144638) — 87 parça

51 50 109 109 57 30 31 48 47 46 45 44 1 5 4 5 4 3 2 3 2 3 2 3 2 7 3 2 3 2 3 2 3 2 7 7 2 9 12 13 14 2 8 43 1 29 12 13 9 2 8 14 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47120-333-0	01	1	1404-1404
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING CHI	1-47120-709-0	01	1	1405-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47120-335-0	01	1	1404-1404
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING CHI	1-47120-710-0	01	1	1405-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47120-833-0	01	1	1404-1404
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING CHI	1-47120-711-0	01	1	1405-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47120-835-0	01	1	1404-1404
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING CHI	1-47120-712-0	01	1	1405-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-47170-268-0	01	1	1404-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-47170-269-0	01	1	1404-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-47170-270-0	01	1	1404-
1	SHOE; BRK,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-47170-271-0	01	1	1404-
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47125-432-0	04	1	1404-1404
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47125-795-0	04	1	1405-
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47126-056-0	04	1	1404-1404
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47125-793-0	04	1	1405-
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-47125-915-0	04	1	1404-
2	LINING; FRT BRK SHOE,STANDARD FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-47126-659-0	04	1	1404-
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47125-434-0	04	1	1404-1404
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-47125-796-0	04	1	1405-
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47126-057-0	04	1	1404-1404
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-47125-794-0	04	1	1405-
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-47125-916-0	04	1	1404-
3	LINING; FRT BRK SHOE,OVER SIZE FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-47126-660-0	04	1	1404-
4	LINING SET; FRT BRK,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-88310-497-0	01	1	1404-
4	LINING SET; FRT BRK,STANDARD FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-88310-499-0	01	1	1404-
4	LINING SET; FRT BRK,STANDARD FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-88311-250-0	01	1	1404-
4	LINING SET; FRT BRK,STANDARD FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-88311-251-0	01	1	1404-
5	LINING SET; FRT BRK,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> LEADING	1-88310-498-0	01	1	1404-
5	LINING SET; FRT BRK,OVER SIZE FRT BRAKE-AIR,D410-S CAM 140<B7A> TRAILING	1-88310-500-0	01	1	1404-
5	LINING SET; FRT BRK,OVER SIZE FRT BRAKE-AIR,D410-S CAM 160<B7N> LEADING	1-88311-252-0	01	1	1404-
5	LINING SET; FRT BRK,OVER SIZE FRT BRAKE-AIR,D410-S CAM 160<B7N> TRAILING	1-88311-253-0	01	1	1404-
7	RIVET; LINING,FRT BRK FRT BRAKE-AIR,D410-S CAM 140<B7A> L=18.5	1-09732-034-0	80	1	1404-
7	RIVET; LINING,FRT BRK FRT BRAKE-AIR,D410-S CAM 160<B7N> L=18.5	1-09732-034-0	AR	1	1404-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	1404-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	1404-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	1404-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	1404-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	1404-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	1404-
30	BRACKET; ANCHOR,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A>	1-47137-118-3	01	1	1404-
30	BRACKET; ANCHOR,FRT FRT BRAKE-AIR,D410-S CAM 140<B7A>	1-47137-119-3	01	1	1404-
30	BRACKET; ANCHOR,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N>	1-47137-480-0	01	1	1404-
30	BRACKET; ANCHOR,FRT FRT BRAKE-AIR,D410-S CAM 160<B7N>	1-47137-481-0	01	1	1404-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	1404-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	1404-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	1404-
45	WASHER; LK	1-47133-011-0	02	1	1404-
46	PLATE; LOCK	1-47133-005-0	02	1	1404-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	1404-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	1404-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	1404-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	1404-
51	COLLAR; RING,CM/SHF AUTO ADJUSTER BRAKE<BCU>	1-47143-013-0	02	1	1404-
51	COLLAR; RING,CM/SHF BRAKE ADJUSTER MANUAL<BJR>	1-47143-016-0	02	1	1404-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1404-1404
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE ADJUSTER MANUAL<BJR> FRT BRAKE-AIR,D410-S CAM 160<B7N> PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1405-
57	NIPPLE; GREASE,ANCHOR BRKT FRT BRAKE-AIR,D410-S CAM 140<B7A>,FRT BRAKE-AIR, D410-S CAM 160<B7N> AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1405-
57	NIPPLE; GREASE,ANCHOR BRKT FRT BRAKE-AIR,D410-S CAM 140<B7A> AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	1404-1404
57	NIPPLE; GREASE,ANCHOR BRKT FRT BRAKE-AIR,D410-S CAM 140<B7A> BRAKE ADJUSTER MANUAL<BJR> PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1405-
109	BUSHING; CM/SHF,FRT BRK FRT BRAKE-AIR,D410-S CAM 140<B7A> (A)	1-47146-003-1	02	1	1404-
109	BUSHING; CM/SHF,FRT BRK FRT BRAKE-AIR,D410-S CAM 140<B7A> (B)	1-47146-003-1	02	1	1404-
109	BUSHING; CM/SHF,FRT BRK FRT BRAKE-AIR,D410-S CAM 160<B7N> (A)	1-47146-003-1	02	1	1404-
109	BUSHING; CM/SHF,FRT BRK FRT BRAKE-AIR,D410-S CAM 160<B7N> (B)	1-47146-019-0	02	1	1404-

56 55 54 53 62 63 64 56 55 54 49 52 60 53 61 58 59 62 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	NIPPLE; GREASE,SLACK ADJ FRT BRAKE-AIR,D410-S CAM 140<B7A> BRAKE ADJUSTER MANUAL<BJR> PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-1404
49	NIPPLE; GREASE,SLACK ADJ BRAKE ADJUSTER MANUAL<BJR> PT1/8 STRAIGHT CHI	0-90301-410-0	01	1	1405-
49	NIPPLE; GREASE,SLACK ADJ FRT BRAKE-AIR,D410-S CAM 160<B7N> BRAKE ADJUSTER MANUAL<BJR> PT1/8 STRAIGHT CHI	0-90301-410-0	01	1	1404-1404
49	NIPPLE; GREASE,SLACK ADJ FRT BRAKE-AIR,D410-S CAM 160<B7N> BRAKE ADJUSTER MANUAL<BJR> PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	01	1	1404-1404
49	NIPPLE; GREASE,SLACK ADJ BRAKE ADJUSTER MANUAL<BJR> PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	01	1	1405-
52	BUSHING; SLACK ADJ BRAKE ADJUSTER MANUAL<BJR>	1-09330-041-0	02	1	1404-
53	ADJUSTER ASM; SLACK AUTO ADJUSTER BRAKE<BCU>	1-48270-071-0	01	1	1404-
53	ADJUSTER ASM; SLACK AUTO ADJUSTER BRAKE<BCU>	1-48270-072-0	01	1	1404-
53	ADJUSTER ASM; SLACK BRAKE ADJUSTER MANUAL<BJR>	1-48270-043-0	01	1	1404-
53	ADJUSTER ASM; SLACK BRAKE ADJUSTER MANUAL<BJR>	1-48270-044-0	01	1	1404-
54	SPACER; CM/SHF AUTO ADJUSTER BRAKE<BCU>	1-47143-004-0	04	1	1404-
54	SPACER; CM/SHF BRAKE ADJUSTER MANUAL<BJR>	1-47143-004-0	02	1	1404-
55	PLATE; STOPPER,CM/SHF FRT BRAKE-AIR,D410-S CAM 140<B7A> AUTO ADJUSTER BRAKE<BCU>	1-47149-055-0	02	1	1404-
55	PLATE; STOPPER,CM/SHF FRT BRAKE-AIR,D410-S CAM 140<B7A> BRAKE ADJUSTER MANUAL<BJR>	1-47149-021-0	02	1	1404-
55	PLATE; STOPPER,CM/SHF FRT BRAKE-AIR,D410-S CAM 160<B7N>	1-47149-086-0	02	1	1404-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	1404-
58	PIN; SPLIT,JAW JOINT BRAKE ADJUSTER MANUAL<BJR> OD=3.7 L=28 CHI	0-81124-028-0	02	1	1404-
59	WASHER; PL,JAW JOINT BRAKE ADJUSTER MANUAL<BJR>	0-91610-616-0	02	1	1404-
60	JOINT; JAW,POWER CHAMBER BRAKE ADJUSTER MANUAL<BJR>	1-09768-060-1	02	1	1404-
61	PIN; JAW JOINT,POWER CHAMBER BRAKE ADJUSTER MANUAL<BJR>	1-09744-088-0	02	1	1404-
62	NUT; LK,JAW JOINT M16 CHI	0-91111-516-0	02	1	1404-
63	NUT; POWER CHAMBER M16 CHI	0-91110-516-0	04	1	1404-
64	WASHER; LK,POWER CHAMBER ID=16.2 CHI	0-91510-516-0	04	1	1404-
