Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶

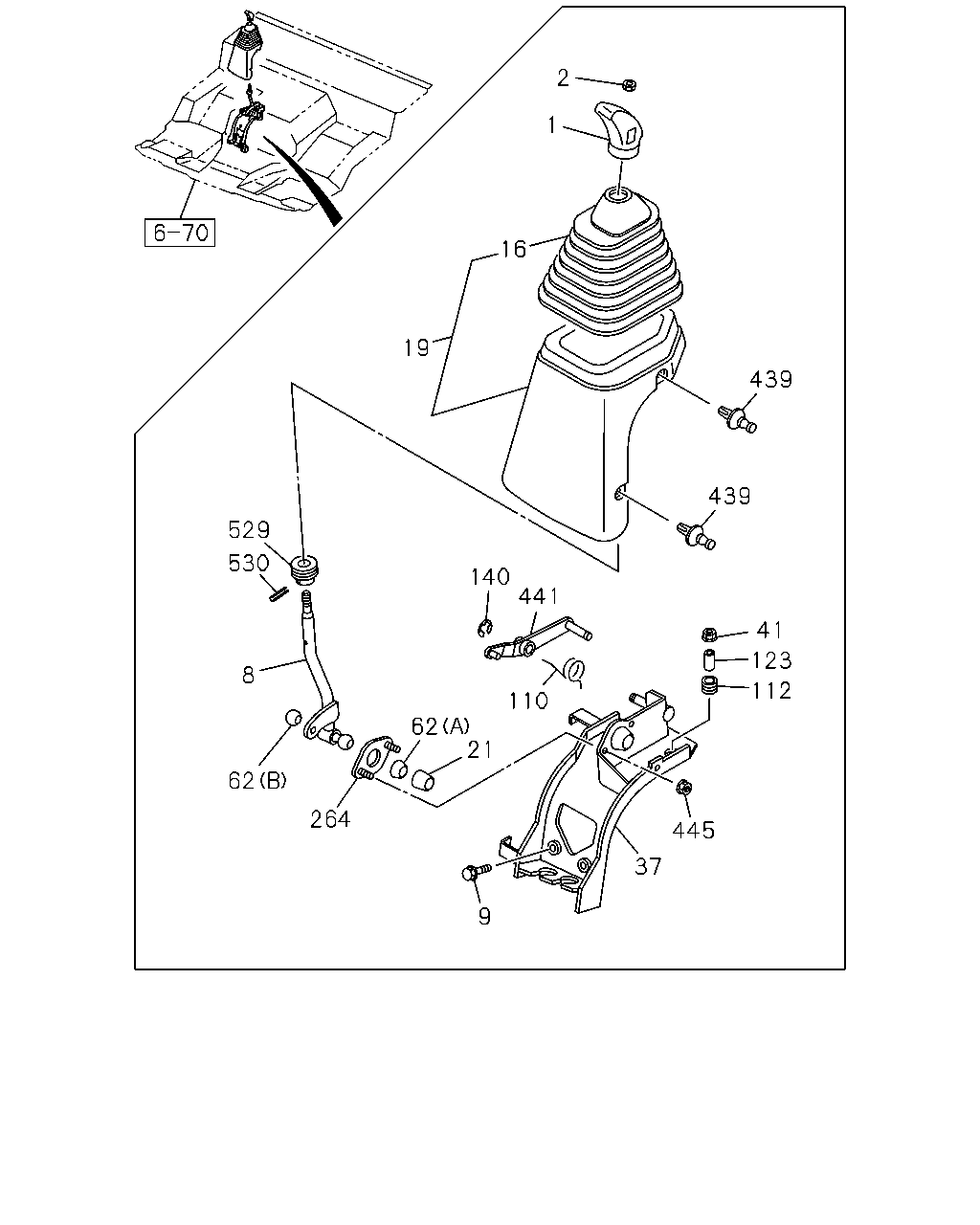

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#144634) — 21 parça
2
1
16
19
439
439
41
123
112
441
140
529
530
110
445
37
9
21
62
264
62
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
8-97431-430-0
01
1
1404-
2
NUT; KNOB
M12 CHI
0-91110-512-0
01
1
1404-
8
LEVER; CHANGE
CHI
8-97431-080-0
01
1
1404-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER CHI
8-94412-342-0
02
1
1404-
16
BOOT; CHANGE LEVER
CHI
8-97431-077-0
01
1
1404-
19
COVER; CHANGE LEVER
CHI
8-97430-968-0
01
1
1404-
21
SEAT; CHANGE LEVER
CHI
1-33619-429-0
01
1
1404-
37
BRACKET; CHANGE LEVER SUPPORT
CHI
8-97431-079-0
01
1
1404-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER CHI
8-97329-625-0
02
1
1404-
62
SEAT; BALL,CHANGE LEVER
(A) CHI
1-33619-427-0
01
1
1404-
62
SEAT; BALL,CHANGE LEVER
(B) CHI
8-97049-147-0
01
1
1404-
110
SPRING; RETURN,CHANGE LEVER
CHI
1-33619-435-0
01
1
1404-
112
RUBBER; CUSHION
CHI
1-33619-442-0
04
1
1404-
123
COLLAR; DIST,CHANGE LEVER
CHI
1-33619-443-0
04
1
1404-
140
RING; SNAP
ID=10 CHI
0-91805-510-0
01
1
1404-
264
PLATE; COVER
CHI
1-33619-430-0
01
1
1404-
439
FASTENER; COVER
GRAY CHI
8-97407-955-0
04
1
1404-
441
LEVER; SELECT
CHI
8-98079-302-0
01
1
1404-
445
NUT; PLATE
M6 FLANGE CHI
0-91180-106-0
02
1
1404-
529
RING; BOOT
CHI
1-33619-504-0
01
1
1404-
530
PIN; SPRING
CHI
1-33619-505-0
01
1
1404-
