Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

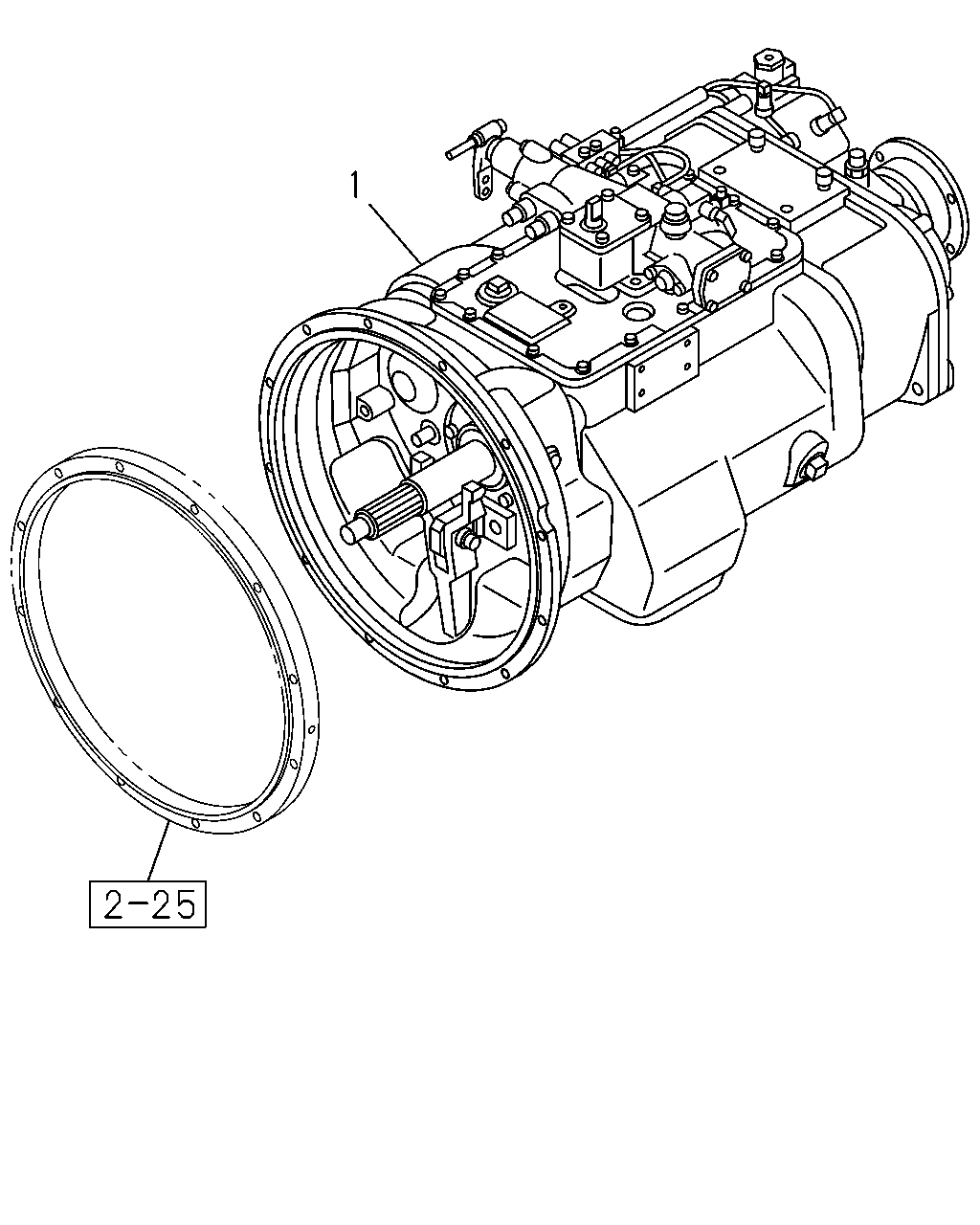

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#144632) — 14 parça
◀
[220A] CLIP AND OTHER PARTS (13 parça)
[220A] ASM (1 parça)
▶
353
282
647
198
303
511
265
353
265
353
290
439
271
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
198
ADAPTER; NYLON TUBE
8-97431-445-0
01
1
1404-
265
BOLT; CLIP
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
271
NUT; CLIP
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
282
BOLT; PROTECTOR
M6X16 FLANGE CHI
0-28050-616-0
04
1
1404-
290
BRACKET; CLIP
L=95 CHI
1-82699-085-0
01
1
1404-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8 CHI
1-87411-006-0
01
1
1404-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8 CHI
1-87411-006-0
01
1
1404-
353
CLIP; NYLON TUBE
(B) ID=18 L=28 CHI
1-09701-067-0
01
1
1404-
353
CLIP; NYLON TUBE
(A) L=140 CHI
5-09707-031-1
04
1
1404-
406
NUT; BRKT
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
439
BOLT; BRKT
M8X25 FLANGE CHI
0-28650-825-0
01
1
1404-
511
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 CHI
1-87411-019-0
01
1
1404-
647
PROTECTOR; HEAT
CHI
8-98151-604-0
01
1
1404-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-97431-271-0
01
1
1404-
