Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

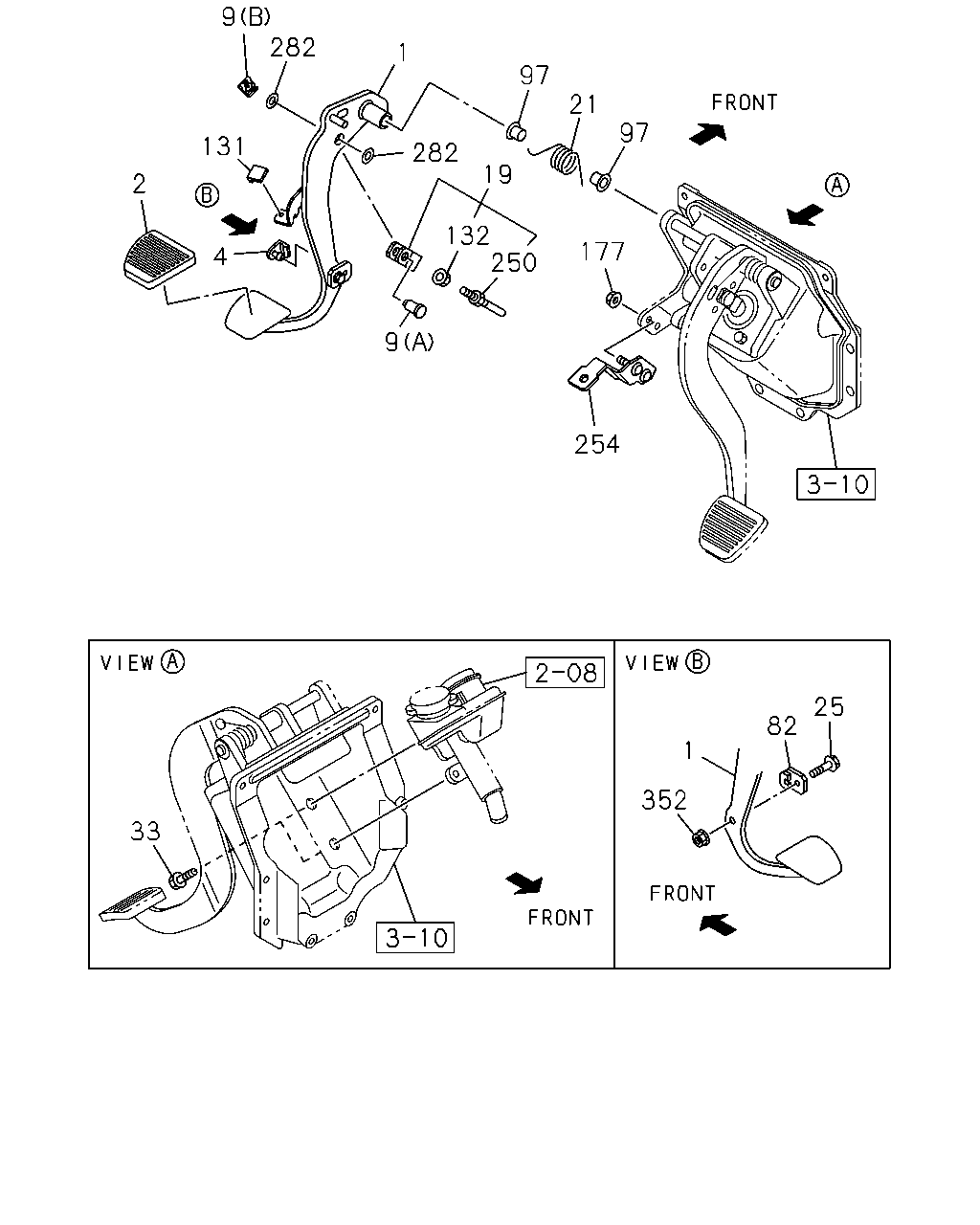

2-03 — CLUTCH PEDAL AND CONTROL
(#144629) — 18 parça
9
1
282
131
2
4
9
250
177
132
19
282
97
97
21
254
1
352
82
25
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
CHI
8-98064-605-1
01
1
1404-
2
COVER; CLU PEDAL
CHI
8-98056-865-0
01
1
1404-
4
STOPPER; CLU PEDAL
CHI
8-98079-251-0
01
1
1404-
9
PIN; CLU PEDAL
(B) CHI
8-98007-161-0
01
1
1404-
9
PIN; CLU PEDAL
(A) CHI
8-98147-657-0
01
1
1404-
19
ROD ASM; PUSH,CLU
CHI
8-98021-406-1
01
1
1404-
21
SPRING; RETURN,CLU PEDAL
CHI
8-98021-560-0
01
1
1404-
25
BOLT; PEDAL
M8X25 FLANGE CHI
0-28650-825-0
01
1
1404-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE CHI
0-28051-220-0
02
1
1404-
82
CLEVIS; HELPER,CLU PEDAL
8-97431-710-0
01
1
1404-
97
BUSHING; CLU PEDAL SHAFT
CHI
8-94238-596-0
02
1
1404-
131
STOPPER; CLU SW
CHI
8-97302-305-0
01
1
1404-
132
NUT; LK,PUSH ROD
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
177
NUT; BRKT
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
250
ROD; PUSH,CLU
CHI
8-97615-589-0
01
1
1404-
254
BRACKET; CLU SENSOR
CHI
8-98021-377-1
01
1
1404-
282
SPACER; CLU PEDAL
CHI
8-98070-329-0
02
1
1404-
352
NUT; PEDAL
M8 LOCK NUT CHI
0-91370-008-0
01
1
1404-
