1-50 — EXHAUST PIPE AND SILENCER
(#144625) — 23 parça
◀
[150A] NO.2 (14 parça)

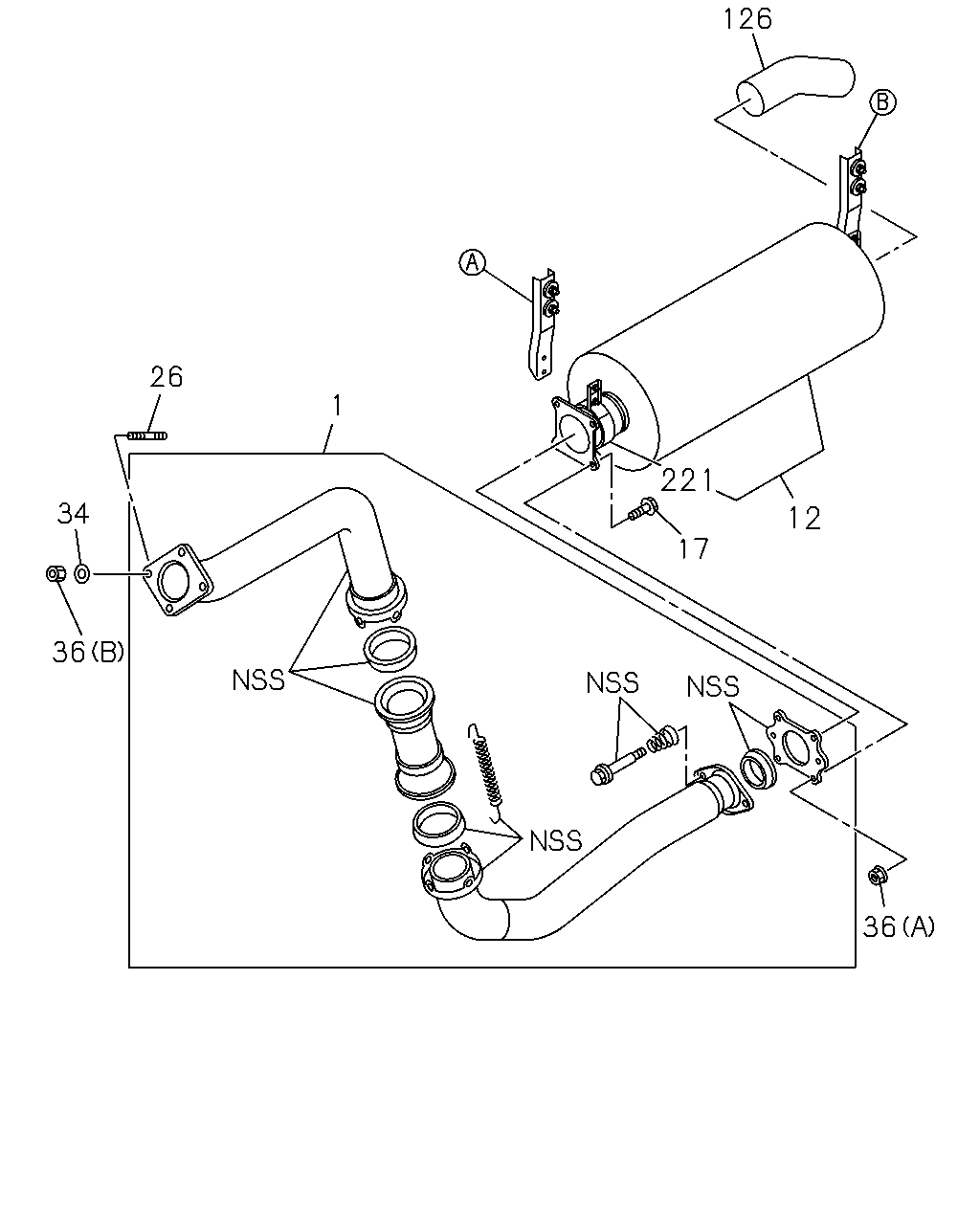

[150A] NO.1 (9 parça)
▶
107
72
75
56
24
81
75
105
94
107
530
115
56
113
118
115
105
94
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COLLAR; DIST,CLAMP
L=22 CHI
9-22159-024-0
02
1
1404-
56
BRACKET; CLAMP,EXH PIPE
(A) CHI
8-97430-181-0
01
1
1404-
56
BRACKET; CLAMP,EXH PIPE
(B) CHI
8-98055-106-0
01
1
1404-
72
WASHER; LK,BRKT
ID=10.2 CHI
0-91510-810-0
02
1
1404-
75
RUBBER; SUPPORT,BRKT
OD=40 CHI
1-22159-094-0
04
1
1404-
81
NUT; BRKT
M10 CHI
0-91110-510-0
02
1
1404-
89
CLAMP; EXH SILENCER,RR
CHI
8-97621-090-0
01
1
1404-
94
BOLT; CLAMP
M8X30 FLANGE CHI
0-28050-830-0
04
1
1404-
105
NUT; CLAMP
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
107
BOLT; BRKT
M10X60 CHI
0-10856-060-0
04
1
1404-
113
COLLAR; DIST,MTG BRKT
L=22 CHI
9-22159-024-0
02
1
1404-
115
RUBBER; MTG,SILENCER
OD=40 CHI
1-22159-094-0
04
1
1404-
118
NUT; SILENCER MTG BRKT
M10 CHI
0-91110-510-0
02
1
1404-
530
WASHER
ID=10.2 CHI
0-91510-810-0
02
1
1404-
126
17
221
12
36
1
26
34
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
CHI
8-97430-177-0
01
1
1404-
12
SILENCER ASM; EXH
8-98183-450-2
01
1
1404-
17
BOLT; EXH PIPE
M12X25 FLANGE CHI
1-09000-604-0
04
1
1404-
26
STUD; EXH MANIF
M12X140 L=160 CHI
1-09302-163-0
04
1
1404-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH CHI
1-09556-020-0
04
1
1404-
36
NUT; EXH PIPE
(A) M12 CHI
0-91110-512-0
04
1
1404-
36
NUT; EXH PIPE
(B) M12 CHI
1-09400-131-0
04
1
1404-
126
PIPE; EXH,RR
CHI
8-97430-179-0
01
1
1404-
221
CLAMP; EXH SILENCER
D=101.4 CHI
1-22133-170-1
01
1
1404-
