Sayfa 1-41 - Isuzu EPC

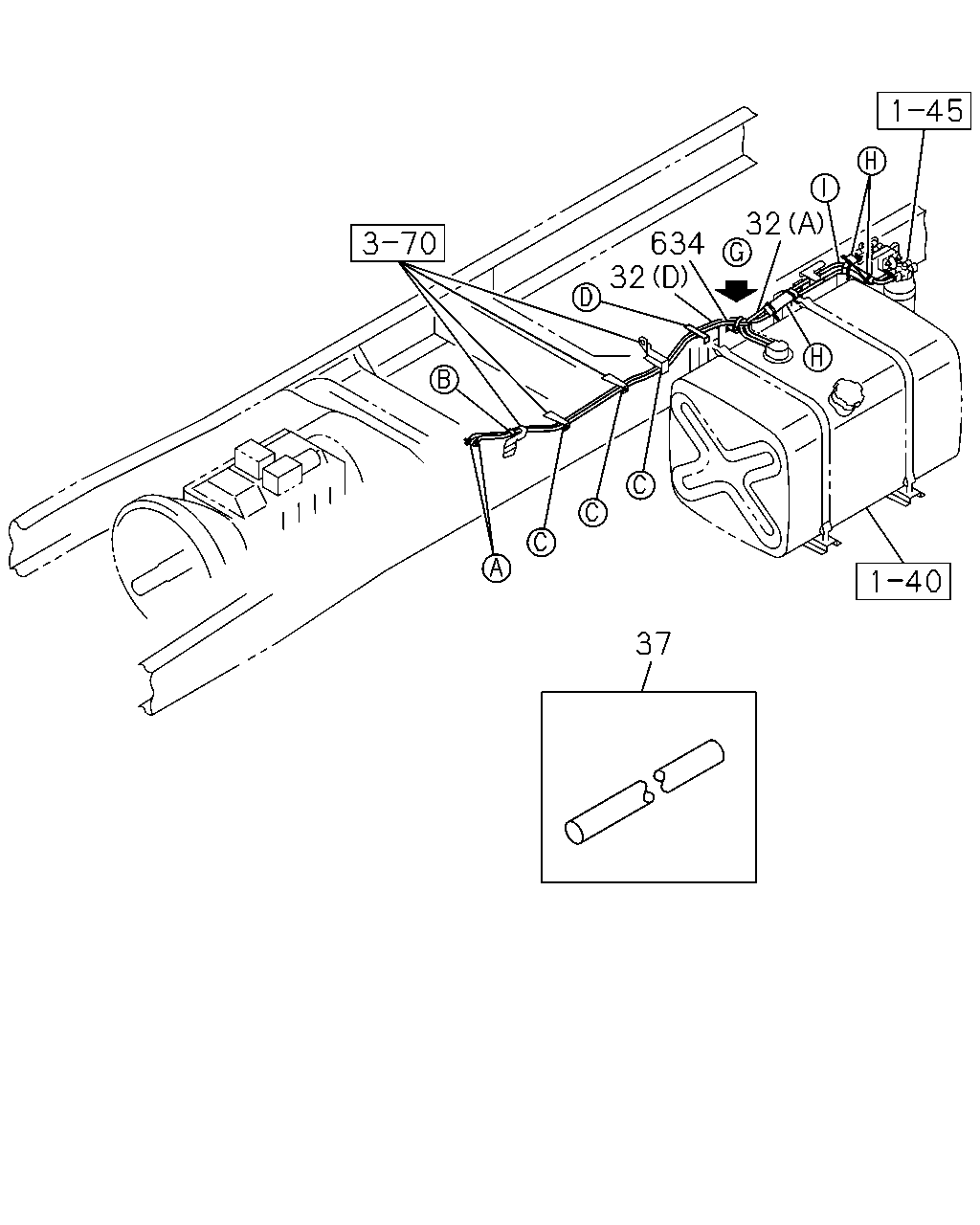

1-41 — FUEL PIPING; CHASSIS (#144623) — 45 parça

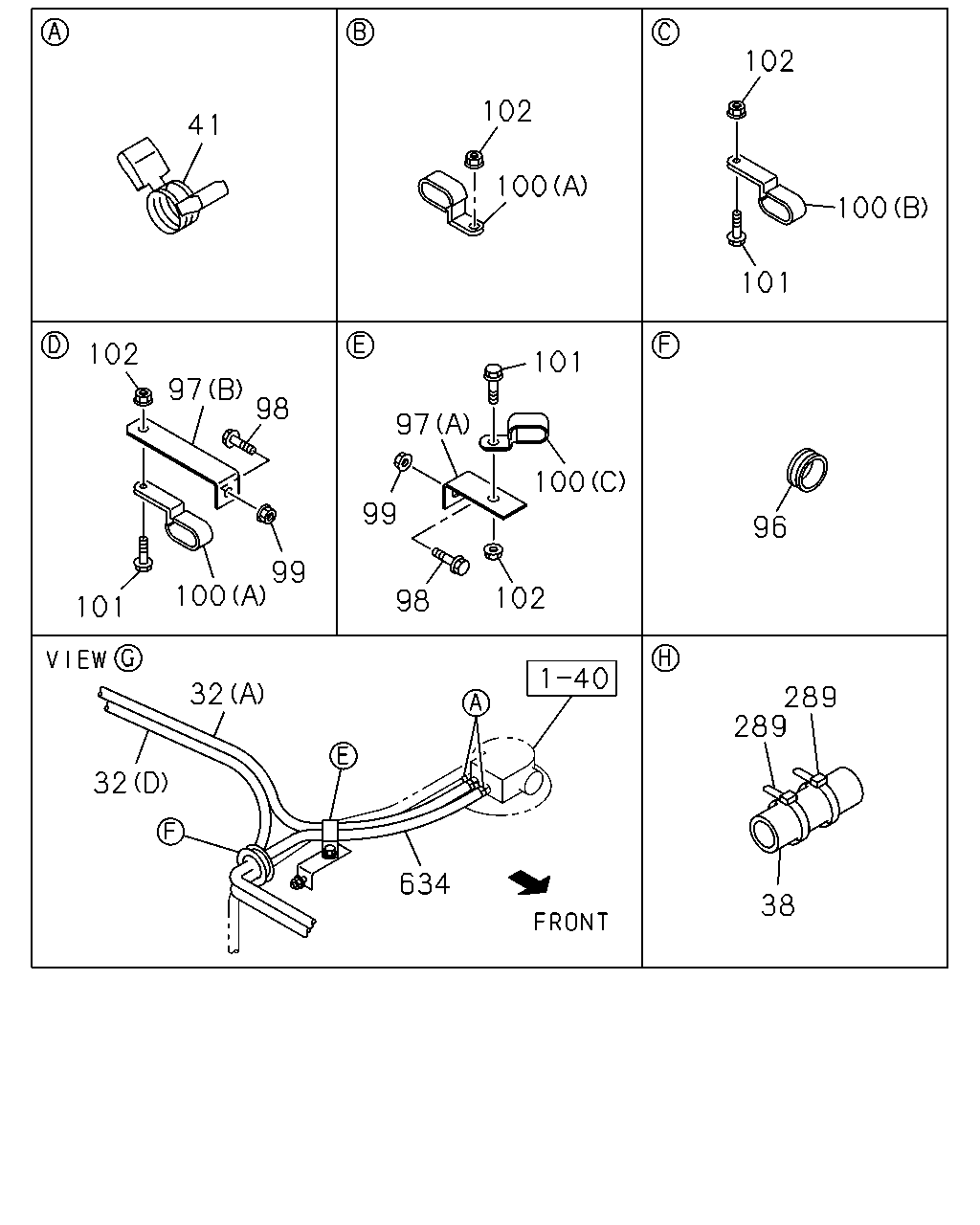

634 32 100 99 99 98 97 102 100 101 97 102 101 98 32 41 102 100 101 100 102 96 289 38 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300 CHI	1-09360-677-1	03	1	1404-
41	CLIP; FUEL PIPE,FUEL TANK ID=14 CHI	1-09704-102-0	04	1	1404-
41	CLIP; FUEL PIPE,FUEL TANK ID=19 CHI	8-94238-569-0	02	1	1404-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18 CHI	1-09891-003-0	01	1	1404-
97	BRACKET; CLIP (A) L=68 CHI	1-47475-525-0	01	1	1404-
97	BRACKET; CLIP (B) L=112 CHI	1-47475-694-1	01	1	1404-
98	BOLT; BRKT,FUEL PIPE M8X35 FLANGE CHI	0-28650-835-0	02	1	1404-
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE CHI	0-91180-108-0	02	1	1404-
100	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20 CHI	1-09700-744-0	01	1	1404-
100	CLIP; FUEL PIPE (A) ID=19X32 H=17.5 L=22.5 CHI	1-09701-315-0	02	1	1404-
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5 CHI	1-09701-320-0	03	1	1404-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE CHI	0-28650-820-0	05	1	1404-
102	NUT; CLIP,FUEL PIPE M8 FLANGE CHI	0-91180-108-0	06	1	1404-
289	CLIP; BAND,HOSE L=250 CHI	5-09707-030-1	04	1	1404-
634	HOSE; RUBBER RETURN ID=9.5,OD=14.5 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-

32 634 32 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
37	HOSE; RUBBER DELIVERY ID=9.5,OD=14.5 L=820 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
634	HOSE; RUBBER RETURN ID=9.5,OD=14.5 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-

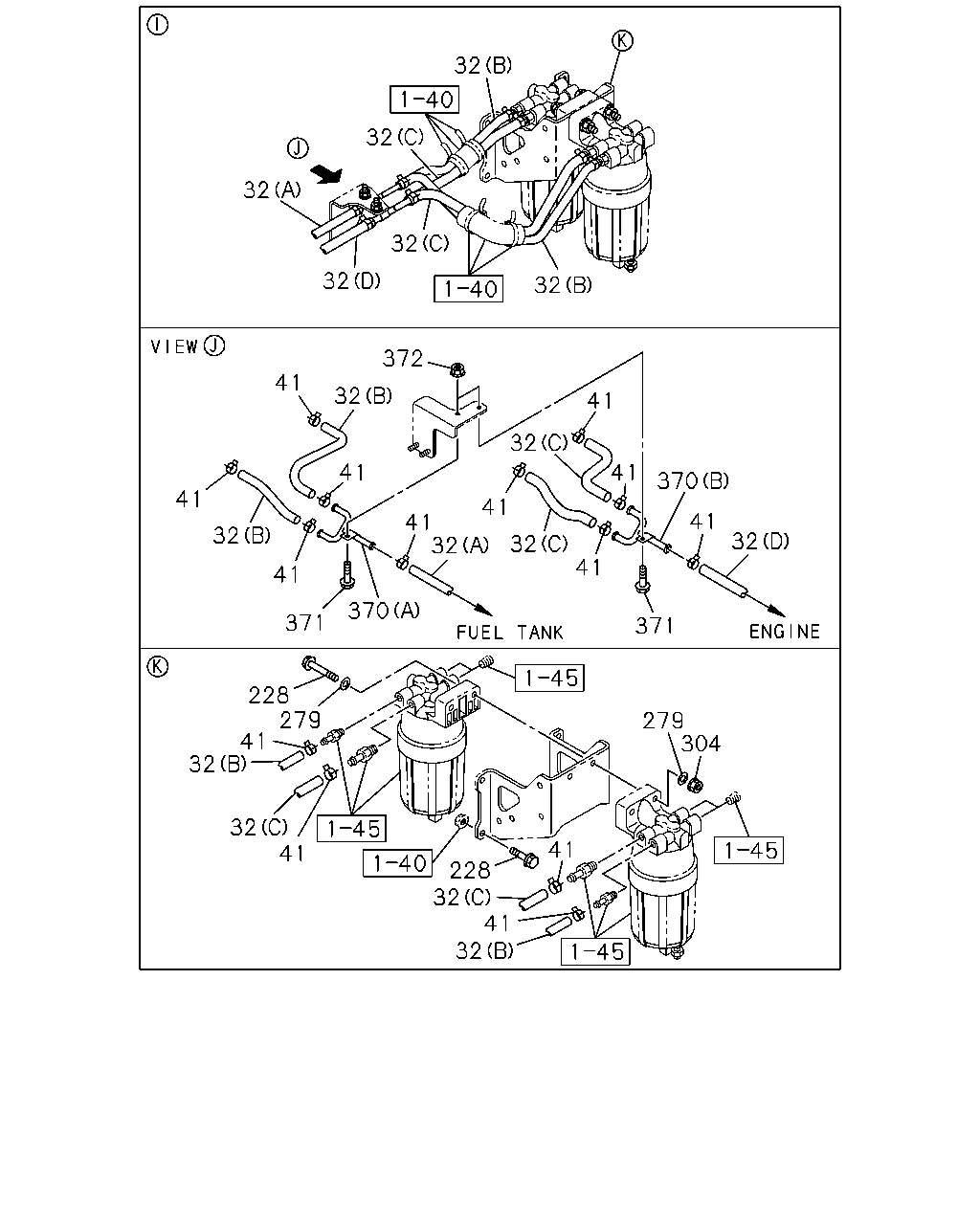

32 32 32 32 32 32 41 32 41 41 41 32 41 41 32 41 371 32 41 32 371 41 370 41 32 370 228 279 41 32 32 41 228 32 41 41 279 304 372 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-
41	CLIP; FUEL PIPE,FUEL TANK ID=14 CHI	1-09704-102-0	04	1	1404-
41	CLIP; FUEL PIPE,FUEL TANK ID=19 CHI	8-94238-569-0	02	1	1404-
228	BOLT; BRKT,SEDIMENTER M10X60 FLANGE CHI	0-28051-060-0	02	1	1404-
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE CHI	0-28051-045-0	04	1	1404-
279	WASHER ID=10.5 OD=26 CHI	0-91614-710-0	02	1	1404-
304	NUT; BRKT M10 FLANGE CHI	0-91180-210-0	02	1	1404-
370	JOINT; FUEL (A) OD=11.5	8-97431-513-0	01	1	1404-
370	JOINT; FUEL (B) OD=13.5	8-97431-514-0	01	1	1404-
371	BOLT; JOINT M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
372	NUT; JOINT M8 FLANGE CHI	0-91180-108-0	02	1	1404-
