1-30 — AIR CLEANER (#144619) — 17 parça

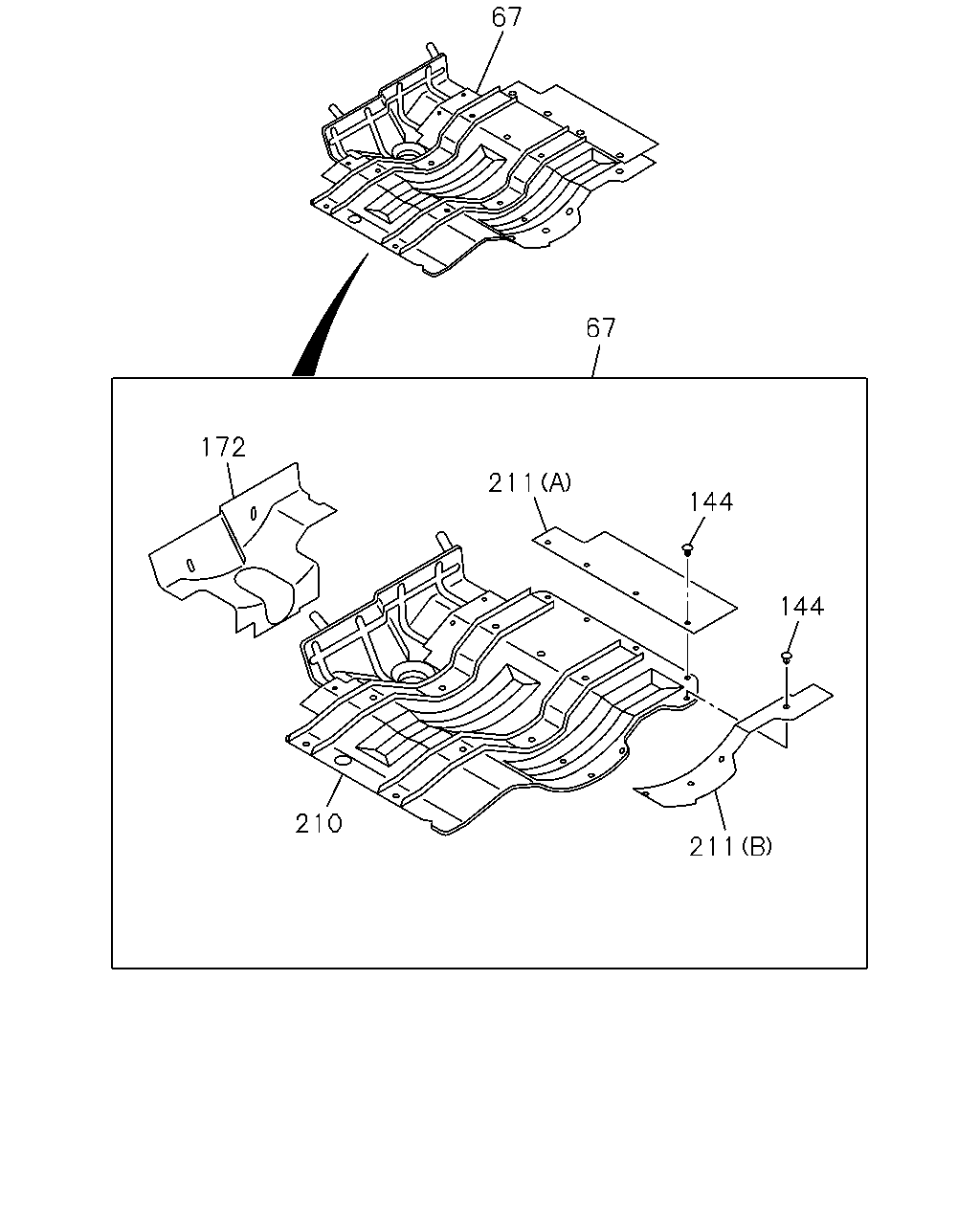

çizim 431323
67 67 211 172 144 144 211 210
BalonParca AdiParca NoAdetTipApplied Date
67 COVER; ACL
CHI 		8-98234-731-1 01 1 1404-
144 CLIP; ACL
CHI 		5-09987-033-0 08 1 1404-
172 INSULATOR; NOISE
CHI 		8-98235-168-0 01 1 1404-
210 BRACKET; ACL MTG
CHI 		8-98235-167-1 01 1 1404-
211 RUBBER; SEAL
(A) CHI 		8-98235-165-0 01 1 1404-
211 RUBBER; SEAL
(B) CHI 		8-98235-166-0 01 1 1404-

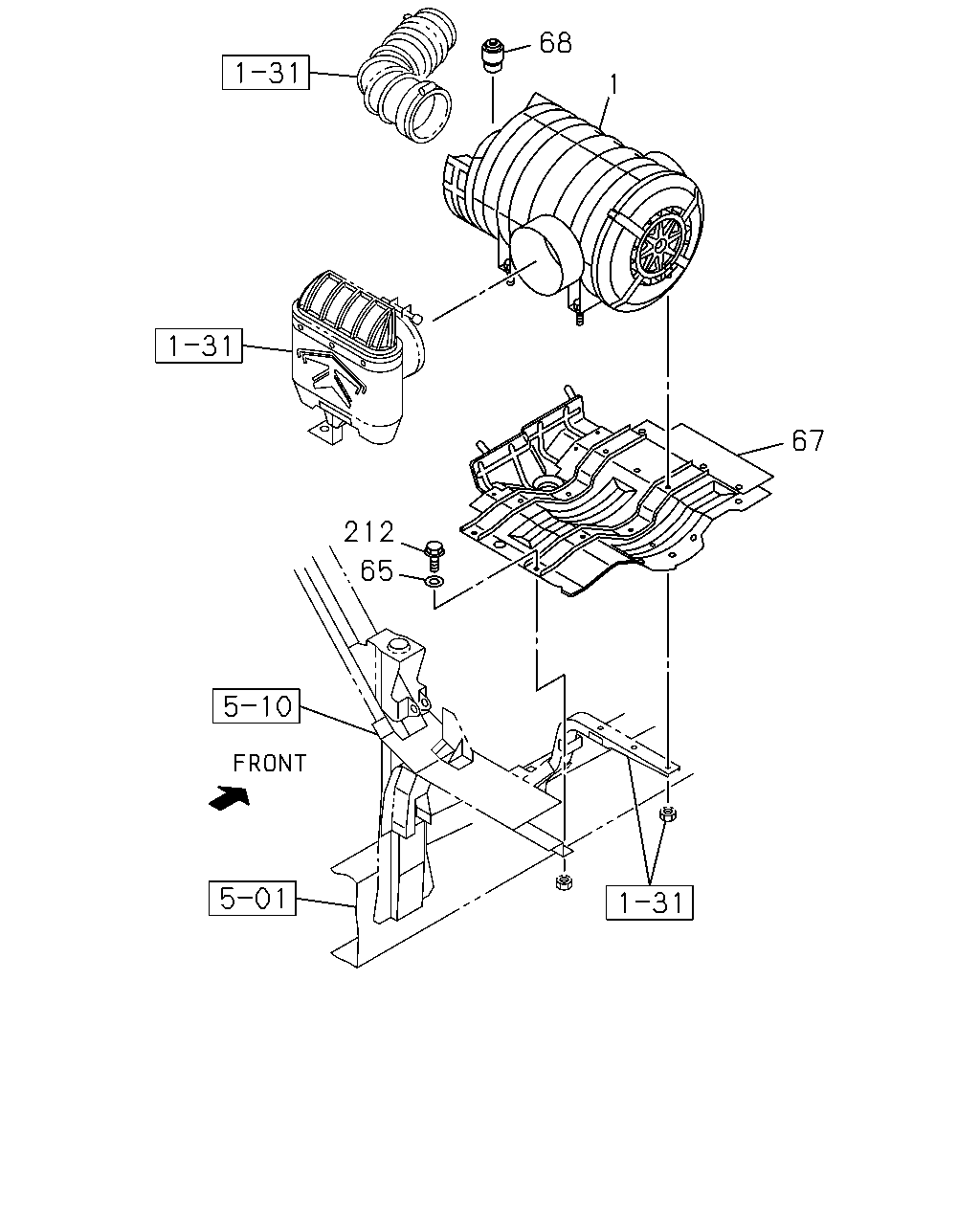

çizim 431587
67 212 65 68 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
CHI 		8-97430-627-0 01 1 1404-
65 WASHER; PL
ID=10.5 CHI 		0-91610-710-0 02 1 1404-
67 COVER; ACL
CHI 		8-98234-731-1 01 1 1404-
68 INDICATOR; SERVICE
CHI 		1-14219-212-0 01 1 1404-1404
68 INDICATOR; SERVICE
CHI 		8-97431-355-0 01 1 1404-
212 BOLT; MUD COVER
M10X25 FLANGE CHI 		0-28651-025-0 02 1 1404-

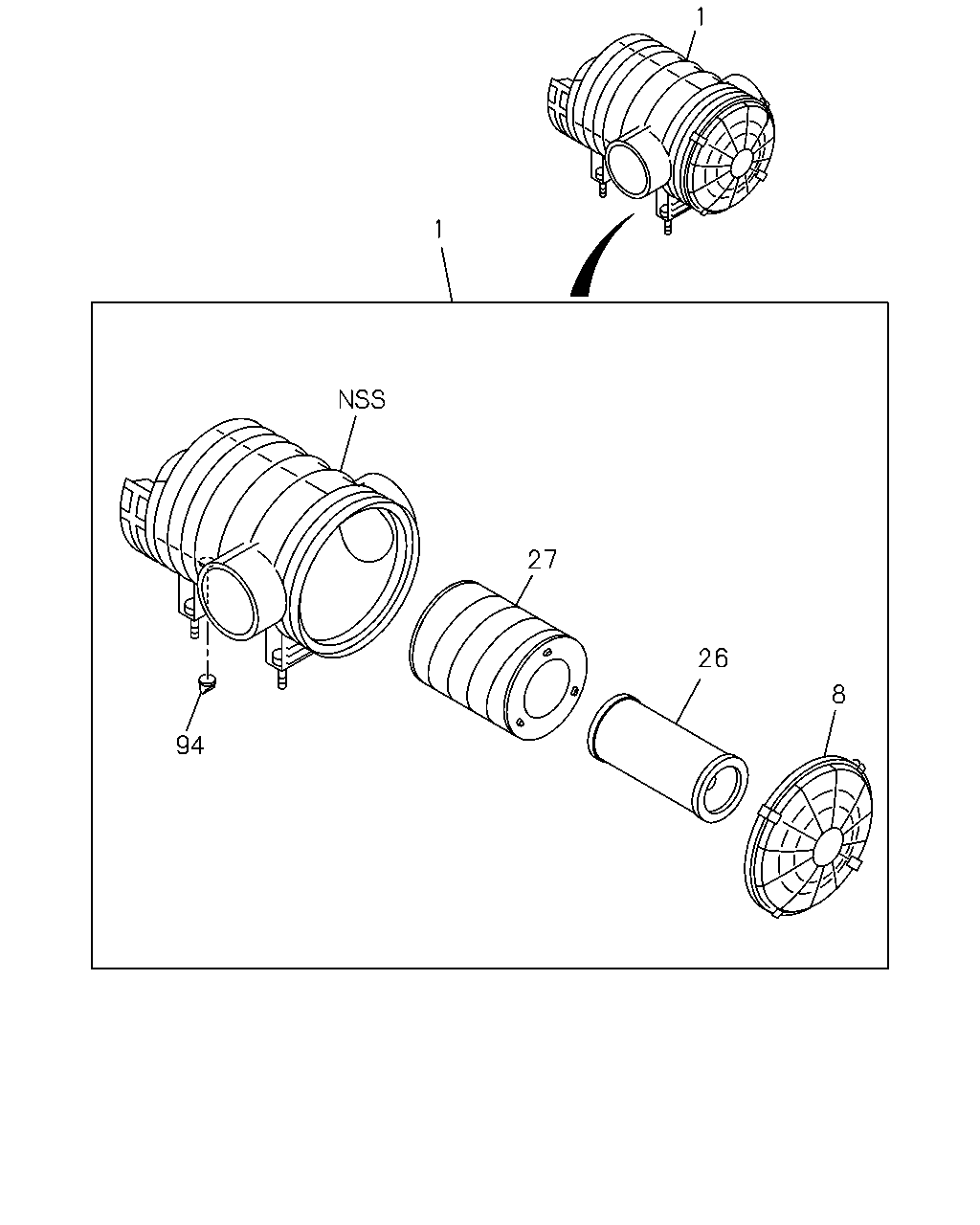

çizim 431640
1 1 94 27 26 8
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
CHI 		8-97430-627-0 01 1 1404-
8 COVER ASM; ACL
CHI 		8-97431-338-0 01 1 1404-
26 FILTER; ACL,INNER
CHI 		8-97431-173-0 01 1 1404-
27 FILTER; ACL,OUTER
CHI 		8-98253-009-0 01 1 1404-
94 VALVE; VACUATOR
CHI 		1-14219-251-0 01 1 1404-
