1-11 — RADIATOR HOSE AND SUB TANK
(#144618) — 26 parça
◀

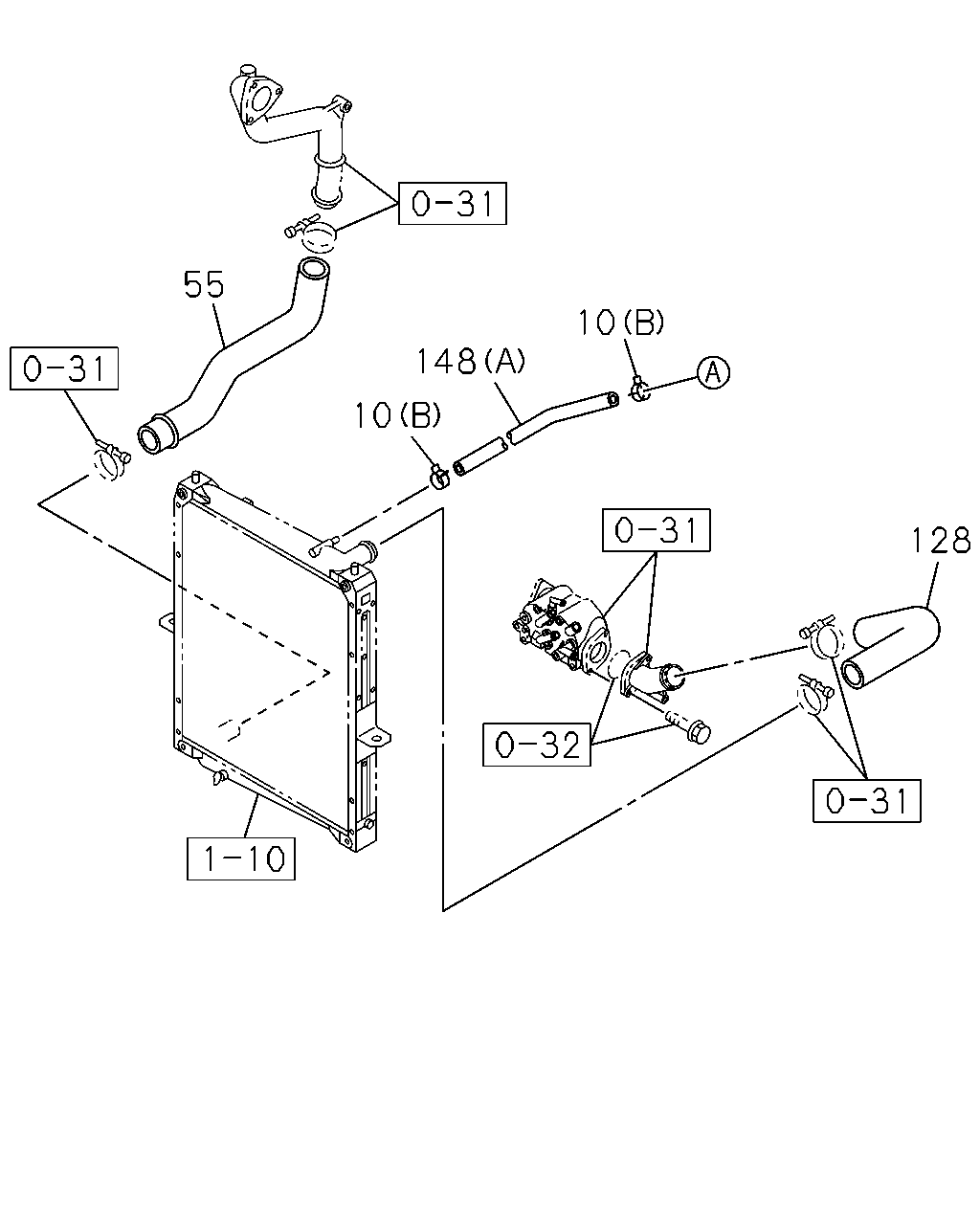

[111A] RADIATOR SIDE (8 parça)
[111A] SUB TANK SIDE (18 parça)
▶
128
10
148
10
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(D) ID=28 L=58 CHI
1-09700-400-0
02
1
1404-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40 CHI
1-09700-624-2
02
1
1404-
10
CLIP; RUBBER HOSE
(B) ID=14 CHI
1-09704-102-0
06
1
1404-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16 CHI
1-09709-125-0
08
1
1404-
55
HOSE; WATER,RAD OUTLET
CHI
8-98193-421-0
01
1
1404-
128
HOSE; WATER,RAD INL
CHI
8-98193-418-0
01
1
1404-
148
HOSE; RUBBER,OUT
(A) L=450 CHI
8-97430-214-0
01
1
1404-
148
HOSE; RUBBER,OUT
(B) L=1530 CHI
8-97430-215-0
02
1
1404-
38
40
10
39
87
90
42
7
9
63
60
10
148
10
148
10
10
40
10
10
20
10
10
20
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
CHI
8-97640-800-0
01
1
1404-
9
GASKET; SWITCH
ID=28 OD=35 CHI
1-09630-130-0
01
1
1404-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58 CHI
1-09700-400-0
02
1
1404-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40 CHI
1-09700-624-2
02
1
1404-
10
CLIP; RUBBER HOSE
(B) ID=14 CHI
1-09704-102-0
06
1
1404-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16 CHI
1-09709-125-0
08
1
1404-
20
CLIP; HOSE,RAD
ID=31 CHI
1-09707-093-1
02
1
1404-
38
BRACKET; RUBBER HOSE
CHI
8-97608-796-0
01
1
1404-
39
BOLT; BRKT FIX
M10X20 FLANGE CHI
0-28151-020-0
01
1
1404-
40
BOLT; CLIP
M10X25 FLANGE CHI
0-28651-025-0
02
1
1404-
42
HOSE; RUBBER
L=850 CHI
1-21489-154-0
01
1
1404-
60
CAP; SUB TANK
CHI
1-21450-137-0
01
1
1404-
63
TANK ASM; SUB
CHI
1-21481-143-2
01
1
1404-
87
BRACKET; SUB TANK
8-97430-191-1
01
1
1404-
90
BOLT; SUB TANK TO BRKT
(A) M12X30 FLANGE CHI
0-28051-230-0
03
1
1404-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER CHI
1-09030-027-0
04
1
1404-
148
HOSE; RUBBER,OUT
(A) L=450 CHI
8-97430-214-0
01
1
1404-
148
HOSE; RUBBER,OUT
(B) L=1530 CHI
8-97430-215-0
02
1
1404-
