Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#144617) — 42 parça
◀

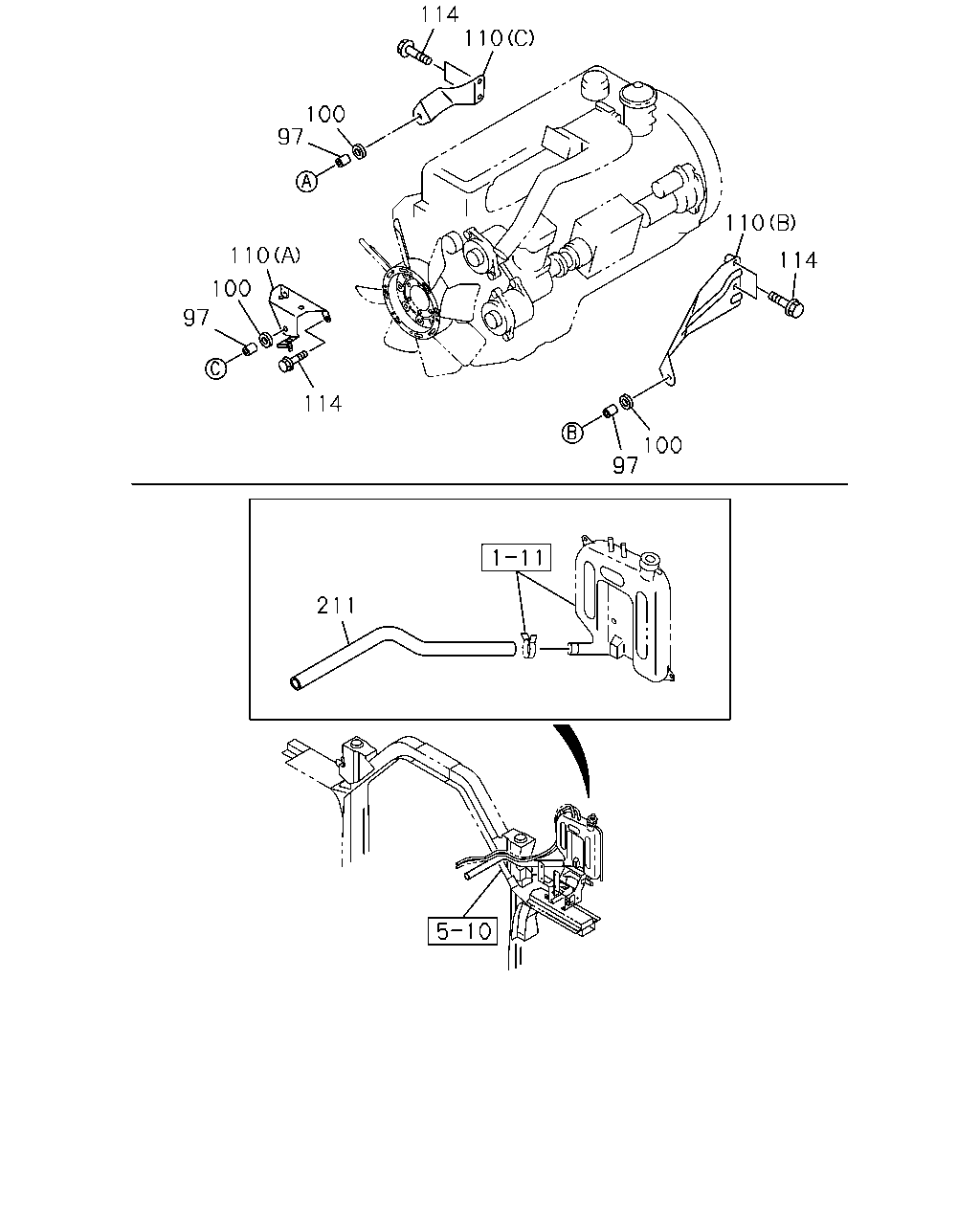

[110A] NO.2 (8 parça)
[110A] NO.3 (13 parça)

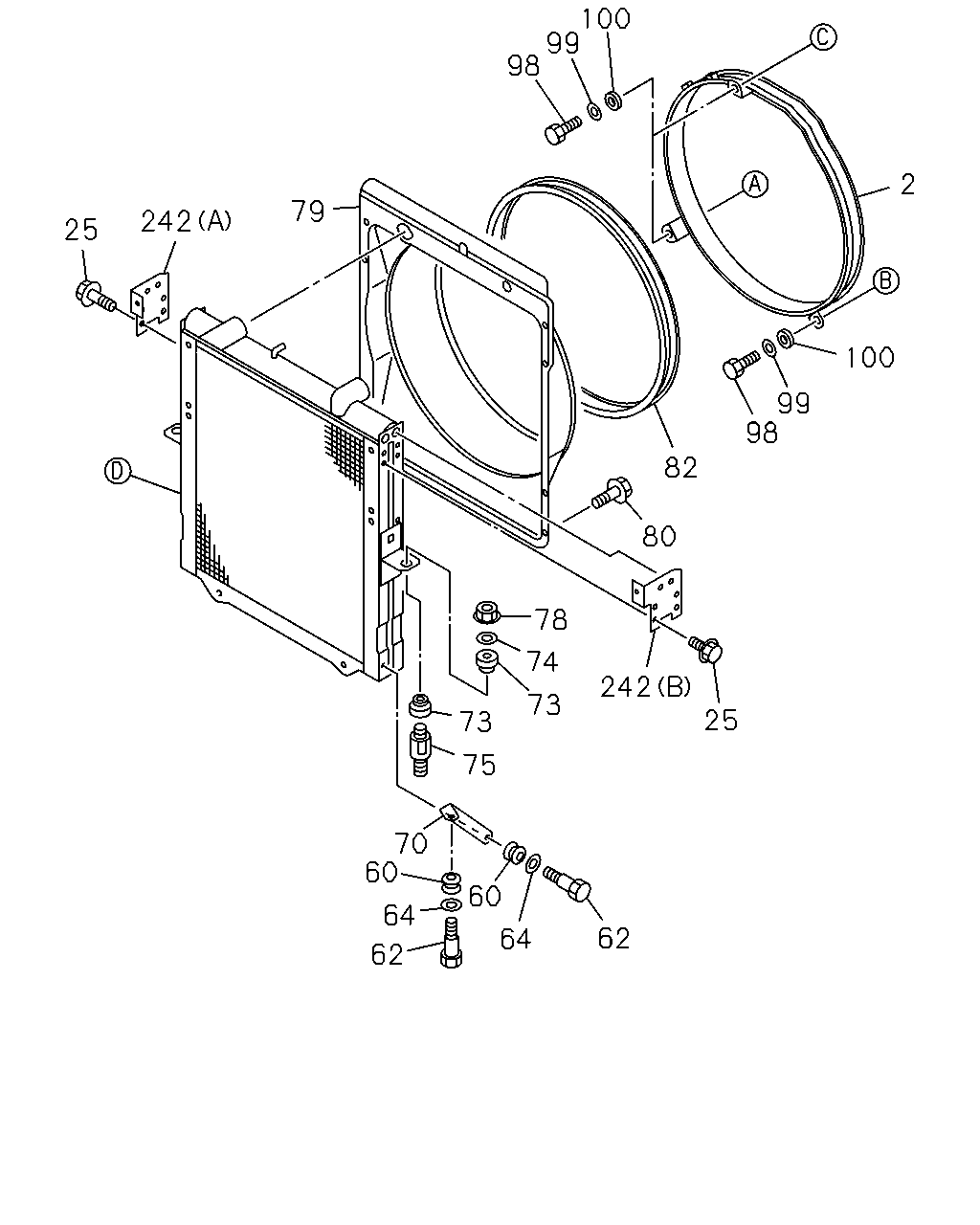

[110A] NO.1 (21 parça)
▶
100
114
110
97
110
100
97
114
97
100
110
114
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27 CHI
1-21559-149-0
03
1
1404-
100
RUBBER; MTG
CHI
1-09337-017-0
06
1
1404-
110
STAY; FAN GUIDE
(A)
8-97431-133-0
01
1
1404-
110
STAY; FAN GUIDE
(C)
8-97607-501-0
01
1
1404-
110
STAY; FAN GUIDE
(B)
8-97607-503-0
01
1
1404-
114
BOLT; STAY
M10X20 FLANGE CHI
0-28151-020-0
04
1
1404-
114
BOLT; STAY
M10X40 FLANGE CHI
0-28151-040-0
02
1
1404-
211
HOSE; RAD TO PIPE
CHI
8-97430-210-0
01
1
1404-
528
1
529
527
51
89
235
267
528
89
267
232
529
526
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1404-
51
PLUG; DRAIN
W/GASKET CHI
8-97171-437-0
01
1
1404-
89
BOLT
(A) M6X12 FLANGE CHI
0-28050-612-0
02
1
1404-
89
BOLT
(B) M8X25 CHI
1-21469-153-0
04
1
1404-
232
COLLAR; DIST,CUSHION RUBBER
CHI
8-98141-232-0
04
1
1404-
235
WASHER; CUSHION RUBBER
CHI
1-21469-133-0
02
1
1404-
267
RUBBER; CUSHION
(A) CHI
1-21469-130-0
04
1
1404-
267
RUBBER; CUSHION
(B) CHI
1-21469-131-0
02
1
1404-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1404-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1404-
528
PLATE; SIDE,RADIATOR CORE
8-98060-765-2
01
1
1404-
528
PLATE; SIDE,RADIATOR CORE
8-98060-766-2
01
1
1404-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1404-
98
99
100
2
100
99
98
82
80
78
74
73
73
75
70
60
64
62
64
60
62
25
242
79
242
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97615-753-1
01
1
1404-1404
2
GUIDE; FAN
CHI
8-97430-645-1
01
1
1404-
25
BOLT; BRKT
M8X16 FLANGE CHI
0-28050-816-0
04
1
1404-
60
GROMMET
CHI
1-09332-117-0
04
1
1404-
62
BOLT; STAY
M8X30 CHI
1-09009-020-1
02
1
1404-
62
BOLT; STAY
M8X26 CHI
1-09009-175-0
02
1
1404-
64
WASHER; STAY TO RAD
ID=12.5 OD=26 CHI
0-91610-612-0
04
1
1404-
70
STAY; RAD
CHI
8-98194-196-0
01
1
1404-
70
STAY; RAD
CHI
8-98194-197-0
01
1
1404-
73
RUBBER; CUSHION,RAD MTG
T=14 CHI
1-21467-004-0
04
1
1404-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54 CHI
1-09503-154-2
02
1
1404-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X27.5,M10X16 L=82 CHI
8-98240-336-0
02
1
1404-
78
NUT; CUSHION RUBBER
M10 FLANGE CHI
0-91180-210-0
02
1
1404-
79
GUIDE; FAN,RAD
1-21551-545-1
01
1
1404-
80
BOLT; FAN GUIDE
M8X16 FLANGE CHI
0-28050-816-0
06
1
1404-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1404-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE CHI
0-28051-045-0
03
1
1404-
99
WASHER; PL
ID=10.5 OD=26 CHI
0-91614-710-0
03
1
1404-
100
RUBBER; MTG
CHI
1-09337-017-0
06
1
1404-
242
BRACKET; RAD
(B)
8-98089-511-1
01
1
1404-
242
BRACKET; RAD
(A)
8-98089-512-1
01
1
1404-
