◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#144615) — 20 parça

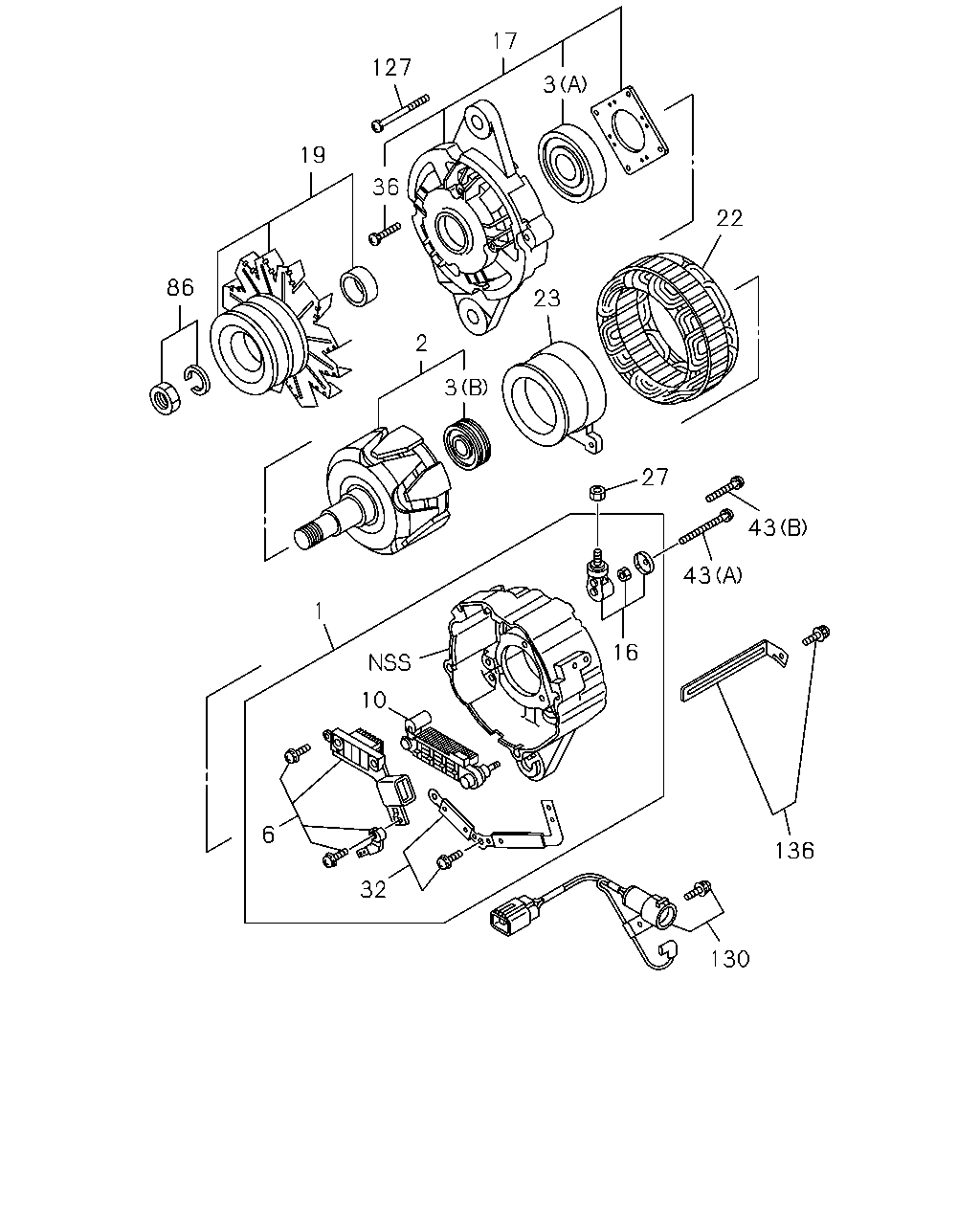

çizim 431609
23 3 2 36 19 127 17 3 22 27 16 43 43 136 1 10 6 32 130 86
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-98047-075-1 01 1 -
2 ROTOR; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-770-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-98047-079-1 01 1 -
10 RECTIFIER; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-98047-082-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-771-0 01 1 -
17 COVER ASM; FRT,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81213-101-0 01 1 -
19 PULLEY; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81222-134-1 01 1 -
22 STATOR; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-98200-173-0 01 1 -
27 NUT; RECTIFIER,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-772-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-98047-088-0 01 1 -
36 SCREW; FRT COVER
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-768-0 01 1 -
43 SCREW; RR END COVER
(A) CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-774-0 01 1 -
86 NUT SET; PULLEY,GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-767-0 01 1 -
130 CONNECTOR; GEN
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-776-0 01 1 -
136 CLAMP; GENERATOR
CHI ASM PART: A = 8-97431-231-0, B = 8-98200-161-0 		1-81229-775-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
