Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#144613) — 45 parça
◀

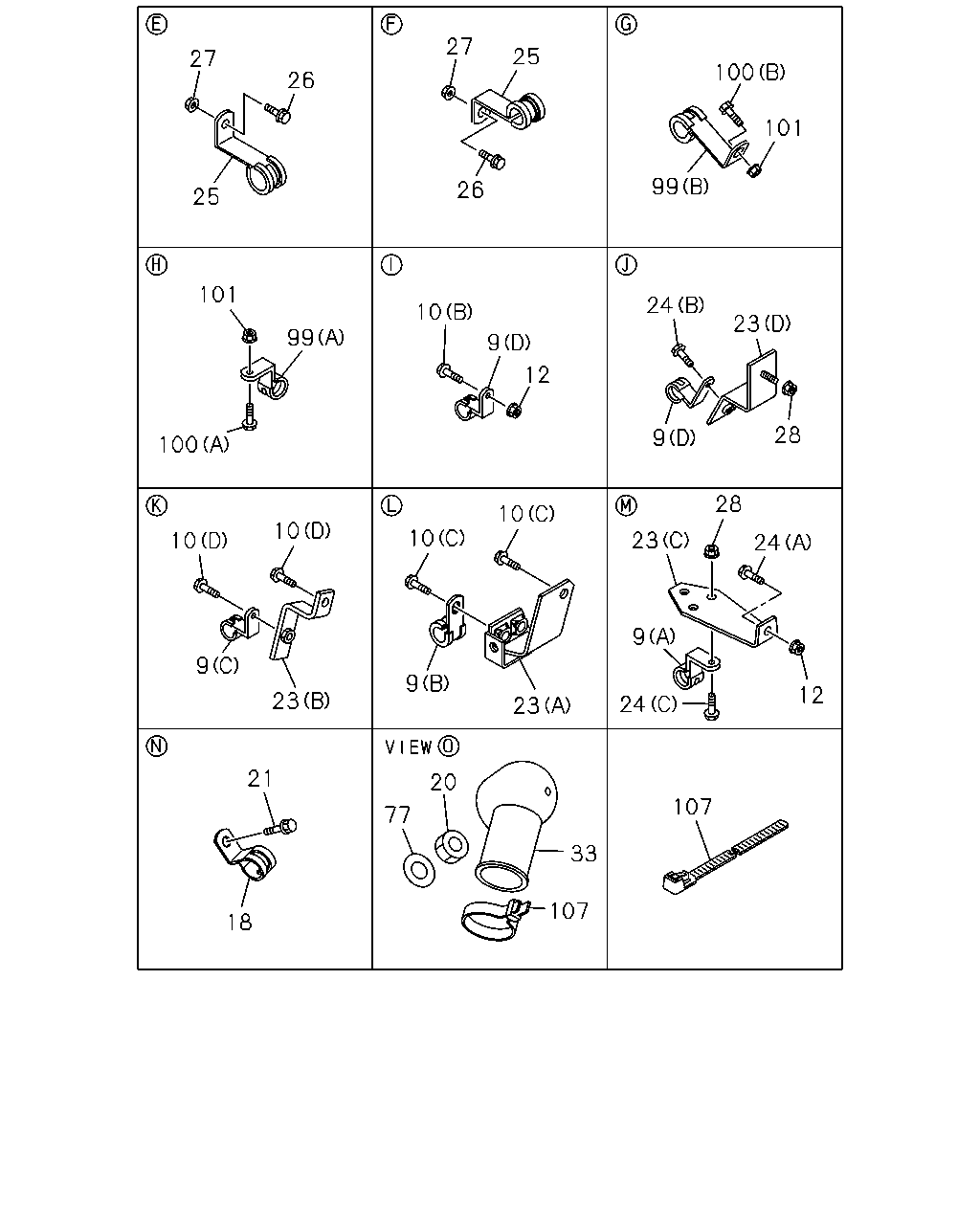

[061A] NO.2 (31 parça)

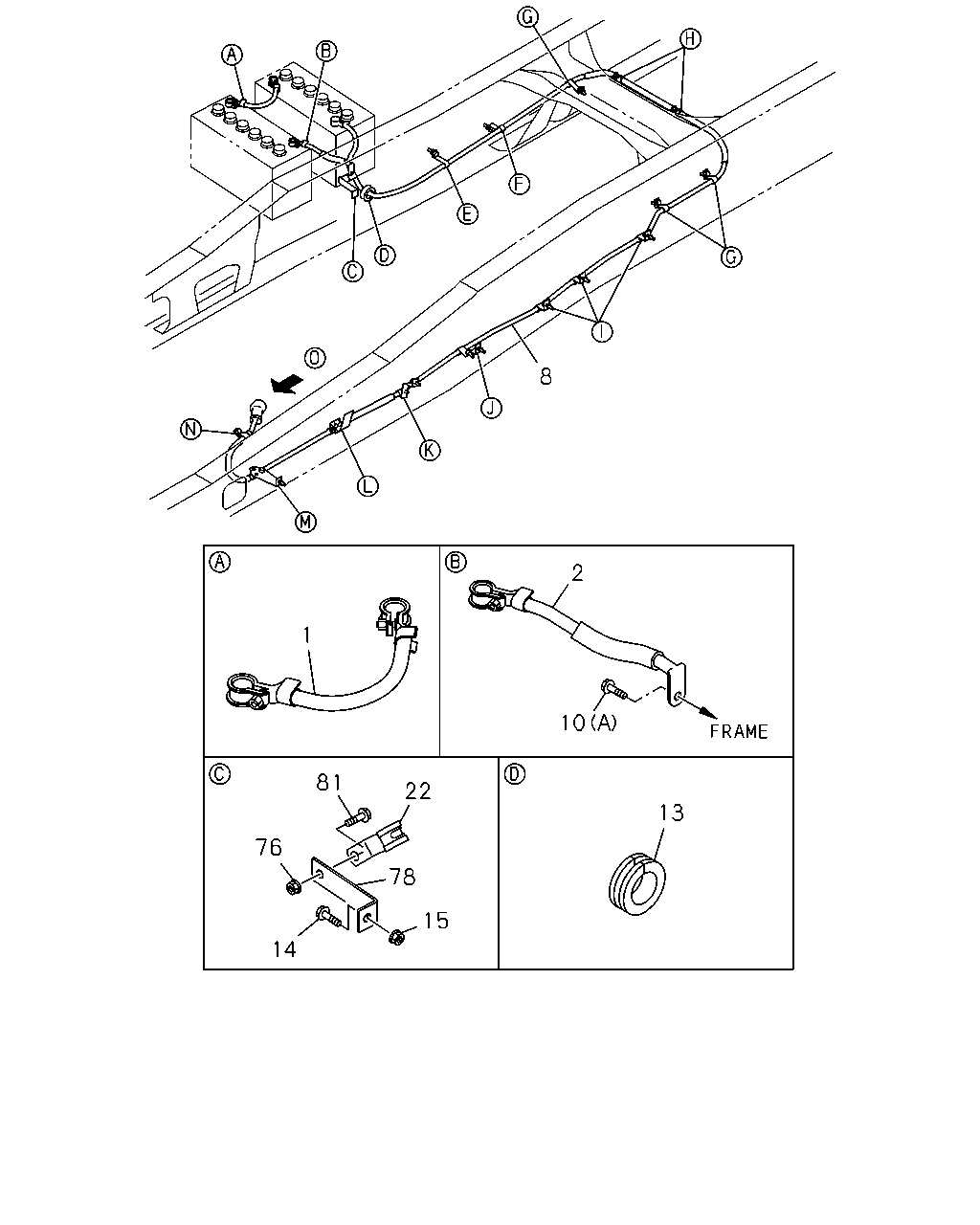

[061A] NO.1 (14 parça)
▶
100
101
99
26
25
27
26
27
25
28
23
24
9
12
9
10
99
101
100
10
10
10
9
23
10
23
9
20
77
21
18
33
107
107
12
24
9
23
28
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 CHI
1-09700-861-0
01
1
1404-
9
CLIP; BATTERY CABLE
(B) ID=18 L=28 CHI
1-09701-067-0
01
1
1404-
9
CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 CHI
1-09701-070-0
01
1
1404-
9
CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 CHI
1-09701-110-0
04
1
1404-
10
BOLT; BATTERY CABLE CLIP
(D) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
10
BOLT; BATTERY CABLE CLIP
(C) M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
10
BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE CHI
0-28650-830-0
03
1
1404-
10
BOLT; BATTERY CABLE CLIP
(A) M8X14 W/PL WASHER CHI
8-98164-837-0
01
1
1404-
12
NUT; BATTERY CABLE CLIP
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
18
CLIP; BATTERY CABLE
ID=20 H=23 L=27 CHI
1-09700-861-0
01
1
1404-
20
NUT; STARTER CABLE
CHI
8-98011-328-0
01
1
1404-
21
BOLT; CLIP CABLE
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
23
BRACKET; CABLE CLIP TO FRAME
(A) CHI
1-47471-215-1
01
1
1404-
23
BRACKET; CABLE CLIP TO FRAME
(B) CHI
1-47476-676-0
01
1
1404-
23
BRACKET; CABLE CLIP TO FRAME
(C) CHI
1-47479-779-0
01
1
1404-
23
BRACKET; CABLE CLIP TO FRAME
(D) CHI
8-98239-410-0
01
1
1404-
24
BOLT; BRKT TO FRAME
(B) M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
24
BOLT; BRKT TO FRAME
(C) M8X25 FLANGE CHI
0-28650-825-0
01
1
1404-
24
BOLT; BRKT TO FRAME
(A) M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
25
CLIP; BATTERY CABLE TO BRKT
ID=18 L=25 H=50 CHI
1-09701-096-0
02
1
1404-
26
BOLT; BATTERY CABLE CLIP TO BRKT
M8X30 FLANGE CHI
0-28650-830-0
02
1
1404-
27
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
28
NUT; BRKT TO FRAME
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
33
CAP; INSULATOR
CHI
1-82699-431-0
01
1
1404-
77
WASHER; LK,STARTER CABLE
ID=10.2 CHI
0-91510-810-0
01
1
1404-
99
CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 CHI
1-09700-861-0
02
1
1404-
99
CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 CHI
1-09701-096-0
03
1
1404-
100
BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE CHI
0-28650-825-0
03
1
1404-
100
BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
101
NUT; BATTERY CABLE CLIP
M8 FLANGE CHI
0-91180-108-0
05
1
1404-
107
CLIP; BAND
L=350 CHI
1-09707-183-0
01
1
1404-
1
2
10
81
22
78
76
14
15
13
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=540
8-97431-389-0
01
1
1404-
2
CABLE; BATTERY
L=255
8-97431-388-0
01
1
1404-
8
CABLE; BATTERY,STARTER
8-97431-384-0
01
1
1404-
10
BOLT; BATTERY CABLE CLIP
(D) M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
10
BOLT; BATTERY CABLE CLIP
(C) M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
10
BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE CHI
0-28650-830-0
03
1
1404-
10
BOLT; BATTERY CABLE CLIP
(A) M8X14 W/PL WASHER CHI
8-98164-837-0
01
1
1404-
13
GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 CHI
1-09332-112-0
01
1
1404-
14
BOLT; BRKT CLIP
M8X35 FLANGE CHI
0-28650-835-0
01
1
1404-
15
NUT; BRKT CLIP
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
22
CLIP; BATTERY CABLE
ID=18 L=28 H=30 CHI
1-09701-110-0
01
1
1404-
76
NUT; BATTERY CABLE
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
78
BRACKET; CLIP BATTERY
L=95 CHI
1-82699-085-0
01
1
1404-
81
BOLT; BATTERY CABLE
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
