0-50 — OIL COOLER AND OIL FILTER (#144608) — 145 parça

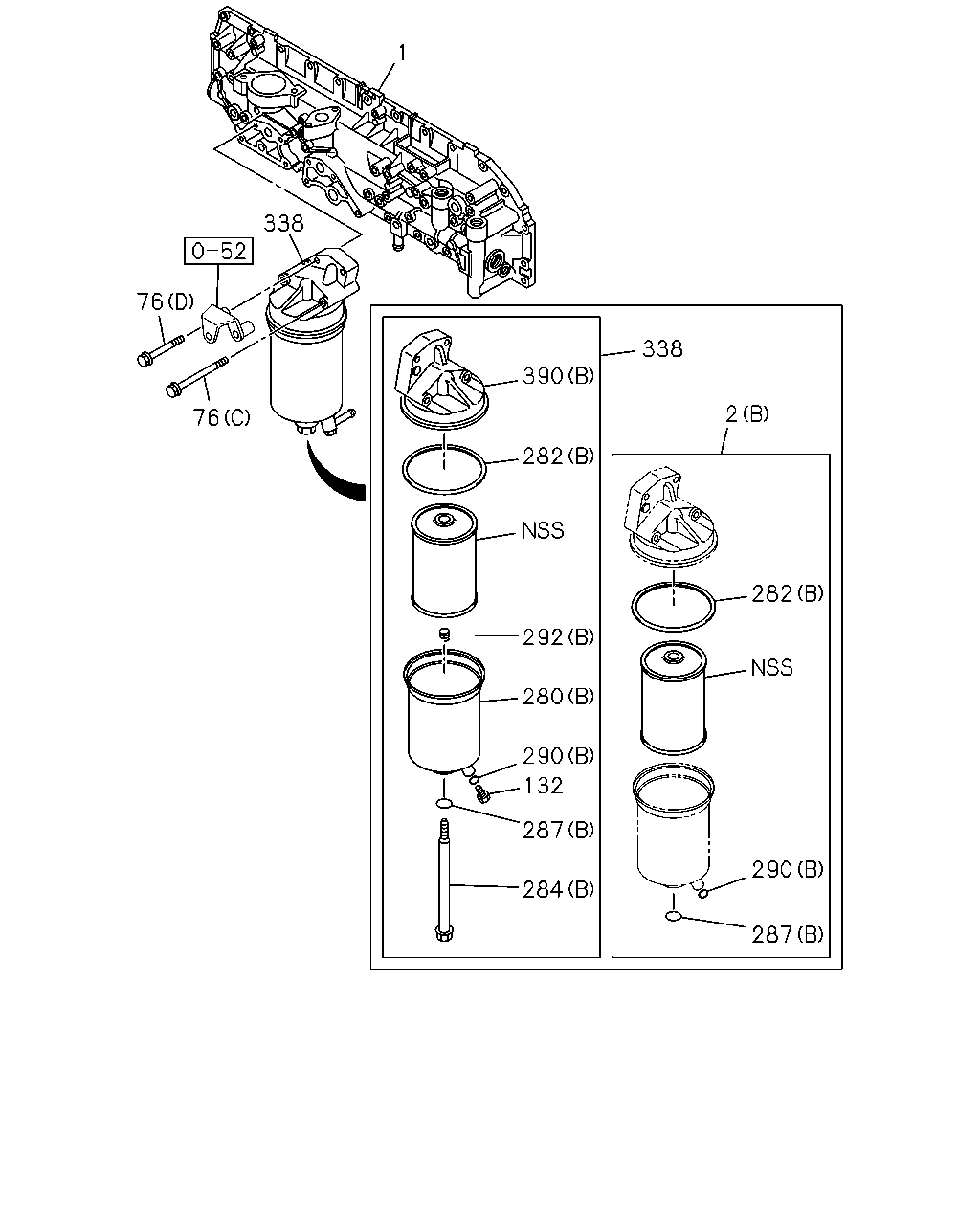

1 338 76 76 390 282 292 280 290 132 287 284 338 2 282 290 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	8-97430-632-1	01	1	1404-
2	ELEMENT; OIL FILTER (A)	1-13240-233-0	01	1	1404-1404
2	ELEMENT; OIL FILTER (A)	8-97431-166-0	01	1	1404-
2	ELEMENT; OIL FILTER (B)	1-13240-234-1	01	1	1404-
76	BOLT; OIL FILTER (C) M10X100 FLANGE CHI	0-28151-000-0	02	1	1404-
76	BOLT; OIL FILTER (A) M10X50 FLANGE CHI	0-28151-050-0	02	1	1404-
76	BOLT; OIL FILTER (B) M10X140 FLANGE CHI	0-28156-014-0	02	1	1404-
76	BOLT; OIL FILTER (D) M10X77 FLANGE	8-98038-705-0	02	1	1404-
132	PLUG; PARTIAL OIL FILTER	8-98032-770-1	01	1	1404-1404
132	PLUG; PARTIAL OIL FILTER	8-97431-576-0	01	1	1404-
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	1404-1404
280	CASE ASM; OIL FILTER (A)	8-97431-554-0	01	1	1404-
280	CASE ASM; OIL FILTER (B)	8-98032-771-1	01	1	1404-1404
280	CASE ASM; OIL FILTER (B)	8-97431-567-0	01	1	1404-
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	1404-1404
282	GASKET; BODY TO CASE (A)	8-97431-548-0	01	1	1404-
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	1404-1404
282	GASKET; BODY TO CASE (B)	8-97431-565-0	01	1	1404-
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	1404-1404
284	BOLT; CENTER,OIL FILTER (B)	8-97431-568-0	01	1	1404-
284	BOLT; CENTER,OIL FILTER (A)	8-98193-184-0	01	1	1404-1404
284	BOLT; CENTER,OIL FILTER (A)	8-97431-552-0	01	1	1404-
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	1404-1404
287	GASKET; CENTER BOLT (A)	8-97431-557-0	01	1	1404-
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	1404-1404
287	GASKET; CENTER BOLT (B)	8-97431-574-0	01	1	1404-
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	1404-1404
290	GASKET; PLUG,OIL DRAIN (B)	8-97431-558-0	01	1	1404-
292	SPRING; ELEMENT (A)	1-09580-562-0	01	1	1404-1404
292	SPRING; ELEMENT (A)	8-97431-556-0	01	1	1404-
292	SPRING; ELEMENT (B)	1-09580-563-0	01	1	1404-1404
292	SPRING; ELEMENT (B)	8-97431-573-0	01	1	1404-
338	FILTER ASM; OIL PARTIAL	8-98032-640-3	01	1	1404-1404
338	FILTER ASM; OIL PARTIAL	8-97430-622-0	01	1	1404-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-3	01	1	1404-1404
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-285-0	01	1	1404-1404
390	BODY; OIL FILTER,PARTIAL (B)	8-97431-564-0	01	1	1404-

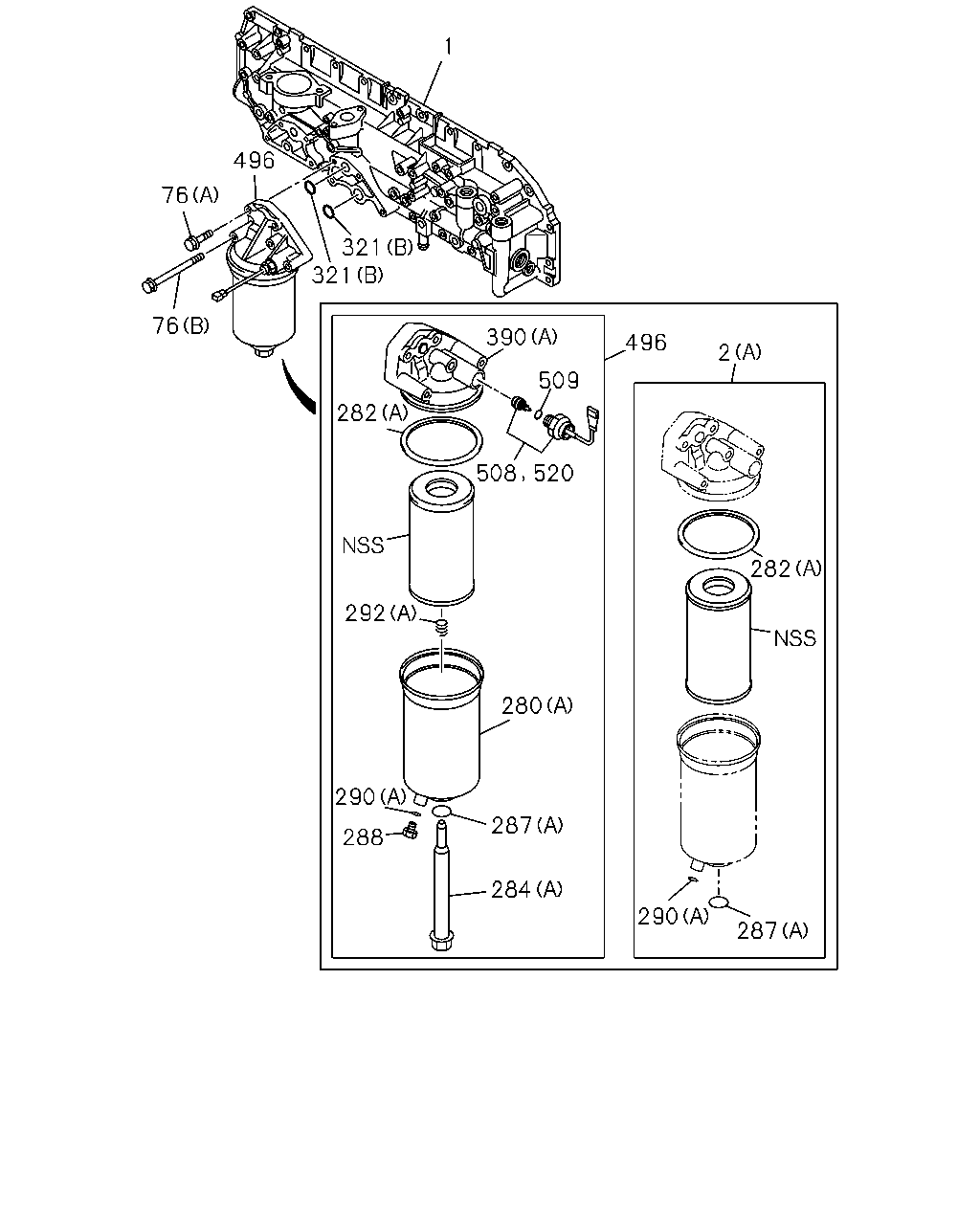

1 321 496 76 76 321 390 282 508 520 292 280 287 284 288 290 2 496 282 287 290 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	8-97430-632-1	01	1	1404-
2	ELEMENT; OIL FILTER (A)	1-13240-233-0	01	1	1404-1404
2	ELEMENT; OIL FILTER (A)	8-97431-166-0	01	1	1404-
2	ELEMENT; OIL FILTER (B)	1-13240-234-1	01	1	1404-
76	BOLT; OIL FILTER (C) M10X100 FLANGE CHI	0-28151-000-0	02	1	1404-
76	BOLT; OIL FILTER (A) M10X50 FLANGE CHI	0-28151-050-0	02	1	1404-
76	BOLT; OIL FILTER (B) M10X140 FLANGE CHI	0-28156-014-0	02	1	1404-
76	BOLT; OIL FILTER (D) M10X77 FLANGE	8-98038-705-0	02	1	1404-
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	1404-1404
280	CASE ASM; OIL FILTER (A)	8-97431-554-0	01	1	1404-
280	CASE ASM; OIL FILTER (B)	8-98032-771-1	01	1	1404-1404
280	CASE ASM; OIL FILTER (B)	8-97431-567-0	01	1	1404-
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	1404-1404
282	GASKET; BODY TO CASE (A)	8-97431-548-0	01	1	1404-
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	1404-1404
282	GASKET; BODY TO CASE (B)	8-97431-565-0	01	1	1404-
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	1404-1404
284	BOLT; CENTER,OIL FILTER (B)	8-97431-568-0	01	1	1404-
284	BOLT; CENTER,OIL FILTER (A)	8-98193-184-0	01	1	1404-1404
284	BOLT; CENTER,OIL FILTER (A)	8-97431-552-0	01	1	1404-
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	1404-1404
287	GASKET; CENTER BOLT (A)	8-97431-557-0	01	1	1404-
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	1404-1404
287	GASKET; CENTER BOLT (B)	8-97431-574-0	01	1	1404-
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	1404-1404
288	PLUG; OIL DRAIN	8-97431-559-0	01	1	1404-
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	1404-1404
290	GASKET; PLUG,OIL DRAIN (B)	8-97431-558-0	01	1	1404-
292	SPRING; ELEMENT (A)	1-09580-562-0	01	1	1404-1404
292	SPRING; ELEMENT (A)	8-97431-556-0	01	1	1404-
292	SPRING; ELEMENT (B)	1-09580-563-0	01	1	1404-1404
292	SPRING; ELEMENT (B)	8-97431-573-0	01	1	1404-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	1404-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	1404-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-3	01	1	1404-1404
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-285-0	01	1	1404-1404
390	BODY; OIL FILTER,PARTIAL (B)	8-97431-564-0	01	1	1404-
496	FILTER ASM; OIL	8-98193-182-2	01	1	1404-1404
496	FILTER ASM; OIL	8-97430-621-0	01	1	1404-
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	1404-1404
509	GASKET; SW	8-98013-480-0	01	1	1404-1404
509	GASKET; SW	8-97431-563-0	01	1	1404-
520	SWITCH; OIL FILTER	8-97431-562-0	01	1	1404-

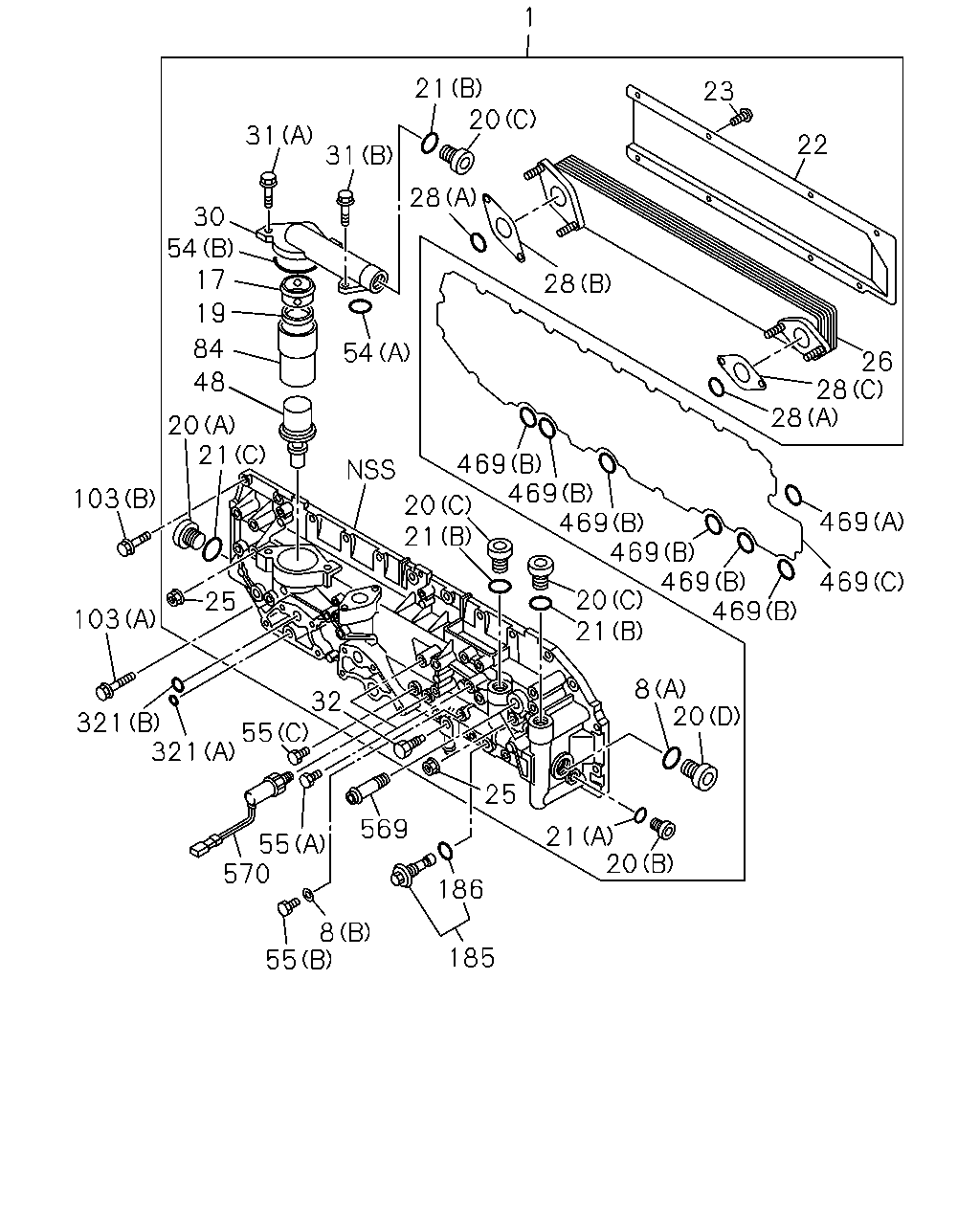

1 23 22 26 28 28 469 469 469 469 469 469 469 469 20 21 20 21 8 20 20 21 25 569 186 185 8 55 570 55 321 32 321 103 103 25 21 20 48 84 19 17 54 30 31 28 20 21 31 28 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	8-97430-632-1	01	1	1404-
8	GASKET; PLUG (B) ID=10.2 OD=15.2 CHI	1-09630-083-0	01	1	1404-
8	GASKET; PLUG (A) CHI	8-97608-581-0	01	1	1404-1404
8	GASKET; PLUG (A) CHI	8-97608-581-0	01	1	1404-
17	STOPPER; VLV CHI	1-13779-009-0	01	1	1404-1404
17	STOPPER; VLV CHI	1-13779-009-0	01	1	1404-
19	SEAL ASM; VLV CHI	1-13779-007-0	01	1	1404-1404
19	SEAL ASM; VLV CHI	1-13779-007-0	01	1	1404-
20	PLUG; COOLER BODY (A) CHI	8-94391-732-0	01	1	1404-1404
20	PLUG; COOLER BODY (B) CHI	8-97608-567-0	01	1	1404-1404
20	PLUG; COOLER BODY (C) CHI	8-97608-569-0	03	1	1404-1404
20	PLUG; COOLER BODY (D) CHI	8-97608-571-0	01	1	1404-1404
20	PLUG; COOLER BODY (A) CHI	8-94391-732-0	01	1	1404-
20	PLUG; COOLER BODY (B) CHI	8-97608-567-0	01	1	1404-
20	PLUG; COOLER BODY (C) CHI	8-97608-569-0	03	1	1404-
20	PLUG; COOLER BODY (D) CHI	8-97608-571-0	01	1	1404-
21	GASKET; PLUG (A) CHI	8-97608-568-0	01	1	1404-1404
21	GASKET; PLUG (B) CHI	8-97608-570-0	03	1	1404-1404
21	GASKET; PLUG (C) CHI	8-97608-572-0	01	1	1404-1404
21	GASKET; PLUG (A) CHI	8-97608-568-0	01	1	1404-
21	GASKET; PLUG (B) CHI	8-97608-570-0	03	1	1404-
21	GASKET; PLUG (C) CHI	8-97608-572-0	01	1	1404-
22	GUIDE; WATER CHI	8-97608-576-0	01	1	1404-1404
22	GUIDE; WATER CHI	8-97608-576-0	01	1	1404-
23	SCREW; WATER GUIDE CHI	8-97608-577-0	08	1	1404-1404
23	SCREW; WATER GUIDE CHI	8-97608-577-0	08	1	1404-
25	NUT; CORE TO BODY CHI M10 FLANGE CHI	1-13219-324-0	04	1	1404-1404
25	NUT; CORE TO BODY M10 FLANGE CHI	1-13219-324-0	04	1	1404-
26	CORE ASM; OIL COOLER CHI	8-97608-573-0	01	1	1404-1404
26	CORE ASM; OIL COOLER CHI	8-97608-573-0	01	1	1404-
28	GASKET; CORE TO BODY (A) CHI ID=38.7	1-09623-299-0	02	1	1404-1404
28	GASKET; CORE TO BODY (B) CHI	8-97608-574-0	01	1	1404-1404
28	GASKET; CORE TO BODY (C) CHI	8-97608-575-0	01	1	1404-1404
28	GASKET; CORE TO BODY (A) CHI ID=38.7	1-09623-299-0	02	1	1404-
28	GASKET; CORE TO BODY (B) CHI	8-97608-574-0	01	1	1404-
28	GASKET; CORE TO BODY (C) CHI	8-97608-575-0	01	1	1404-
30	PIPE ASM; OIL COOLER CHI	8-97608-578-0	01	1	1404-1404
30	PIPE ASM; OIL COOLER CHI	8-97608-578-0	01	1	1404-
31	BOLT; OIL PIPE (B) CHI	1-13219-163-1	02	1	1404-1404
31	BOLT; OIL PIPE (A) CHI	8-98272-067-0	02	1	1404-1404
31	BOLT; OIL PIPE (B) CHI	1-13219-163-1	02	1	1404-
31	BOLT; OIL PIPE (A) CHI	8-98272-067-0	02	1	1404-
32	PLUG; DRAIN CHI	1-13219-276-0	01	1	1404-1404
32	PLUG; DRAIN CHI	1-13219-276-0	01	1	1404-
48	VALVE; THERMO,OIL COOLER CHI	8-98271-171-0	01	1	1404-
54	GASKET; OIL PIPE (A) CHI	8-97608-579-0	01	1	1404-1404
54	GASKET; OIL PIPE (B) CHI	8-97608-580-0	01	1	1404-1404
54	GASKET; OIL PIPE (A) CHI	8-97608-579-0	01	1	1404-
54	GASKET; OIL PIPE (B) CHI	8-97608-580-0	01	1	1404-
55	PLUG; OIL COOLER (A) M14 CHI	8-94399-225-0	01	1	1404-
55	PLUG; OIL COOLER (B) M10X10	8-97352-537-0	01	1	1404-
55	PLUG; OIL COOLER (C) M12X9	8-98047-054-0	01	1	1404-
84	SUPPORT; VLV,OIL COOLER & FILTER CHI	1-13779-010-0	01	1	1404-1404
84	SUPPORT; VLV,OIL COOLER & FILTER CHI	1-13779-010-0	01	1	1404-
103	BOLT; OIL COOLER (A) M10X50 FLANGE CHI	0-28151-050-0	04	1	1404-
103	BOLT; OIL COOLER (B) M10X30 FLANGE	0-28751-030-0	22	1	1404-
185	VALVE; OIL RELIEF,OIL COOLER	8-98040-002-0	01	1	1404-
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	1404-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	1404-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	1404-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	1404-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 CHI	8-94399-279-0	06	1	1404-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97609-827-0	01	1	1404-
569	PIPE; WATER,EGR PT3/8 & OD=18.3 L=47	9-09903-631-0	02	1	1404-
570	SWITCH; OIL PRESSURE	1-82410-163-1	01	1	1404-
