0-41 — FUEL FILTER AND BRACKET (#144606) — 28 parça

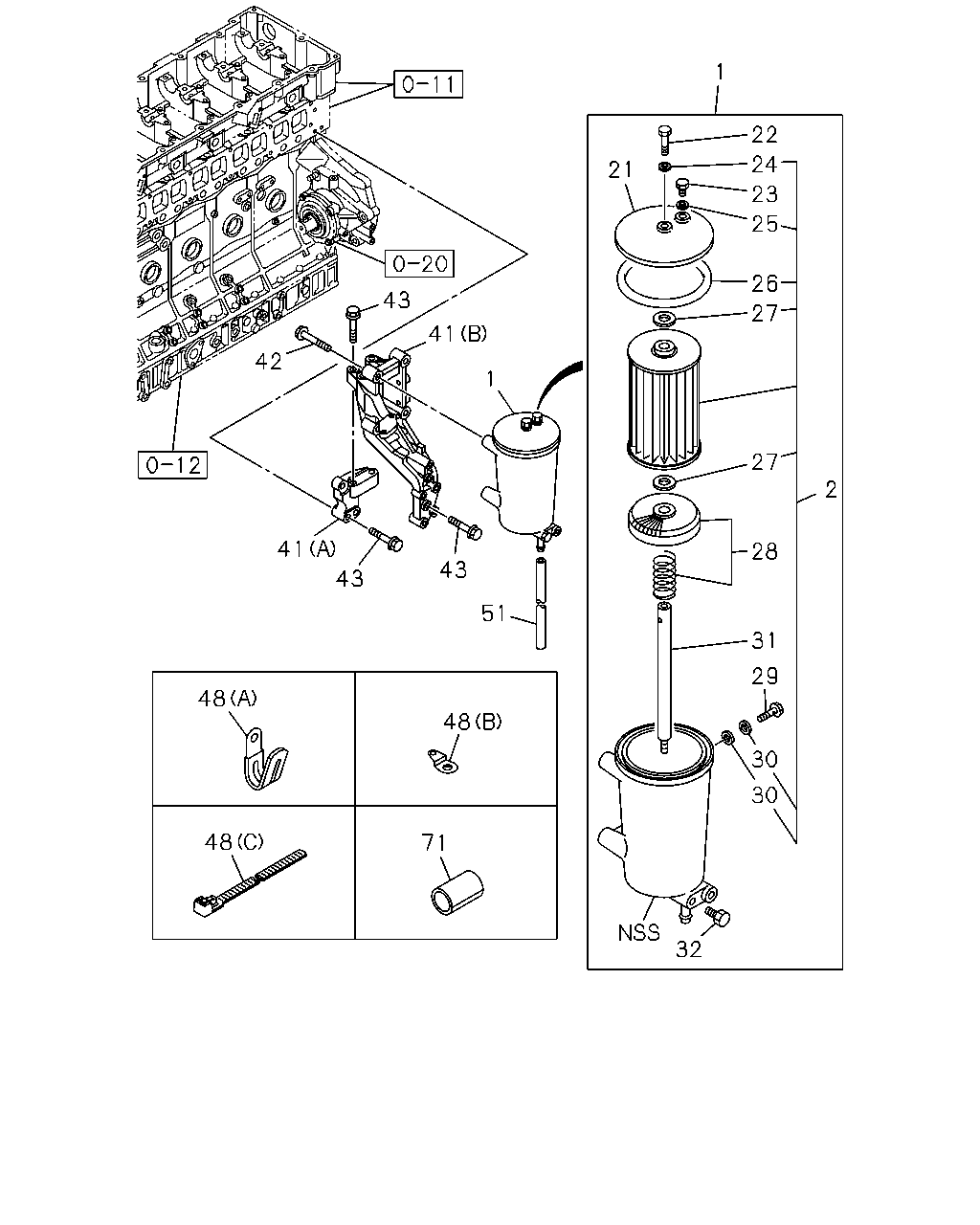

çizim 431300
1 21 22 23 24 25 26 27 27 28 2 31 29 30 30 32 71 48 48 48 51 43 41 42 43 41 1 43
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98175-164-0 01 1 1404-1404
1 FILTER ASM; FUEL 8-97431-035-0 01 1 1404-
2 ELEMENT KIT; FUEL FILTER 8-98174-903-0 02 1 1404-1404
2 ELEMENT KIT; FUEL FILTER 8-98273-233-0 01 1 1405-1405
2 ELEMENT KIT; FUEL FILTER 8-97431-717-0 01 1 1405-
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 1404-1404
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 1404-1404
23 PLUG; COVER 1-13219-074-0 01 1 1404-1404
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 CHI 		1-09630-083-0 01 1 1404-1404
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 CHI 		1-09630-083-0 01 1 1404-1404
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 1404-1404
27 GASKET; ELEMENT 1-09630-007-0 02 1 1404-1404
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 1404-1404
29 VALVE; OVERFLOW 1-13260-116-0 01 1 1404-1404
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 CHI 		1-09630-085-0 02 1 1404-1404
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 1404-1404
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 1404-1404
41 BRACKET; FUEL FILTER
(A) 		8-97603-935-1 01 1 1404-1404
41 BRACKET; FUEL FILTER
(B) 		8-97430-586-0 01 1 1404-
41 BRACKET; FUEL FILTER
(B) 		8-97606-620-1 01 1 1404-1404
41 BRACKET; FUEL FILTER
(A) 		8-97430-587-0 01 1 1404-
42 BOLT; FUEL FILTER
M10X45 FLANGE CHI 		0-28051-045-0 04 1 1404-
43 BOLT; BRKT
M10X45 FLANGE CHI 		0-28151-045-0 07 1 1404-
48 CLIP; VINYL PIPE
(A) ID=21 L=47.5 		8-94178-108-0 01 1 1404-
48 CLIP; VINYL PIPE
(C) L=250 CHI 		8-98216-430-0 02 1 1404-
48 CLIP; VINYL PIPE
(B) 		9-11229-070-0 01 1 1404-
51 PIPE; VINYL
L=600 SERVICED BY L=10000 		9-09914-909-0 01 1 1404-
71 SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 CHI 		9-09956-682-0 02 1 1404-
