◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#14460) — 148 parça

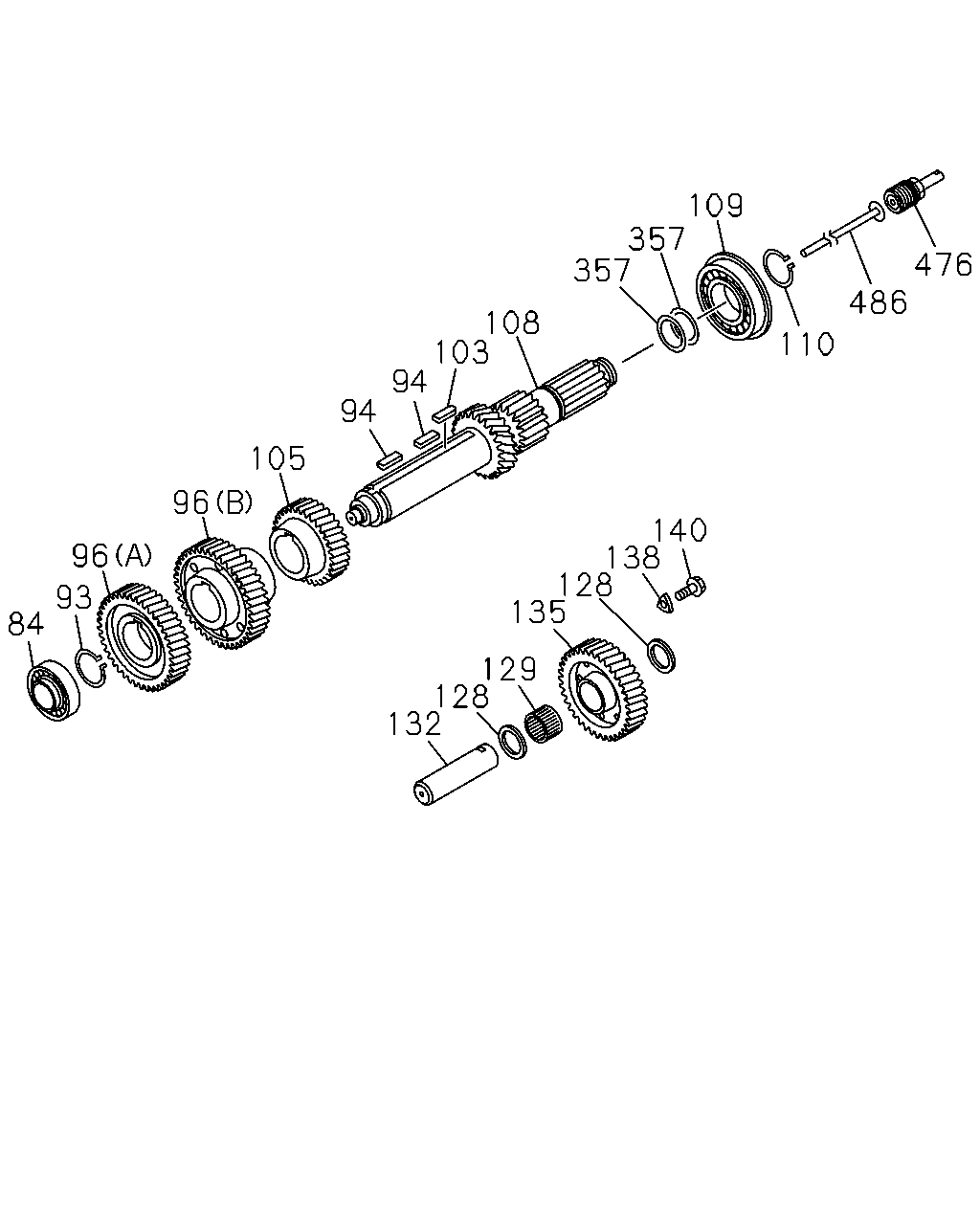

çizim 92039
109 357 357 476 486 108 103 94 110 94 105 96 140 138 128 135 96 93 84 129 128 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 0611-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 0611-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 0611-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 0611-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 0611-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 0611-
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 0611-
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 0611-
108 SHAFT; COUNTER
Z=26-21 		1-33311-325-1 01 1 0611-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 0611-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 0611-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 0611-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 0611-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 0611-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 0611-
132 SHAFT; REV 1-33351-035-1 01 1 0611-
135 GEAR; REV IDLER
Z=30 		1-33361-081-1 01 1 0611-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 0611-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 0611-
357 RING 1-31349-044-0 04 1 0611-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 0611-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 0611-

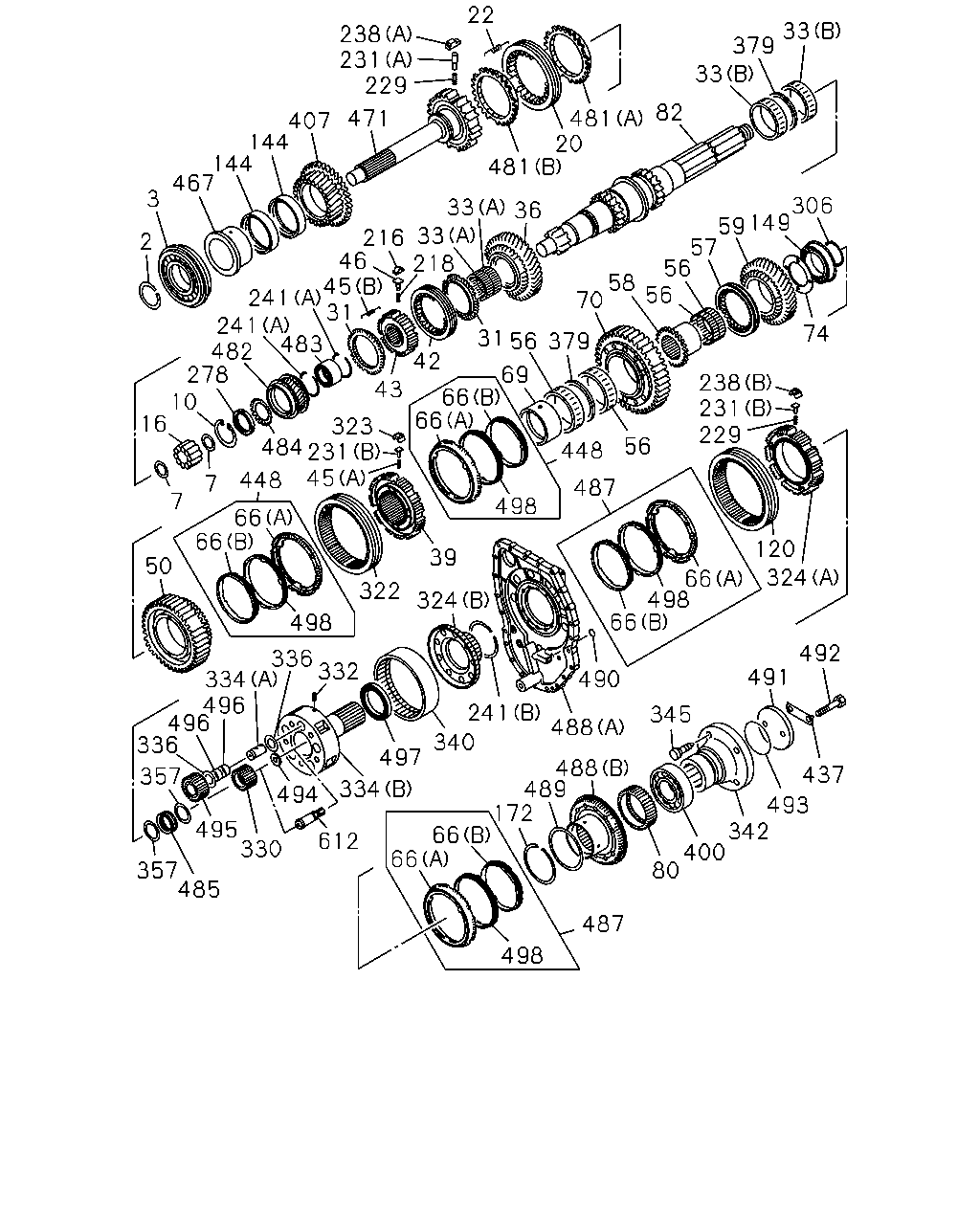

çizim 105880
238 231 229 22 471 407 144 144 467 3 2 33 379 33 82 481 20 481 33 36 33 218 216 46 45 31 241 241 483 482 278 10 16 7 7 306 149 59 57 56 56 58 70 379 56 31 69 42 66 498 66 43 323 231 45 484 448 66 66 498 50 74 238 231 229 56 448 487 39 324 322 120 324 66 498 66 490 241 340 497 334 332 336 334 496 496 336 357 494 612 330 495 485 357 492 491 437 493 342 400 80 487 498 66 66 345 488 488 489 172
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 0611-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 0611-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 0611-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 0611-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 0611-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 0611-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 0611-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 0611-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 0611-
20 SLEEVE 1-33262-216-1 01 1 0611-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 0611-
31 RING; BLOCK,3RD & 4TH 1-33265-552-1 02 1 0611-1202
31 RING; BLOCK,3RD & 4TH 8-98212-814-0 02 1 1203-
33 BEARING; NEEDLE,3RD GEAR
(A) NSK 		1-09811-378-0 02 1 0611-1308
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-379-0 02 1 0611-
33 BEARING; NEEDLE,3RD GEAR
(B) NSK 		1-09811-422-0 02 1 0611-1311
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 0611-
36 GEAR; 3RD,MAINSHAFT
Z=41 		1-33253-704-1 01 1 0611-
39 HUB; CLU,LOW & 2ND 1-33261-277-0 01 1 0611-
42 SLEEVE 1-33262-222-0 01 1 0611-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 0611-
45 SPRING; BLOCK INSERT
(A) 		1-09580-578-0 03 1 0611-
45 SPRING; BLOCK INSERT
(B) 		1-09583-171-0 03 1 0611-
46 PLUNGER; DETENT,SYN 1-33263-020-0 03 1 0611-
50 GEAR; 2ND,MAINSHAFT
Z=43 		1-33251-411-1 01 1 0611-
56 BEARING; NEEDLE,1ST,REV
NSK 		1-09811-422-0 04 1 0611-1311
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-423-0 04 1 0611-
57 SLEEVE; REV 1-33262-209-1 01 1 0611-
58 HUB; CLU,REV 1-33261-286-1 01 1 0611-
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-081-2 01 1 0611-
66 RING; BLOCK,SYN
(A) 		1-33265-588-0 04 1 0611-1312
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 04 1 1401-
66 RING; BLOCK,SYN
(B) 		1-33265-590-0 04 1 0611-1307
66 RING; BLOCK,SYN
(B) 		8-98239-294-0 04 1 1308-1312
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 04 1 1401-
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 0611-
70 GEAR; 1ST,MAINSHAFT
Z=49 		1-33255-074-1 01 1 0611-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 0611-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 0611-
82 SHAFT; MAIN,TRANS
Z=37-40-28-19 		1-33231-327-2 01 1 0611-
120 SLEEVE 1-33262-229-0 01 1 0611-
144 BEARING; NEEDLE,INPUT GEAR
NSK 		1-09811-422-0 02 1 0611-1311
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 0611-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 0611-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 0611-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 0611-
216 INSERT; CLU HUB,2ND TO 3RD 1-33263-025-2 03 1 0611-
218 SPRING; INSERT,CLU HUB,2ND TO 3RD
D=6.2 		1-09580-091-1 03 1 0611-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1404-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 0611-1403
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1404-
231 PLUNGER
(A) 		1-33263-033-0 06 1 0611-1403
231 PLUNGER
(A) 		8-98273-831-0 06 1 1404-
231 PLUNGER
(B) 		1-33263-038-1 12 1 0611-
238 INSERT
(A) 		1-33263-036-0 06 1 0611-
238 INSERT
(B) 		1-33263-039-0 09 1 0611-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 0611-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 0611-
278 NUT; BRG 1-09449-080-0 01 1 0611-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 0611-
322 SLEEVE; SYN,LOW & 2ND 1-33262-225-0 01 1 0611-0707
322 SLEEVE; SYN,LOW & 2ND 1-33262-228-0 01 1 0708-
323 INSERT 1-33263-041-0 03 1 0611-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 0611-
324 HUB; CLU
(B) 		1-34371-017-0 01 1 0611-1307
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 0611-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 0611-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 0611-
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 0611-1307
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 0611-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 0611-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 0611-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 0611-
342 FLANGE; OUTPUT 1-37243-370-0 01 1 0611-
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0611-
357 RING 1-31349-044-0 04 1 0611-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 0611-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		1-09810-254-0 01 1 0611-0910
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 0911-
400 BEARING; OUTPUT SHAFT RR
NTN W/SNAP RING 		1-09810-255-0 01 1 0611-0910
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 0611-
437 PLATE; LOCK 1-34252-032-0 01 1 0611-
448 SYNCHRONIZER ASM; 1ST & 2ND 1-33265-616-0 02 1 0611-1307
448 SYNCHRONIZER ASM; 1ST & 2ND 8-98239-293-0 02 1 1308-1312
448 SYNCHRONIZER ASM; 1ST & 2ND 8-98239-908-1 02 1 1401-
467 COLLAR; SHAFT 1-33234-091-1 01 1 0611-
471 SHAFT; INPUT 1-33215-020-0 01 1 0611-1102
471 SHAFT; INPUT 8-98174-781-0 01 1 1103-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 0611-1407
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 0611-1407
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411-
482 GEAR; PRIMARY
Z=29 		1-33253-718-0 01 1 0611-
483 BEARING; TAPER
NTN 		1-09810-281-0 01 1 0611-1007
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1008-1504
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505-
484 PLATE; SETTING 1-33313-023-0 01 1 0611-
485 PIECE; GUIDE 1-33363-040-1 01 1 0611-
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 0611-1307
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401-
488 CLUTCH; DOG,RANGE
(A) 		1-34252-037-1 01 1 0611-0703
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 0704-1307
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308-
488 CLUTCH; DOG,RANGE
(B) 		1-34254-006-1 01 1 0611-1211
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1212-1307
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308-
489 WASHER; THRUST 1-09503-308-0 01 1 0611-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 0611-
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 0611-
492 BOLT; PLATE 1-09000-740-0 02 1 0611-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 0611-
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 0611-1307
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 0611-
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 0611-
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 0611-
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 0611-1307
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 0611-1307
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308-
498 CONE; SYN 1-33265-617-0 04 1 0611-1312
498 CONE; SYN 8-98239-910-0 04 1 1401-
612 GALLERY; OIL 8-98239-463-0 01 1 1308-
