Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

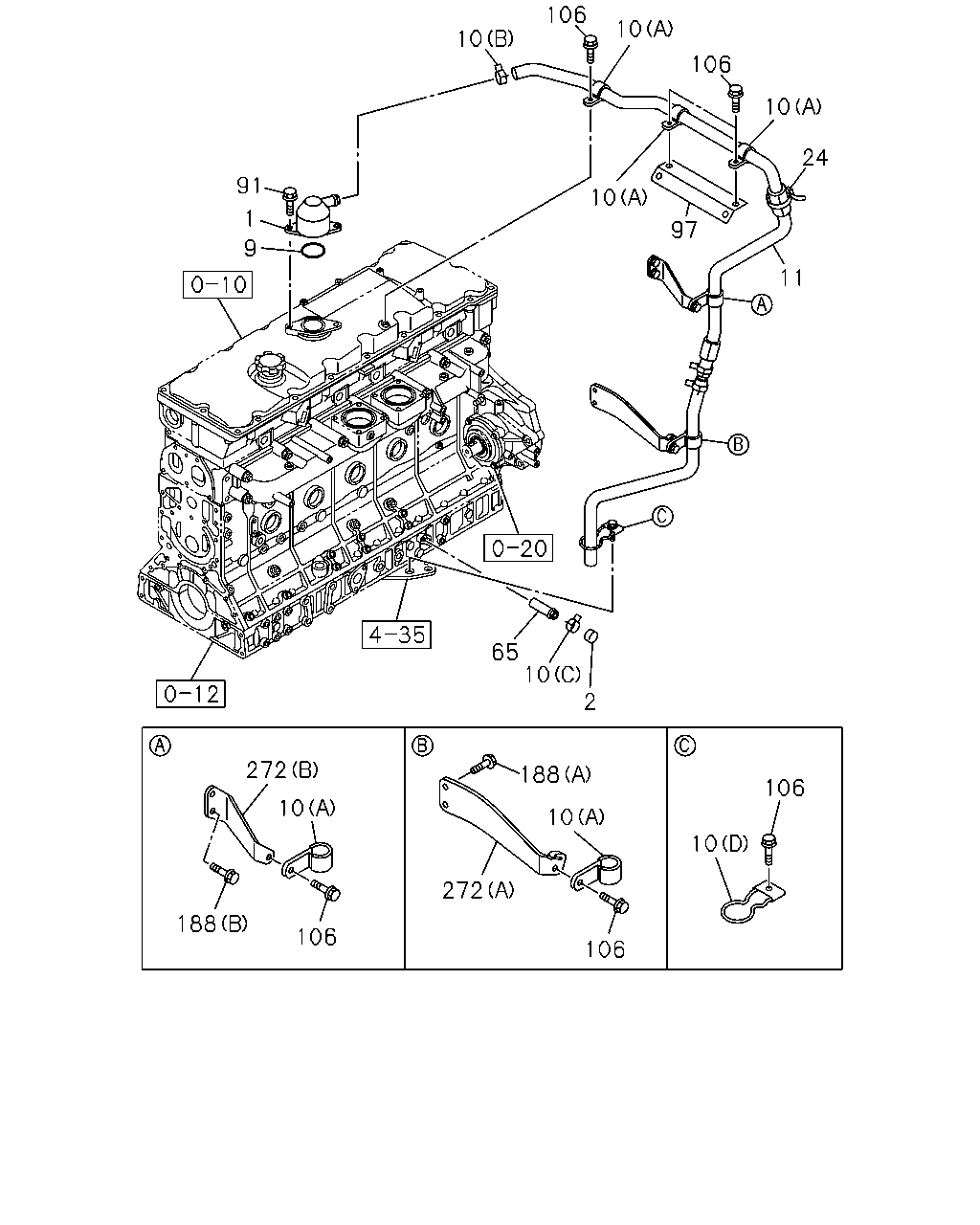

0-28 — VENTILATION SYSTEM
(#144597) — 17 parça
10
24
106
10
106
10
10
11
97
65
10
2
106
10
10
188
106
272
106
10
272
188
91
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1404-
2
CAP; AIR BREATHER BODY
ID=9.0 CHI
8-94207-303-0
01
1
1404-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1404-
10
CLIP; AIR BREATHER
(C) ID=14 CHI
1-09704-102-0
01
1
1404-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
01
1
1404-
10
CLIP; AIR BREATHER
(D) CHI
1-11369-115-0
01
1
1404-
10
CLIP; AIR BREATHER
(A) ID=29 L=30
8-98225-679-0
05
1
1404-
11
HOSE; RUBBER,AIR
8-98086-986-0
01
1
1404-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250 CHI
8-98216-430-0
01
1
1404-
65
PIPE; BREATHER
8-94176-713-0
01
1
1404-
91
BOLT; AIR BREATHER
M10X20 FLANGE CHI
0-28151-020-0
02
1
1404-
97
BRACKET; HOSE
8-97615-917-0
01
1
1404-
106
BOLT; DRAIN PIPE
M8X16 FLANGE CHI
0-28050-816-0
07
1
1404-
188
BOLT; BRKT
(A) M8X16 FLANGE CHI
0-28050-816-0
02
1
1404-
188
BOLT; BRKT
(B) M10X20 FLANGE CHI
0-28151-020-0
02
1
1404-
272
BRACKET; PIPE
(B)
8-97620-047-0
01
1
1404-
272
BRACKET; PIPE
(A)
8-98090-631-1
01
1
1404-
