Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#144591) — 45 parça
◀

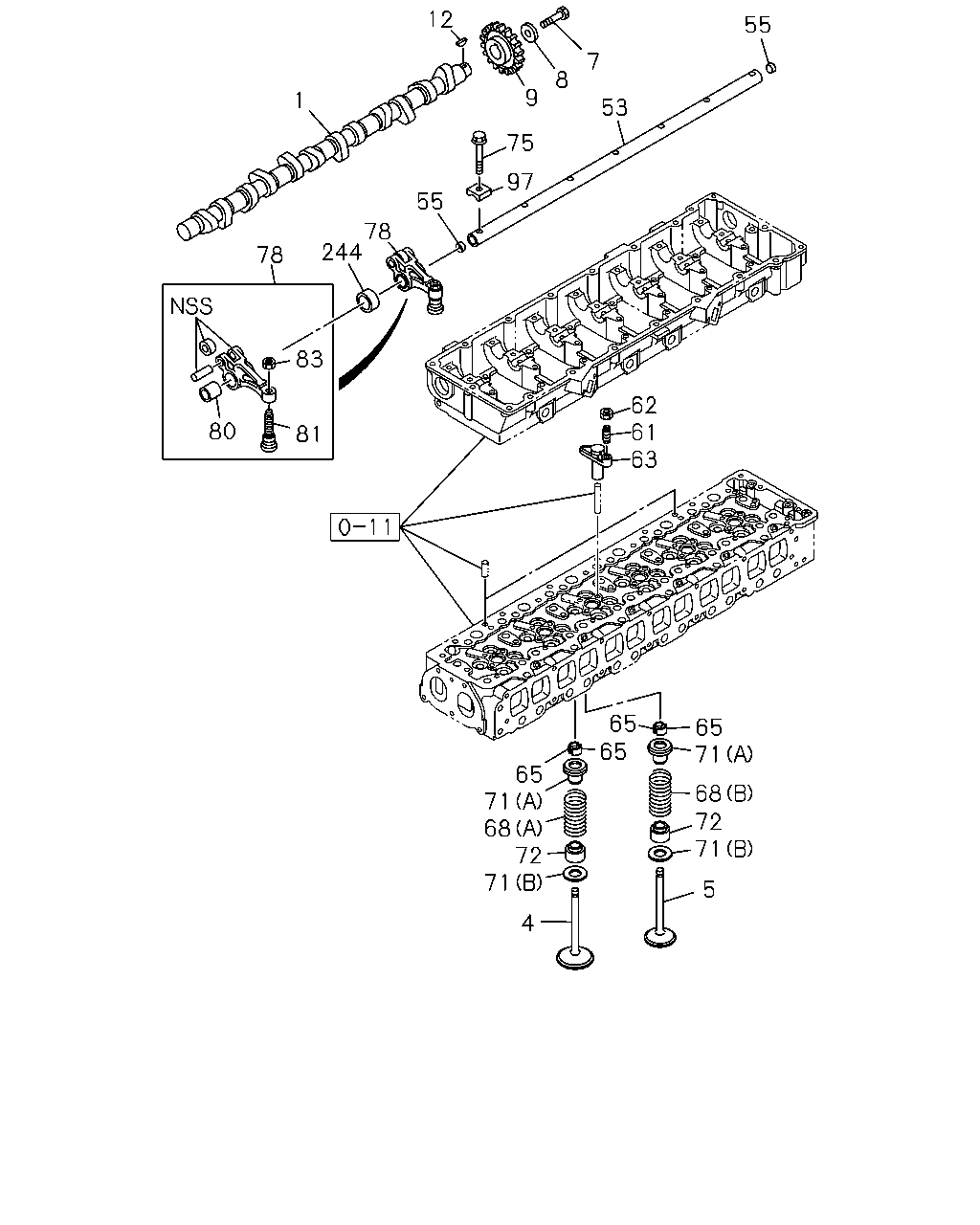

[014A] CAMSHAFT (28 parça)

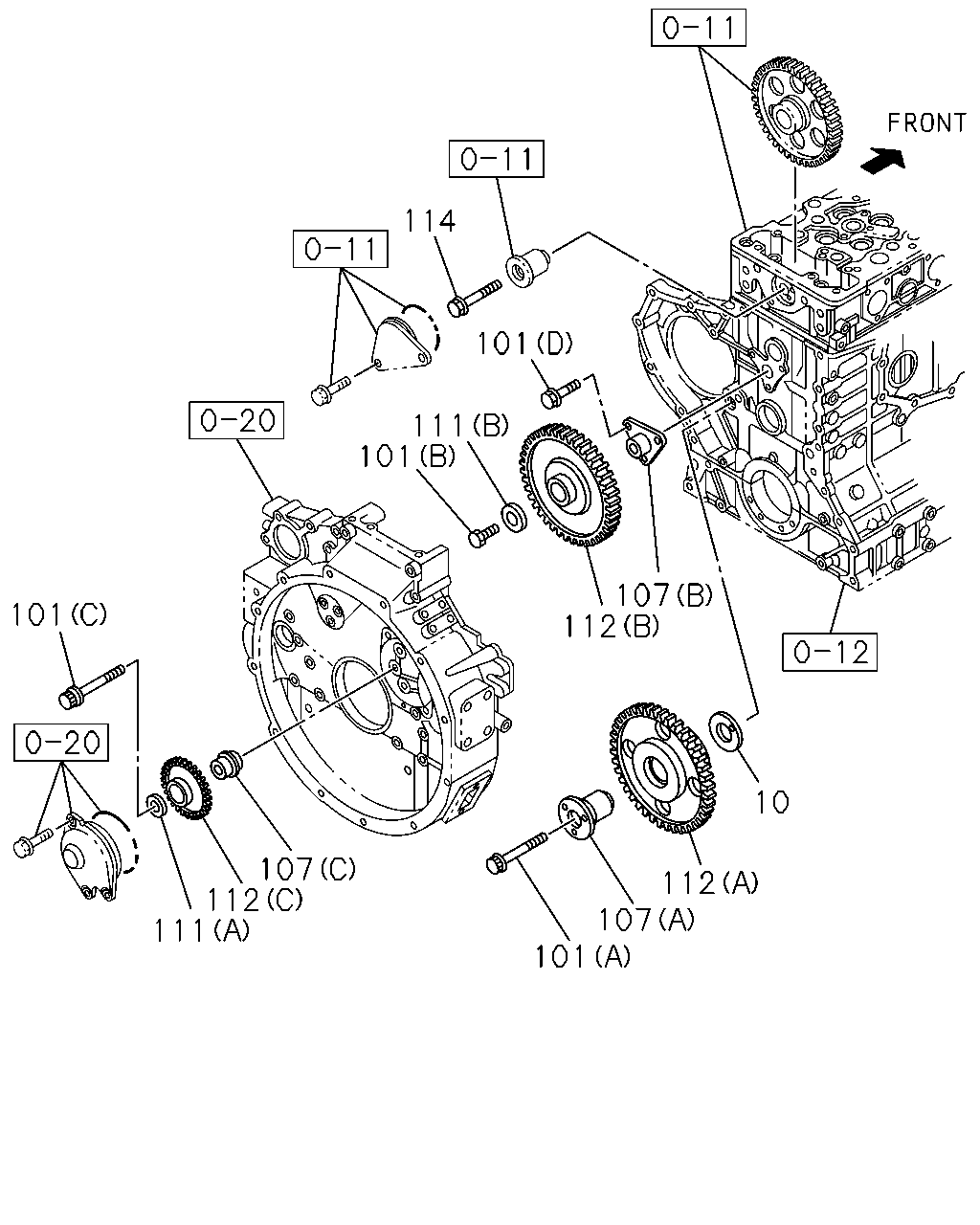

[014A] IDLE GEAR (17 parça)
▶
12
7
8
9
75
53
55
97
55
78
244
78
1
83
81
80
62
61
63
65
71
68
72
71
5
65
65
65
71
68
71
4
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97603-050-0
01
1
1404-1404
1
CAMSHAFT
8-97430-625-1
01
1
1404-
4
VALVE; INL
8-97388-643-3
12
1
1404-
5
VALVE; EXH
8-97388-644-0
12
1
1404-
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
1404-
8
WASHER; CM/SHF GEAR
ID=14.5 CHI
9-09851-850-3
01
1
1404-
9
GEAR; CM/SHF
8-98004-259-1
01
1
1404-1404
9
GEAR; CM/SHF
8-97430-607-1
01
1
1404-
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
1404-
53
SHAFT; ROCKER ARM
8-97603-189-1
01
1
1404-
55
PLUG; ROCKER SHAFT END
OD=18
9-11129-082-0
02
1
1404-
61
SCREW; ADJ,BRIDGE
M8X21 CHI
8-94394-803-0
12
1
1404-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
12
1
1404-
63
BRIDGE
8-98002-325-0
12
1
1404-
65
COLLAR; SPLIT
CHI
5-12565-004-0
48
1
1404-
68
SPRING; VLV
(A) INLET
8-97603-260-0
12
1
1404-
68
SPRING; VLV
(B) EXHAUST
8-97603-261-0
12
1
1404-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75 CHI
8-94390-783-2
24
1
1404-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0 CHI
8-94391-468-0
24
1
1404-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHI
8-97376-720-0
24
1
1404-
75
BOLT; BRKT
M12X70 FLANGE
0-28161-270-0
07
1
1404-
78
ARM; ROCKER
INLET
8-97603-184-1
06
1
1404-
78
ARM; ROCKER
EXHAUST
8-97603-185-1
06
1
1404-
80
BUSHING; ROCKER ARM
8-97603-147-1
12
1
1404-
81
SCREW; ADJ,ROCKER ARM
8-97376-718-0
12
1
1404-
83
NUT; ADJ SCREW,LK
M10 CHI
0-91110-510-0
12
1
1404-
97
BRACKET; ROCKER SHAFT,RR
1-12628-094-0
07
1
1404-
244
TUBE; DISTANCE
8-97603-267-0
06
1
1404-
114
101
111
101
112
107
10
112
107
101
107
112
111
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PLATE; THRUST
1-12535-021-1
01
1
1404-
101
BOLT; THRUST COLLAR
(B) M14X16
1-09000-284-0
01
1
1404-
101
BOLT; THRUST COLLAR
(A) M12X57
1-09070-127-0
01
1
1404-
101
BOLT; THRUST COLLAR
(C) M14X80 FLANGE
1-09070-138-0
01
1
1404-
101
BOLT; THRUST COLLAR
(D) M8X14
8-97073-782-0
03
1
1404-
107
SHAFT; IDLE GEAR
(A)
1-12531-099-0
01
1
1404-
107
SHAFT; IDLE GEAR
(C)
8-97605-123-0
01
1
1404-
107
SHAFT; IDLE GEAR
(B)
8-98258-379-0
01
1
1404-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=59
1-12535-030-1
01
1
1404-
111
COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 CHI
8-97209-728-2
01
1
1404-
112
GEAR; IDLE
(A) Z=69-27
8-98005-483-0
01
1
1404-1404
112
GEAR; IDLE
(A) Z=69
8-97430-603-0
01
1
1404-
112
GEAR; IDLE
(B) Z=62
8-98156-893-1
01
1
1404-1404
112
GEAR; IDLE
(B) Z=62
8-97430-604-0
01
1
1404-
112
GEAR; IDLE
(C) Z=45
8-98158-634-0
01
1
1404-1404
112
GEAR; IDLE
(C) Z=45
8-97430-605-0
01
1
1404-
114
BOLT; IDLE GEAR
M12X45 FLANGE
0-28161-245-0
01
1
1404-
