Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

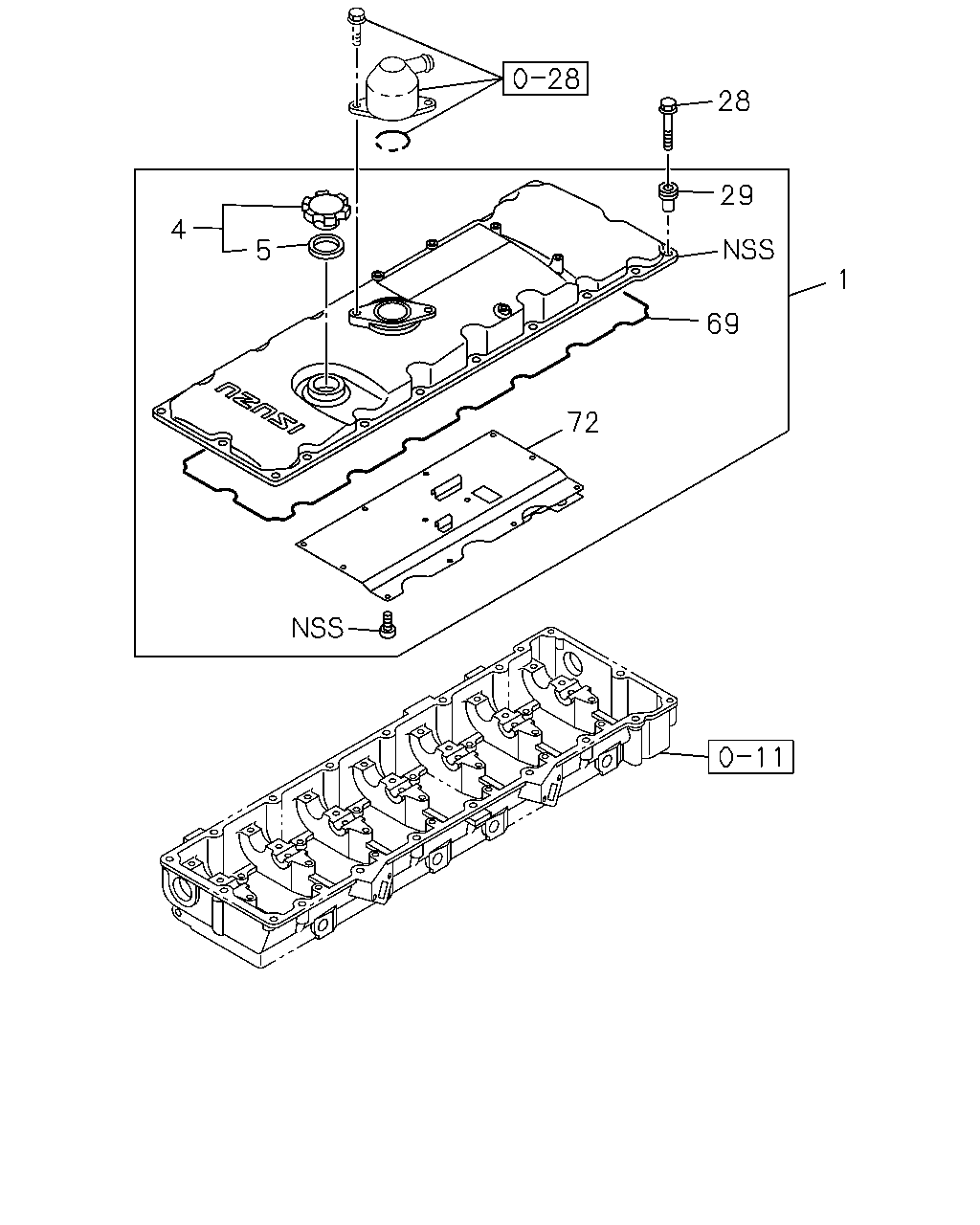

0-10 — CYLINDER HEAD COVER
(#144587) — 10 parça
28
29
1
69
72
4
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-97625-552-2
01
1
1404-1404
1
COVER; CYL HD
8-97431-170-2
01
1
1404-
4
CAP; OIL FILLER
CHI
8-94399-723-0
01
1
1404-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 CHI
8-94399-689-0
01
1
1404-
28
BOLT; HD COVER
M8X35 FLANGE CHI
0-28650-835-0
20
1
1404-
29
RUBBER; MTG,HD COVER
OD=22 CHI
8-94395-684-0
20
1
1404-1404
29
RUBBER; MTG,HD COVER
8-97431-243-0
20
1
1404-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-118-0
01
1
1404-1404
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-118-0
01
1
1404-
72
PLATE; INNER HD COVER
8-97431-128-1
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
