◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#144584) — 60 parça
çizim 432422
253 252
BalonParca AdiParca NoAdetTipApplied Date A B
252 BRACKET; EXTINGUISHER
CHI 		8-98105-271-0 01 1 1404- ● ●
253 BOLT; EXTINGUISHER
M8X20.5 W/LK&PL WASHER CHI 		8-94279-207-0 02 1 1404- ● ●

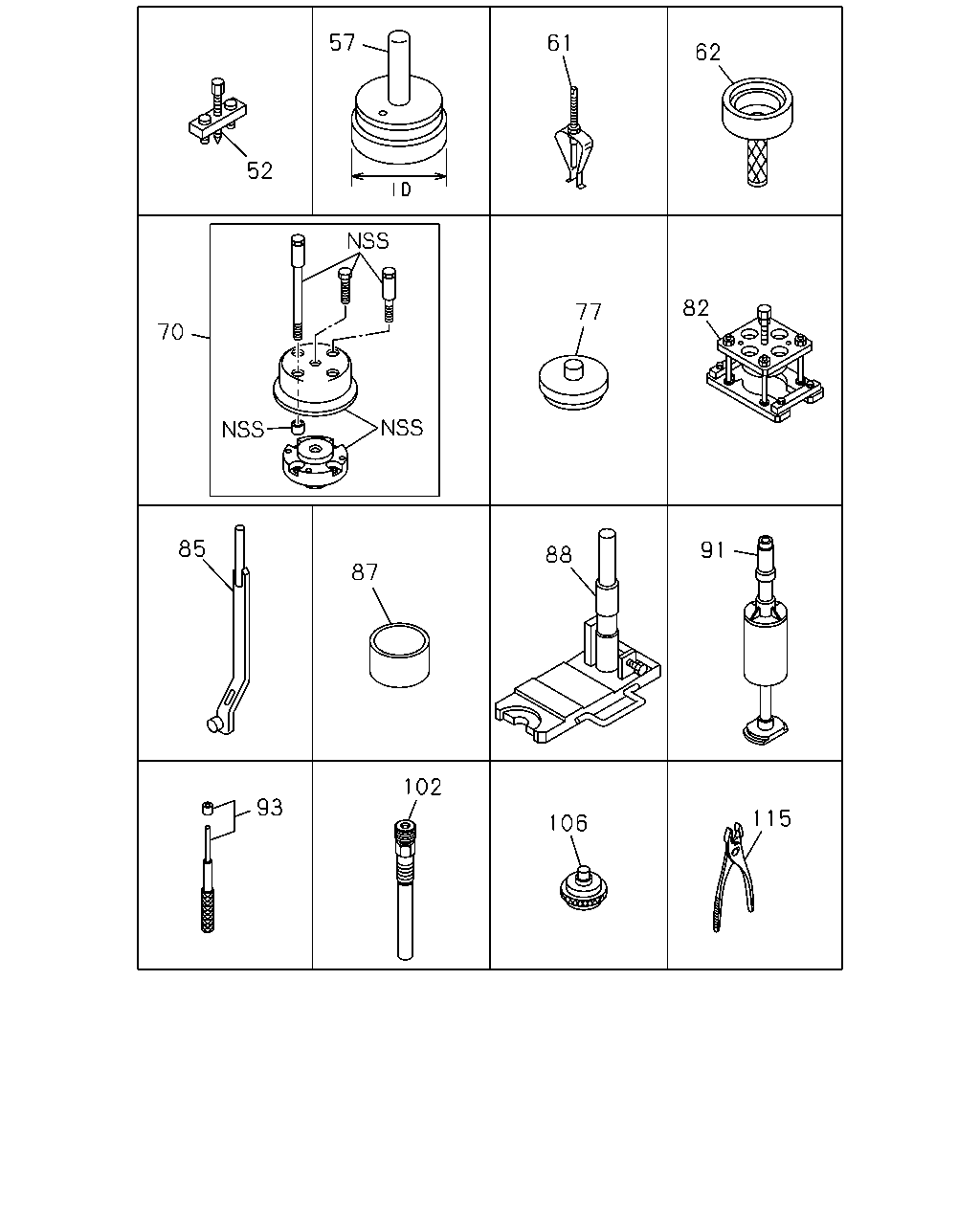

çizim 434127
52 57 61 62 70 77 82 85 87 88 91 115 106 102 93
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 1404- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 1404- ● ●
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 1404- ● ●
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 1404- ● ●
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 1404- ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 AR 1 1404- ● ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 1404- ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 1404- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 1404- ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 1404- ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 1404- ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 1404- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 1404- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 1404- ● ●
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 1404- ● ●
115 PLIER
CHI 		5-85171-002-0 01 1 1404- ● ●
çizim 434190
124 125 126 140 129 127 143 153 154
BalonParca AdiParca NoAdetTipApplied Date A B
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1404- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1404- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1404- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1404- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1404- ● ●
140 REMOVER; WEAR RING 1-85210-053-0 01 1 1404- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1404- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1404- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1404- ● ●
çizim 434260
160 171 172 169 192 189
BalonParca AdiParca NoAdetTipApplied Date A B
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1404- ● ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1404- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1404- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1404- ● ●
189 TUBE; AIR BREATHER
L=460 CHI 		9-85291-414-0 01 1 1404- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1404- ● ●
çizim 434263
193 208 227 230 237 231 453
BalonParca AdiParca NoAdetTipApplied Date A B
193 JACK ASM
15TON CHI 		1-85510-019-2 01 1 1404- ● ●
208 HANDLE; JACK
L=600 CHI 		8-98181-437-0 01 1 1404- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1404- ● ●
230 PUMP; GREASE
CHI 		1-85556-007-5 01 1 1404- ● ●
231 HOSE; FLEX,GREASE PUMP
CHI 		8-98228-834-0 01 1 1404- ● ●
237 BAG; TOOL
CHI 		8-97130-902-1 01 1 1404- ● ●
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 1404- ● ●
çizim 434499
1 4 43 42 31 32 33 34 35 30 9 13 12 17 363 20 21 22 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> CHI 		9-23110-018-0 01 1 1404- ●
4 WRENCH KIT; SOCKET
CHI 		1-85000-491-0 01 1 1404- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 CHI 		1-85111-033-1 01 1 1404- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 CHI 		1-85111-033-1 01 1 1404- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 CHI 		1-85116-011-0 01 1 1404- ● ●
13 WRENCH; MONKEY
L=247 CHI 		1-85117-006-0 01 1 1404- ● ●
17 HAMMER
CHI 		9-85121-406-0 01 1 1404- ● ●
20 WRENCH; 10X12
10X12 CHI 		0-95902-510-0 01 1 1404- ● ●
21 WRENCH; 14X17
14X17 CHI 		0-95902-514-0 01 1 1404- ● ●
22 WRENCH; 19X22
19X22 CHI 		0-95902-519-0 01 1 1404- ● ●
23 WRENCH; 24X27
24X27 CHI 		0-95902-524-0 01 1 1404- ● ●
30 BOX; SOCKET WRENCH
CHI 		1-85000-492-0 01 1 1404- ● ●
31 WRENCH; 12
CHI 		1-85000-495-0 01 1 1404- ● ●
32 WRENCH; 14
CHI 		1-85000-496-0 01 1 1404- ● ●
33 WRENCH; 17
CHI 		1-85000-497-0 01 1 1404- ● ●
34 WRENCH; 19
CHI 		1-85000-498-0 01 1 1404- ● ●
35 WRENCH; 22
CHI 		1-85000-499-0 01 1 1404- ● ●
42 HANDLE; SLIDING
CHI 		1-85000-500-0 01 1 1404- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
CHI 		1-85000-501-0 01 1 1404- ● ●
363 WRENCH; OPEN END 8X10
8X10 CHI 		0-95902-508-0 01 1 1404- ● ●
