◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11600 - FXZ/GXZ(LHD)CHINA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#144581) — 27 parça

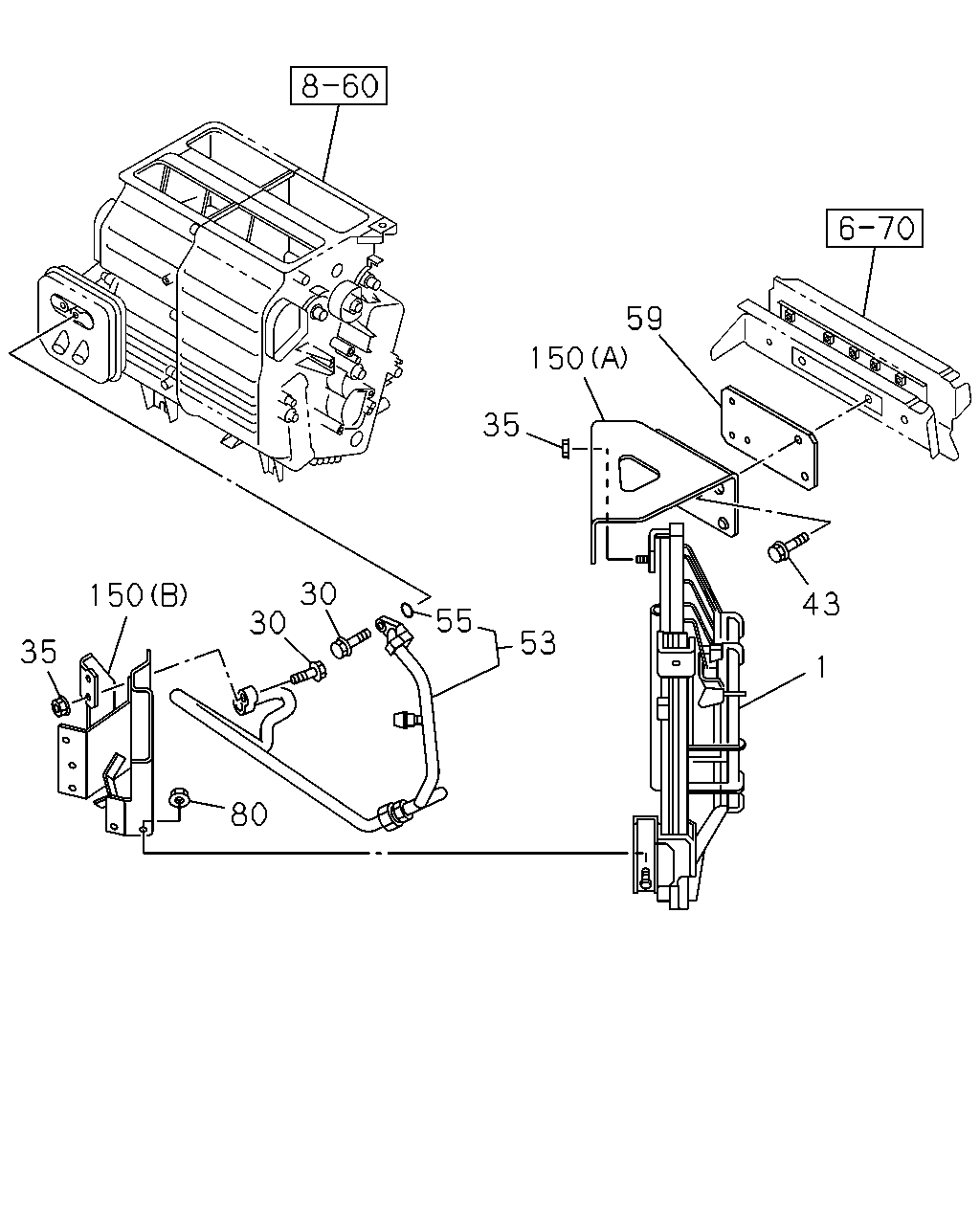

çizim 434326
59 150 43 1 35 53 55 30 30 80 150 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-97431-258-0 01 1 1404- ● ●
30 BOLT; CONDENSER,A/C
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
43 BOLT; BRKT,CONDENSER
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
53 PIPE; CONDENSER
CHI 		8-98228-346-0 01 1 1404- ● ●
55 GASKET; PIPE
ID=11.7 CHI 		8-97095-907-0 01 1 1404- ● ●
59 BRACKET; CONDENSER
CHI 		8-98228-353-0 01 1 1404- ● ●
80 NUT; CONDENSER BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ● ●
150 BRACKET; CONDENSER,MTG
(A) CHI 		8-98228-355-0 01 1 1404- ● ●
150 BRACKET; CONDENSER,MTG
(B) CHI 		8-98228-356-0 01 1 1404- ● ●

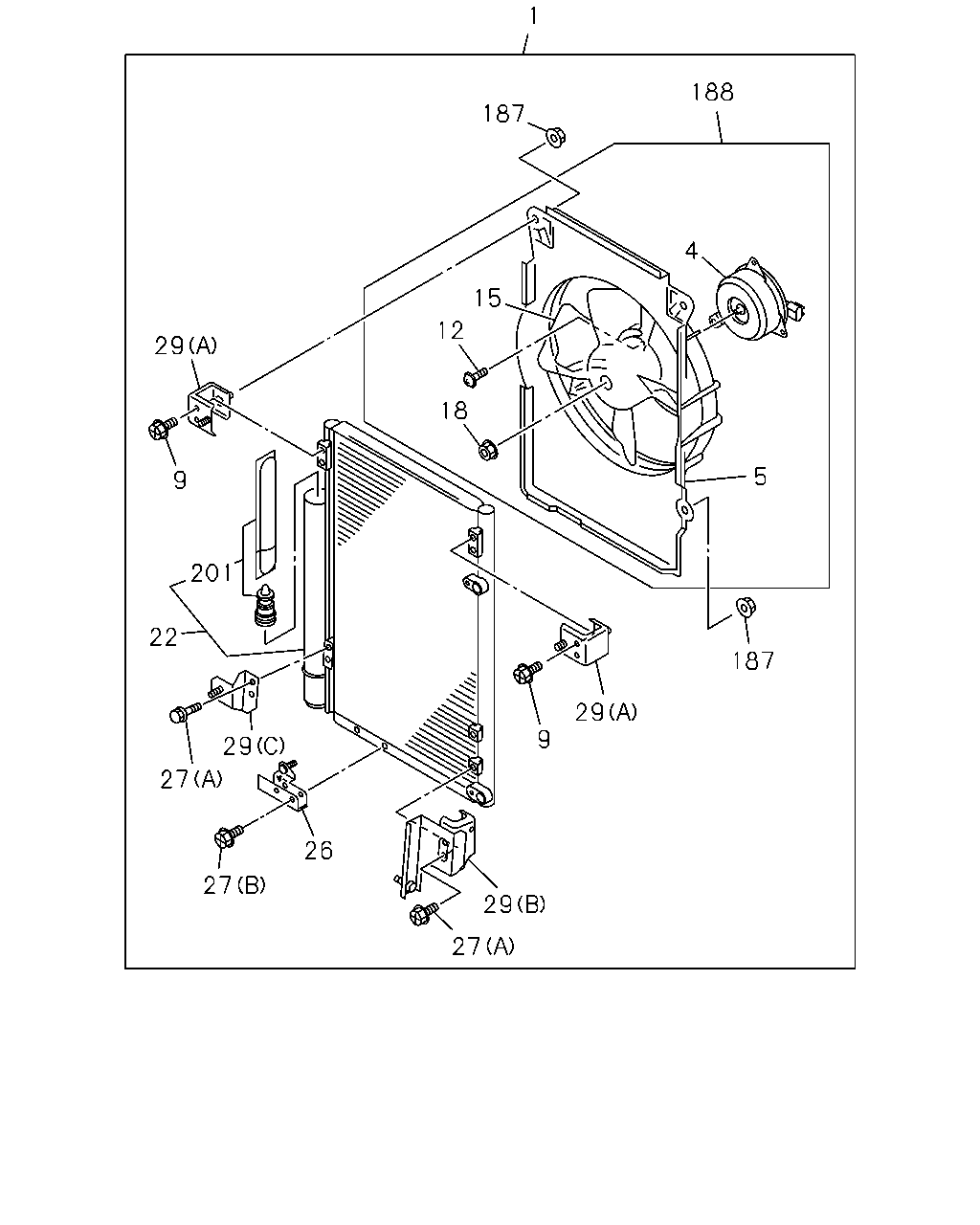

çizim 434472
1 188 187 15 12 18 29 9 201 22 27 29 26 27 29 27 9 29 187 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-97431-258-0 01 1 1404- ● ●
4 MOTOR ASM; FAN
CHI CHI 		8-98116-586-0 01 1 1404- ● ●
5 SHROUD; FAN MOTOR
CHI 		8-98076-093-0 01 1 1404- ● ●
9 BOLT; BRKT
M6X14 CHI 		1-83539-382-0 04 1 1404- ● ●
12 BOLT; FAN MOTOR
CHI 		8-97180-269-0 03 1 1404- ● ●
15 FAN; MOTOR
CHI 		8-98076-092-0 01 1 1404- ● ●
18 NUT; FAN,CENTER
M5 FLANGE CHI 		8-94157-075-0 01 1 1404- ● ●
22 CONDENSER ASM; A/C
CHI 		8-98092-767-0 01 1 1404- ● ●
26 BRACKET; LOW
CHI 		8-98091-901-0 01 1 1404- ● ●
27 BOLT; BRKT,LOW SIDE
(A) M6X14 CHI 		1-83539-382-0 04 1 1404- ● ●
27 BOLT; BRKT,LOW SIDE
(B) M5X25 CHI 		8-97178-770-0 02 1 1404- ● ●
29 BRACKET; SIDE
(A) CHI 		8-98065-914-0 02 1 1404- ● ●
29 BRACKET; SIDE
(B) CHI 		8-98092-769-0 01 1 1404- ● ●
29 BRACKET; SIDE
(C) CHI 		8-98091-900-0 01 1 1404- ● ●
187 NUT; SHROUD
M6 CHI 		1-83539-354-0 04 1 1404- ● ●
188 BLOWER ASM; SHROUD
CHI 		8-98116-590-1 01 1 1404- ● ●
201 DRYER ASM; CONDENSER
CHI 		1-83535-097-0 01 1 1404- ● ●
