Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

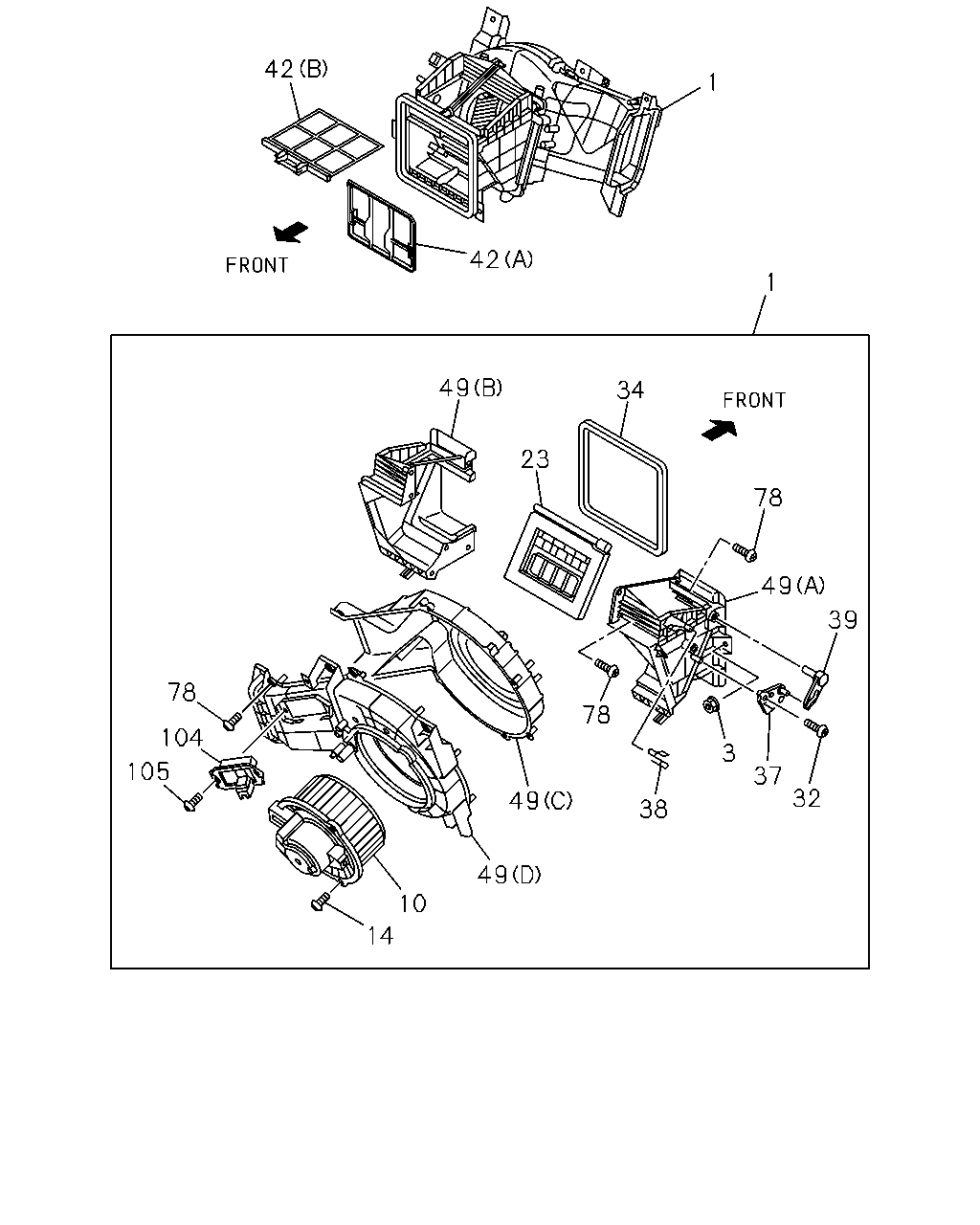

8-73 — BLOWER UNIT
(#144580) — 19 parça
Tümü
A - FGZ6MX
B - GGZ6MX
1
1
78
49
39
32
37
3
38
78
49
49
10
14
104
105
78
49
34
23
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BLOWER ASM
8-97431-260-0
01
1
1404-
●
●
3
NUT; CASE
M6 CHI
1-83539-354-0
02
1
1404-
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
CHI
8-98183-926-0
01
1
1404-
●
●
14
SCREW; COVER TO CASE
M5X16 CHI
8-98047-448-0
03
1
1404-
●
●
23
SHUTTER; BLOWER UNIT
CHI
8-98047-761-0
01
1
1404-
●
●
32
SCREW; LEVER
M4X16 CHI
8-98047-416-0
01
1
1404-
●
●
34
LINING; BLOWER UNIT
CHI
8-98096-453-0
01
1
1404-
●
●
37
LEVER; MODE LEVER
CHI
8-98047-453-0
01
1
1404-
●
●
38
CLIP; BLOWER UNIT
CHI
8-98047-417-0
01
1
1404-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
CHI
8-98047-454-0
01
1
1404-
●
●
42
FILTER; BLOWER UNIT
(B)
8-97431-266-0
01
1
1404-
●
●
42
FILTER; BLOWER UNIT
(A)
8-97431-267-0
01
1
1404-
●
●
49
CASE; BLOWER UNIT
(A) CHI
8-98077-416-0
01
1
1404-
●
●
49
CASE; BLOWER UNIT
(B) CHI
8-98077-415-0
01
1
1404-
●
●
49
CASE; BLOWER UNIT
(C) CHI
8-98047-445-0
01
1
1404-
●
●
49
CASE; BLOWER UNIT
(D) CHI
8-98047-444-0
01
1
1404-
●
●
78
SCREW; CASE TO CASE
M4X16 TAPPING CHI
8-97957-708-0
16
1
1404-
●
●
104
RESISTOR; BLOWER UNIT
CHI
8-98141-448-0
01
1
1404-
●
●
105
SCREW; RESISTOR
M4X16 TAPPING CHI
8-97957-708-0
02
1
1404-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
