2-20 — MANUAL TRANSMISSION ASM AND CASE (#14458) — 80 parça

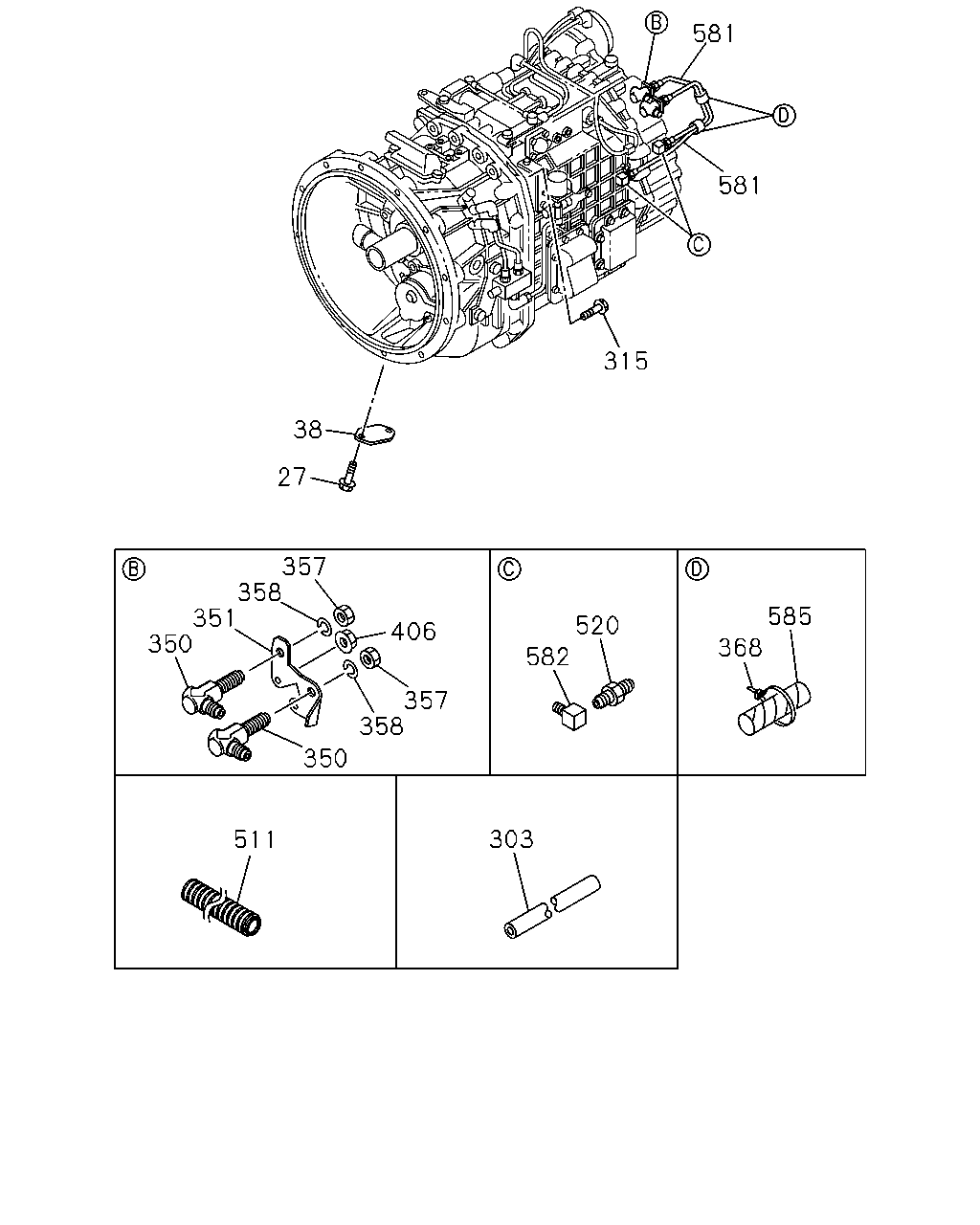

581 581 315 38 27 357 358 351 350 585 520 406 368 582 357 358 350 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0611-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0611-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0611-
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0611-
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0611-
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0611-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0611-
351	BRACKET; UNION,FLEX HOSE	1-46147-308-1	01	1	0611-
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0611-
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0611-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0611-
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0611-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0611-
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0611-
581	HOSE; OIL COOLER L=520	1-09365-144-0	01	1	0611-
581	HOSE; OIL COOLER L=650	1-09365-145-0	01	1	0611-
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0611-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0611-

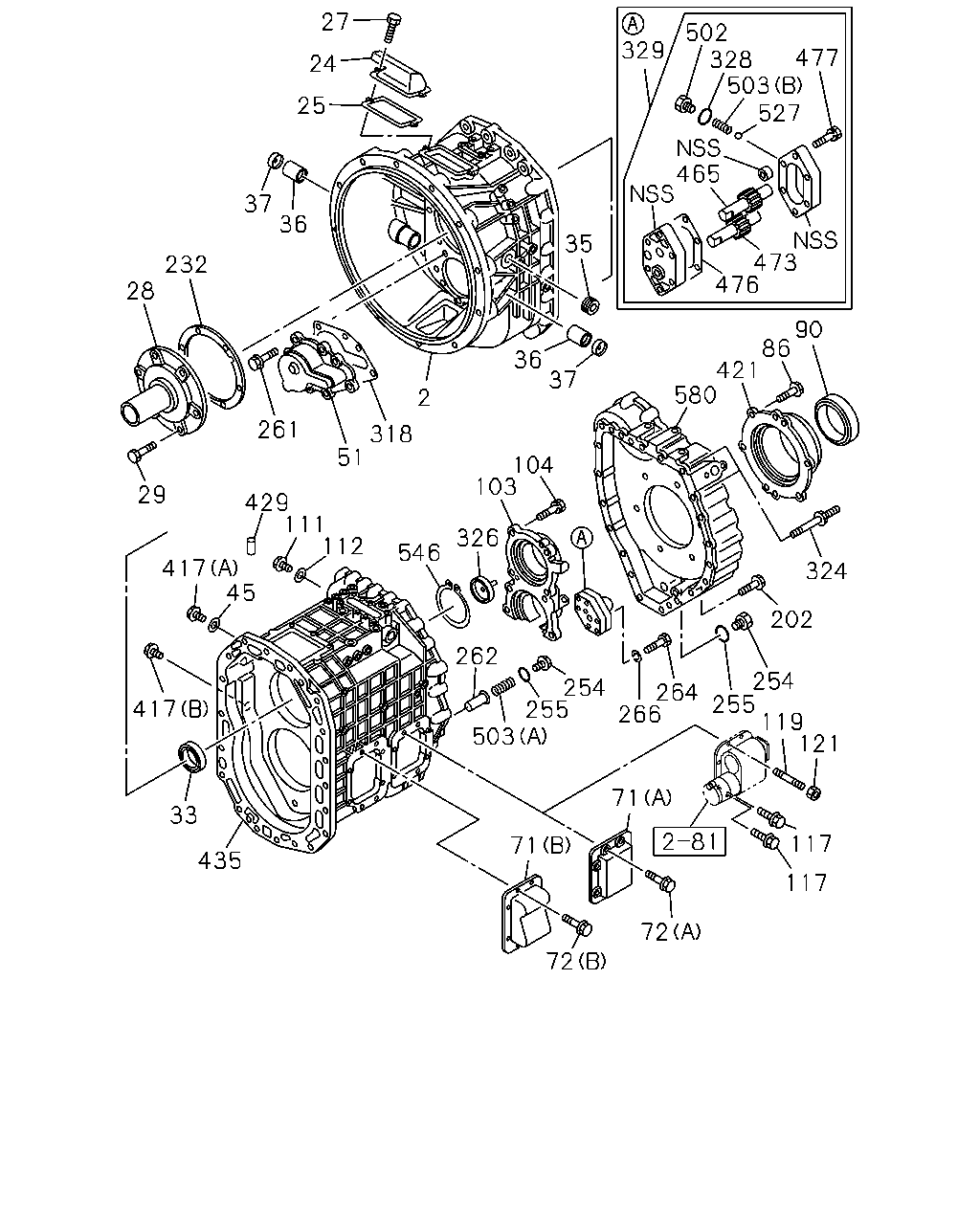

27 329 502 503 527 24 25 465 37 36 473 476 35 232 28 90 86 421 580 36 37 2 261 318 51 104 103 29 429 111 112 326 546 417 45 324 202 417 262 254 255 119 121 254 255 503 264 266 71 33 71 117 435 117 72 72 328 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98052-280-0	01	1	0611-1003
2	HOUSING; CLU	8-98168-737-0	01	1	1004-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0611-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0611-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0611-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0611-
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0611-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0611-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0611-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0611-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0611-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0611-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0611-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0611-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0611-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0611-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	0611-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0611-
103	RETAINER; BRG	1-33151-063-0	01	1	0611-0910
103	RETAINER; BRG	1-33151-061-0	01	1	0911-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0611-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0611-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	0611-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0611-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	0611-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0611-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0611-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0611-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0611-
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	0611-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0611-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0611-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0611-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0611-
318	GASKET; COVER	1-34142-034-0	01	1	0611-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0611-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0611-
328	GASKET; PLUG	1-34159-100-0	01	1	0611-
329	PUMP ASM; OIL	1-34150-117-0	01	1	0611-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0611-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0611-
421	COVER; RR,TRANS	1-33131-238-0	01	1	0611-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0611-
429	PIN; STRAIGHT OD=12 L=32	9-08161-232-0	01	1	0611-
435	CASE; TRANS	1-33111-361-1	01	1	0611-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0611-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0611-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0611-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0611-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0611-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0611-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0611-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0611-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0611-
580	CASE; RANGE	1-33115-051-2	01	1	0611-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

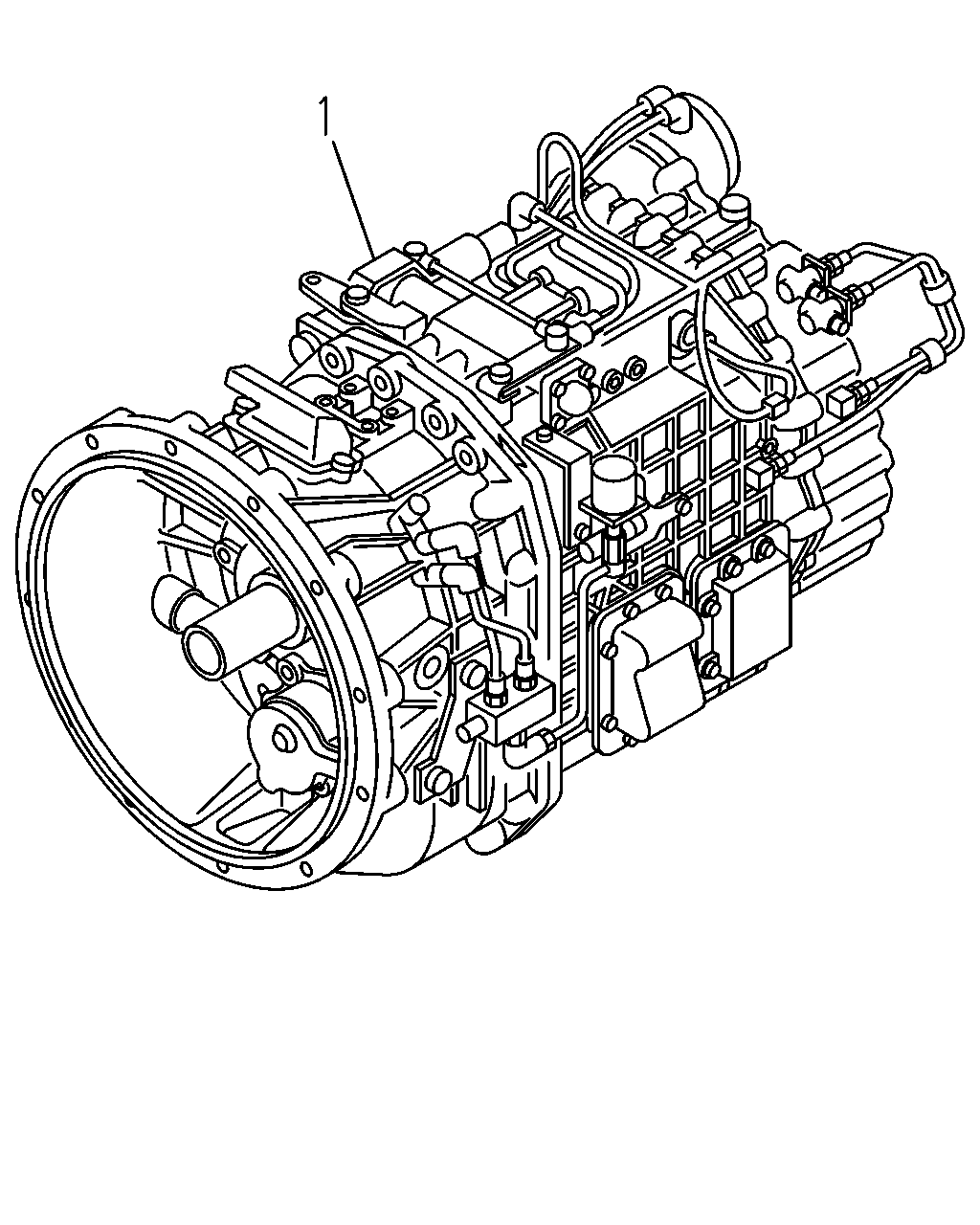

	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	0611-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-987-0	01	1	0611-
